Small square black mini PC barebone kit with VESA mount

ASUS

ASUS NUC13ANKH5 Slim Barebone Kit Core i5-13420H DDR4 barebone mini PC

SKU CH-MFV3-Q3EKA MPN NUC13ANKH5

A compact barebone kit with a 13th Gen Core i5-13420H, dual-channel DDR4 support up to 64 GB, dual M.2 NVMe slots, Thunderbolt 4, 2.5 GbE, Wi-Fi 6E and Bluetooth 5.3.

  • Form FactorSlim
  • CPU TypeIntel Core i5-13420H
  • CPU Cores8-Core (4P+4E)
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

Option Barebone

  • 13th Gen Intel Core i5-13420H with 8 cores for responsive performance
  • Ultrasmall 4x4 form factor with VESA mount for flexible placement behind monitors
  • 5Gbps Ethernet plus Wi-Fi 6E AX211 and Bluetooth 5.3 for fast wired and wireless links
  • Dual Thunderbolt 4 and HDMI outputs drive up to quad 4K 60Hz or single 8K displays
  • Qualified 24/7 operation with Kensington lock slot and cable locking arm for security

Purpose-built slim barebone

The ASUS NUC13ANKH5 is a 4x4 mini PC barebone kit built around a 13th Gen Intel Core i5-13420H processor with eight cores and integrated Intel UHD Graphics. It targets businesses and integrators who need a compact, VESA-mountable platform for digital signage, kiosks or office workloads. Buyers must supply their own DDR4 SO-DIMMs and NVMe storage to complete the system.

Sustained-load behaviour

Qualified for 24/7 operation, the chassis is designed to dissipate heat from the 13420H during continuous workloads without throttling in typical commercial scenarios. The included Kensington lock slot and cable locking arm add physical security for unattended deployments. No memory or storage is pre-installed, so thermal characteristics will vary with the chosen components.

Interface practical limits

Dual Thunderbolt 4 Type-C ports enable up to one 8K or four 4K@60Hz displays, while the Intel i226V controller provides 2.5Gbps wired Ethernet. Wireless connectivity uses Wi-Fi 6E AX211 and Bluetooth 5.3. Storage expansion is limited to one M.2 2280 PCIe Gen4x4 slot and one M.2 2242 PCIe Gen3 slot, both keyed for NVMe.

Highlights

  • 13th Gen Intel Core i5-13420H with 8 cores for responsive performance
  • Ultrasmall 4x4 form factor with VESA mount for flexible placement behind monitors
  • 5Gbps Ethernet plus Wi-Fi 6E AX211 and Bluetooth 5.3 for fast wired and wireless links
  • Dual Thunderbolt 4 and HDMI outputs drive up to quad 4K 60Hz or single 8K displays
  • Qualified 24/7 operation with Kensington lock slot and cable locking arm for security

Specifications

BrandASUS
SeriesNUC 13 Pro
ModelNUC13ANKH5
Form FactorSlim
CPU TypeIntel Core i5-13420H
CPU Cores8-Core (4P+4E)
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot (key M)
1 x M.2 2242 PCIe Gen3 NVMe SSD Slot (key B)
Integrated GraphicsIntel UHD Graphics
Onboard AudioRealtek ALC269
Channel2 Channel
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211 (Gig+), 2x2
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
2.5" Internal Bays1 x 2.5-inch SATA 6Gb/s support for HDD (supports up to 4TB)

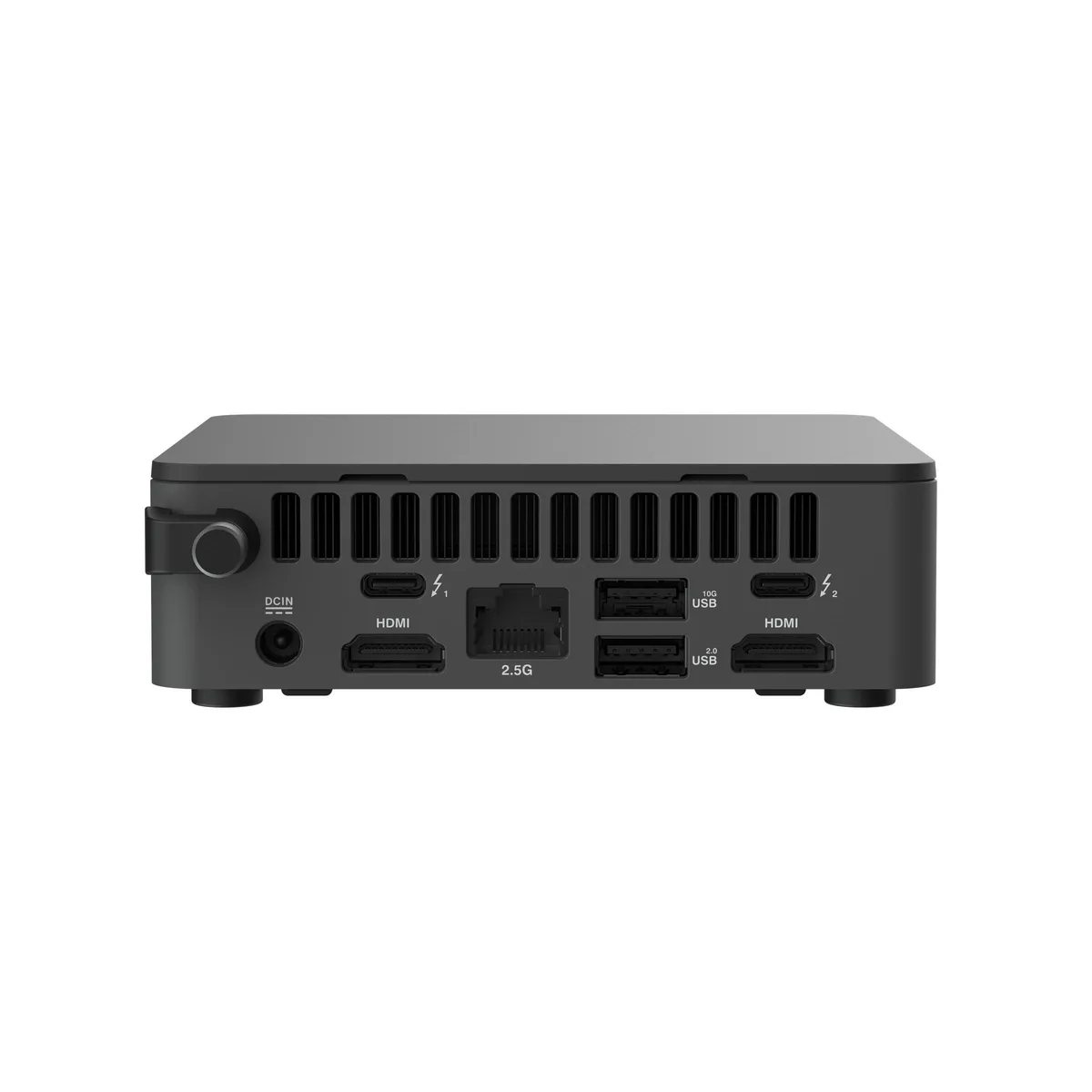

Front USB1 x USB 3.2 Gen2 Type-A (with BC1.2 5V/0.9A, 10Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x 3.5mm Audio Jack (Line out/Mic in/Headphone out)
HDMI2 x HDMI 2.1 (with TMDS, up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Kensington Lock Slot
1 x Cable Locking Arm
1 x DC-in
Power Supply120W Power Adapter
Dimensions4.61" x 4.41" x 2.13"
Weight1.3 lbs
PackagingVESA Mount & Screws / AC Power Adapter / Power Cord, US Cord for USA

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the Core i5-13420H get when the NUC13ANKH5 runs 24/7?

The NUC13ANKH5 is qualified for 24/7 operation, meaning its cooling solution is designed to handle continuous load from the 8-core Core i5-13420H without throttling or excessive noise in typical office ambient temperatures.

Which DDR4 SO-DIMMs and M.2 NVMe drives do I need to buy separately to complete this barebone kit?

You must add two 260-pin DDR4 3200 SO-DIMMs up to 64 GB total and at least one M.2 2280 PCIe Gen4 NVMe SSD for the primary slot; a second M.2 2242 PCIe Gen3 NVMe SSD is optional for extra storage.

Will my older 4K 60 Hz monitors work with the Thunderbolt 4 and HDMI ports on this NUC?

Yes, the dual Thunderbolt 4 Type-C ports and dual HDMI outputs support up to quad 4K at 60 Hz, so existing 4K 60 Hz displays connect directly without adapters.
