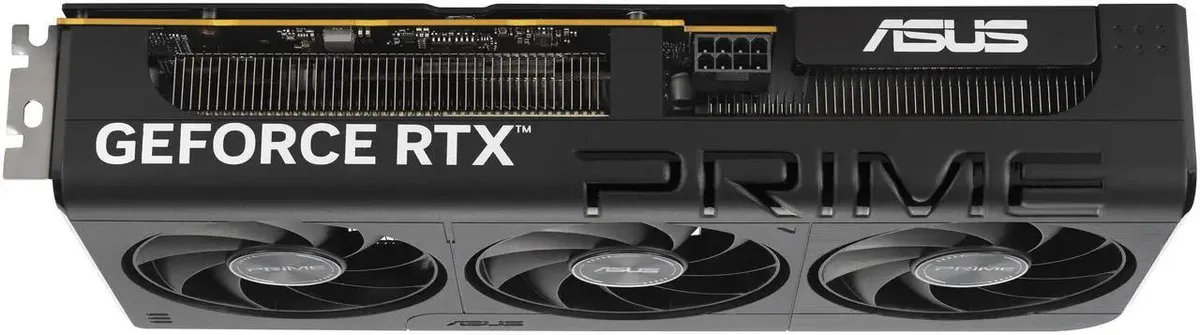

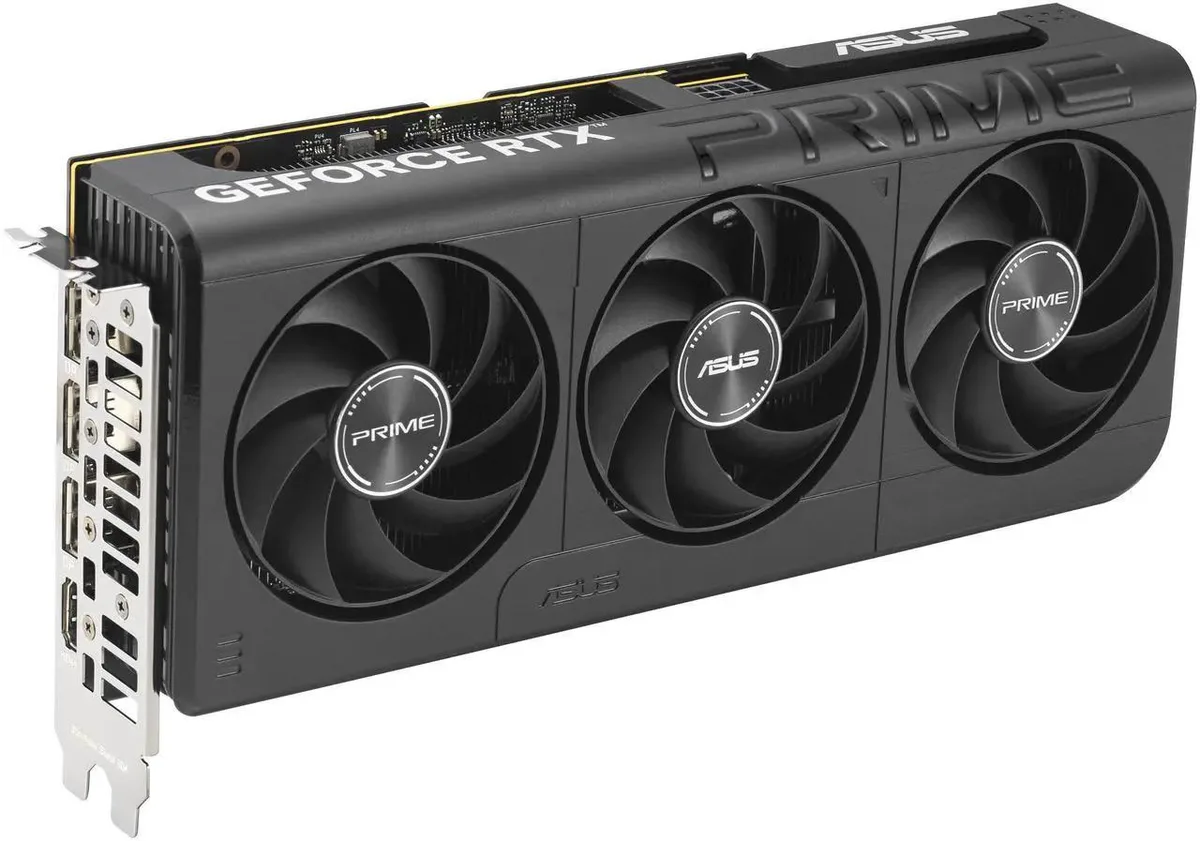

Black ASUS PRIME graphics card with triple fan cooler and metal backplate

ASUS

ASUS PRIME GeForce RTX 5060 Ti 16GB GDDR7 Graphics Card PRIME-RTX5060TI-O16G

SKU CH-WJ5K-C7N0Y

16GB GDDR7 graphics card with 4608 CUDA cores, PCIe 5.0 x8 and DLSS 4.0 for 1440p gaming and creative work

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • CUDA Cores4608

model PRIME OC

  • 16 GB GDDR7 memory drives high-resolution textures at 28 Gbps
  • 128-bit memory bus balances bandwidth and power efficiency
  • 4,608 CUDA cores accelerate rendering and compute workloads
  • PCIe 5.0 x8 interface enables fast data transfer to the CPU
  • HDMI 2.1b and three DisplayPort 2.1b outputs support four displays

16 GB GDDR7 for 1440p gaming

The ASUS PRIME GeForce RTX 5060 Ti equips 16 GB of GDDR7 memory on a 128-bit bus running at 28 Gbps. The Blackwell GPU provides 4608 CUDA cores for 1440p gaming and content creation. A PCI Express 5.0 x8 link connects the card to the platform. Four display outputs include one HDMI 2.1b and three DisplayPort 2.1b connectors.

Thermals and power in daily use

The PRIME dual-fan cooler keeps temperatures controlled during typical gaming sessions. Fan speeds remain low at idle and rise gradually under load. The 128-bit memory interface and Blackwell architecture help limit total board power during normal operation. Acoustic output stays unobtrusive for most desktop environments.

Upgrade path from 8 GB cards

Moving from an 8 GB model removes VRAM bottlenecks in modern titles and creative workloads. The 16 GB buffer and 28 Gbps memory speed benefit texture-heavy scenes at 1440p. DLSS 4.0 support adds frame-generation capabilities on compatible drivers. The jump makes sense when current memory limits cause stutter or reduced texture quality.

Highlights

  • 16 GB GDDR7 memory drives high-resolution textures at 28 Gbps
  • 128-bit memory bus balances bandwidth and power efficiency
  • 4,608 CUDA cores accelerate rendering and compute workloads
  • PCIe 5.0 x8 interface enables fast data transfer to the CPU
  • HDMI 2.1b and three DisplayPort 2.1b outputs support four displays

Specifications

BrandASUS
SeriesPRIME
ModelPRIME-RTX5060TI-O16G
Part Number90YV0MH2-M0AA00
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector8-Pin
Features• AI Performance: 758 AI TOPS
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Axial-tech fans feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
• 2.5-slot design allows for greater build compatibility while maintaining cooling performance
• Dual-ball fan bearings last up to twice as long as standard sleeve bearings
• 0dB technology lets you enjoy light gaming in relative silence
• Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles
• Auto-Extreme man
Form FactorATX
Max GPU Length304 mm
Card Dimensions (L x H)304 x 120 x 50 mm
11.96 x 4.72 x 1.97 inch
Slot Width2.5 Slots

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the ASUS PRIME GeForce RTX 5060 Ti into a PCI Express 5.0 x8 slot and what step is often missed?

Align the card with the PCI Express 5.0 x8 slot, press firmly until the retention latch clicks, then connect the required power cables from the PSU; the step often missed is securing the rear bracket screw to prevent sag.

What maintenance will the ASUS PRIME GeForce RTX 5060 Ti 16GB GDDR7 need over time?

Periodically remove dust from the heatsink and fans using compressed air to maintain airflow; the 16GB GDDR7 memory and 4608 CUDA cores have no user-serviceable parts and do not require scheduled replacement.

What limit appears first on the ASUS PRIME GeForce RTX 5060 Ti during sustained heavy workloads?

The 128-bit memory interface running at 28 Gbps can become the bandwidth bottleneck before the GPU compute units reach full utilisation in memory-intensive tasks.
