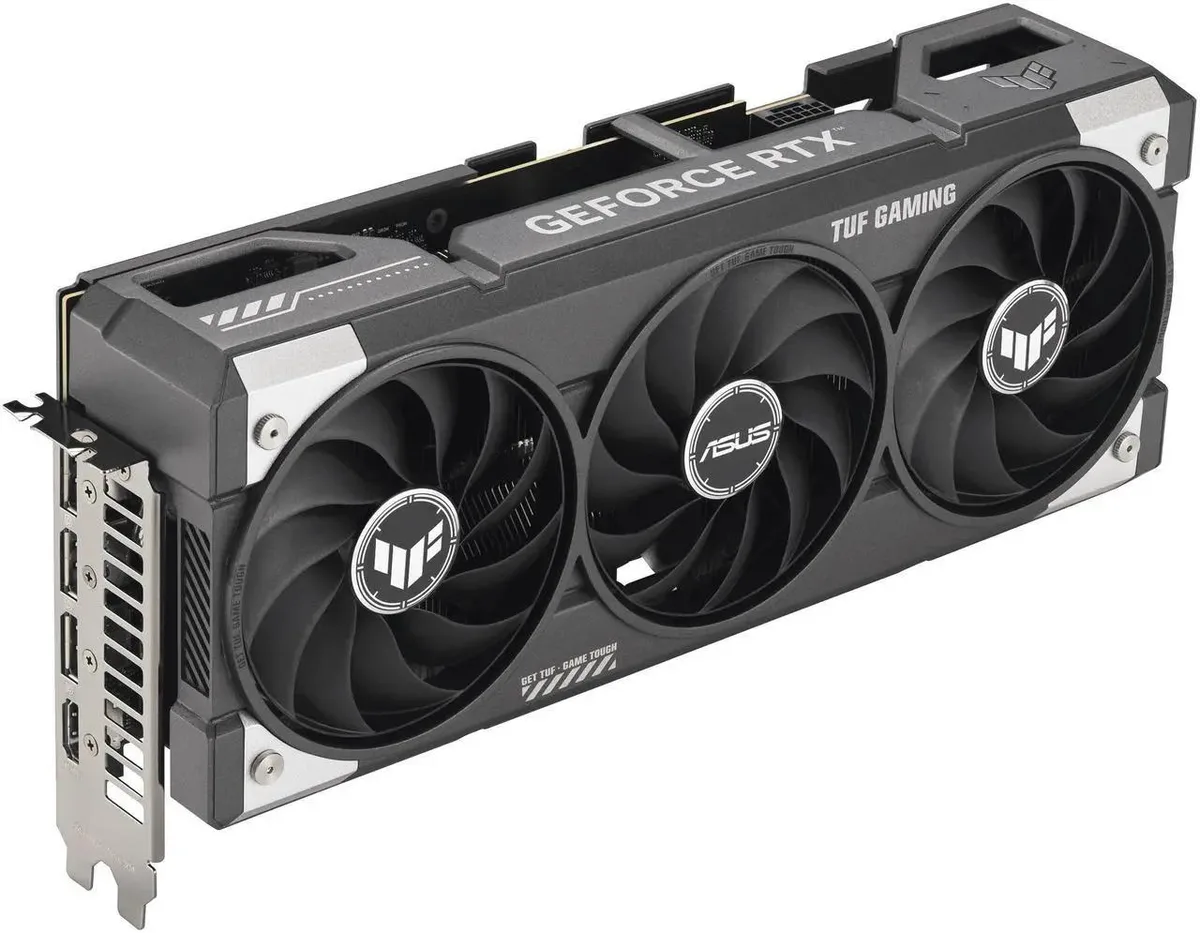

Gray triple-fan graphics card with industrial shroud and metal backplate

ASUS

ASUS TUF Gaming GeForce RTX 5060 Ti 16GB GDDR7 graphics card

SKU CH-Z28W-1FCFY

NVIDIA GeForce RTX 5060 Ti with 16GB 128-bit GDDR7 at 28 Gbps, 4608 CUDA cores, PCIe 5.0 x8, DLSS 4.0, HDMI 2.1b and three DisplayPort 2.1b outputs for 7680 x 4320 resolution

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • CUDA Cores4608

model TUF

  • 16 GB GDDR7 memory for high-resolution textures at 28 Gbps
  • 4608 CUDA cores accelerate ray-tracing and AI workloads
  • PCI Express 5.0 x8 link doubles host bandwidth
  • DLSS 4.0 upscaling boosts frame rates with AI
  • HDMI 2.1b plus three DisplayPort 2.1b drive four 8K displays

16 GB GDDR7 for 1440p gaming

The ASUS TUF Gaming GeForce RTX 5060 Ti equips 16 GB of GDDR7 memory on a 128-bit bus running at 28 Gbps. Its 4608 CUDA cores sit on the Blackwell architecture and connect through a PCI Express 5.0 x8 slot. The card targets gamers who want high frame rates at 1440p without stepping up to a larger GPU. DLSS 4.0 support adds frame generation and ray reconstruction for heavier titles.

Thermals and power in daily use

The TUF cooler uses a dual-fan layout with axial-tech blades and a metal backplate to move heat away from the GPU and memory. Under typical gaming loads the fans stay at moderate speeds, keeping noise low while power draw remains within the 12V-2x6 connector rating. Idle power drops to near zero thanks to 0 dB fan stop and the Blackwell power management states.

Bundled software and practical extras

GPU Tweak III lets you switch between performance and quiet fan curves, monitor clocks in real time and record gameplay without extra tools. The ASUS GPU Guard reinforces the PCIe slot area during transport and installation. Aura Sync ties the subtle TUF lighting to other compatible components for a coordinated look across the build.

Highlights

  • 16 GB GDDR7 memory for high-resolution textures at 28 Gbps
  • 4608 CUDA cores accelerate ray-tracing and AI workloads
  • PCI Express 5.0 x8 link doubles host bandwidth
  • DLSS 4.0 upscaling boosts frame rates with AI
  • HDMI 2.1b plus three DisplayPort 2.1b drive four 8K displays

Specifications

BrandASUS
SeriesTUF Gaming
ModelTUF-RTX5060TI-16G-GAMING
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorGray
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector1 x 16-Pin
HDCP ReadyYes
Features• AI Performance: 785 AI TOPS
• OC mode boosts clock 2692 MHz (OC mode)/ 2662 MHz (Default mode)
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Military-grade components deliver rock-solid power and longer lifespan for ultimate durability
• Protective PCB coating helps protect against short circuits caused by moisture, dust, or debris
• 3.1-slot design with massive fin array optimized for airflow from three Axial-tech fans
• ASUS GPU Guard secure the GPU, reducing the risk of cracks
• Auto-Extreme precision automated manufacturing helps ensure higher reliability
• GPU Tw
Form FactorATX
Max GPU Length302 mm
Card Dimensions (L x H)302 x 133 x 62 mm
11.89 x 5.26 x 2.44 inch
Slot Width3.1 Slots

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I seat the PCI Express 5.0 x8 card without bending the board?

Align the gold fingers with the slot, press evenly at both ends until the retention clip clicks, then secure the bracket screw before connecting power cables.

When will the dual-ball bearing fans need cleaning or replacement?

Dust the heatsink fins and fan blades every six months with compressed air; bearings are rated for years of continuous spin and rarely require full replacement.

At what point does the 128-bit memory bus become the bottleneck in 4K workloads?

The 28 Gbps GDDR7 delivers high bandwidth, but sustained 4K gaming with heavy texture loads will saturate the 128-bit interface before the 4608 CUDA cores reach full utilisation.
