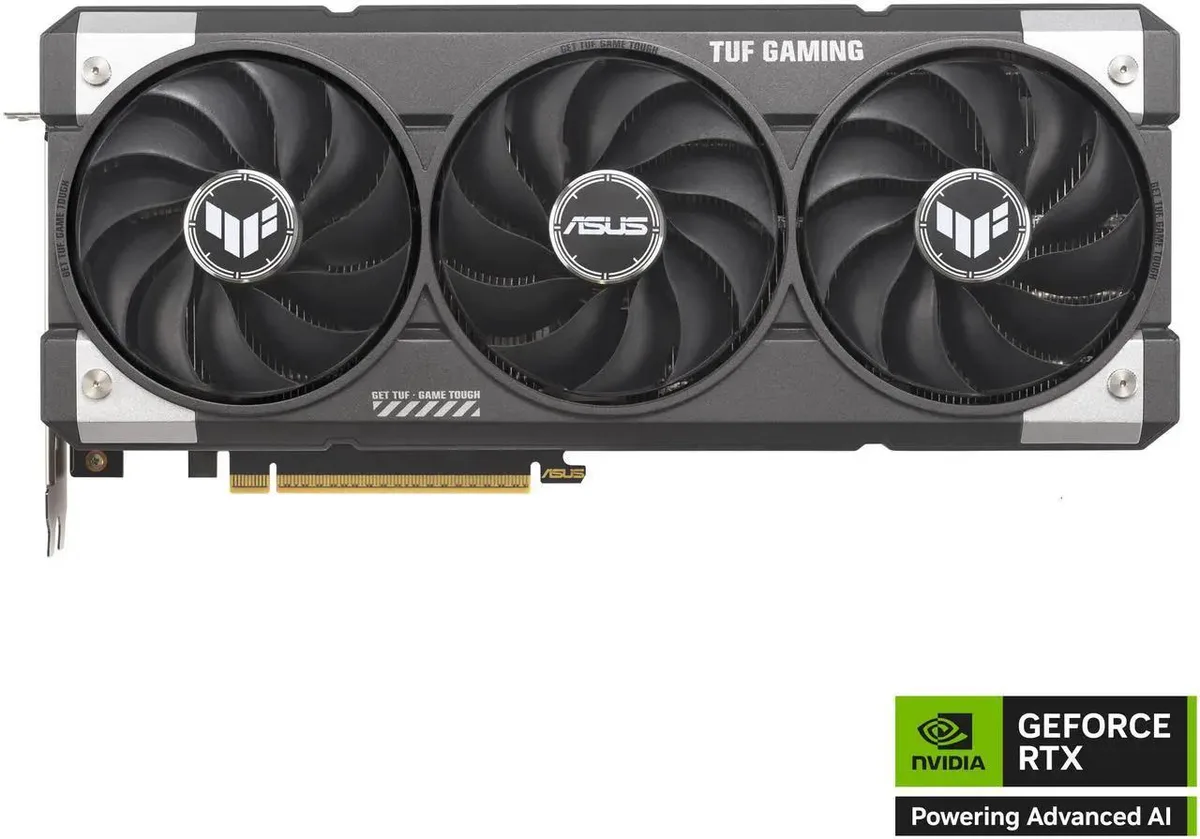

Gray triple-fan graphics card with angular shroud and metal backplate

ASUS

ASUS TUF Gaming GeForce RTX 5060 Ti O16G graphics card

SKU CH-WC83-T2AK0

16 GB GDDR7 graphics card with 4608 CUDA cores, PCIe 5.0 x8, DLSS 4.0 and four display outputs

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • CUDA Cores4608 Cores

model TUF OC

  • 16 GB GDDR7 memory at 28 Gbps feeds high-resolution textures without bottlenecks
  • 4608 CUDA cores on Blackwell architecture accelerate ray-traced workloads
  • PCI Express 5.0 x8 link doubles bandwidth headroom for modern platforms
  • DLSS 4.0 upscaling and frame generation lift frame rates in supported titles
  • One HDMI 2.1b and three DisplayPort 2.1b outputs drive four 7680×4320 displays

16 GB GDDR7 on a 128-bit bus

The ASUS TUF Gaming GeForce RTX 5060 Ti O16G is a graphics card built around the NVIDIA Blackwell architecture. It delivers 4608 CUDA cores and 16 GB of GDDR7 memory running at 28 Gbps across a 128-bit interface. The card connects via PCI Express 5.0 x8 and supports DLSS 4.0 for AI-accelerated rendering. It is aimed at enthusiasts building a capable 1440p or entry 4K gaming system.

Best for 1440p high refresh and light 4K work

This model suits gamers targeting high frame rates at 1440p or playable 4K with upscaling. Content creators using GPU-accelerated apps will benefit from the 16 GB frame buffer and modern display outputs. Users planning heavy 4K raster workloads without upscaling, or those needing a full x16 link for multi-GPU compute, should evaluate higher-tier options. The three DisplayPort 2.1b and one HDMI 2.1b ports drive up to four 7680 x 4320 displays.

128-bit memory interface limits raw bandwidth

The single specification that decides fit is the 128-bit memory interface paired with 16 GB GDDR7 at 28 Gbps. This combination determines the card’s maximum memory bandwidth and therefore its ceiling in memory-bound scenarios. If your workload demands wider bus width for raw throughput, this is the constraint to weigh against the 16 GB capacity and Blackwell feature set.

Highlights

  • 16 GB GDDR7 memory at 28 Gbps feeds high-resolution textures without bottlenecks
  • 4608 CUDA cores on Blackwell architecture accelerate ray-traced workloads
  • PCI Express 5.0 x8 link doubles bandwidth headroom for modern platforms
  • DLSS 4.0 upscaling and frame generation lift frame rates in supported titles
  • One HDMI 2.1b and three DisplayPort 2.1b outputs drive four 7680×4320 displays

Specifications

BrandASUS
SeriesTUF Gaming
ModelTUF-RTX5060TI-O16G-GAMING
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
CUDA Cores4608 Cores
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorGray
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector1 x 16-Pin
HDCP ReadyYes
Features• AI Performance: 785 AI TOPS
• OC mode boosts clock 2692 MHz (OC mode)/ 2662 MHz (Default mode)
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Military-grade components deliver rock-solid power and longer lifespan for ultimate durability
• Protective PCB coating helps protect against short circuits caused by moisture, dust, or debris
• 3.1-slot design with massive fin array optimized for airflow from three Axial-tech fans
• ASUS GPU Guard secure the GPU, reducing the risk of cracks
• Auto-Extreme precision automated manufacturing helps ensure higher reliability
• GPU Tw
Form FactorATX
Max GPU Length302 mm
Card Dimensions (L x H)302 x 133 x 62 mm
11.89 x 5.26 x 2.44 inch
Slot Width3.1 Slots

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How long can the 16 GB GDDR7 frame buffer handle 4K textures before it becomes the bottleneck?

The 16 GB GDDR7 memory running at 28 Gbps across a 128-bit bus delivers high bandwidth for 4K assets; sustained 4K gaming will hit the VRAM capacity limit before the memory interface saturates.

What are the thermal and acoustic characteristics when the three axial-tech fans run continuously at load?

The triple axial-tech fan array on the TUF cooler moves enough air to keep the Blackwell GPU at stable temperatures during all-day sessions, with fan noise rising to a noticeable but manageable level.

Will my current motherboard and power supply work with the PCI Express 5.0 x8 interface and 16-pin connector?

The card requires a PCIe 5.0 x8 slot and a native 12V-2x6 or adapted 16-pin power connector; verify your motherboard has the slot and your PSU includes the connector or supplies the necessary adapter.
