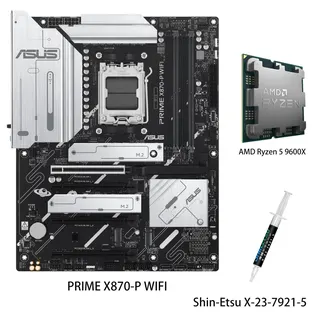

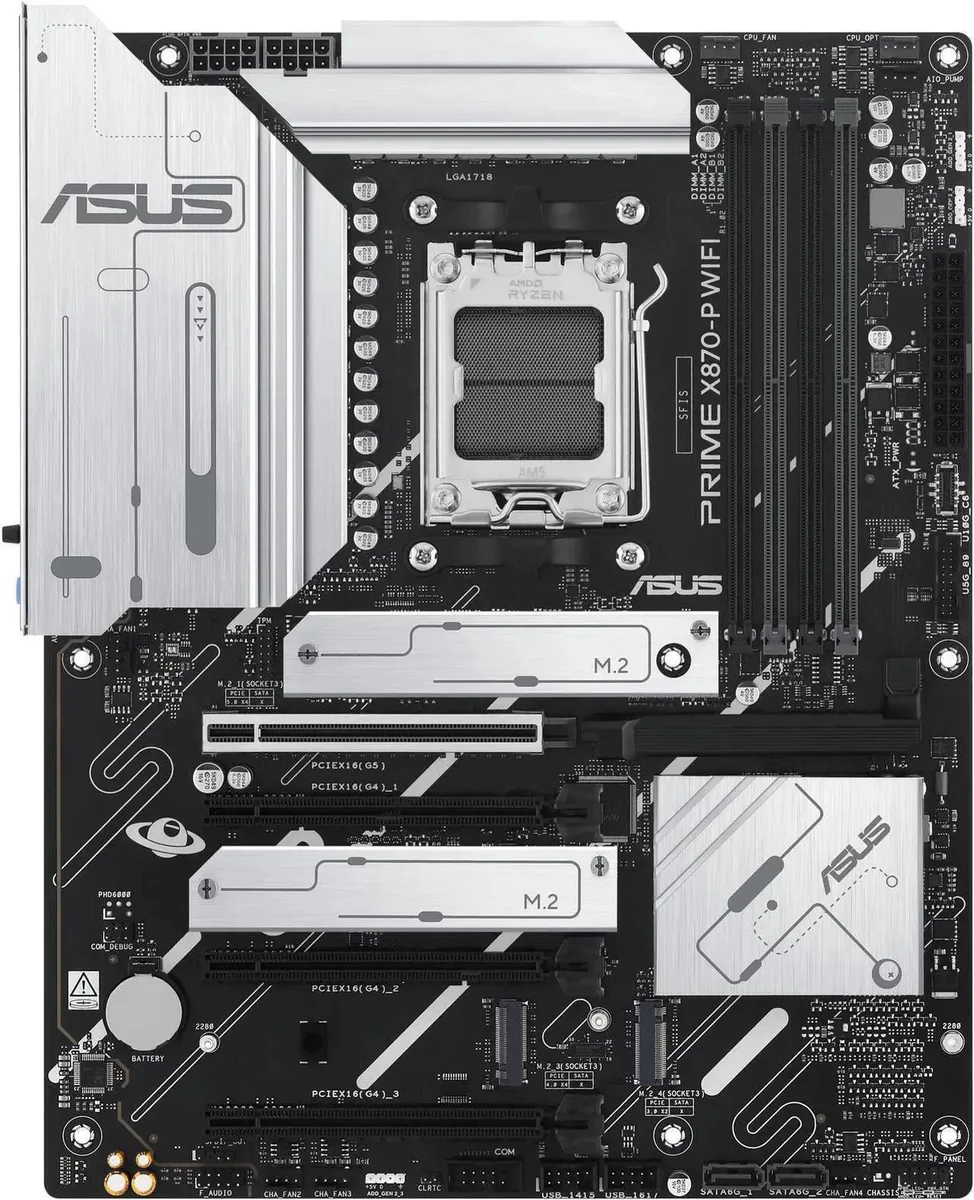

ASUS PRIME X870-P WIFI ATX motherboard with Ryzen 5 9600X CPU in socket

ASUS

ASUS PRIME X870-P WIFI + Ryzen 5 9600X AMD motherboard CPU combo

SKU CH-EPA3-QK9AS

AM5 motherboard and 6-core Ryzen CPU combo with 14+2+1 80A DrMOS power stages, DDR5 up to 8000 MT/s, PCIe 5.0 x16 and M.2, Wi-Fi 7, 2.5Gbps Ethernet, USB4 40Gbps Type-C.

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

model PRIME X870-P WIFI

+CPU + Ryzen 5 9600X

  • Ready for advanced AI workloads with AMD Ryzen 9000 series support
  • Stable power delivery from 14+2+1 80A DrMOS stages on an 8-layer PCB
  • Ultrafast connectivity via Wi-Fi 7, 2.5Gb Ethernet and USB4 40Gbps Type-C
  • Comprehensive cooling with large VRM heatsink, dual M.2 heatsinks and AI Cooling II
  • DIY-friendly build featuring Q-Release PCIe slot, M.2 Q-Latch and BIOS FlashBack

Ready AM5 combo for AI workloads

This motherboard and CPU bundle pairs the PRIME X870-P WIFI with a Ryzen 5 9600X processor. The board uses the AMD X870 chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. It targets builders who want a platform ready for advanced AI computing tasks with strong connectivity.

PCIe 5.0 lanes and DDR5 ceiling

The primary PCIe 5.0 x16 slot and the top M.2_1 slot run at 5.0 speeds only with Ryzen 9000 and 7000 series processors. With Ryzen 8000 series the same slots drop to PCIe 4.0. Memory defaults to DDR5 4400 and can reach 8000+ MT/s when overclocked, capped at 192 GB across four slots.

DIY-friendly layout with tool-free parts

A pre-mounted I/O shield, PCIe Slot Q-Release and M.2 Q-Latch let you install the CPU, graphics card and storage without tools. BIOS FlashBack updates firmware without a CPU installed. The flexible M.2 heatsink fits 2280 drives, and Q-LED Core lights help diagnose boot issues quickly.

Highlights

  • Ready for advanced AI workloads with AMD Ryzen 9000 series support
  • Stable power delivery from 14+2+1 80A DrMOS stages on an 8-layer PCB
  • Ultrafast connectivity via Wi-Fi 7, 2.5Gb Ethernet and USB4 40Gbps Type-C
  • Comprehensive cooling with large VRM heatsink, dual M.2 heatsinks and AI Cooling II
  • DIY-friendly build featuring Q-Release PCIe slot, M.2 Q-Latch and BIOS FlashBack

Specifications

BrandASUS
ModelPRIME X870-P WIFI+R5 9600X
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported192GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
3 x PCIe 4.0 x16 slots (support x1 mode)***
*** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
Serial ATA (SATA)2 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)****
** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable Gen2 headers
Package Contents1 x AMD Ryzen 5 9600X CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the combo with the Ryzen 5 9600X or buy the PRIME X870-P WIFI board alone?

The combo includes the 6-core 12-thread Ryzen 5 9600X built on Zen 5 architecture, recognised with a CES 2025 Innovation Award, so you receive a matched CPU and motherboard in one purchase.

What does the 14+2+1 80A DrMOS power-stage count mean for daily use?

Fourteen Vcore phases plus two VSoC and one VDD misc phases, each rated at 80 A, deliver stable current to the Ryzen 5 9600X and leave headroom for future higher-wattage AM5 processors.

Which PCIe generation does the primary x16 slot and the top M.2 slot use, and what speed ceiling does that set?

With the Ryzen 5 9600X installed the primary x16 slot and M.2_1 slot both run at PCIe 5.0, giving a graphics card up to x16 bandwidth and a 2280 SSD up to x4 bandwidth.
