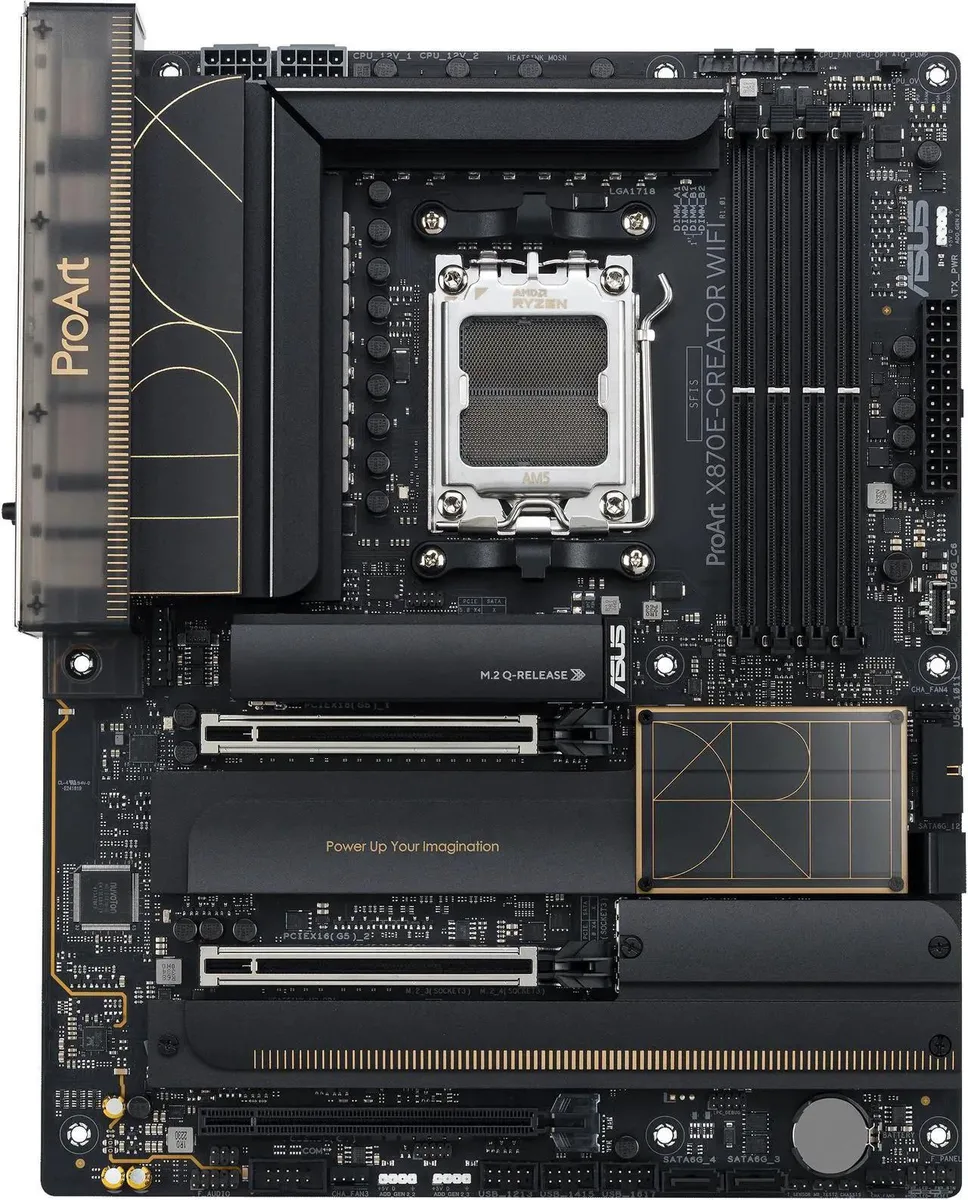

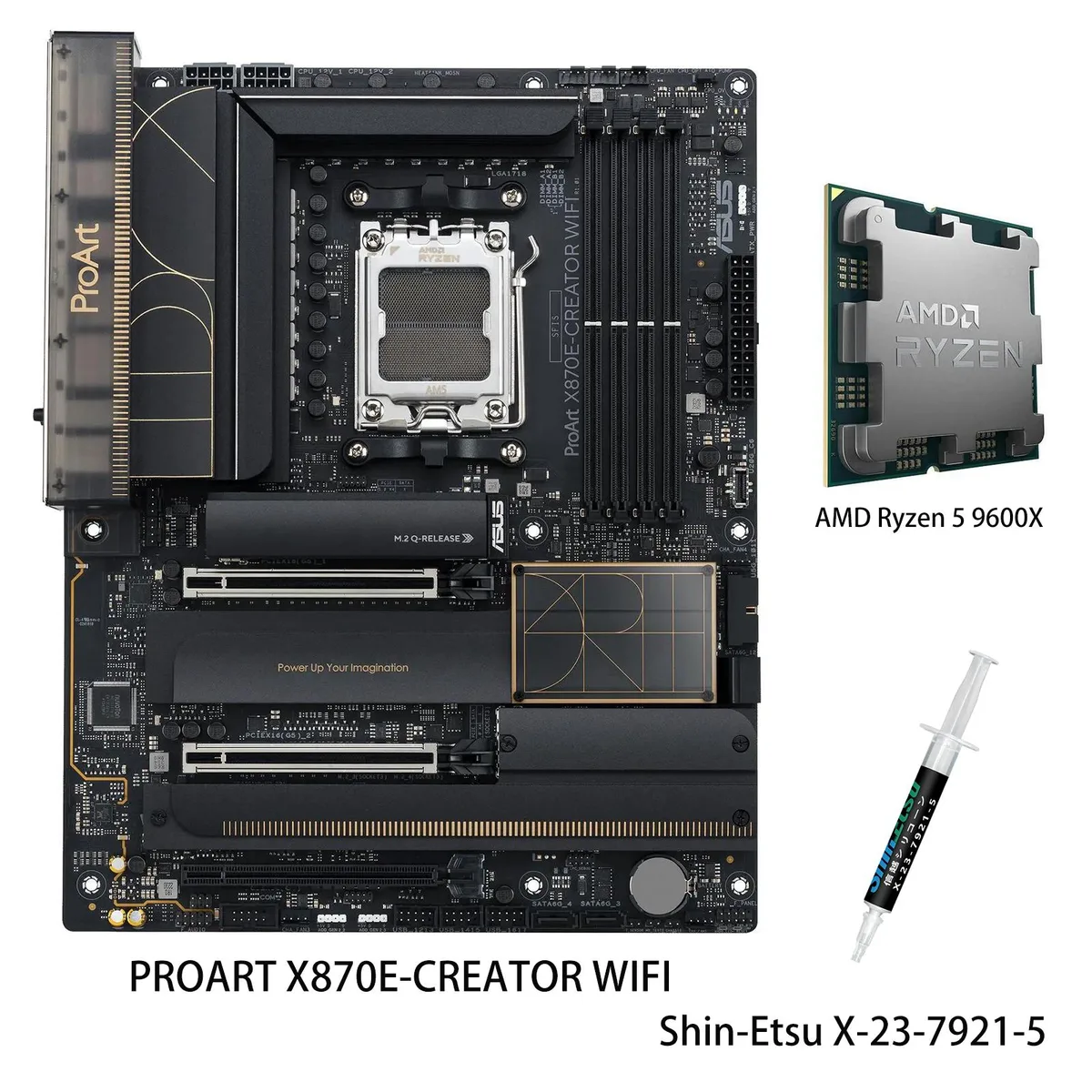

Black ATX motherboard with silver heatsinks and a CPU installed in the AM5 socket

ASUS

ASUS ProArt X870E-CREATOR WIFI AMD motherboard & Ryzen 5 9600X CPU combo

SKU CH-HHGY-HQ5BC

AM5 motherboard and 6-core Ryzen CPU combo with DDR5 memory support, dual USB4, 10 Gb and 2.5 Gb Ethernet, WiFi 7, Bluetooth 5.4 and PCIe 5.0 x16 graphics slots

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • ECC SupportedYes

model PROART X870E-CREATOR WIFI

+CPU + Ryzen 5 9600X

  • Ready for advanced AI workloads with robust 16+2+2 power stages
  • Exceptional gaming performance delivering smooth 100+ FPS in popular titles
  • Future-proof connectivity via dual USB4 ports and WiFi 7
  • DIY-friendly design with tool-less PCIe and M.2 installation
  • High-speed networking through 10 Gb and 2.5 Gb Ethernet

AM5 creator platform

The ASUS ProArt X870E-CREATOR WIFI motherboard paired with the Ryzen 5 9600X CPU delivers a ready-to-build AM5 workstation foundation. The six-core twelve-thread processor uses the Zen 5 architecture to handle creative workloads and gaming at 100+ FPS. Dual USB4 ports and WiFi 7 provide high-speed peripheral and network flexibility for modern studios.

16+2+2 power delivery under load

The 16+2+2 teamed power stages with ProCool II connectors maintain stable voltage during extended rendering or compile sessions. AI Overclocking and Dynamic OC Switcher adapt frequencies to thermal headroom while AI Cooling balances fan curves. Alloy chokes and durable capacitors sustain output without throttling when all cores run continuously.

PCIe 5.0 and USB4 bandwidth limits

Two PCIe 5.0 x16 slots support x16 or x8/x8 modes for next-gen GPUs, though the second slot shares bandwidth with an M.2 5.0 x4 drive. Dual USB4 ports reach 20 Gbps with 30 W power delivery for fast external storage. Marvell 10 Gb and Intel 2.5 Gb Ethernet plus WiFi 7 and Bluetooth 5.4 saturate typical studio network pipes.

Highlights

  • Ready for advanced AI workloads with robust 16+2+2 power stages
  • Exceptional gaming performance delivering smooth 100+ FPS in popular titles
  • Future-proof connectivity via dual USB4 ports and WiFi 7
  • DIY-friendly design with tool-less PCIe and M.2 installation
  • High-speed networking through 10 Gb and 2.5 Gb Ethernet

Specifications

BrandASUS
ModelPROART X870E-CREATOR WIFI+R5 9600X
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
PCI Express 4.0 x16AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
SATA RAID*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not sup
Audio Channels7.1 Channels
Max LAN Speed1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LANBluetooth 5.4
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C)
1 x USB 20Gbps port(s) (1 x USB Type-C)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
-
Package Contents1 x AMD Ryzen 5 9600X CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x User guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud or hot does the 16+2+2 power stage VRM get when the Ryzen 5 9600X runs all-day workloads?

The 16+2+2 teamed power stages with ProCool II connectors and alloy chokes are designed for sustained delivery to the 6-core CPU, while AI Cooling manages fan curves to balance thermals and acoustics under continuous load.

Which DDR5 memory kit do I need to have ready before this combo will POST?

You need un-buffered DDR5 DIMMs; the board runs at 4400 MT/s by default and supports EXPO profiles up to 256 GB across four 288-pin slots.

Will my existing PCIe 4.0 GPU and SATA SSDs work without bandwidth loss on this X870E board?

Yes — the CPU provides two PCIe 5.0 x16 slots that run at x16 or x8/x8 with current GPUs, the chipset adds a PCIe 4.0 x4 slot, and four SATA 6 Gb/s ports remain fully available for legacy drives.
