ATX motherboard in dark finish with silver CPU installed, large VRM heatsinks and rear I/O shield visible

ASUS

ASUS ProArt X870E-CREATOR WIFI + Ryzen 9 9950X AMD motherboard combo

SKU CH-FR6N-P49NM

A motherboard and CPU combo with AM5 socket, 16 cores, 32 threads, 5.7 GHz boost, DDR5 memory up to 256 GB, dual USB4 ports, 10 Gb and 2.5 Gb Ethernet, WiFi 7, Bluetooth 5.4.

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • ECC SupportedYes

model PROART X870E-CREATOR WIFI

+CPU + Ryzen 9 9950X

  • Ready for demanding AI workloads with AMD Ryzen 9000 series support
  • 16 cores and 32 threads deliver high multi-threaded performance for creative tasks
  • Dual USB4 ports and 10 Gb Ethernet enable fast data transfer and networking
  • Four DDR5 slots support up to 256 GB with ECC for reliable memory capacity
  • DIY-friendly design with Q-Release Slim, M.2 Q-Slide and BIOS FlashBack simplifies building

ASUS ProArt X870E Creator Combo

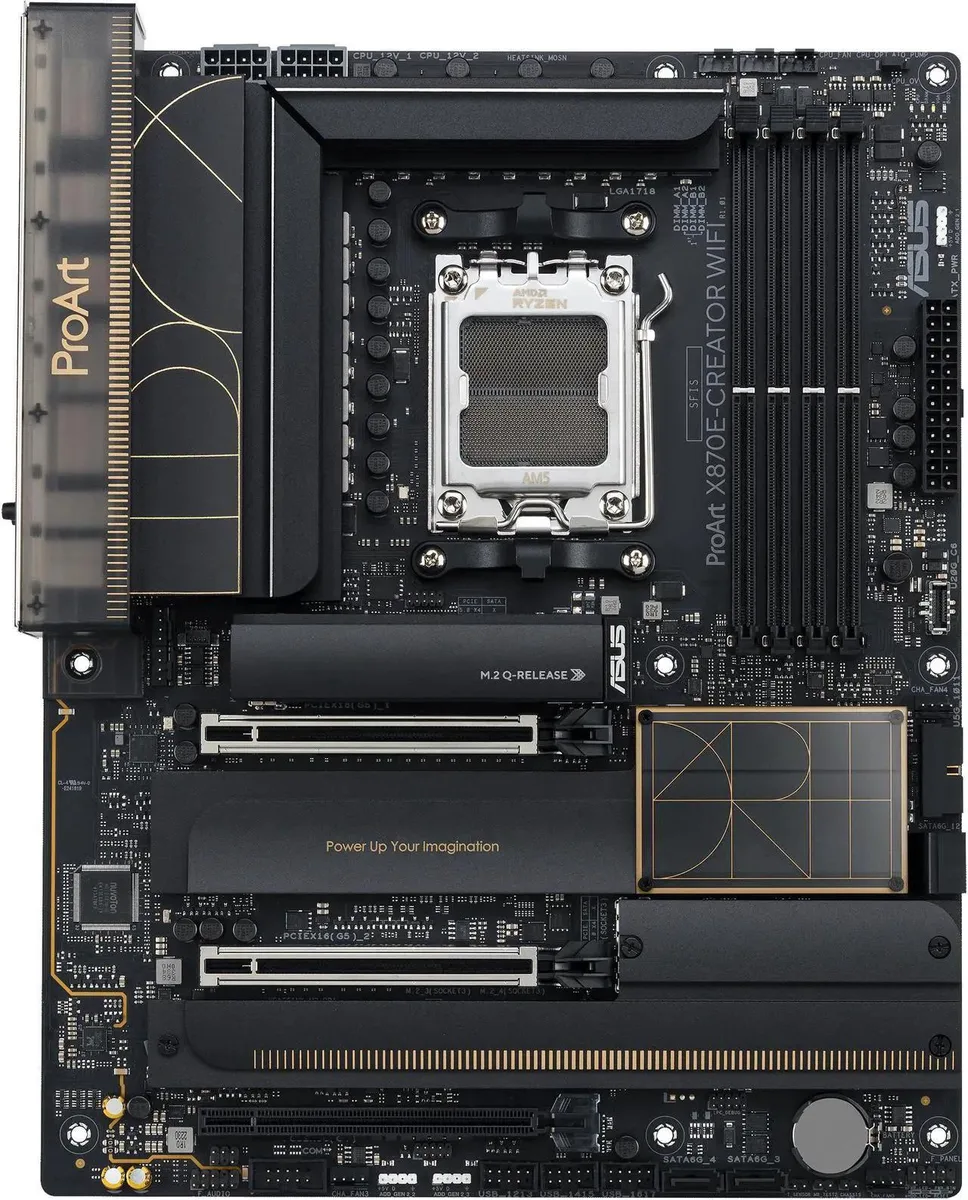

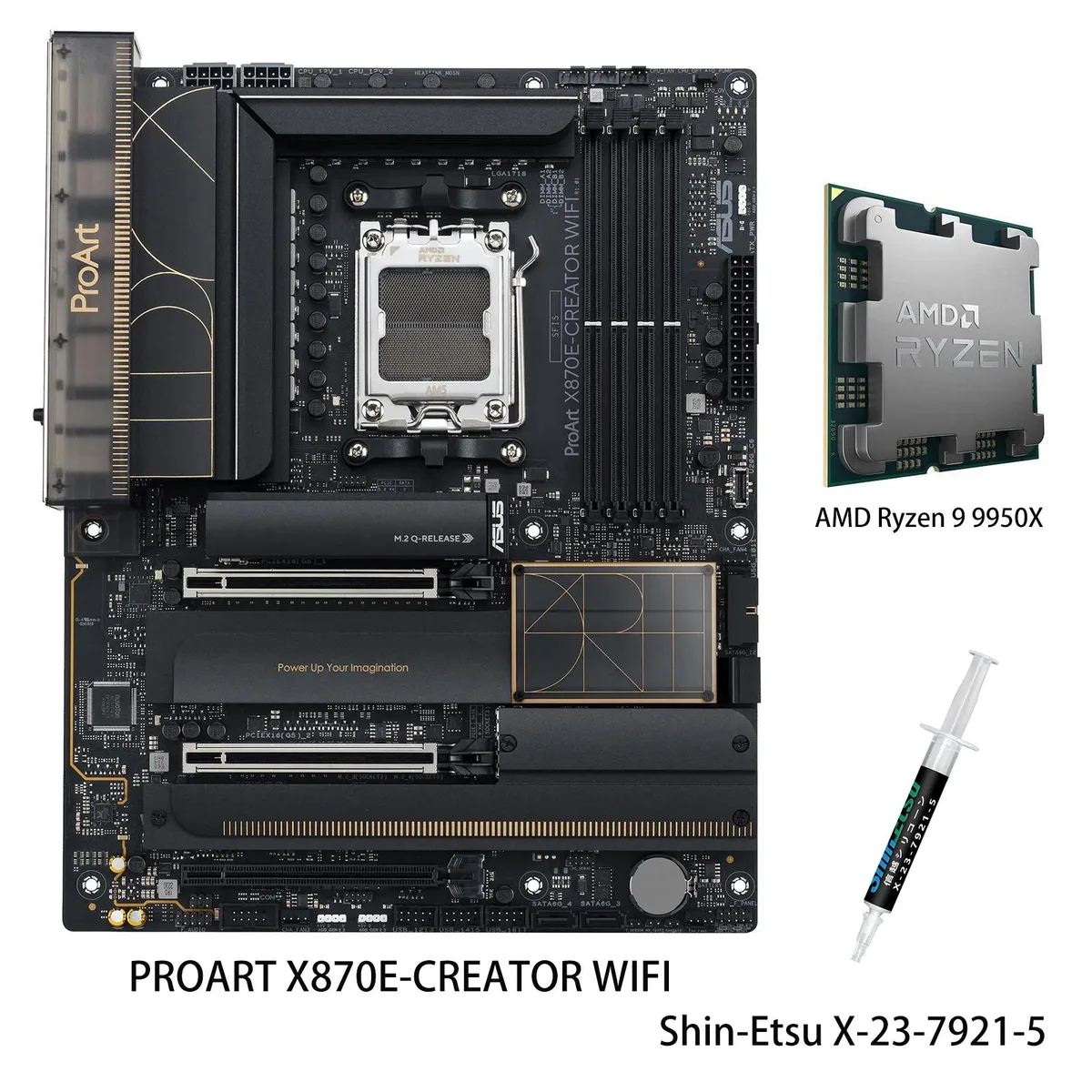

This bundle pairs the ASUS ProArt X870E-CREATOR WIFI motherboard with an AMD Ryzen 9 9950X processor. The board uses the AM5 socket and X870 chipset to support Ryzen 7000, 8000 and 9000 series CPUs. It targets creators who need high core counts and extensive I/O for video, 3D or AI workloads.

DDR5 256 GB ECC Capacity

Four 288-pin slots accept un-buffered DDR5 memory up to 256 GB with ECC support and EXPO profiles. The CPU provides a 5.7 GHz max boost, 16 cores and 32 threads with 64 MB L3 cache. This memory ceiling and error correction decide whether the platform fits large dataset work.

Dual USB4 and 10 Gb LAN

Two USB4 ports, 10 Gb and 2.5 Gb Ethernet, WiFi 7 and Bluetooth 5.4 ship on the rear I/O. The bundle includes the CPU but no cooler, so a separate AM5-compatible solution is required. These interfaces set the external bandwidth available for storage arrays and peripherals.

Highlights

  • Ready for demanding AI workloads with AMD Ryzen 9000 series support
  • 16 cores and 32 threads deliver high multi-threaded performance for creative tasks
  • Dual USB4 ports and 10 Gb Ethernet enable fast data transfer and networking
  • Four DDR5 slots support up to 256 GB with ECC for reliable memory capacity
  • DIY-friendly design with Q-Release Slim, M.2 Q-Slide and BIOS FlashBack simplifies building

Specifications

BrandASUS
ModelPROART X870E-CREATOR WIFI+R9 9950X
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
PCI Express 4.0 x16AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
SATA RAID*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not sup
Audio Channels7.1 Channels
Max LAN Speed1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LANBluetooth 5.4
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C)
1 x USB 20Gbps port(s) (1 x USB Type-C)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
-
Package Contents1 x AMD Ryzen 9 9950X CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x User guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 5.7 GHz max boost mean for real-world workloads?

The 5.7 GHz peak clock lets the 16-core CPU hit high single-thread speeds for snappy UI response and burst rendering, while the 32 threads sustain heavy multi-core tasks like compilation or simulation.

What does PCIe 5.0 on the x16 slots cap in practice?

Two slots run at 5.0 x16 or x8/x8; the second shares bandwidth with the M.2_2 drive, so adding a second GPU drops both to x8 and can limit that drive to x4.

What clearance and power connectors does the board need to fit in a case?

Standard ATX layout with 24-pin and dual 8-pin ProCool II sockets; the SafeSlot PCIe 5.0 x16 slot accepts full-length cards and the Q-Release Slim latch works with most chassis.
