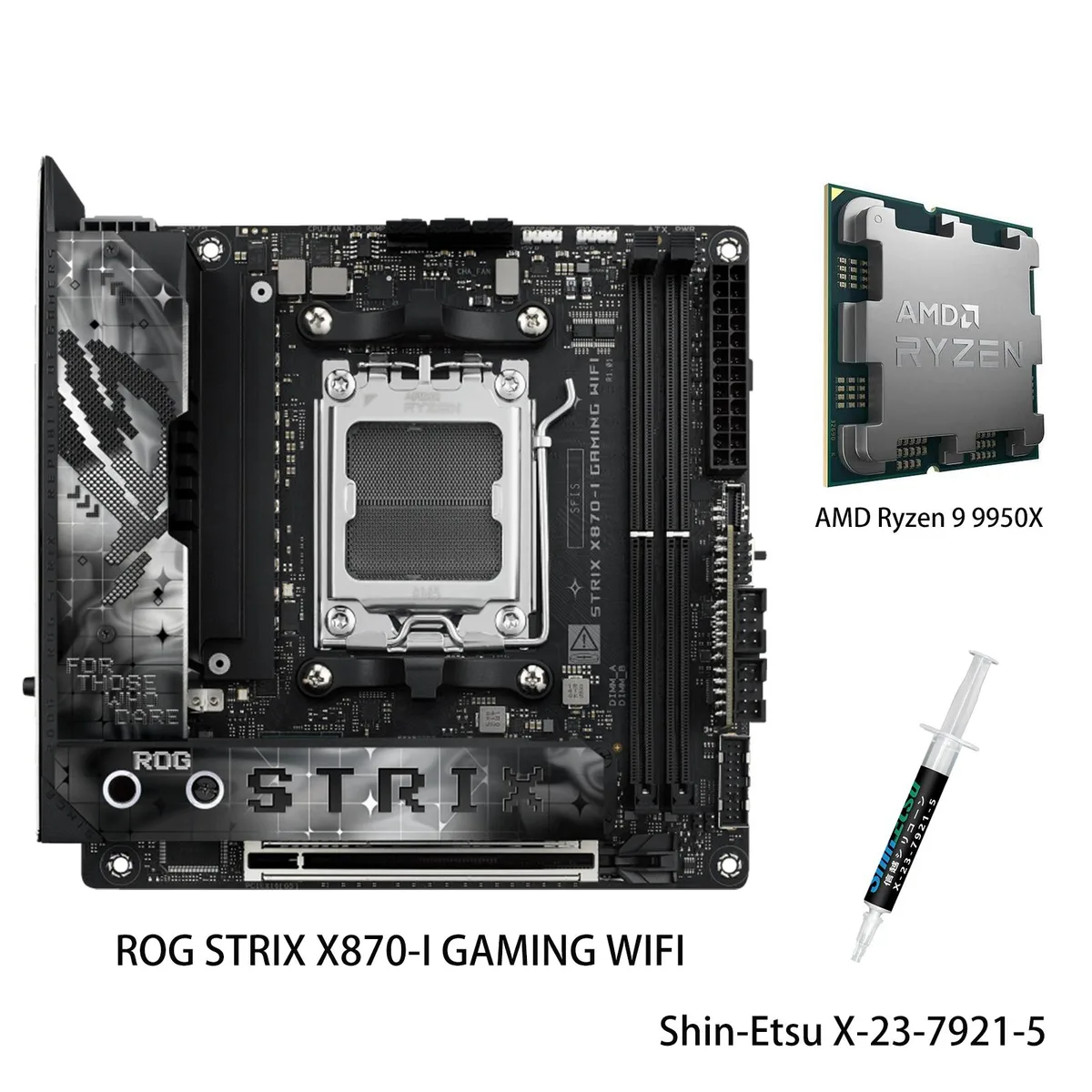

Compact black Mini-ITX motherboard with silver heatsinks and installed Ryzen 9 9950X CPU

ASUS

ASUS FF4D516G6000HC38ADC01 ROG STRIX X870-I AMD motherboard Ryzen 9 9950X combo

SKU CH-VP7T-998QR MPN FF4D516G6000HC38ADC01

Mini-ITX motherboard paired with a 16-core Ryzen 9 9950X, DDR5 memory support up to 96 GB, WiFi 7 and PCIe 5.0 M.2

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported96GB
  • ECC SupportedNon-ECC
  • Buffer SupportedUn-buffered

model ROG STRIX X870-I GAMING WIFI

+CPU + Ryzen 9 9950X

  • Ready for advanced AI workloads with X870 chipset and Ryzen 9 9950X
  • 16 cores and 32 threads at 5.7 GHz max boost for heavy multitasking
  • 10+2+1 power stages rated 110A each for stable multi-core performance
  • DDR5 memory up to 8400 MT/s overclocked on four 288-pin slots
  • WiFi 7 with 320 MHz bandwidth reaching 6.5 Gbps wireless throughput

ROG STRIX X870-I AM5 Combo

This bundle pairs the ROG STRIX X870-I GAMING WIFI motherboard with an AMD Ryzen 9 9950X processor. The board uses the AMD X870 chipset on a Mini ITX form factor and provides four 288-pin DDR5 slots supporting up to 96GB. It is built for compact systems that need high core counts and fast memory.

Compact AI workstation builders

The combo suits users assembling a small-form-factor PC for AI workloads, content creation or heavy multitasking thanks to 16 cores and 32 threads. Builders who need multiple PCIe x16 slots, extensive SATA arrays or a larger ATX layout should look at a different platform.

DDR5 8400+ MT/s overclock ceiling

With a Ryzen 9000 series CPU installed the motherboard can push memory past 8400 MT/s when overclocked. This single figure determines whether your chosen DDR5 kit will run at its rated speed on this board.

Highlights

  • Ready for advanced AI workloads with X870 chipset and Ryzen 9 9950X
  • 16 cores and 32 threads at 5.7 GHz max boost for heavy multitasking
  • 10+2+1 power stages rated 110A each for stable multi-core performance
  • DDR5 memory up to 8400 MT/s overclocked on four 288-pin slots
  • WiFi 7 with 320 MHz bandwidth reaching 6.5 Gbps wireless throughput

Specifications

BrandASUS
ModelROG STRIX X870-I GAMING WIFI+R9 9950X
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported96GB
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory Feature2 x DIMM slots, max. 96GB, DDR5
Supports up to
8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*"
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
Serial ATA (SATA)2 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
BluetoothBluetooth v5.4***
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB 3.0USB4
Onboard USBUSB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header support(s) 2
additional USB 5Gbps ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C® connectors to install ROG FPS card
ROG FPS card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3
additional USB 2.0 ports
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI
BIOS EZ Mode
- ASUS
MyHotkey
FlexKey
Dynamic OC Switcher
FeaturesASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum backplate
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
ROG STRIX HIVE II
1 x USB Type-C® connects to motherboard
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
1 x Headphone jack with mic in
1 x Power button
1 x
Package Contents1 x AMD Ryzen 9 9950X CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
1 x Panel cable
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
ROG FPS Card
1 x ROG FPS Card
ROG STRIX HIVE II
1 x ROG STRIX HIVE II
1 x USB Type-C® power connection cable
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 rubber package(s)
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 110A power stages hit a thermal limit before the Ryzen 9 9950X reaches its 5.7 GHz max boost under sustained load?

The 10+2+1 power solution is rated for 110A per stage with ProCool II connectors, alloy chokes and durable capacitors, while massive heatsinks, high-conductivity thermal pads and an L-shaped backplate are designed to dissipate heat from multi-core workloads.

How loud and hot does the VRM area get when the 16-core CPU runs all day at full load?

AI Cooling II manages fan curves automatically, and the integrated I/O cover with substantial heatsinks and thermal pads keeps VRM temperatures in check during extended multi-threaded work.

Which DDR5 modules must I already own to hit the rated 6000 MT/s CL38 speed out of the box?

The kit includes DDR5-6000 CL38 memory; the board also supports up to 8400+ MT/s with Ryzen 9000 series and 96 GB maximum across two DIMM slots.
