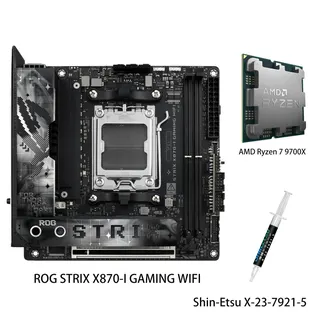

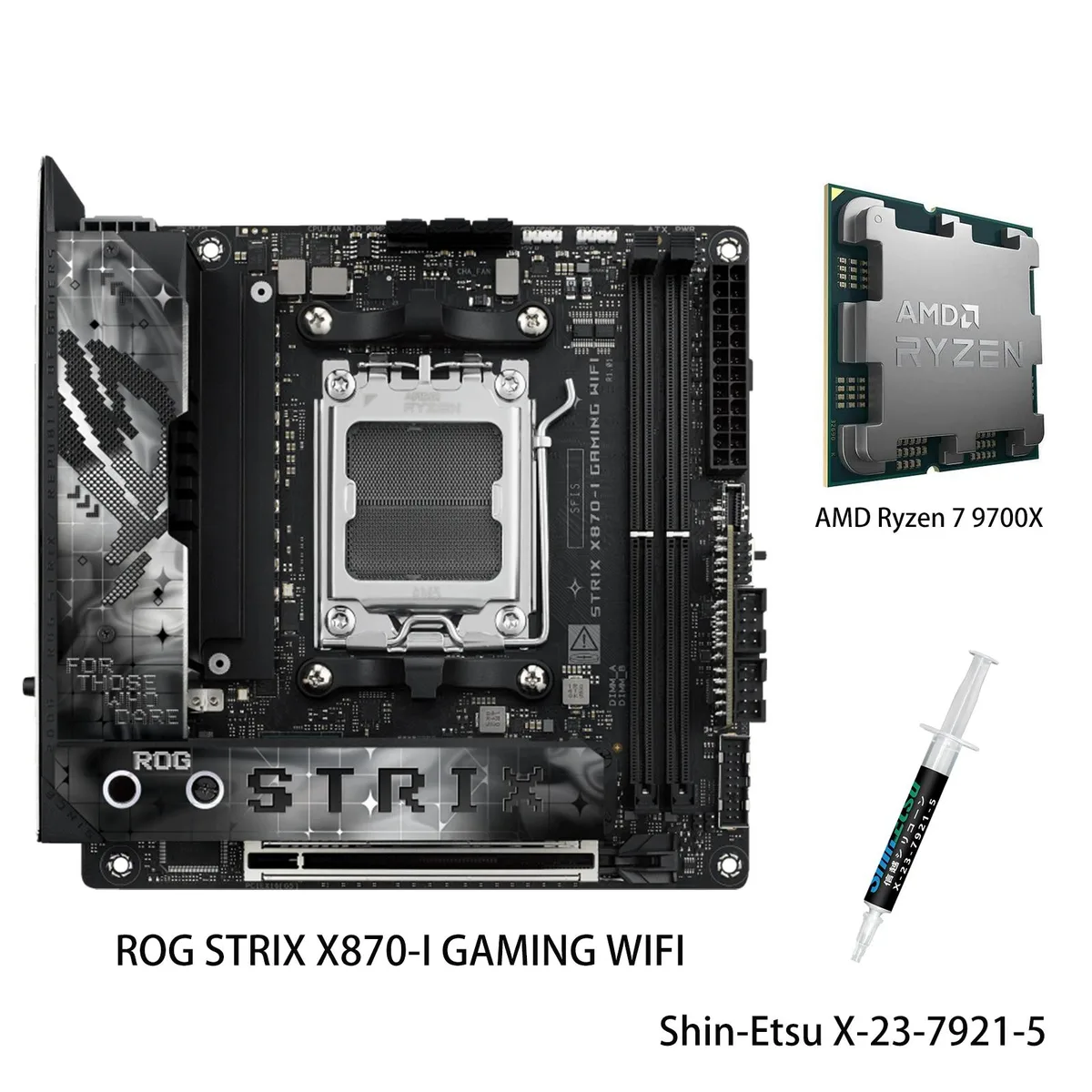

Compact Mini-ITX motherboard with dark metallic heatsinks and integrated I/O shield, paired with a Ryzen 7 9700X CPU

ASUS

ASUS ROG STRIX X870-I GAMING WIFI & Ryzen 7 9700X AMD motherboard combo

SKU CH-77NS-JJ6EM

Compact Mini-ITX motherboard paired with an 8-core Ryzen 7 9700X, DDR5 memory support to 96 GB, WiFi 7, 2.5 Gbps LAN and PCIe 5.0 M.2 slot

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported96GB
  • ECC SupportedNon-ECC
  • Buffer SupportedUn-buffered

model ROG STRIX X870-I GAMING WIFI

+CPU + Ryzen 7 9700X

  • Ready for AI workloads with power and connectivity built for demanding applications
  • 10+2+1 power stages rated 110A each with ProCool II connectors for multi-core stability
  • 8 cores and 16 threads on Zen 5 architecture reaching 5.5 GHz max boost
  • WiFi 7 2x2 with 320 MHz bandwidth delivering up to 6.5 Gbps transfer rate
  • One PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot both with substantial cooling

Compact AM5 platform for high-refresh gaming

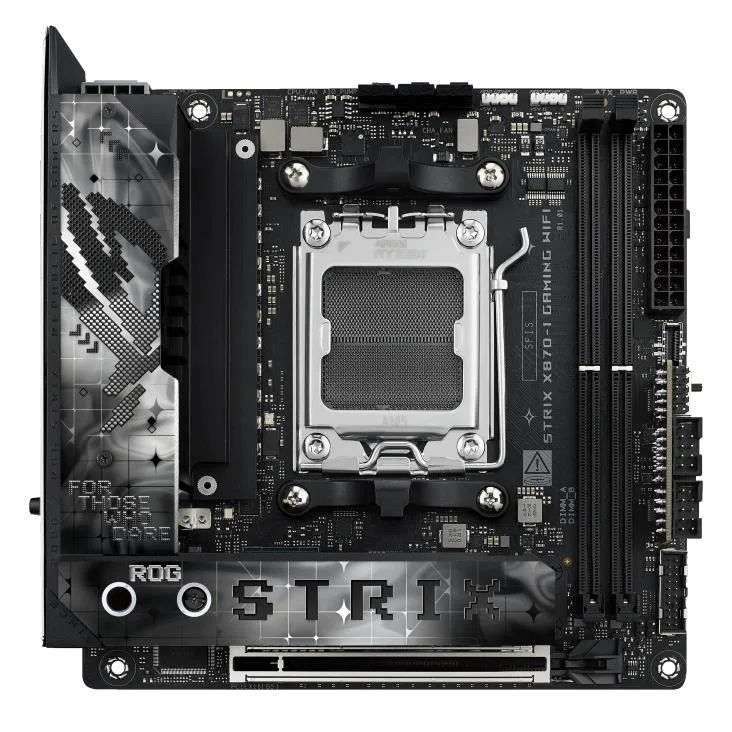

This motherboard and CPU bundle pairs the ROG STRIX X870-I GAMING WIFI with an 8-core Ryzen 7 9700X processor. The board uses the AMD X870 chipset on a Mini-ITX PCB, supporting Ryzen 7000, 8000 and 9000 series CPUs. Four DDR5 slots accept up to 96 GB of memory, making the kit suited to compact builds that still demand multi-threaded throughput.

AI tuning and overclocking tools simplify setup

ASUS AI Overclocking, AI Cooling II, AI Networking and AEMP profiles automate voltage, fan curves and memory timings. ROG-exclusive Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement give manual control over per-core behaviour. The 10+2+1 power stage design rated at 110 A per stage feeds the CPU through ProCool II connectors, alloy chokes and durable capacitors.

Dense I/O and dual M.2 cooling aid daily assembly

A massive heatsink with integrated I/O cover and high-conductivity pads sits atop an L-shaped backplate. One PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot both include substantial cooling. Rear panel provides 2.5 Gbps LAN, Wi-Fi 7 on 2.4, 5 and 6 GHz bands with 320 MHz bandwidth, USB4 and a USB 10 Gbps Type-C connector. Two SATA 6 Gbps ports and a PCIe 5.0 x16 slot complete the layout.

Highlights

  • Ready for AI workloads with power and connectivity built for demanding applications
  • 10+2+1 power stages rated 110A each with ProCool II connectors for multi-core stability
  • 8 cores and 16 threads on Zen 5 architecture reaching 5.5 GHz max boost
  • WiFi 7 2x2 with 320 MHz bandwidth delivering up to 6.5 Gbps transfer rate
  • One PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot both with substantial cooling

Specifications

BrandASUS
ModelROG STRIX X870-I GAMING WIFI+R7 9700X
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported96GB
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory Feature2 x DIMM slots, max. 96GB, DDR5
Supports up to
8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*"
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
Serial ATA (SATA)2 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
BluetoothBluetooth v5.4***
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB 3.0USB4
Onboard USBUSB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header support(s) 2
additional USB 5Gbps ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C® connectors to install ROG FPS card
ROG FPS card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3
additional USB 2.0 ports
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI
BIOS EZ Mode
- ASUS
MyHotkey
FlexKey
Dynamic OC Switcher
FeaturesASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum backplate
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
ROG STRIX HIVE II
1 x USB Type-C® connects to motherboard
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
1 x Headphone jack with mic in
1 x Power button
1 x
Package Contents1 x AMD Ryzen 7 9700X CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
1 x Panel cable
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
ROG FPS Card
1 x ROG FPS Card
ROG STRIX HIVE II
1 x ROG STRIX HIVE II
1 x USB Type-C® power connection cable
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 rubber package(s)
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 10+2+1 power stage rated for 110A per stage need extra cooling under sustained load?

The massive heatsinks with integrated I/O cover, high-conductivity thermal pads and L-shaped backplate are designed to handle the 110A per stage power delivery for multi-core processors.

What limits the PCIe 5.0 M.2 slot to PCIe 4.0 speeds when a Ryzen 8000 series CPU is installed?

The M.2_1 slot runs at PCIe 5.0 x4 with Ryzen 9000 and 7000 series processors, but drops to PCIe 4.0 x4 with Ryzen 8000 series processors.

How loud do the chassis and AIO pump headers run when the system operates all day?

AI Cooling II automatically adjusts fan speeds on the 4-pin CPU fan, AIO pump and chassis fan headers based on real-time temperatures to balance airflow and noise.
