ASUS TUF X870 ATX motherboard with Ryzen 7 9700X CPU, matte black finish, silver heatsinks

ASUS

ASUS TUF GAMING X870-PRO WIFI7 W NEO + Ryzen 7 9700X AMD motherboard CPU combo

SKU CH-Q07K-FR2HG

A motherboard and CPU combo with an 8-core Ryzen 9700X processor, X870 chipset, four DDR5 slots up to 256 GB, four M.2 sockets, PCIe 5.0 graphics support, WiFi7 and 5 Gb Ethernet

  • ChipsetAMD X870
  • South BridgeAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP

model TUF GAMING X870-PRO WIFI7 W NEO

+CPU + Ryzen 7 9700X

  • 8-core Ryzen 9700X delivers 100-plus FPS gaming performance
  • 16+2+1 80A power stages ensure stable overclocking headroom
  • Four M.2 slots with PCIe 5.0 and 4.0 support fast storage expansion
  • WiFi7 plus 5Gb Ethernet provide high-speed wired and wireless connectivity
  • 256GB DDR5 capacity with AEMP and EXPO profiles simplifies memory tuning

Ready for advanced AI PCs

This motherboard and CPU combo targets builders who want a future-proof AMD AM5 platform. The X870 chipset supports Ryzen 9000, 8000 and 7000 series processors. The bundle includes a Ryzen 7 9700X with 8 cores, 16 threads and a 5.5 GHz max boost clock. It is designed for demanding AI applications and high-refresh gaming.

How it fits into a build

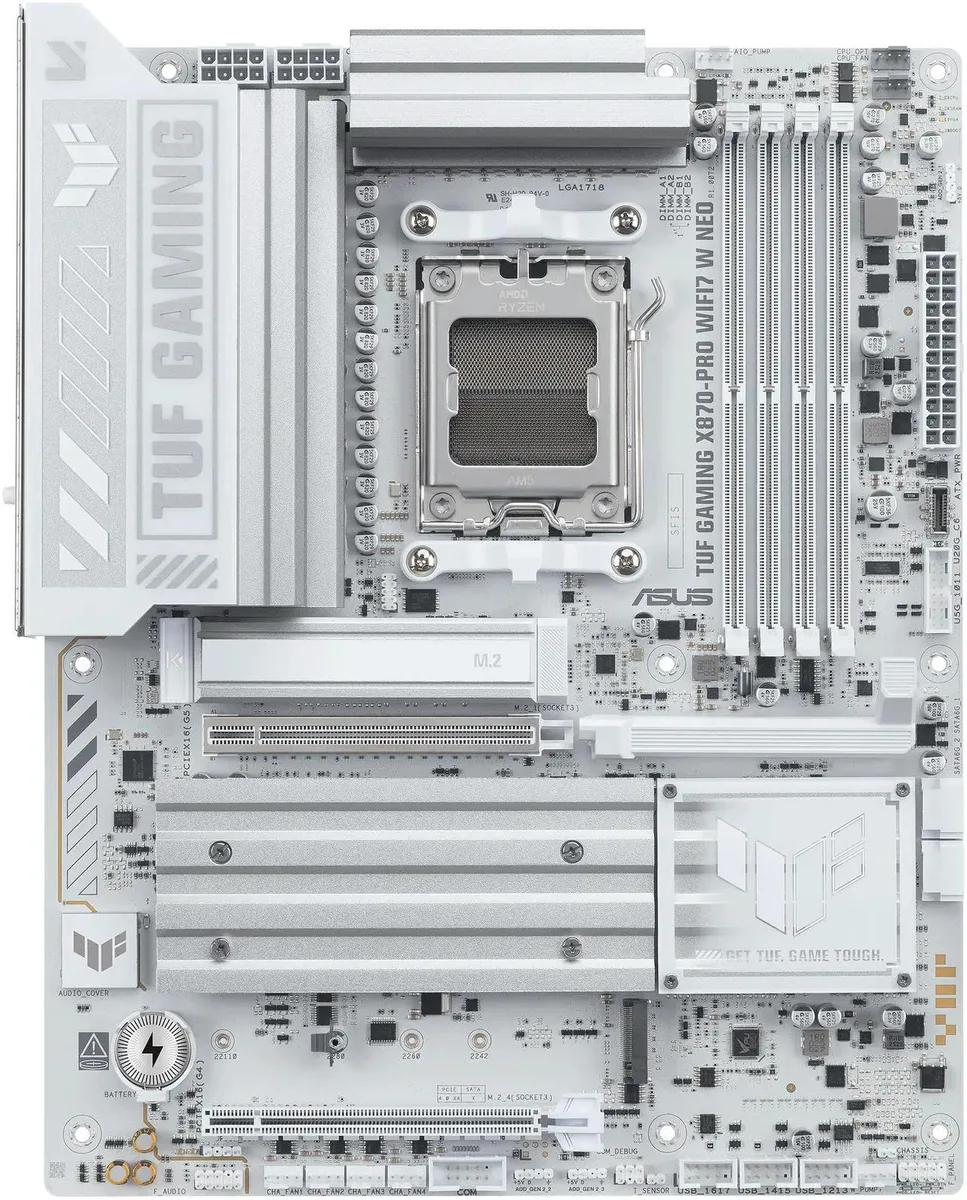

The board delivers 16+2+1 80A power stages on an 8-layer PCB with 8+8 pin ProCool connectors. Four DDR5 slots accept up to 256 GB in dual-channel mode with EXPO, XMP and AEMP profiles. One PCIe 5.0 x16 slot, two PCIe 4.0 x16 slots and four M.2 sockets (two PCIe 5.0, two PCIe 4.0) provide expansion headroom. Connectivity includes USB4 40 Gbps, 20 Gbps USB-C with 30 W power delivery, 5Gb Ethernet and WIFI7.

Capacity and headroom

The Ryzen 7 9700X brings 40 MB cache and unlocked overclocking on the AM5 socket with DDR5-5600 support. The motherboard adds a 64 MB BIOS, AI Cache Boost, AI Overclocking, AI Cooling II and AI Networking III for automated tuning. Two SATA 6 Gb/s ports and RAID 0/1/5/10 handle bulk storage. Realtek ALC1220P drives 7.1-channel audio for immersive output.

Highlights

  • 8-core Ryzen 9700X delivers 100-plus FPS gaming performance
  • 16+2+1 80A power stages ensure stable overclocking headroom
  • Four M.2 slots with PCIe 5.0 and 4.0 support fast storage expansion
  • WiFi7 plus 5Gb Ethernet provide high-speed wired and wireless connectivity
  • 256GB DDR5 capacity with AEMP and EXPO profiles simplifies memory tuning

Specifications

BrandASUS
ModelTUF GAMING X870-PRO WIFI7 W NEO+R7 9700X
ChipsetAMD X870
South BridgeAMD X870
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)2 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/5/10
Onboard Video ChipsetDepends on AMD Ryzen Series Processor with Integrated Graphics
Audio ChipsetRealtek ALC1220P
Audio Channels7.1 Channels
LAN ChipsetRealtek 5Gb
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x Clear CMOS button
COM1
Video PortsHDMI + 2 x USB Type-C
HDMI1 x HDMI port
RJ451 x RJ45
USB 3.13 x USB 3.1
USB 3.06 x USB 3.0
USB 1.1/2.01 x USB 2.0
USB Type-C2 x USB Type-C port, with USB4 (40Gbps) support
S/PDIF OutYes
Audio Ports3 Ports
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 header + 3 x USB 2.0 headers
Form FactorATX
LED LightingRGB
Dimensions (W x L)12 inch x 9.6 inch
Power Pin24 Pin
Windows 11Supported

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 16+2+1 80A power stage design handle sustained all-core loads on the Ryzen 7 9700X?

The 16+2+1 phase VRM uses 80A power stages on an 8-layer PCB with dual 8-pin ProCool connectors to deliver stable current during extended heavy workloads.

What are the thermal and acoustic characteristics of the VRM and chipset cooling when the system runs all day?

The board employs enlarged VRM heatsinks, a dedicated PCH heatsink and AI Cooling II to balance fan speeds and temperatures during continuous operation.

Which DDR5 memory kit specifications are required for this combo to function out of the box?

A DDR5 kit up to 256GB across four 288-pin slots is supported; the CPU officially runs at DDR5-5600 and the board adds AMD EXPO, Intel XMP and AEMP profiles.
