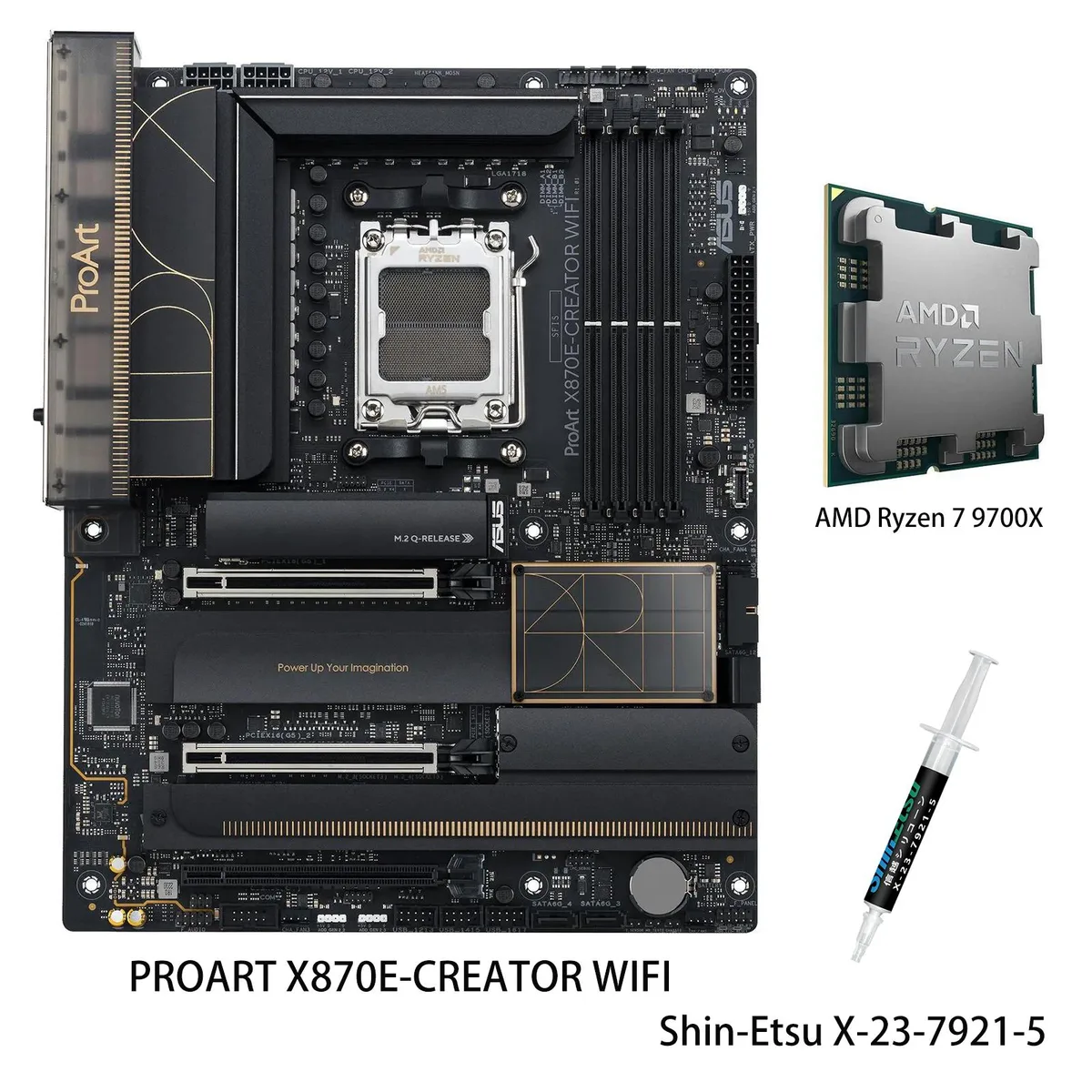

ATX motherboard in dark grey with silver heatsinks and a Ryzen 7 9700X CPU in the AM5 socket

ASUS

ASUS ProArt X870E-CREATOR WIFI + Ryzen 7 9700X AMD motherboard combo

SKU CH-CB7H-FZH7A

ATX motherboard and Ryzen 7 9700X CPU with AM5 socket, DDR5 memory up to 256 GB, dual USB4 ports, 10 Gb and 2.5 Gb Ethernet, WiFi 7, and PCIe 5.0 x16 graphics support

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • ECC SupportedYes

model PROART X870E-CREATOR WIFI

+CPU + Ryzen 7 9700X

  • Ready for advanced AI workloads with high-speed connectivity
  • 8-core Ryzen 7 9700X reaches 5.5 GHz max boost for responsive performance
  • 16+2+2 teamed power stages and ProCool II connectors deliver stable power
  • Dual USB4 ports, 10 Gb & 2.5 Gb Ethernet and WiFi 7 for fast data transfer
  • PCIe Slot Q-Release Slim, M.2 Q-Release and BIOS FlashBack simplify building

ProArt X870E-CREATOR WIFI Combo

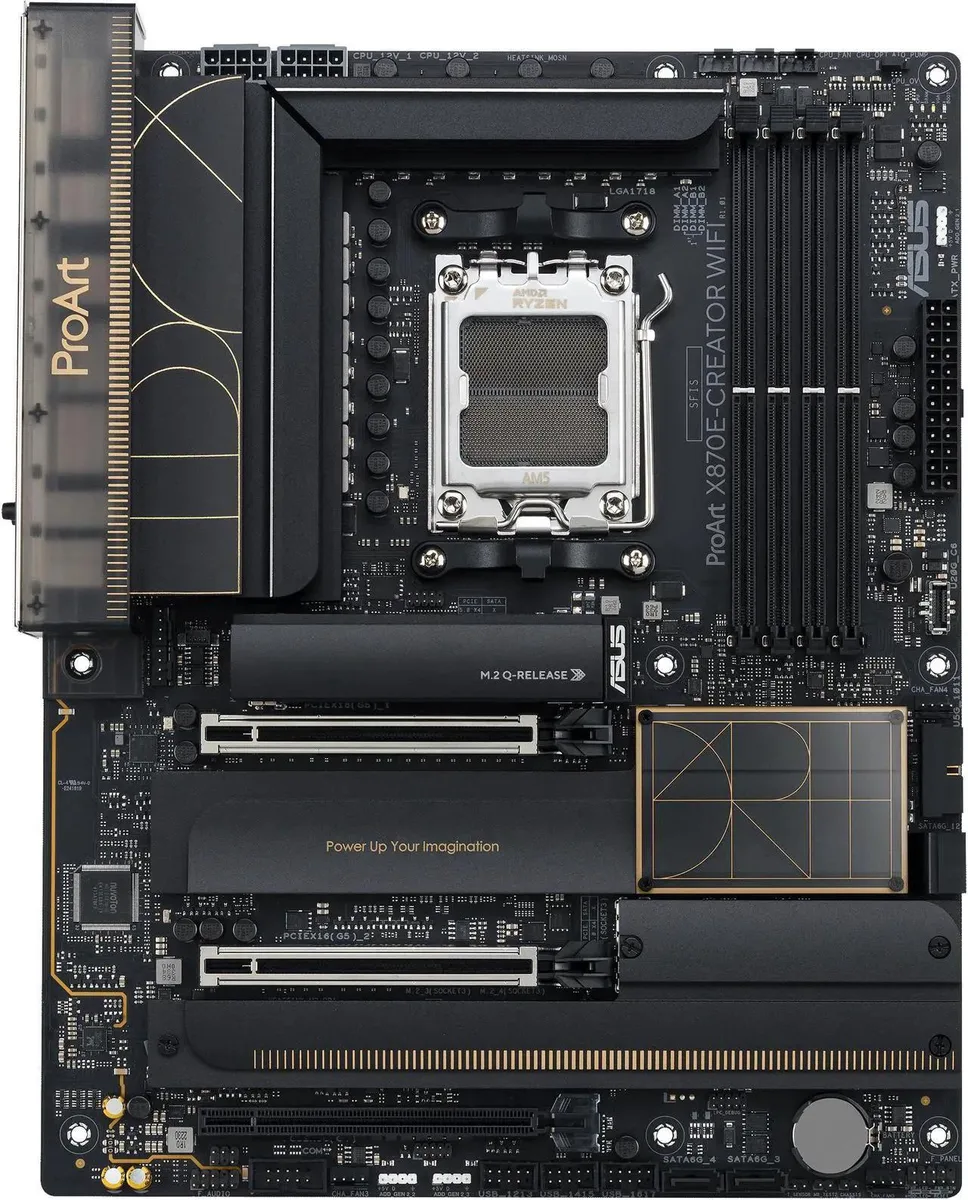

This bundle pairs the ASUS ProArt X870E-CREATOR WIFI motherboard with an AMD Ryzen 7 9700X processor. It targets content creators and workstation builders who need high core counts, extensive I/O, and platform stability. The AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs. The board delivers 16+2+2 teamed power stages for sustained loads.

PCIe 5.0 and USB4 connectivity limits

Two PCIe 5.0 x16 slots operate at x16 or x8/x8, with the second slot sharing bandwidth with the M.2_2 socket. The chipset adds one PCIe 4.0 x16 slot at x4 mode. Dual USB4 ports provide 20 Gbps throughput, while dual LAN offers 10 Gb and 2.5 Gb Ethernet. WiFi 7 and Bluetooth 5.4 handle wireless traffic.

256 GB DDR5 capacity ceiling

Four 288-pin slots support up to 256 GB of DDR5 4400 memory in dual-channel mode. Unbuffered non-ECC modules can use on-die ECC, while ECC DIMMs are also supported. EXPO profiles and OptiMem II simplify high-frequency tuning. This maximum capacity decides if the platform fits large dataset workloads.

Highlights

  • Ready for advanced AI workloads with high-speed connectivity
  • 8-core Ryzen 7 9700X reaches 5.5 GHz max boost for responsive performance
  • 16+2+2 teamed power stages and ProCool II connectors deliver stable power
  • Dual USB4 ports, 10 Gb & 2.5 Gb Ethernet and WiFi 7 for fast data transfer
  • PCIe Slot Q-Release Slim, M.2 Q-Release and BIOS FlashBack simplify building

Specifications

BrandASUS
ModelPROART X870E-CREATOR WIFI+R7 9700X
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
PCI Express 4.0 x16AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
SATA RAID*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not sup
Audio Channels7.1 Channels
Max LAN Speed1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LANBluetooth 5.4
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C)
1 x USB 20Gbps port(s) (1 x USB Type-C)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
-
Package Contents1 x AMD Ryzen 7 9700XCPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x User guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 256 GB DDR5-4400 kit or a lower-capacity set for the four 288-pin slots?

The board supports up to 256 GB across four DDR5 slots running at 4400 MT/s with dual-channel EXPO profiles, so pick the capacity your workloads need.

What does the Ryzen 7 9700X 5.5 GHz boost clock deliver in a built system?

Eight Zen 5 cores and 16 threads hit 5.5 GHz max boost, giving 100-plus FPS in top titles when paired with the 16+2+2 teamed power stages.

How do the dual USB4 ports and PCIe 5.0 x16 slots limit real-world throughput?

Dual USB4 ports run at 20 Gbps with 30 W PD, while two PCIe 5.0 x16 slots operate at x16 or x8/x8; the second shares bandwidth with the M.2_2 slot.
