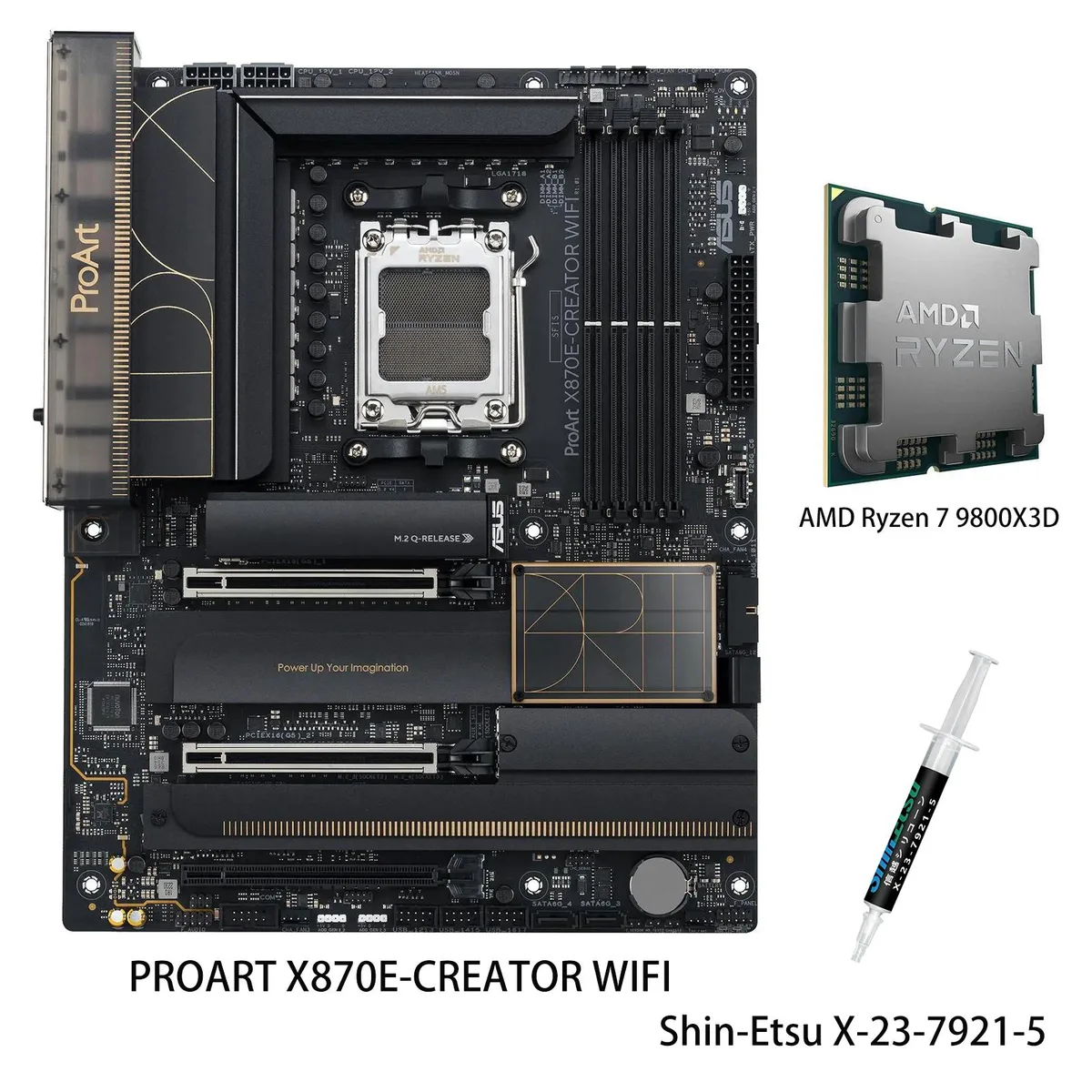

ATX motherboard with silver heatsinks and installed CPU cooler

ASUS

ASUS ProArt X870E-CREATOR WIFI + Ryzen 7 9800X3D AMD motherboard CPU combo

SKU CH-XGF4-FG7PV

AM5 motherboard and CPU bundle with dual USB4, 10 Gb and 2.5 Gb Ethernet, WiFi 7, PCIe 5.0 x16 slots and four DDR5 memory slots

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • ECC SupportedYes

model PROART X870E-CREATOR WIFI

+CPU + Ryzen 7 9800X3D

  • Ready for advanced AI workloads with power and connectivity for demanding applications
  • Robust 16+2+2 teamed power stages with ProCool II connectors for stable delivery
  • Future-proof connectivity via dual USB4 ports, 10 Gb and 2.5 Gb Ethernet, WiFi 7
  • AI Overclocking, AI Cooling and AI Networking II simplify tuning and thermals
  • DIY-friendly design with PCIe Slot Q-Release Slim, M.2 Q-Release and BIOS FlashBack

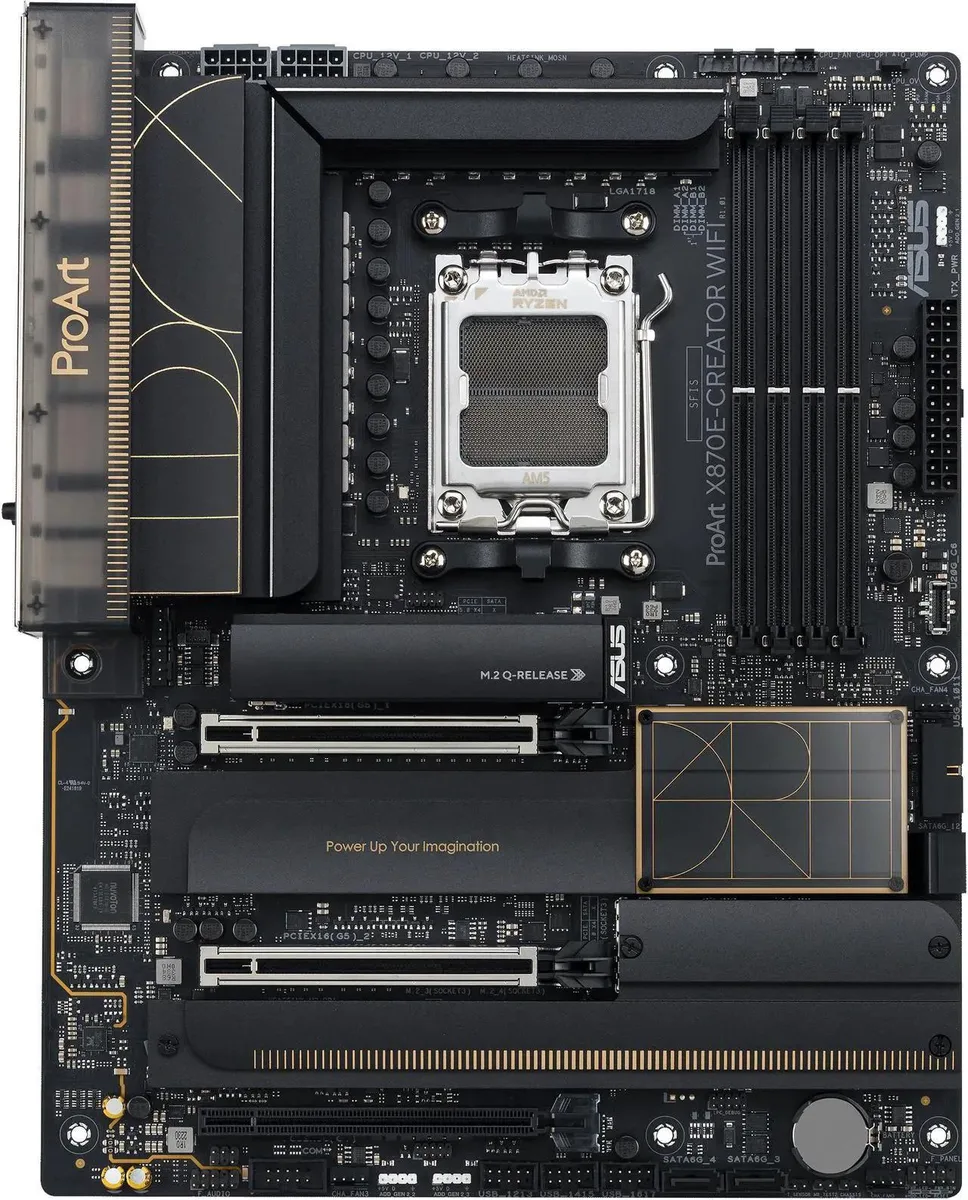

ProArt X870E Creator WiFi AM5 Combo

This bundle pairs the ProArt X870E-Creator WIFI motherboard with the Ryzen 7 9800X3D processor on the AM5 platform. It targets content creators and professionals who need strong multi-threaded performance and extensive I/O for demanding workflows. The board supports Ryzen 7000, 8000 and 9000 series CPUs.

Dual USB4 20Gbps And 10Gb LAN

Dual USB4 ports deliver 20Gbps bandwidth plus 30W power delivery for fast external storage and docks. A Marvell AQtion 10Gb Ethernet port and an Intel 2.5Gb port provide wired throughput for large file transfers. WiFi 7 and Bluetooth 5.4 add high-speed wireless connectivity.

PCIe 5.0 M.2 And GPU Bandwidth Sharing

Two CPU-linked M.2 slots run at PCIe 5.0 x4 with 2242, 2260 and 2280 support. The second PCIe 5.0 x16 slot shares bandwidth with the M.2_2 slot, so populating both reduces the slot to x8 mode. Four SATA 6Gb/s ports and RAIDXpert2 RAID 0, 1, 10 remain available for additional arrays.

Highlights

  • Ready for advanced AI workloads with power and connectivity for demanding applications
  • Robust 16+2+2 teamed power stages with ProCool II connectors for stable delivery
  • Future-proof connectivity via dual USB4 ports, 10 Gb and 2.5 Gb Ethernet, WiFi 7
  • AI Overclocking, AI Cooling and AI Networking II simplify tuning and thermals
  • DIY-friendly design with PCIe Slot Q-Release Slim, M.2 Q-Release and BIOS FlashBack

Specifications

BrandASUS
ModelPROART X870E-CREATOR WIFI+R7 9800X3D
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
PCI Express 4.0 x16AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
SATA RAID*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not sup
Audio Channels7.1 Channels
Max LAN Speed1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LANBluetooth 5.4
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C)
1 x USB 20Gbps port(s) (1 x USB Type-C)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
-
Package Contents1 x AMD Ryzen 7 9800X3D CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x User guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 16+2+2 teamed power stages on the ProArt X870E-CREATOR WIFI need any periodic maintenance or replacement?

The 16+2+2 teamed power stages, ProCool II connectors, alloy chokes and durable capacitors are solid-state components with no user-serviceable parts; no scheduled maintenance or replacement is required.

What thermal limit appears first on the Ryzen 7 9800X3D when all eight cores run at full load for hours?

The CPU will hit its factory thermal ceiling and engage precision boost throttling before any motherboard VRM limit is reached, so sustained all-core clocks settle at the processor's own thermal design point.

How loud and hot does the combo get when the 10 Gb and 2.5 Gb Ethernet, WiFi 7 and dual USB4 ports run continuously all day?

With AI Cooling active, fan curves stay low; the board draws only the power needed for the active controllers, so case airflow remains quiet and VRM temperatures stay well within the 16+2+2 power stage rating.
