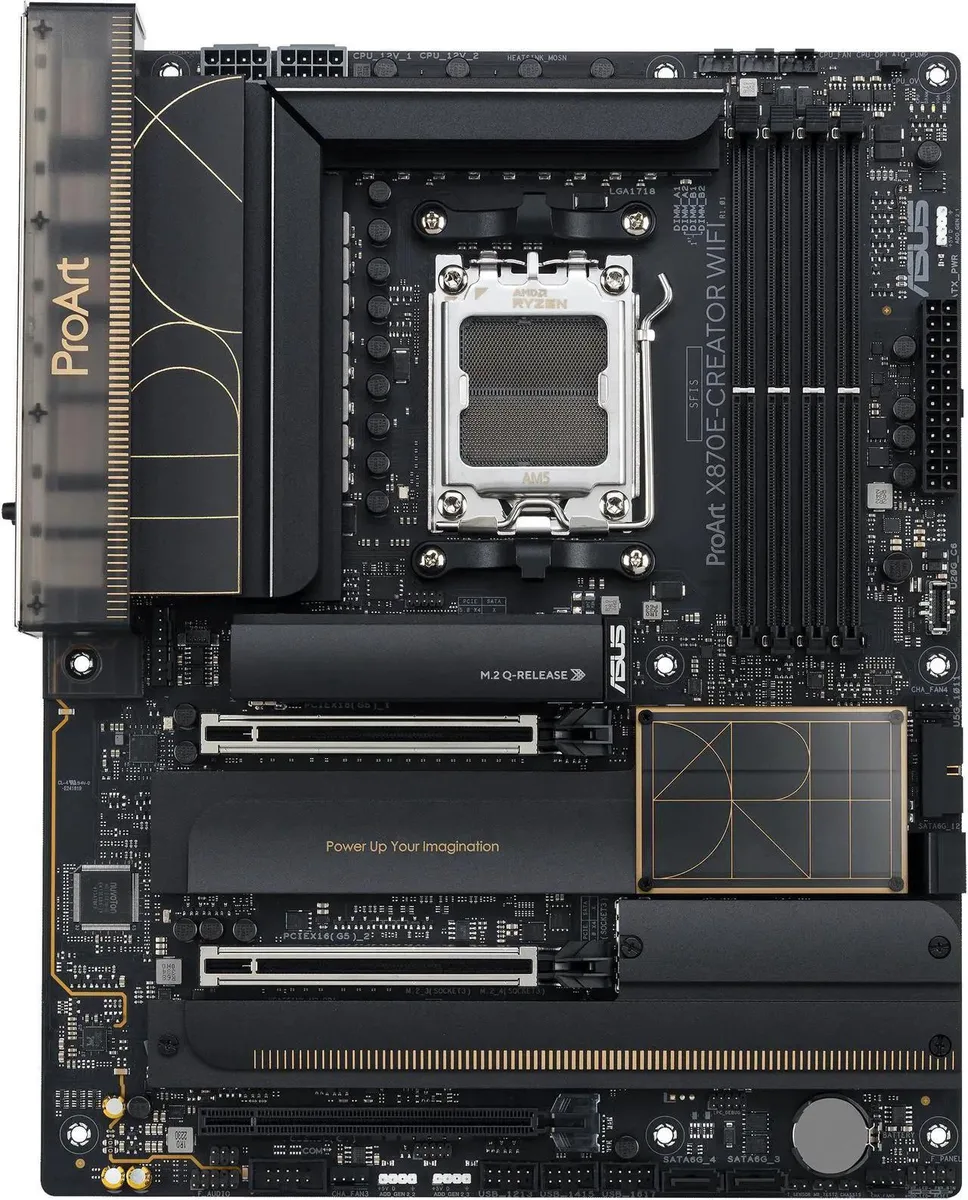

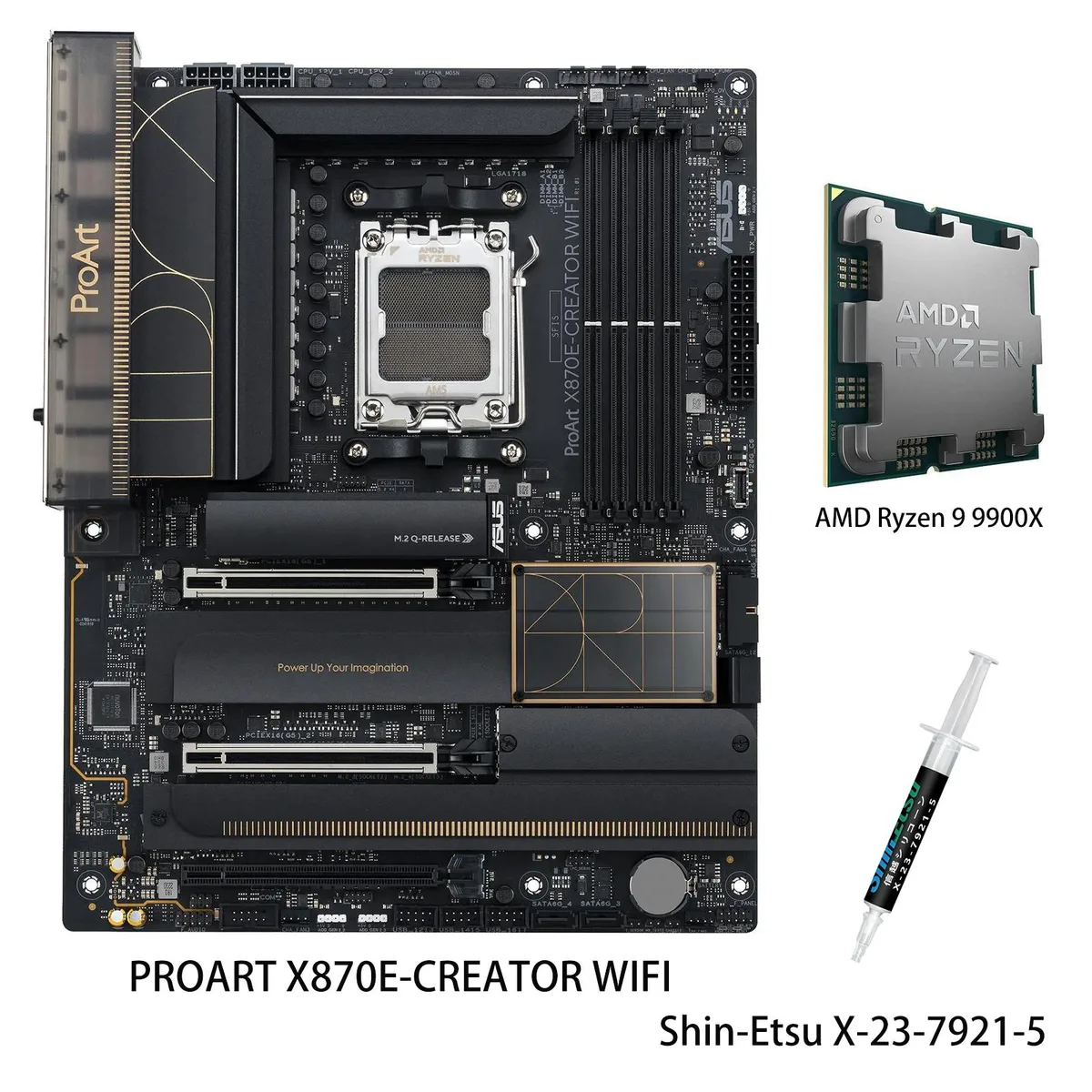

ATX motherboard with silver heatsinks, black PCB, and Ryzen 9 9900X CPU in socket

ASUS

ASUS ProArt X870E-CREATOR WIFI AMD motherboard & Ryzen 9 9900X CPU combo

SKU CH-WYWS-D2C58

AM5 motherboard and 12-core Ryzen 9 9900X CPU with dual USB4, 10 Gb and 2.5 Gb LAN, WiFi 7, PCIe 5.0 graphics slots and four DDR5 memory slots supporting 256 GB

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • ECC SupportedYes

model PROART X870E-CREATOR WIFI

+CPU + Ryzen 9 9900X

  • 12-core Ryzen 9 9900X delivers 5.6 GHz max boost for heavy workloads
  • 16+2+2 teamed power stages give stable voltage to the AM5 CPU
  • Dual USB4 ports plus 10 Gb and 2.5 Gb Ethernet move data fast
  • Two PCIe 5.0 x16 slots and two PCIe 5.0 M.2 slots support next-gen GPUs and storage
  • DIY-friendly Q-Release Slim, M.2 Q-Latch and BIOS FlashBack simplify building

ProArt X870E Creator Combo

This bundle pairs the ASUS ProArt X870E-CREATOR WIFI motherboard with the AMD Ryzen 9 9900X processor. It targets content creators and engineers who need a high-core-count platform with extensive I/O for AI workloads and media production.

Upgrade From Older AM5 Or AM4 Builds

The jump is worth it when workloads demand 12 cores, 24 threads and DDR5 memory bandwidth beyond 4400 MT/s. The new platform adds dual USB4 ports, 10 Gb Ethernet and WiFi 7 for faster asset transfer and remote collaboration.

Connectivity Limits Of PCIe 5.0 And USB4

The second PCIe 5.0 x16 slot shares bandwidth with the M.2_2 slot, so both cannot run at full speed simultaneously. USB4 throughput depends on the attached device and cable quality, while WiFi 7 performance requires a compatible router and regulatory approval.

Highlights

  • 12-core Ryzen 9 9900X delivers 5.6 GHz max boost for heavy workloads
  • 16+2+2 teamed power stages give stable voltage to the AM5 CPU
  • Dual USB4 ports plus 10 Gb and 2.5 Gb Ethernet move data fast
  • Two PCIe 5.0 x16 slots and two PCIe 5.0 M.2 slots support next-gen GPUs and storage
  • DIY-friendly Q-Release Slim, M.2 Q-Latch and BIOS FlashBack simplify building

Specifications

BrandASUS
ModelPROART X870E-CREATOR WIFI+R9 9900X
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
PCI Express 4.0 x16AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
SATA RAID*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not sup
Audio Channels7.1 Channels
Max LAN Speed1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LANBluetooth 5.4
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C)
1 x USB 20Gbps port(s) (1 x USB Type-C)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
-
Package Contents1 x AMD Ryzen 9 9900X CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x User guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case clearance and power connectors does the 16+2+2 power stage design on the ProArt X870E-CREATOR WIFI require?

The board uses an ATX form factor and ProCool II power connectors; ensure your case fits ATX and your PSU provides the matching 8-pin plus 8-pin or 8-pin plus 4-pin CPU power cables.

Which step is often missed when installing the Ryzen 9 9900X into the AM5 socket on this motherboard?

After placing the CPU, the lever must be lowered fully until it clicks; skipping the final click leaves the processor unsecured and prevents POST.

When will the four DDR5 slots need attention after the system is running?

Dust can accumulate in the 288-pin slots over time; use compressed air to clean them if the system fails to recognise memory modules during later upgrades.
