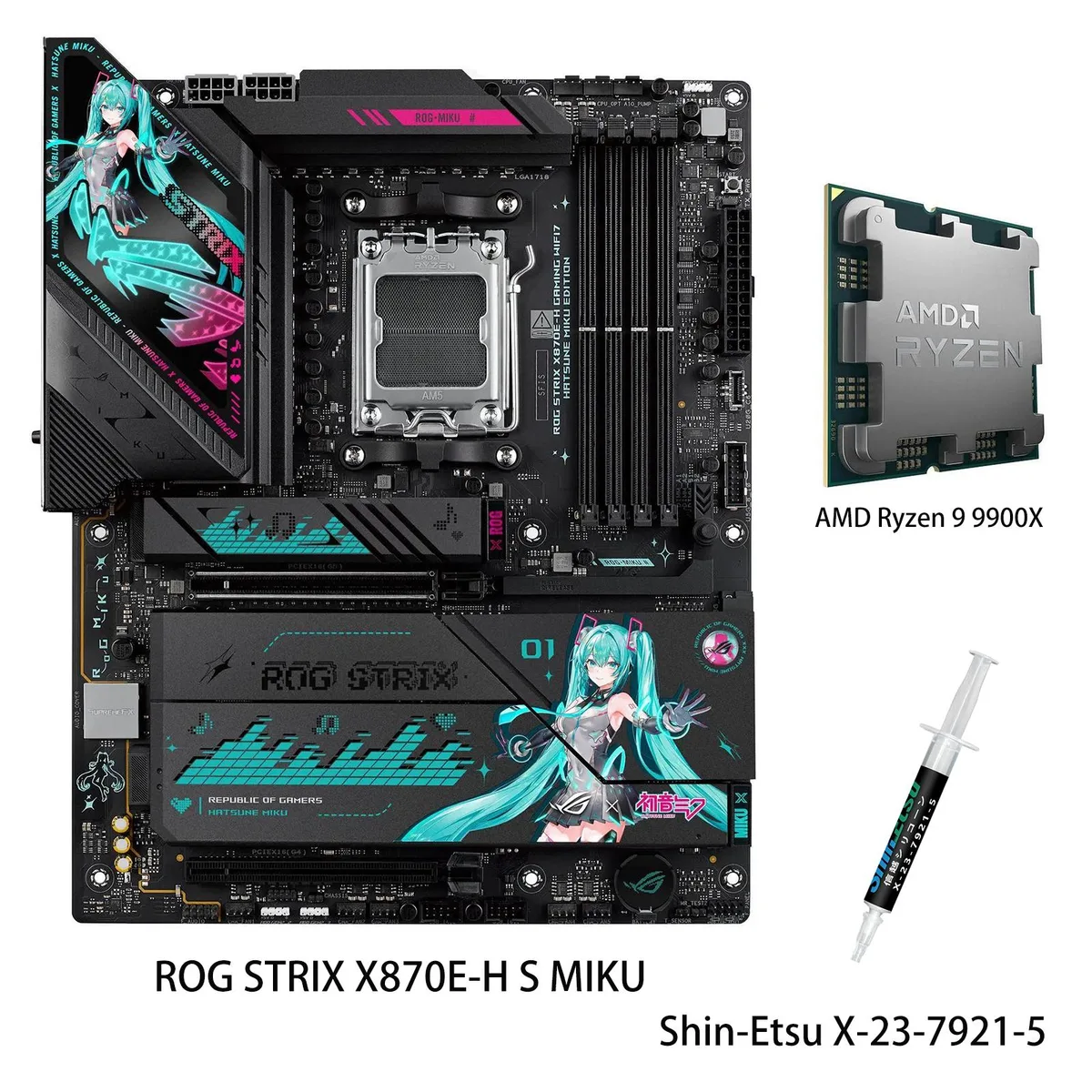

ATX motherboard in teal and pink Hatsune Miku livery with large heatsinks and bundled Ryzen 9 9900X CPU

ASUS

ASUS ROG STRIX X870E-H S MIKU+R9 9900X AMD motherboard & CPU combo

SKU CH-YQZN-EXT8J

AM5 combo pairs a 12-core Ryzen 9 9900X with an X870E board offering dual USB4, Wi-Fi 7, four DDR5 slots up to 8000 MT/s, two PCIe 5.0 M.2 slots, 5 Gbps LAN and 7.1 audio

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Deskt
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC)
  • Maximum Memory Supported256GB

model ROG STRIX X870E-H S MIKU

+CPU + Ryzen 9 9900X

  • Ready for Ryzen 9000, 8000 and 7000 series on AM5 socket
  • 12 cores and 24 threads with 5.6 GHz max boost on Zen 5 architecture
  • AI Advisor, AI Cache Boost, AI Cooling II and AI Networking II simplify setup
  • 16+2+1 power stages rated 80A with dual ProCool II connectors
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with substantial cooling solutions

Combo for AM5 builders

This bundle pairs an ASUS ROG STRIX X870E-H S MIKU motherboard with an AMD Ryzen 9 9900X processor. The 12-core, 24-thread CPU runs up to 5.6 GHz and includes 64 MB L3 cache. The board targets enthusiasts who need robust power delivery and extensive connectivity for demanding workloads. It fits the AM5 socket used by Ryzen 7000, 8000 and 9000 series chips.

PCIe 5.0 and DDR5 limits

The platform provides one PCIe 5.0 x16 slot and two PCIe 5.0 M.2 slots when a Ryzen 9000 or 7000 processor is installed; with Ryzen 8000 the primary slot operates at PCIe 4.0 x8 or x4. Memory tops out at 256 GB across four DDR5 slots, with dual-channel support and speeds beyond 8000 MT/s via overclocking. Four SATA 6Gb/s ports remain available regardless of CPU generation.

12 cores and 5.6 GHz boost

The Ryzen 9 9900X delivers 12 cores and 24 threads based on the Zen 5 architecture, reaching a 5.6 GHz max boost clock while unlocked for overclocking. This core count and frequency combination defines the performance ceiling for rendering, compilation and multi-threaded AI tasks. The CPU also brings 12 MB L2 cache and native DDR5-5600 support to the AM5 platform.

Highlights

  • Ready for Ryzen 9000, 8000 and 7000 series on AM5 socket
  • 12 cores and 24 threads with 5.6 GHz max boost on Zen 5 architecture
  • AI Advisor, AI Cache Boost, AI Cooling II and AI Networking II simplify setup
  • 16+2+1 power stages rated 80A with dual ProCool II connectors
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with substantial cooling solutions

Specifications

BrandASUS
SeriesROG STRIX
ModelROG STRIX X870E-H S MIKU+R9 9900X
Part NumberROG STRIX X870E-H S MIKU+R9 9900X
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occu
SATA RAIDAMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which CPU is included in this combo?

The combo includes the AMD Ryzen 9 9900X processor with 12 cores, 24 threads, 5.6 GHz max boost and 64 MB L3 cache.

What does the 5.6 GHz boost mean for actual workloads?

The 5.6 GHz max boost gives high single-thread speed for gaming and light tasks, while the 12 Zen 5 cores sustain multi-thread throughput for rendering and compile jobs.

What USB4 capability does the board provide?

Two USB4 Type-C ports deliver up to 20 Gbps each for fast external storage and display output.
