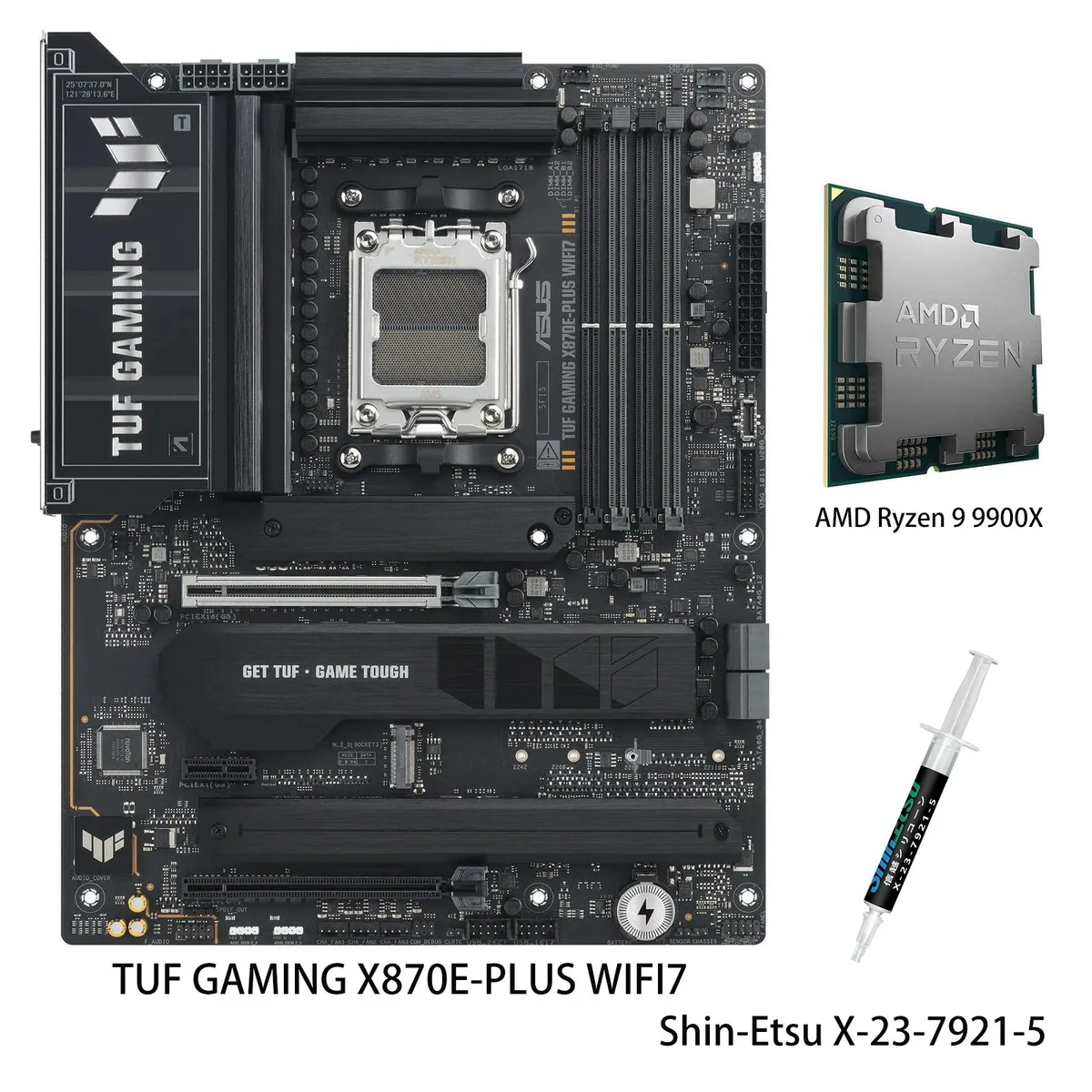

ATX motherboard in grey and black with large heatsinks, CPU socket and boxed Ryzen 9 9900X processor

ASUS

ASUS TUF GAMING X870E-PLUS WIFI7 & Ryzen 9 9900X Combo

SKU CH-2HEC-098GR

Socket AM5 motherboard with 16+2+1 80A power stages, four DDR5 slots up to 8000 MT/s, two PCIe 5.0 M.2 slots, Wi-Fi 7, 2.5Gb Ethernet, dual USB4 40Gbps ports.

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s (OC)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model TUF GAMING X870E-PLUS WIFI7

+CPU + Ryzen 9 9900X

  • 12-core Ryzen 9 9900X delivers 5.6 GHz max boost for heavy workloads
  • 16+2+1 80A power stages on 8-layer PCB ensure stable CPU delivery
  • Dual PCIe 5.0 M.2 slots enable fastest storage throughput
  • Wi-Fi 7 plus 2.5 Gbps Ethernet give low-latency networking
  • Two rear USB4 40 Gbps Type-C ports support high-speed peripherals

Combo for AM5 builds

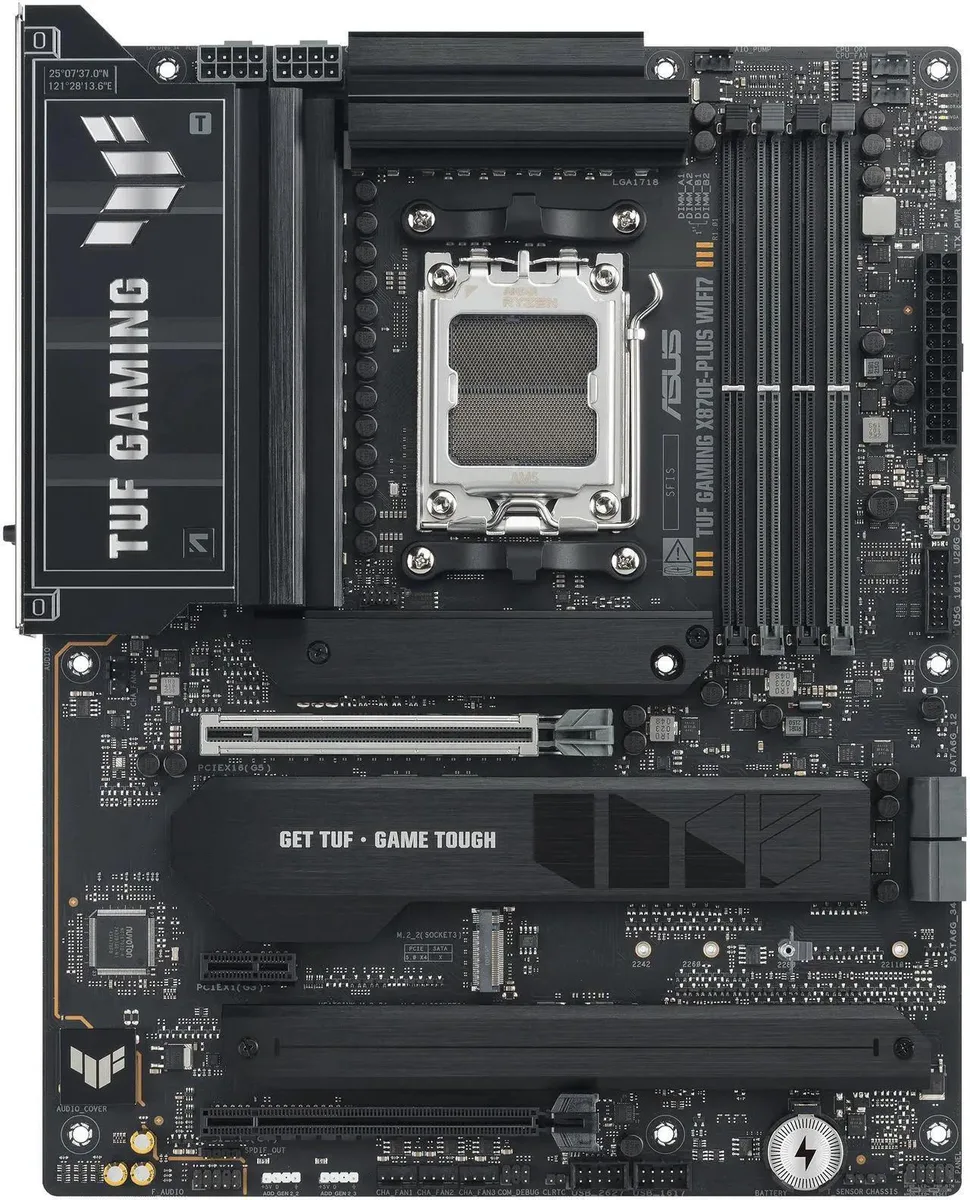

This bundle pairs the TUF GAMING X870E-PLUS WIFI7 motherboard with the Ryzen 9 9900X processor. The board uses the AMD X870E chipset and an AM5 socket. The CPU delivers 12 cores and 24 threads based on Zen 5 architecture with a 5.6 GHz maximum boost frequency.

AI features and connectivity

ASUS AI Overclocking, AI Cooling II and AI Networking II automate tuning, fan curves and traffic prioritisation. AEMP profiles simplify DDR5 memory setup. Rear I/O includes two USB4 Type-C ports at 40 Gbps and a front-panel USB 20 Gbps Type-C header with 30 W power delivery. Wi-Fi 7 and 2.5 Gbps Ethernet handle wireless and wired links.

Power delivery and expansion

The 16+2+1 80 A power stages sit on an 8-layer PCB with 8+8 pin ProCool connectors, alloy chokes and durable capacitors. Enlarged VRM, M.2 and PCH heatsinks connect to hybrid fan headers managed by Fan Xpert 4. Four M.2 slots support 2242, 2260, 2280 and 22110 form factors, with two running at PCIe 5.0 x4 and two at PCIe 4.0 x4.

Highlights

  • 12-core Ryzen 9 9900X delivers 5.6 GHz max boost for heavy workloads
  • 16+2+1 80A power stages on 8-layer PCB ensure stable CPU delivery
  • Dual PCIe 5.0 M.2 slots enable fastest storage throughput
  • Wi-Fi 7 plus 2.5 Gbps Ethernet give low-latency networking
  • Two rear USB4 40 Gbps Type-C ports support high-speed peripherals

Specifications

BrandASUS
ModelTUF GAMING X870E-PLUS WIFI7+R9 9900X
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x11 x PCIe 3.0 x1 Slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8.
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/19
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Sup
Package Contents1 x AMD Ryzen 9 9900X CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this motherboard fit in a standard ATX case and align with my PSU cables?

The board follows the ATX form factor and uses dual 8-pin ProCool power connectors, so any ATX case with standard EPS cables will accommodate it.

What DDR5 memory speeds can I run with the included Ryzen 9 9900X without manual tuning?

The CPU officially supports DDR5-5600, and the motherboard’s AEMP feature can lift compatible kits higher automatically.

How many high-speed M.2 drives can I install at PCIe 5.0 x4?

Two M.2 slots — M.2_1 and M.2_2 — operate at PCIe 5.0 x4 when a Ryzen 9000 or 7000 series processor is installed.
