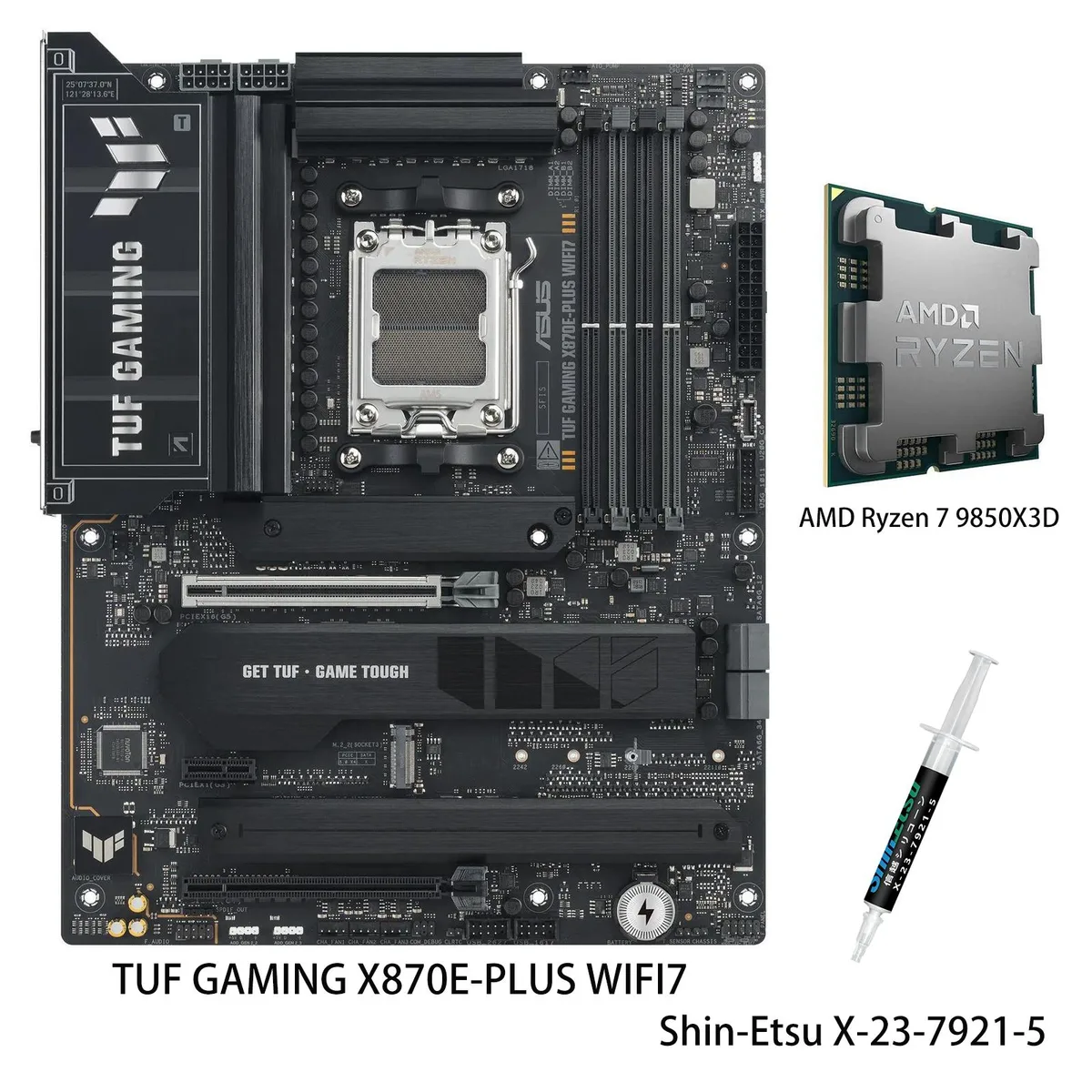

ATX motherboard with large VRM heatsinks and CPU installed

ASUS

ASUS TUF GAMING X870E-PLUS WIFI7 AMD motherboard & Ryzen 7 9850X3D CPU combo

SKU CH-1Q57-K7W9R

A combo pairing an AM5 motherboard with 16+2+1 80A power stages, four DDR5 slots up to 8000+MT/s, two PCIe 5.0 M.2 slots, Wi-Fi 7 and 2.5Gb Ethernet with an 8-core Ryzen 7 9850X3D CPU featuring 3D

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s (OC)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model TUF GAMING X870E-PLUS WIFI7

+CPU + Ryzen 7 9850X3D

  • Ready for advanced AI workloads with power and connectivity built for demanding applications
  • Stable power delivery through 16+2+1 80A power stages on an 8-layer PCB with ProCool connectors
  • Faster gaming from the Ryzen 7 9850X3D with second-generation 3D V-Cache technology lowering latency
  • Ultrafast connectivity via Wi-Fi 7, 2.5Gb Ethernet, dual USB4 40Gbps ports and front USB 20Gbps Type-C with 30W charging
  • Expansive storage options with two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots onboard

Ready for AMD Ryzen 9000 series builds

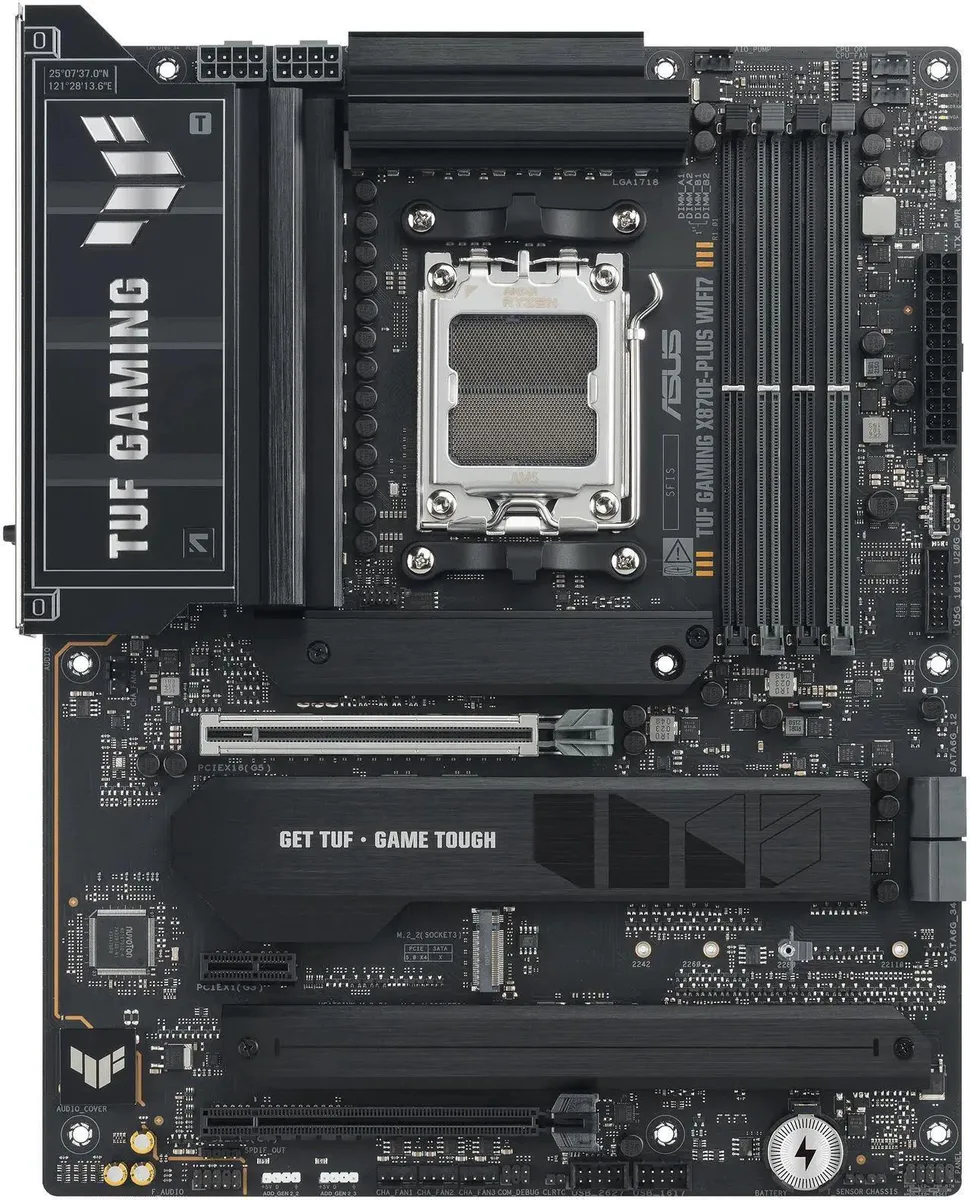

This bundle pairs an ASUS TUF GAMING X870E-PLUS WIFI7 motherboard with an AMD Ryzen 7 9850X3D processor. The board uses the AMD X870E chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. It targets enthusiasts who want a high-end gaming platform with 3D V-Cache technology.

PCIe 5.0 x16 and M.2 lanes depend on the CPU

With a Ryzen 9000 or 7000 processor the primary graphics slot runs at PCIe 5.0 x16 and two M.2 slots operate at PCIe 5.0 x4. A Ryzen 8000 series CPU limits the top slot to PCIe 4.0 x16 and those M.2 slots to PCIe 4.0 x4. Four SATA 6Gb/s ports and a single PCIe 3.0 x1 slot are always available.

16+2+1 80A power stages on an 8-layer PCB

The VRM uses alloy chokes and durable capacitors fed by dual 8-pin ProCool connectors. Enlarged VRM, M.2 and PCH heatsinks handle thermal load. Rear I/O includes two USB4 40Gbps Type-C ports, Realtek 2.5Gbps Ethernet and Wi-Fi 7. A front-panel USB 20Gbps Type-C header supplies up to 30W power delivery.

Highlights

  • Ready for advanced AI workloads with power and connectivity built for demanding applications
  • Stable power delivery through 16+2+1 80A power stages on an 8-layer PCB with ProCool connectors
  • Faster gaming from the Ryzen 7 9850X3D with second-generation 3D V-Cache technology lowering latency
  • Ultrafast connectivity via Wi-Fi 7, 2.5Gb Ethernet, dual USB4 40Gbps ports and front USB 20Gbps Type-C with 30W charging
  • Expansive storage options with two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots onboard

Specifications

BrandASUS
ModelTUF GAMING X870E-PLUS WIFI7+R7 9850X3D
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x11 x PCIe 3.0 x1 Slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8.
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/19
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Sup
Package Contents1 x AMD Ryzen 7 9850X3D CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the included Ryzen 7 9850X3D CPU enable the PCIe 5.0 x16 slot and both PCIe 5.0 M.2 slots on this motherboard?

Yes. The Ryzen 7 9850X3D is a Ryzen 9000 series processor, so the motherboard provides one PCIe 5.0 x16 slot and two PCIe 5.0 M.2 slots (M.2_1 and M.2_2) when this CPU is installed.

What is the maximum memory speed and capacity supported when using the bundled CPU?

The board supports up to 256 GB of DDR5 across four slots. With a Ryzen 9000 series CPU you can run EXPO kits at 8000+ MT/s overclocked, while standard JEDEC speeds apply without overclocking.

Which power connectors must be plugged in for the 16+2+1 80A power stage design to function?

The motherboard requires both an 8-pin and a second 8-pin ProCool connector (8+8 pin total) to supply the 16+2+1 80A power stages. Ensure your PSU provides two CPU 8-pin cables.
