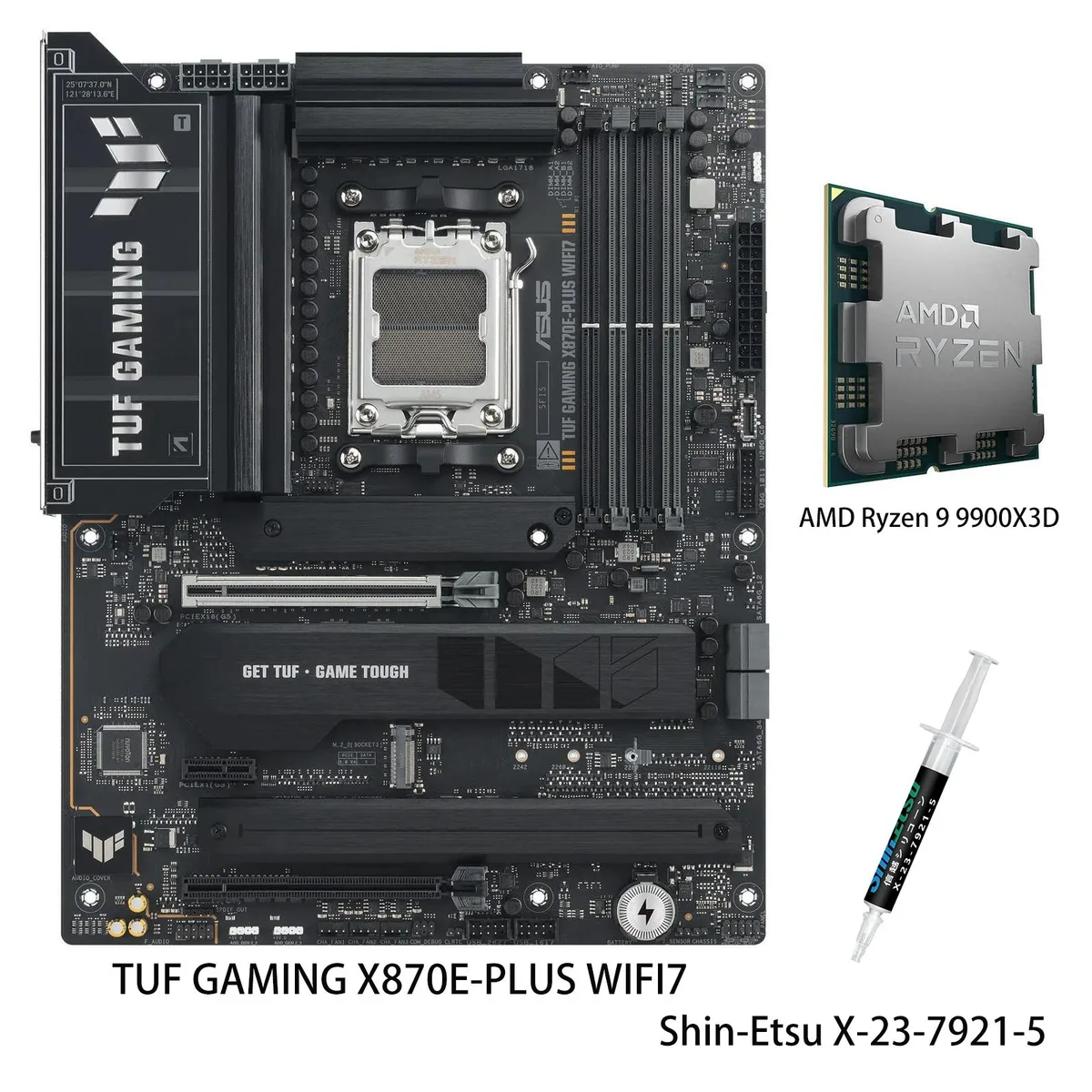

ATX motherboard with large VRM heatsinks, four DDR5 slots, multiple M.2 heatsinks, rear I/O with USB-C ports

ASUS

ASUS TUF GAMING X870E-PLUS WIFI7 AMD motherboard & Ryzen 9 9900X3D CPU combo

SKU CH-N6J5-RBZJ3

Pairs a 16+2+1 80A power stage X870E board with a 120W 12-core Zen 5 CPU featuring 128MB L3 cache and Radeon graphics, plus Wi-Fi 7 and dual USB4 40Gbps ports

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s (OC)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model TUF GAMING X870E-PLUS WIFI7

+CPU + Ryzen 9 9900X3D

  • Stable power delivery with 16+2+1 80A power stages
  • 128MB L3 cache accelerates gaming and heavy workloads
  • Wi-Fi 7 and 2.5Gbps Ethernet for ultrafast networking
  • Two PCIe 5.0 M.2 slots enable high-speed storage
  • DDR5 up to 8000+MT/s with AEMP support

Ready for Advanced AI PC

This combo pairs the ASUS TUF GAMING X870E-PLUS WIFI7 motherboard with the Ryzen 9 9900X3D processor. The board uses the AMD X870E chipset and AM5 socket to support Ryzen 9000, 8000 and 7000 series CPUs. It targets builders who need high core counts and large cache for AI workloads and gaming.

Installation notes

The ATX board fits standard chassis and uses 8+8 pin ProCool connectors for clear power routing. Four 288-pin DDR5 slots accept up to 256GB of memory with AEMP and EXPO profiles for simpler tuning. Two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots share bandwidth with the CPU, so populate M.2_1 first to avoid lane conflicts. Rear USB4 40Gbps Type-C and front USB 20Gbps Type-C with 30W PD require correct header alignment.

Sustained load behaviour

The 16+2+1 80A power stages on an 8-layer PCB deliver stable current to the 120W Zen 5 CPU with 128MB L3 cache. Enlarged VRM, M.2 and PCH heatsinks combine with Fan Xpert 4 and AI Cooling II to manage thermals during long compile or inference runs. Realtek 2.5Gb Ethernet and Wi-Fi 7 maintain consistent throughput when transferring large datasets.

Highlights

  • Stable power delivery with 16+2+1 80A power stages
  • 128MB L3 cache accelerates gaming and heavy workloads
  • Wi-Fi 7 and 2.5Gbps Ethernet for ultrafast networking
  • Two PCIe 5.0 M.2 slots enable high-speed storage
  • DDR5 up to 8000+MT/s with AEMP support

Specifications

BrandASUS
ModelTUF GAMING X870E-PLUS WIFI7+R9 9900X3D
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x11 x PCIe 3.0 x1 Slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8.
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/19
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Sup
Package Contents1 x AMD Ryzen 9 9900X3D CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the 16+2+1 80A power stages and AI Overclocking are active after building with the Ryzen 9 9900X3D?

Enter the UEFI and verify the 16+2+1 80A power-stage count is shown on the hardware monitor page; enable AI Overclocking in the AI Tweaker section and watch the AI Cooling II fan-curve adjust automatically during a stress test.

What comes in the combo box and which DDR5 memory must I buy separately?

The combo includes the TUF GAMING X870E-PLUS WIFI7 motherboard and the Ryzen 9 9900X3D processor; you must purchase DDR5 DIMMs separately — the board has four 288-pin slots supporting up to 256 GB dual-channel at 8000+ MT/s with EXPO and AEMP profiles.

Which M.2 slot should I choose for a PCIe 5.0 x4 drive versus a PCIe 4.0 drive on this X870E board?

Use M.2_1 or M.2_2 (Key M, 2280) for PCIe 5.0 x4 drives with Ryzen 9000 or 7000 series CPUs; the remaining two M.2 slots operate at PCIe 4.0 x4 and accept 2242/2260/2280/22110 form factors.
