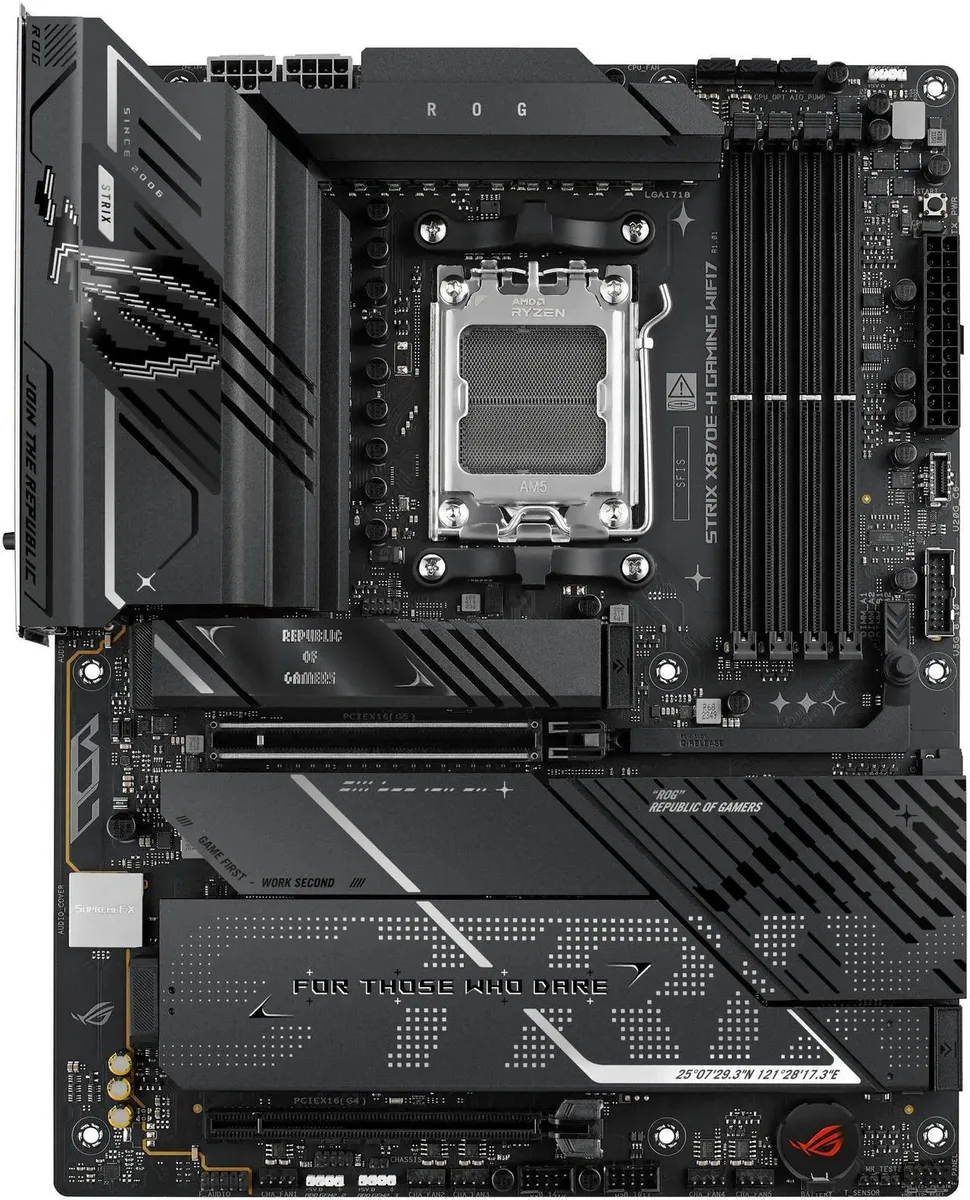

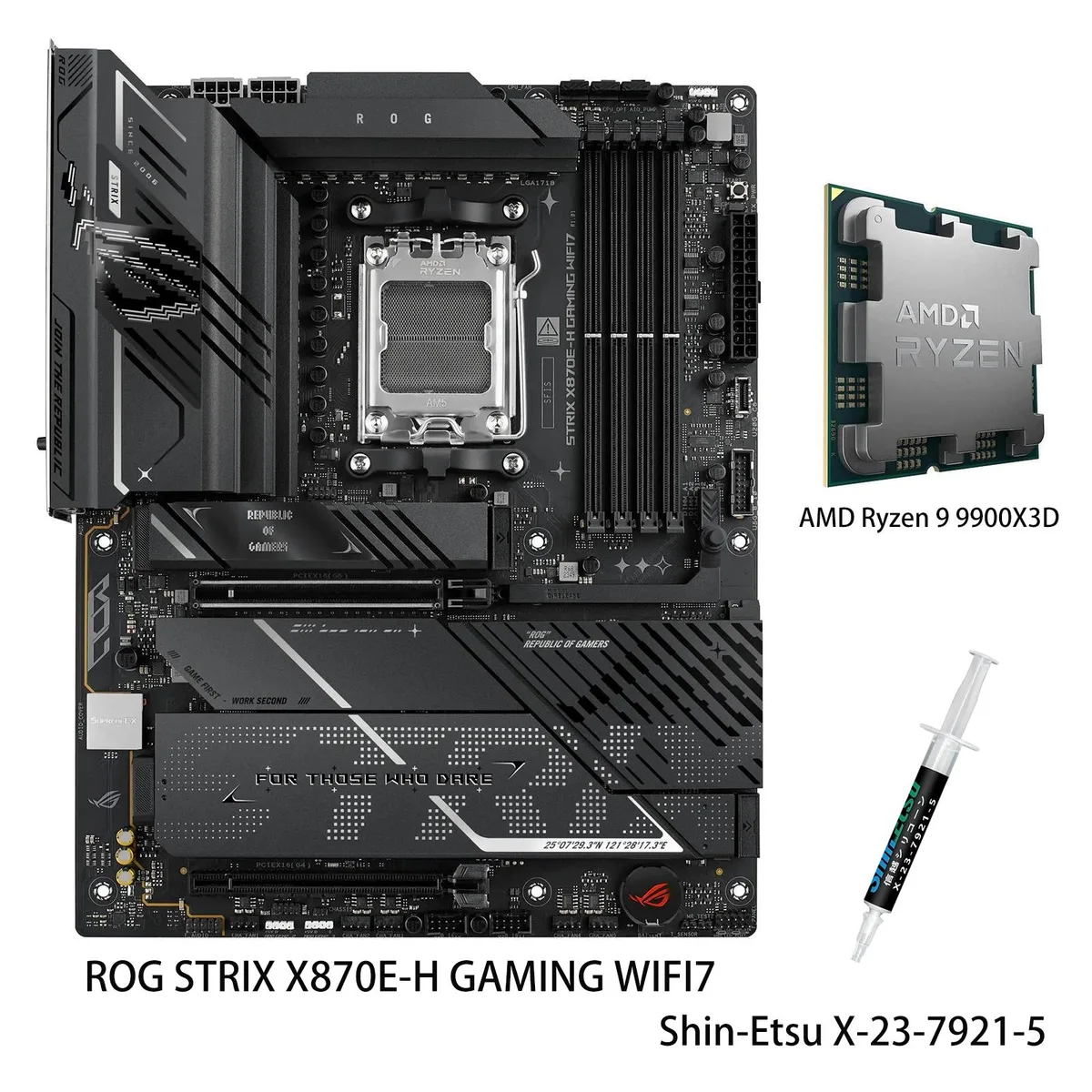

ATX motherboard with silver heatsinks and black PCB, CPU installed in AM5 socket

ASUS

ASUS ROG STRIX X870E-H GAMING WIFI7 + Ryzen 9 9900X3D AMD motherboard combo

SKU CH-FHW8-R7PH3

An AMD AM5 motherboard and Ryzen 9 9900X3D CPU combo with 16+2+1 power stages, DDR5 support to 8000+ MT/s, WiFi 7, Realtek 5Gb Ethernet, four M.2 slots and 128 MB L3 cache

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG STRIX X870E-H GAMING WIFI7

+CPU + Ryzen 9 9900X3D

  • AM5 socket supports Ryzen 9000, 8000 and 7000 series processors
  • 16+2+1 power stages rated 80A with dual ProCool II connectors for stable multi-core delivery
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots each with substantial cooling solutions
  • Onboard WiFi 7 plus Realtek 5Gb Ethernet for high-performance networking
  • Bundled Ryzen 9 9900X3D with 128MB L3 cache and integrated Radeon graphics

Motherboard & CPU Combo

This bundle pairs the ROG STRIX X870E-H GAMING WIFI7 motherboard with the AMD Ryzen 9 9900X3D processor. The AM5 socket board supports Ryzen 9000, 8000 and 7000 series chips. The CPU delivers 12 cores built on TSMC 4nm FinFET Granite Ridge architecture with a 120W TDP. Integrated AMD Radeon graphics provide video output without a discrete card.

Check Your Setup

Verify that your chassis accepts an ATX board measuring 12.0" x 9.6". Confirm your power supply includes dual 8-pin ProCool II connectors for the 16+2+1 power stage design. Ensure DDR5 memory kits are on the motherboard QVL for speeds up to 8000 MT/s. Check that your CPU cooler clears the large VRM heatsinks and integrated I/O cover.

What the Extras Deliver

Two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots each include substantial heatsinks for sustained throughput. WiFi 7 (802.11be) and Realtek 5Gb Ethernet handle high-bandwidth networking. Rear I/O provides two USB4 40Gbps Type-C ports, four USB 10Gbps ports, six USB 5Gbps ports and two USB 2.0 ports. ASUS AI Advisor, AI Cache Boost, AI Networking II and AEMP simplify tuning.

Highlights

  • AM5 socket supports Ryzen 9000, 8000 and 7000 series processors
  • 16+2+1 power stages rated 80A with dual ProCool II connectors for stable multi-core delivery
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots each with substantial cooling solutions
  • Onboard WiFi 7 plus Realtek 5Gb Ethernet for high-performance networking
  • Bundled Ryzen 9 9900X3D with 128MB L3 cache and integrated Radeon graphics

Specifications

BrandASUS
SeriesROG STRIX
ModelROG STRIX X870E-H GAMING WIFI7+R9 9900X3D
Part NumberROG STRIX X870E-H GAMING WIFI7+R9 9900X3D
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Package Contents1 x AMD Ryzen 9 9900X3D CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the combo box and what must I source separately?

The combo includes the ROG STRIX X870E-H GAMING WIFI7 motherboard and the Ryzen 9 9900X3D processor. You will need to buy DDR5 memory modules, storage drives, a graphics card, a CPU cooler, a power supply and a case to complete the build.

How do I choose between the four M.2 slots when adding storage?

Two slots run at PCIe 5.0 speeds and two at PCIe 4.0 speeds, all with substantial cooling. Install your fastest drive in a PCIe 5.0 slot for maximum throughput; use the PCIe 4.0 slots for additional capacity.

What does the 120W TDP of the 9900X3D mean for my cooling choice?

The 120W rating indicates the sustained heat the cooler must dissipate. Select an air cooler or AIO rated for at least 120W, and connect it to the 4-pin CPU or AIO Pump header on the board.
