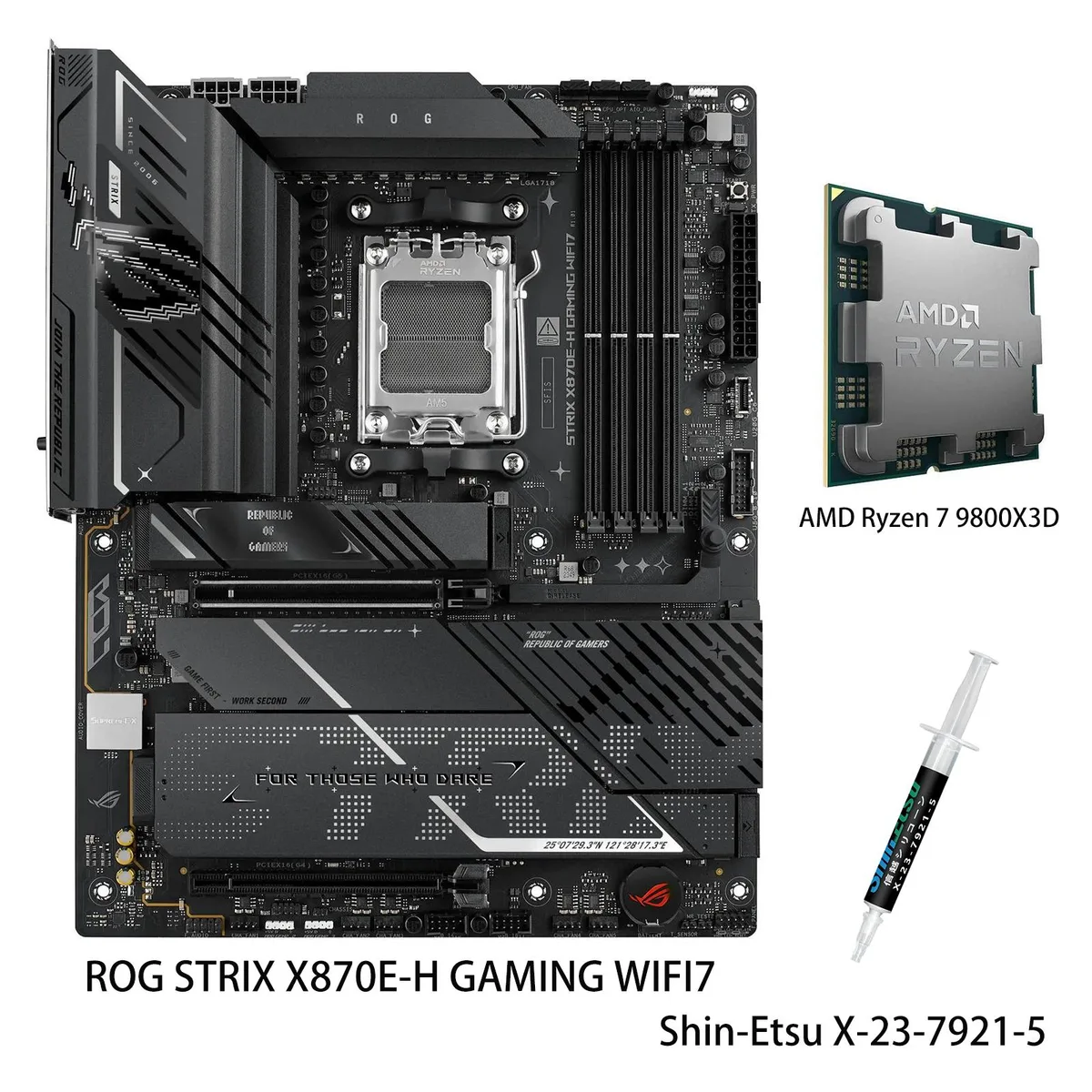

Black ATX motherboard with large silver heatsinks and integrated I/O cover, Ryzen 7 9800X3D CPU seated in AM5 socket

ASUS

ASUS ROG STRIX X870E-H GAMING WIFI7 + Ryzen 7 9800X3D AMD motherboard CPU combo

SKU CH-8XWP-MF8DE

ATX motherboard with 16+2+1 power stages and WiFi 7 paired with an 8-core Ryzen 7 9800X3D featuring 3D V-Cache technology

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG STRIX X870E-H GAMING WIFI7

+CPU + Ryzen 7 9800X3D

  • Ready for advanced AI workloads with power and connectivity built in
  • 16+2+1 power stages rated at 80A each with dual ProCool II connectors
  • AMD AM5 socket supports Ryzen 9000, 8000 and 7000 series processors
  • Four M.2 slots including two PCIe 5.0 and two PCIe 4.0, all with substantial cooling
  • WiFi 7 and Realtek 5Gb Ethernet for high-performance networking

Ready for advanced AI PCs

This motherboard and CPU combination targets enthusiasts building high-performance AMD systems. The ROG STRIX X870E-H GAMING WIFI7 board pairs with the Ryzen 7 9800X3D processor, delivering 8 cores with second-generation 3D V-Cache technology for reduced gaming latency. The AM5 socket supports Ryzen 9000, 8000 and 7000 series processors.

Fits an ATX build with robust power and storage

The ATX form factor measures 12.0 by 9.6 inches and requires a compatible chassis. A 16+2+1 power solution rated for 80A per stage uses dual ProCool II connectors to feed multi-core CPUs. Four DDR5 slots accept up to 256GB at speeds beyond 8000MT/s. Two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots provide fast storage with substantial heatsinks. One PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot handle graphics and add-in cards.

Bundled intelligence simplifies setup

ASUS-exclusive AI Advisor, AI Cache Boost, AI Networking II and AEMP firmware features automate memory tuning, network prioritisation and cache optimisation. On-board WiFi 7 (802.11be) and Realtek 5Gb Ethernet deliver modern connectivity. Rear I/O includes two USB4 40Gbps Type-C ports, four USB 10Gbps ports, six USB 5Gbps ports and two USB 2.0 ports. 7.1-channel audio and addressable RGB Gen 2 headers complete the package.

Highlights

  • Ready for advanced AI workloads with power and connectivity built in
  • 16+2+1 power stages rated at 80A each with dual ProCool II connectors
  • AMD AM5 socket supports Ryzen 9000, 8000 and 7000 series processors
  • Four M.2 slots including two PCIe 5.0 and two PCIe 4.0, all with substantial cooling
  • WiFi 7 and Realtek 5Gb Ethernet for high-performance networking

Specifications

BrandASUS
SeriesROG STRIX
ModelROG STRIX X870E-H GAMING WIFI7+R7 9800X3D
Part NumberROG STRIX X870E-H GAMING WIFI7+R7 9800X3D
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Package Contents1 x AMD Ryzen 7 9800X3D CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many power stages feed the CPU on this board and what is their current rating?

The motherboard uses a 16+2+1 power solution with each stage rated for 80A, backed by dual ProCool II connectors, alloy chokes and durable capacitors.

What cooling does the board provide for the four M.2 slots during all-day workloads?

Two PCIe 5.0 and two PCIe 4.0 M.2 slots each have substantial heatsinks, while massive VRM heatsinks with an integrated I/O cover and high-conductivity thermal pads handle sustained heat.

Which DDR5 memory kit speed and capacity does the combo support out of the box?

Four 288-pin slots accept up to 256GB of non-ECC DDR5, with AEMP profiles enabling 8000+ MT/s overclocked operation on the included Ryzen 7 9800X3D.
