ATX motherboard with large silver VRM heatsinks and black PCB, Ryzen 7 9800X3D CPU in AM5 socket, four DDR5 slots

ASUS

ASUS TUF GAMING X870E-PLUS WIFI7 + Ryzen 7 9800X3D AMD motherboard combo

SKU CH-946T-Q3YF6

An AMD X870E ATX motherboard paired with a Ryzen 7 9800X3D CPU, featuring 16+2+1 80A power stages, DDR5 support to 8000+MT/s, two PCIe 5.0 M.2 slots, WiFi 7 and 2.5Gb Ethernet

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s (OC)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model TUF GAMING X870E-PLUS WIFI7

+CPU + Ryzen 7 9800X3D

  • Stable power for heavy workloads from 16+2+1 80A power stages
  • DDR5 memory overclocked to 8000+ MT/s with AEMP and EXPO support
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 7 and 2.5Gb Ethernet with dual USB4 40Gbps rear ports
  • Ryzen 7 9800X3D CPU recognised with CES 2025 Innovation Award Honoree

Ready for AMD Ryzen 7 9800X3D gaming

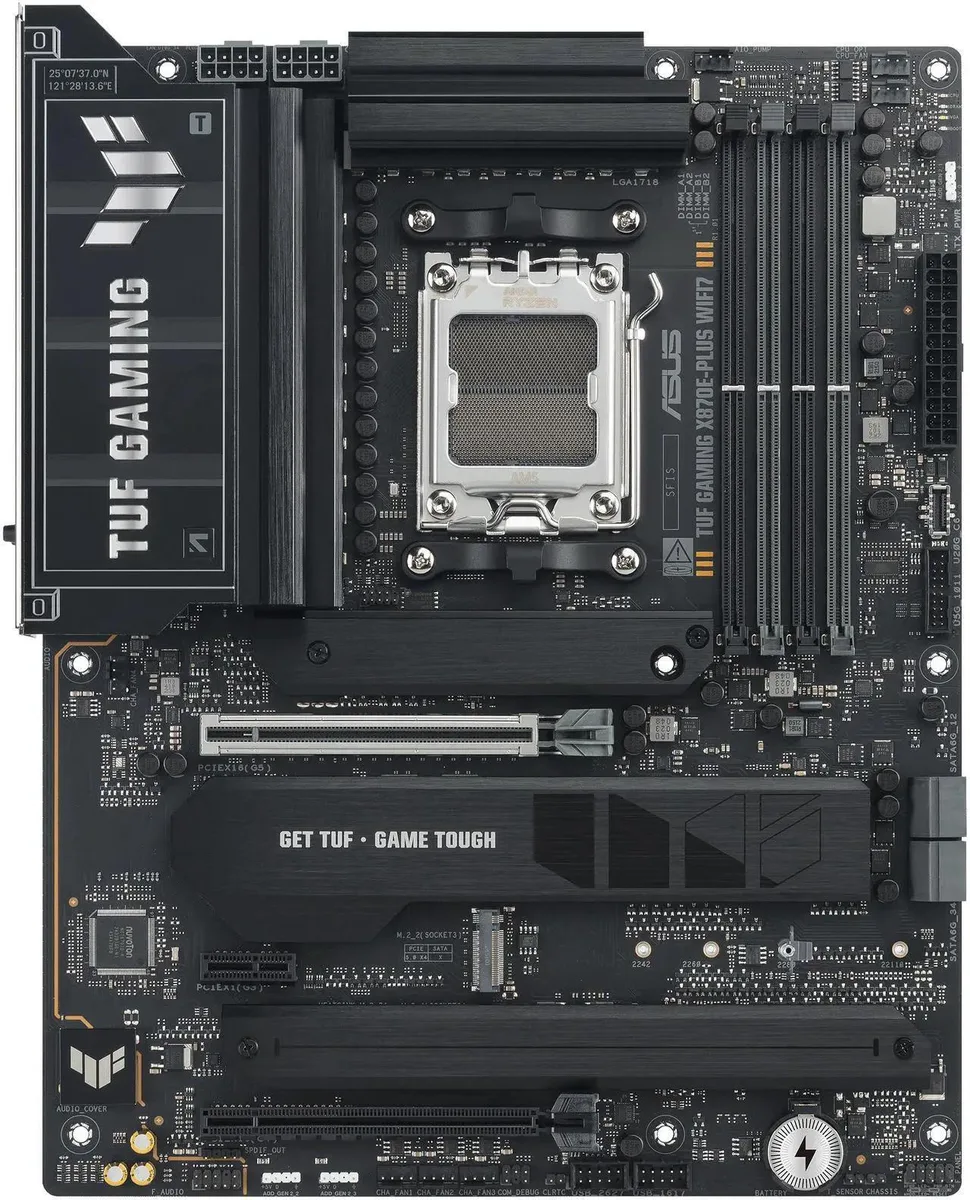

This motherboard and CPU combo pairs the ASUS TUF GAMING X870E-PLUS WIFI7 with the AMD Ryzen 7 9800X3D processor. The board uses the AMD X870E chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. Four DDR5 slots take up to 256GB of memory at speeds beyond 8000 MT/s when overclocked. It is aimed at enthusiasts who want high frame rates and responsive AI workloads in a single package.

Sustained power delivery with 16+2+1 80A stages

The 16+2+1 80A power stages sit on an 8-layer PCB fed by dual 8+8 pin ProCool connectors, alloy chokes and durable capacitors. ASUS AI Overclocking, AI Cooling II and AI Networking II work together to manage thermals and voltage during long sessions. AEMP profiles simplify memory tuning without manual intervention. The VRM heatsink, M.2 heatsinks and PCH heatsink combine with hybrid fan headers and Fan Xpert 4 to keep temperatures stable under continuous load.

Four M.2 slots and USB4 40Gbps Type-C ports

Two PCIe 5.0 M.2 slots support 2280 drives, while two PCIe 4.0 slots accept 2242, 2260, 2280 and 22110 form factors. Rear I/O includes two USB4 40Gbps Type-C ports and a front-panel USB 20Gbps Type-C header with 30W power delivery. Wi-Fi 7 and Realtek 2.5Gb Ethernet provide low-latency networking. Realtek ALC1220P 7.1 audio with impedance sensing and an internal amplifier drives headphones cleanly. Four SATA 6Gb/s ports and RAIDXpert2 support round out storage flexibility.

Highlights

  • Stable power for heavy workloads from 16+2+1 80A power stages
  • DDR5 memory overclocked to 8000+ MT/s with AEMP and EXPO support
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 7 and 2.5Gb Ethernet with dual USB4 40Gbps rear ports
  • Ryzen 7 9800X3D CPU recognised with CES 2025 Innovation Award Honoree

Specifications

BrandASUS
ModelTUF GAMING X870E-PLUS WIFI7+R7 9800X3D
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x11 x PCIe 3.0 x1 Slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8.
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/19
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Sup
Package Contents1 x AMD Ryzen 7 9800X3D CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 16+2+1 80A power stage design affect heat and noise during all-day loads?

The enlarged VRM heatsink, alloy chokes and 8-layer PCB spread heat from the 16+2+1 80A power stages, while Fan Xpert 4 with AI Cooling II adjusts fan curves to keep noise low under sustained workloads.

What DDR5 memory must I already own for this motherboard to post?

You need un-buffered DDR5 DIMMs (ECC or non-ECC) up to 256 GB total across the four 288-pin slots; the board runs dual-channel and supports AMD EXPO profiles up to 8000+ MT/s when overclocked.

Will my PCIe 4.0 graphics card and SATA SSDs work at full speed in the PCIe 5.0 x16 slot and the four SATA 6 Gb/s ports?

Yes — the PCIe 5.0 x16 slot is backward compatible with PCIe 4.0 cards, and the four SATA 6 Gb/s ports run at native speed regardless of the CPU generation installed.
