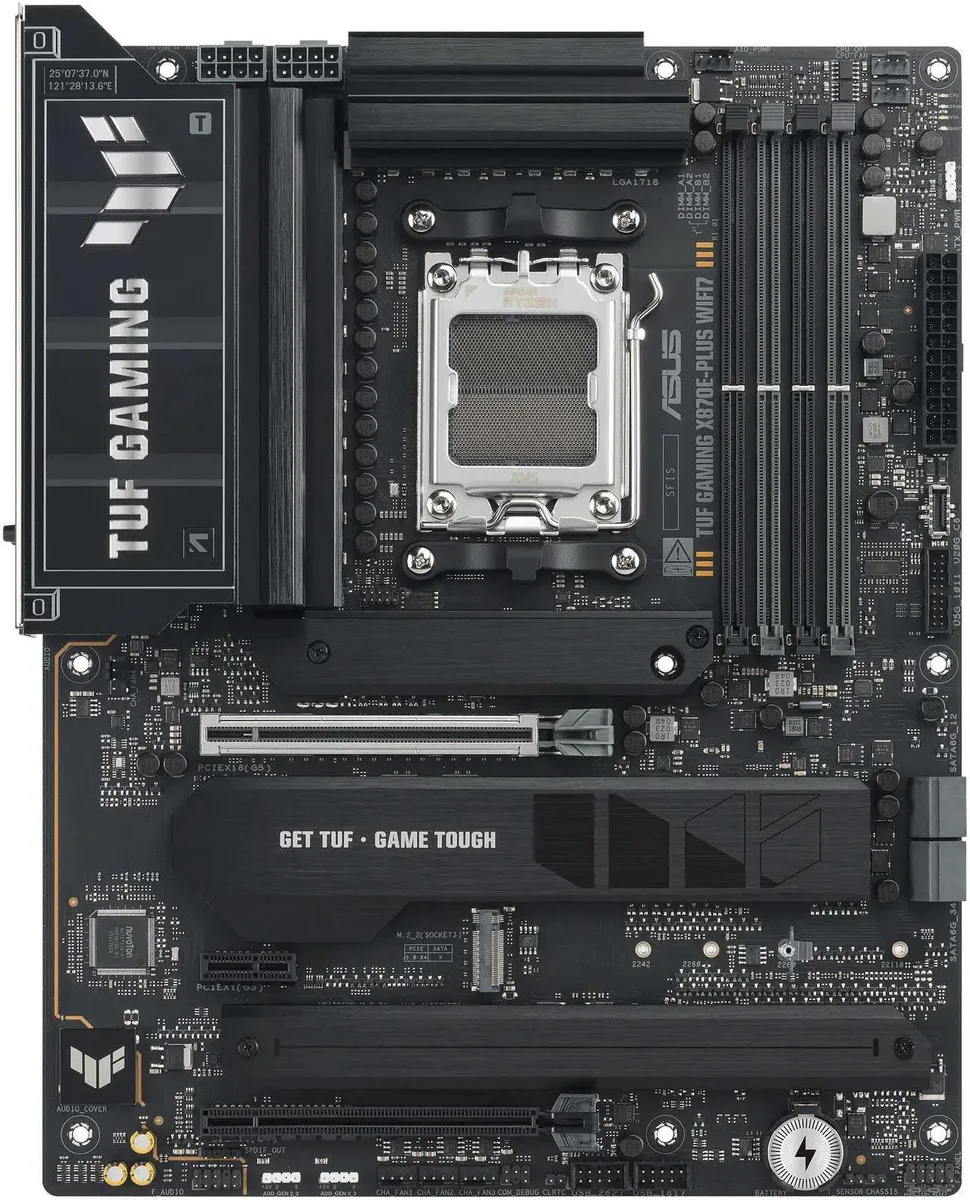

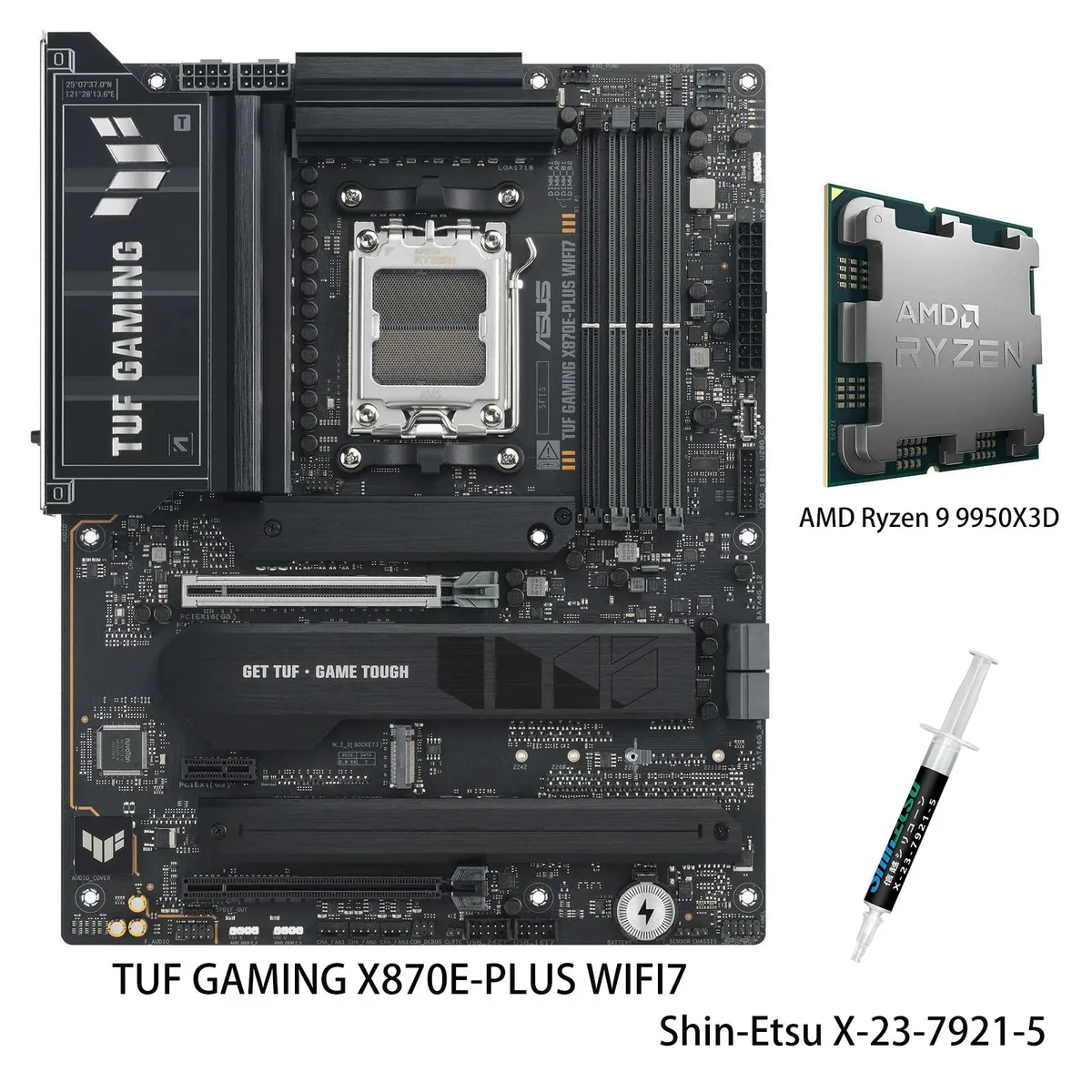

Black ATX motherboard with grey heatsinks and a silver CPU in its socket

ASUS

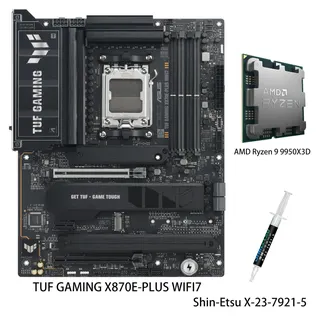

ASUS TUF GAMING X870E-PLUS WIFI7 AMD Motherboard & Ryzen 9 9950X3D CPU Combo

SKU CH-75C8-1WY6N

Pairs an AM5 motherboard with 16+2+1 80A power stages, four M.2 slots and Wi-Fi 7 with a 16-core Zen 5 CPU featuring 128MB L3 cache and Radeon graphics

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s (OC)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model TUF GAMING X870E-PLUS WIFI7

+CPU + Ryzen 9 9950X3D

  • Stable power for heavy workloads backed by 16+2+1 80A power stages
  • Simplified tuning with AI Overclocking and AI Cooling II built in
  • Fast storage expansion via two PCIe 5.0 and two PCIe 4.0 M.2 slots
  • High-speed wired and wireless links through Wi-Fi 7 and 2.5Gb Ethernet
  • Massive 128MB L3 cache on the Ryzen 9 9950X3D for gaming and AI tasks

Combo built for AI workloads

This bundle pairs the TUF GAMING X870E-PLUS WIFI7 motherboard with a Ryzen 9 9950X3D processor on the AM5 socket. The board delivers 16+2+1 80A power stages, an 8-layer PCB and dual 8+8 pin ProCool connectors. Memory support reaches 256 GB across four DDR5 slots at up to 8000+ MT/s with EXPO and AEMP profiles.

Suits multi-threaded creators and AI developers

Sixteen Zen 5 cores with 128 MB L3 cache and a 170 W TDP make the CPU strong for rendering, compilation and local model inference. Builders who only need mainstream gaming performance or a lower power envelope should consider a smaller Ryzen 7000 or 8000 series chip instead.

Sustained load behaviour

The enlarged VRM heatsink, M.2 heatsinks and PCH heatsink work with hybrid fan headers and AI Cooling II to maintain stable delivery during long compile or training runs. PCIe 5.0 x16 and two PCIe 5.0 M.2 slots keep storage and GPU bandwidth from throttling, while Wi-Fi 7 and 2.5 Gbps Ethernet sustain network throughput.

Highlights

  • Stable power for heavy workloads backed by 16+2+1 80A power stages
  • Simplified tuning with AI Overclocking and AI Cooling II built in
  • Fast storage expansion via two PCIe 5.0 and two PCIe 4.0 M.2 slots
  • High-speed wired and wireless links through Wi-Fi 7 and 2.5Gb Ethernet
  • Massive 128MB L3 cache on the Ryzen 9 9950X3D for gaming and AI tasks

Specifications

BrandASUS
ModelTUF GAMING X870E-PLUS WIFI7+R9 9950X3D
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x11 x PCIe 3.0 x1 Slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8.
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/19
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Sup
Package Contents1 x AMD Ryzen 9 9950X3D CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What DDR5 memory kit do I need to reach the 8000+ MT/s speed this motherboard supports?

You need a DDR5 kit rated for 8000+ MT/s with EXPO profiles; the board has four 288-pin slots supporting up to 256 GB in dual-channel mode.

Will my existing PCIe 4.0 graphics card run at full speed in the PCIe 5.0 x16 slot?

Yes, the PCIe 5.0 x16 slot is backward compatible and will run a PCIe 4.0 graphics card at its native x16 bandwidth.

How can I confirm the two onboard PCIe 5.0 M.2 slots are active after installing drives?

Enter the BIOS and check the M.2_1 and M.2_2 entries; they should show the installed drives operating in PCIe 5.0 x4 mode.
