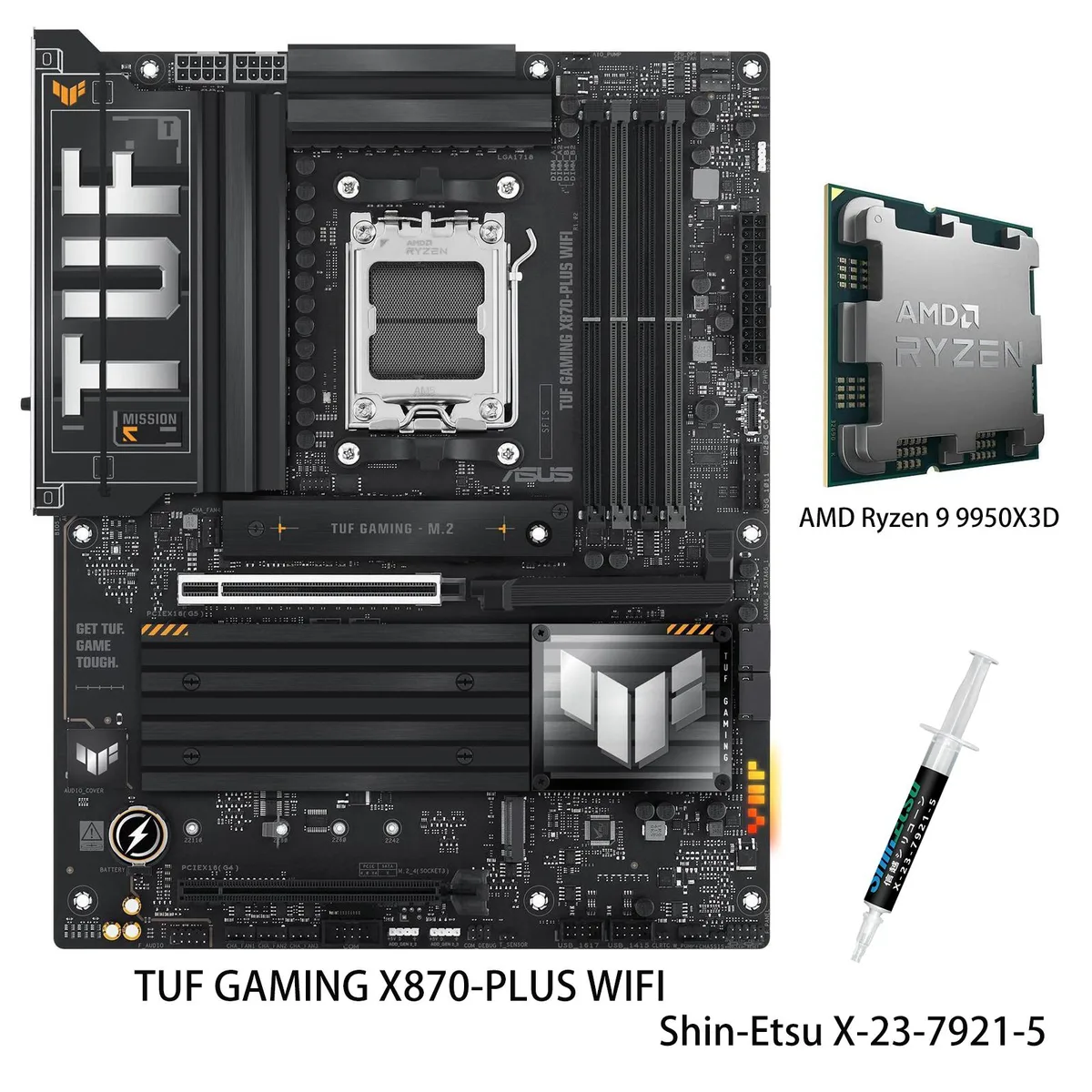

Black ATX motherboard with large grey heatsinks and a silver CPU installed

ASUS

ASUS TUF GAMING X870-PLUS WIFI AM5 ATX AMD motherboard & Ryzen 9 9950X3D CPU Combo

SKU CH-2CHD-NX7VA

Pairs a 16-core Ryzen 9 9950X3D with an X870 board offering 16+2+1 80A power stages, four M.2 slots, WiFi 7, dual USB4 40Gbps and 256GB DDR5 capacity

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

model TUF GAMING X870-PLUS WIFI

+CPU + Ryzen 9 9950X3D

  • Stable power delivery for heavy workloads
  • 16+2+1 80A SPS power stages and 8-layer PCB
  • Ready for AMD Ryzen 9000 8000 7000 series processors
  • AM5 socket supports current and future CPUs
  • Ultrafast connectivity with WiFi 7 2.5Gb LAN dual USB4 40Gbps ports

Combo for AI workloads

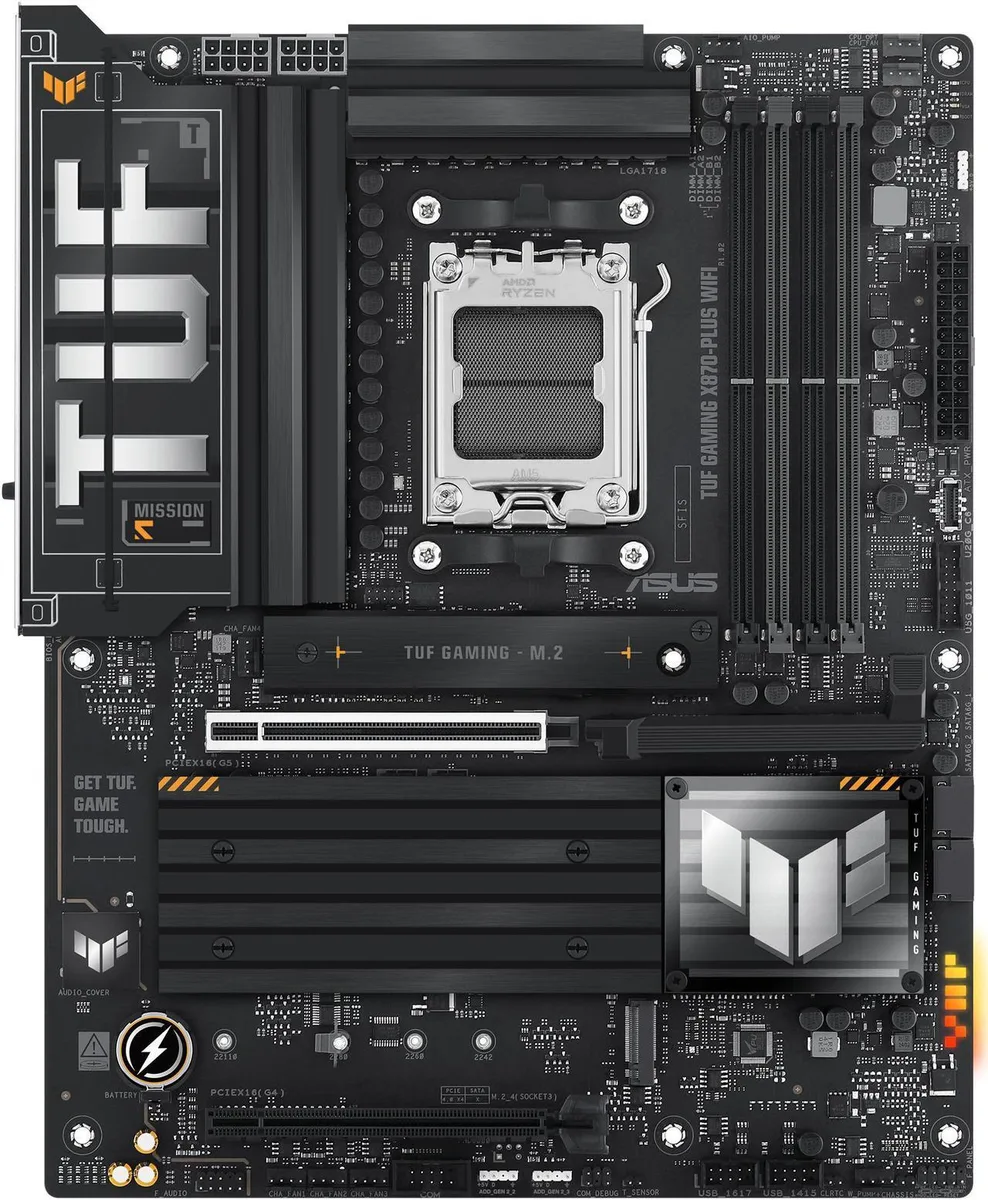

This bundle pairs an ASUS TUF GAMING X870-PLUS WIFI motherboard with an AMD Ryzen 9 9950X3D processor. The board uses the AMD X870 chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. Four DDR5 slots accept up to 256 GB at 4400 MT/s with EXPO and AEMP profiles. The CPU delivers 16 cores built on TSMC 4 nm FinFET Granite Ridge architecture with 128 MB L3 cache and integrated Radeon graphics.

80A power stages and AI cooling

The 16+2+1 phase design uses 80 A SPS power stages on an 8-layer PCB with ProCool connectors, alloy chokes and durable capacitors for stable delivery to the 170 W processor. ASUS AI Overclocking and AI Cooling II manage frequencies and fan curves automatically, while a dedicated AIO pump header and four chassis fan headers provide flexible liquid or air cooling options. Realtek ALC1220P 7.1 audio with impedance sensing and an internal amplifier handles output cleanly.

Dual USB4 and four M.2 slots

Two rear USB4 40 Gbps Type-C ports and a front-panel USB 20 Gbps Type-C header with 30 W power delivery cover high-speed peripherals and charging. Networking uses WiFi 7 and Realtek 2.5 Gb Ethernet. Storage includes two PCIe 5.0 M.2 2280 slots and two PCIe 4.0 M.2 2280 slots, all under large heatsinks. The ATX form factor fits standard cases with SATA 6 Gbps ports and RAIDXpert2 support for RAID 0, 1, 5 and 10.

Highlights

  • Stable power delivery for heavy workloads
  • 16+2+1 80A SPS power stages and 8-layer PCB
  • Ready for AMD Ryzen 9000 8000 7000 series processors
  • AM5 socket supports current and future CPUs
  • Ultrafast connectivity with WiFi 7 2.5Gb LAN dual USB4 40Gbps ports

Specifications

BrandASUS
ModelTUF GAMING X870-PLUS WIFI+R9 9950X3D
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192
Audio Channels7.1 Channels
Back I/O Ports2 x USB4 (40Gbps) (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: u
Package Contents1 x AMD Ryzen 9 9950X3D CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x TUF certification card
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the included Ryzen 9 9950X3D CPU fit the motherboard socket without a separate purchase?

Yes, the motherboard uses the AMD AM5 socket and the combo includes a Ryzen 9 9950X3D processor that is built for that socket.

What memory speed and capacity does the board support out of the box?

The board runs DDR5 at 4400 MT/s in dual-channel mode and can hold up to 256 GB across its four 288-pin slots.

How many high-speed M.2 drives can I install and what cooling is provided?

Four M.2 slots are available — two wired for PCIe 5.0 x4 and two for PCIe 4.0 x4 — and all are covered by large heatsinks.
