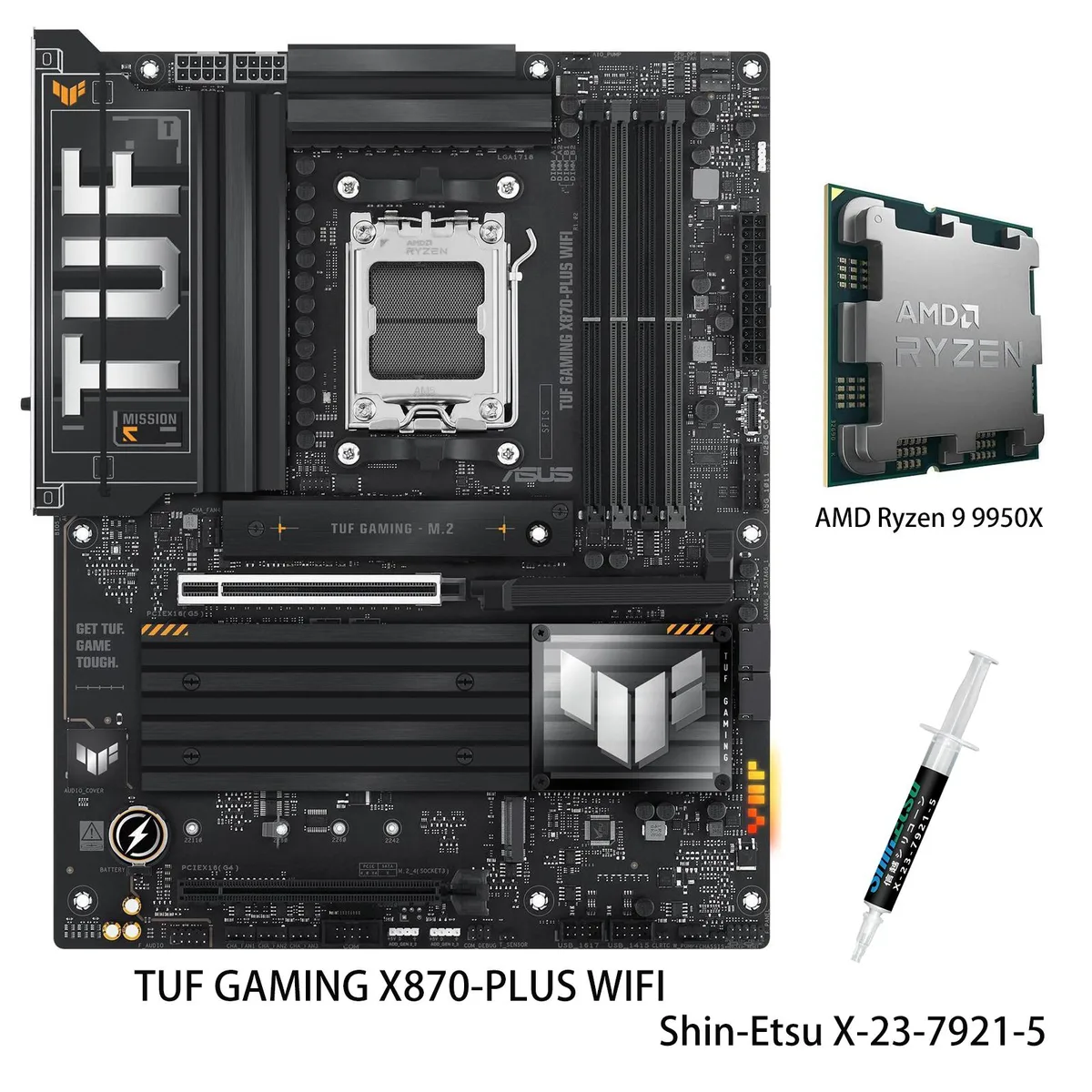

ATX motherboard with large grey heatsinks and a silver AM5 CPU installed

ASUS

ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Motherboard & AMD Ryzen 9 9950X CPU Combo, No Cooler

SKU CH-319T-TTV1T

Socket AM5 ATX board with 16+2+1 80A power, four M.2 slots, WiFi 7, dual USB4 40Gbps, and a 16-core 32-thread Ryzen 9 9950X CPU

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

model TUF GAMING X870-PLUS WIFI

+CPU + Ryzen 9 9950X

  • Stable power delivery with 16+2+1 80A SPS stages and 8-layer PCB
  • 16 cores and 32 threads on Zen 5 architecture reach 5.7 GHz max boost
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 slots with massive heatsinks
  • WiFi 7, 2.5Gb LAN, dual USB4 40Gbps and front USB 20Gbps 30W PD
  • DDR5 4400 supports up to 256GB with EXPO and AEMP profiles

Combo platform

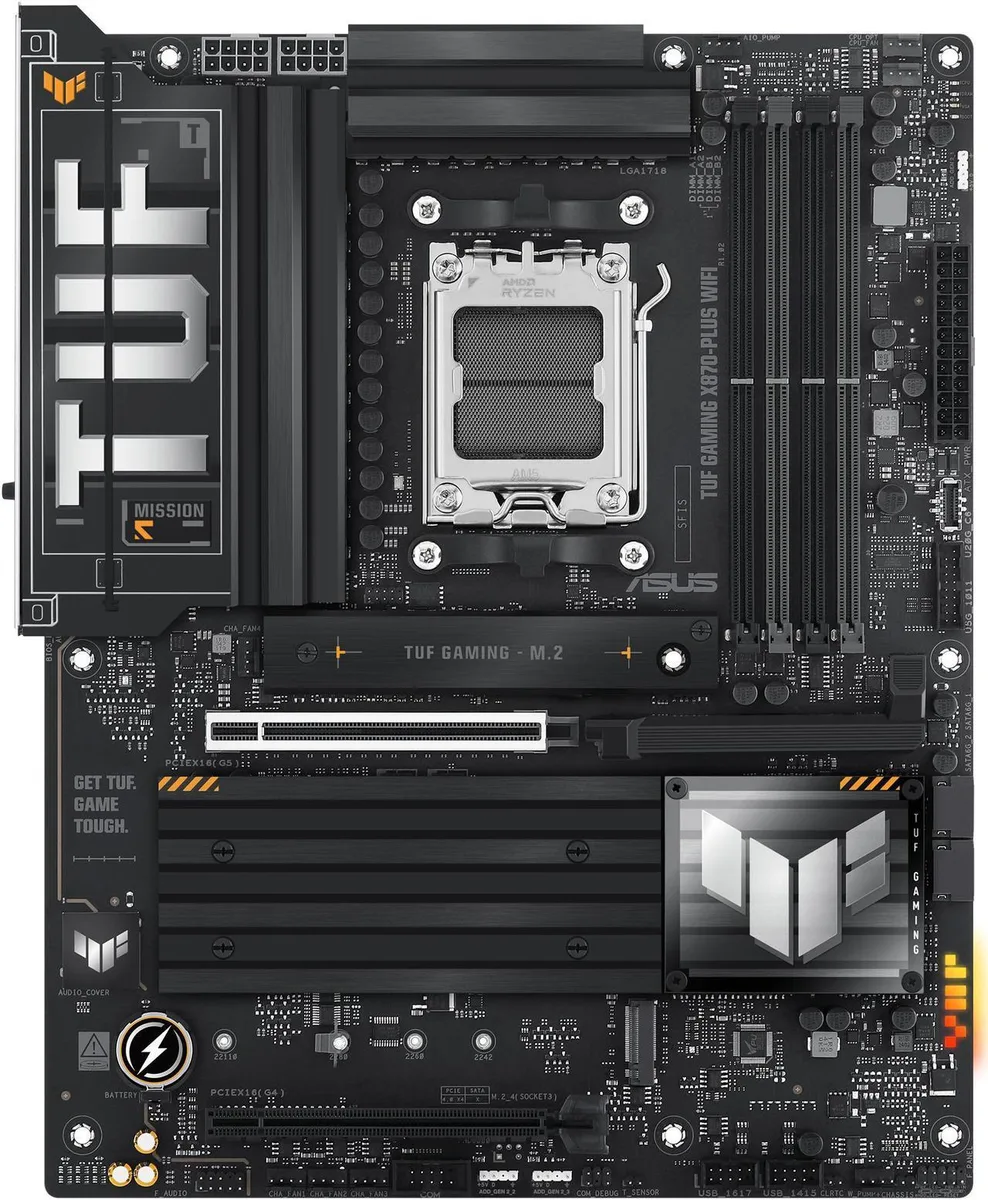

This bundle pairs an ASUS TUF GAMING X870-PLUS WIFI motherboard with an AMD Ryzen 9 9950X processor. The board uses the AMD X870 chipset and AM5 socket while the CPU delivers 16 cores and 32 threads based on Zen 5 architecture. It targets enthusiasts building a high-end desktop for heavy multitasking and advanced AI workloads.

Compatibility checklist

Verify that your power supply includes the required ProCool connectors for the 16+2+1 80A SPS power stages. Ensure your chassis fits an ATX form factor and can accommodate the large M.2 heatsinks covering four slots. Memory must be un-buffered DDR5; the board supports up to 256 GB across four 288-pin slots with EXPO and AEMP profiles.

Build and daily use

An 8-layer PCB with alloy chokes and durable capacitors underpins stable delivery to the unlocked 5.7 GHz max boost CPU. Dual USB4 40 Gbps Type-C ports on the rear and a front-panel USB 20 Gbps header with 30 W power delivery simplify peripheral docking. Wi-Fi 7 and Realtek 2.5 Gb Ethernet provide modern network headroom while extensive fan headers and addressable Gen 2 connectors aid cooling control.

Highlights

  • Stable power delivery with 16+2+1 80A SPS stages and 8-layer PCB
  • 16 cores and 32 threads on Zen 5 architecture reach 5.7 GHz max boost
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 slots with massive heatsinks
  • WiFi 7, 2.5Gb LAN, dual USB4 40Gbps and front USB 20Gbps 30W PD
  • DDR5 4400 supports up to 256GB with EXPO and AEMP profiles

Specifications

BrandASUS
ModelTUF GAMING X870-PLUS WIFI+R9 9950X
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192
Audio Channels7.1 Channels
Back I/O Ports2 x USB4 (40Gbps) (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: u
Package Contents1 x AMD Ryzen 9 9950X CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x TUF certification card
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the combo include a CPU cooler or do I need to buy one separately?

The Ryzen 9 9950X is supplied without a cooler, so you must purchase a compatible AM5 cooler before building.

Should I choose DDR5 4400 or DDR5 5600 modules for this board and CPU?

The motherboard runs DDR5 at 4400 by default and supports EXPO profiles; the 9950X officially supports 5600, so select a kit rated for 5600 or higher with EXPO for the best out-of-the-box speed.

What does the 5.7 GHz max boost on the 9950X mean once the system is assembled?

It is the highest single-core frequency the processor can reach under light loads when power, thermal and BIOS limits allow; sustained all-core speeds will be lower depending on cooling and workload.
