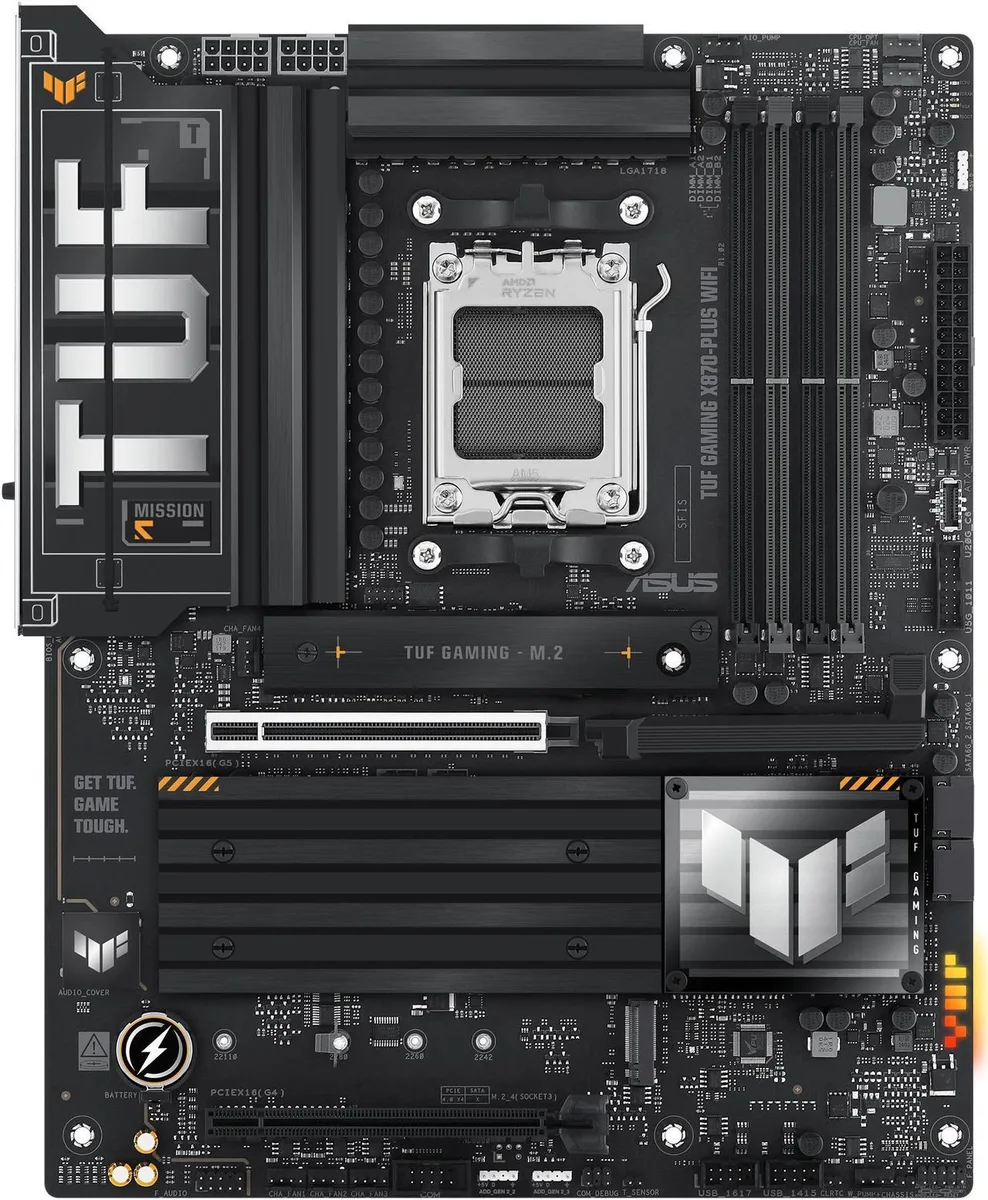

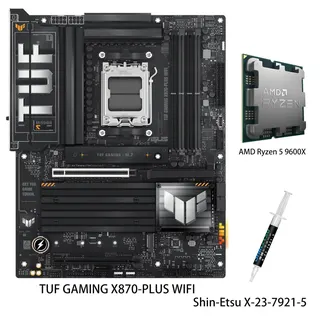

ATX motherboard with grey heatsinks and a boxed Ryzen 5 9600X CPU

ASUS

ASUS TUF GAMING X870-PLUS WIFI AM5 AMD Motherboard & Ryzen 5 9600X Combo

SKU CH-XZD0-1C56H

Pairs an AMD X870 ATX motherboard with a 6-core 12-thread Ryzen 5 9600X, delivering DDR5 memory support, dual PCIe 5.0 M.2 slots, WiFi 7 and dual USB4 40Gbps ports

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

model TUF GAMING X870-PLUS WIFI

+CPU + Ryzen 5 9600X

  • Ready for AI workloads with X870 chipset and Ryzen 9600X
  • Stable power from 16+2+1 80A SPS stages and 8-layer PCB
  • DDR5 4400 up to 256GB with EXPO and AEMP support
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots with heatsinks
  • WiFi 7, 2.5Gb LAN, dual USB4 40Gbps and front USB 20Gbps 30W PD

Combo for AM5 Builders

This bundle pairs an ASUS TUF GAMING X870-PLUS WIFI motherboard with an AMD Ryzen 5 9600X processor. The board uses the AMD X870 chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. The included 9600X delivers 6 cores and 12 threads based on the Zen 5 architecture. It targets gamers and creators who want a ready-to-go platform with modern connectivity.

Check Socket, Memory and Case Clearance

Verify your chassis fits an ATX board and that your CPU cooler mounts on AM5. The board runs DDR5 only, up to 256 GB across four 288-pin slots at 4400 MT/s with EXPO and AEMP support. Non-ECC unbuffered modules are required. Ensure your power supply has an 8-pin EPS connector for the 16+2+1 80A SPS power stage design. Two PCIe 5.0 M.2 slots take 2280 drives; two more run at PCIe 4.0.

Durable Power Delivery and Front-Panel Speed

An 8-layer PCB, ProCool connectors, alloy chokes and durable capacitors back the 16+2+1 80A SPS power stages for stable delivery. Massive M.2 heatsinks cover the PCIe 5.0 slots. Rear I/O includes dual USB4 40 Gbps Type-C ports, three USB 10 Gbps Type-A, four USB 5 Gbps Type-A, one USB 2.0, HDMI, 2.5 Gb LAN, Wi-Fi 7 and 7.1 audio via Realtek ALC1220P. A front-panel USB 20 Gbps Type-C header supports 30 W PD fast charging.

Highlights

  • Ready for AI workloads with X870 chipset and Ryzen 9600X
  • Stable power from 16+2+1 80A SPS stages and 8-layer PCB
  • DDR5 4400 up to 256GB with EXPO and AEMP support
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots with heatsinks
  • WiFi 7, 2.5Gb LAN, dual USB4 40Gbps and front USB 20Gbps 30W PD

Specifications

BrandASUS
ModelTUF GAMING X870-PLUS WIFI+R5 9600X
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192
Audio Channels7.1 Channels
Back I/O Ports2 x USB4 (40Gbps) (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: u
Package Contents1 x AMD Ryzen 5 9600X CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x TUF certification card
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the included Ryzen 5 9600X work with the board's PCIe 5.0 x16 slot and both PCIe 5.0 M.2 slots?

Yes. The Ryzen 5 9600X is a 9000 series processor and the specifications confirm full PCIe 5.0 x16 and dual PCIe 5.0 M.2 support for 9000 and 7000 series CPUs.

What DDR5 memory speeds does the motherboard support out of the box and with EXPO?

The board runs DDR5 at 4400 MT/s by default and supports AMD EXPO and ASUS AEMP profiles for higher speeds up to the 256 GB capacity limit across four slots.

Does the front-panel USB Type-C header provide enough power to fast-charge a laptop?

The onboard USB 20 Gbps header is rated for up to 30 W Power Delivery fast-charging, suitable for many ultraportable laptops and phones.
