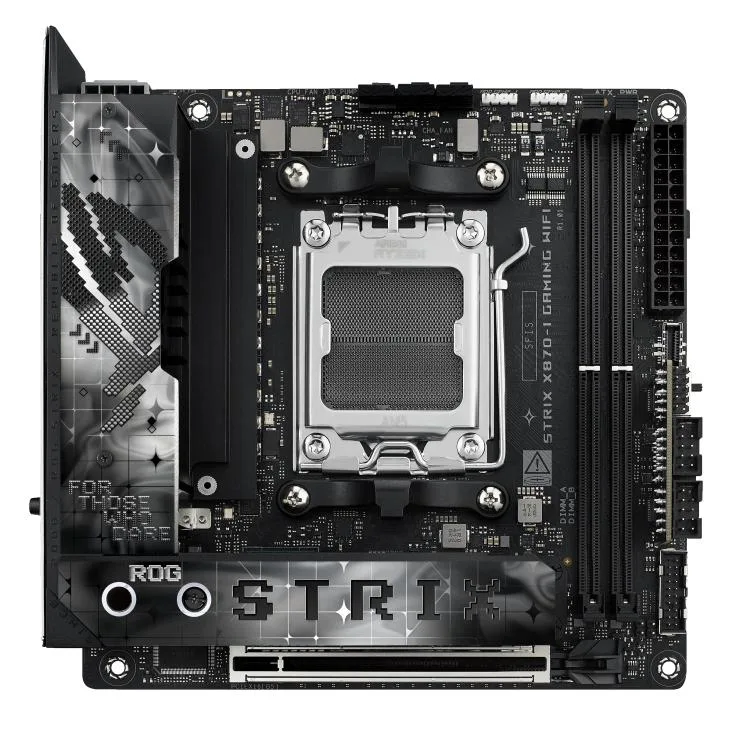

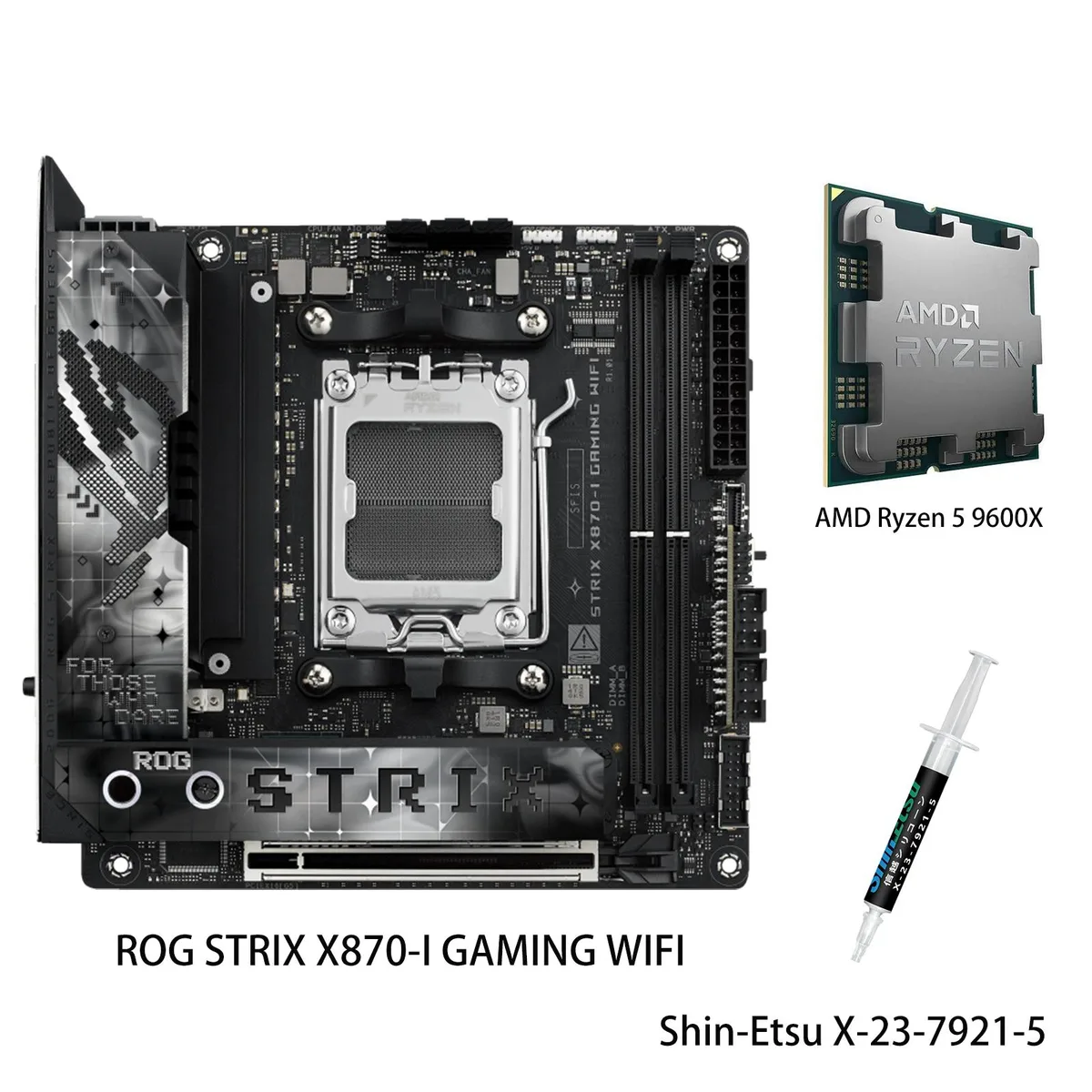

Compact Mini ITX motherboard in dark finish with large integrated heatsinks and I/O shield

ASUS

ASUS FF4D516G6000HC38ADC01 ROG STRIX X870-I GAMING WIFI AMD motherboard & Ryzen 5 9600X combo

SKU CH-49GM-VRHBP MPN FF4D516G6000HC38ADC01

A compact AM5 motherboard paired with a six-core Ryzen 5 9600X, supporting DDR5 up to 8400 MT/s, PCIe 5.0 M.2, 2.5 Gbps LAN and WiFi 7

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported96GB
  • ECC SupportedNon-ECC
  • Buffer SupportedUn-buffered

model ROG STRIX X870-I GAMING WIFI

+CPU + Ryzen 5 9600X

  • Ready for advanced AI PCs with power and connectivity for demanding AI applications
  • AMD AM5 socket supports Ryzen 7000 8000 and 9000 series desktop processors
  • Intelligent control via AI Overclocking AI Cooling II AI Networking and AEMP simplifies setup
  • Robust 10+2+1 power solution rated for 110A per stage with ProCool II connectors
  • Optimised thermal design with massive heatsinks integrated I/O cover and L-shaped backplate

Combo for compact AI-ready builds

This bundle pairs the ROG STRIX X870-I GAMING WIFI motherboard with an AMD Ryzen 5 9600X processor. The Mini-ITX board targets small-form-factor systems that still demand high-end connectivity and overclocking headroom. It suits enthusiasts building a powerful workstation or gaming rig inside a compact chassis.

PCIe 5.0 x16 and M.2 limits depend on CPU generation

With a Ryzen 9000 or 7000 series chip the board delivers one PCIe 5.0 x16 slot and one M.2 2280 slot at PCIe 5.0 x4. Ryzen 8000 series processors drop the primary slot to PCIe 4.0 x8 or x4 and the M.2 to PCIe 4.0 x4. Two SATA 6Gb/s ports remain available regardless of the installed CPU.

10+2+1 power stages at 110A

The VRM uses massive heatsinks, an integrated I/O cover and an L-shaped backplate to handle multi-core loads. Wi-Fi 7 2x2 and 2.5Gbps LAN provide modern wireless and wired throughput. Onboard headers include 4-pin CPU fan, AIO pump and chassis fan connectors plus a USB4 Type-C front-panel connector for 10Gbps external devices.

Highlights

  • Ready for advanced AI PCs with power and connectivity for demanding AI applications
  • AMD AM5 socket supports Ryzen 7000 8000 and 9000 series desktop processors
  • Intelligent control via AI Overclocking AI Cooling II AI Networking and AEMP simplifies setup
  • Robust 10+2+1 power solution rated for 110A per stage with ProCool II connectors
  • Optimised thermal design with massive heatsinks integrated I/O cover and L-shaped backplate

Specifications

BrandASUS
ModelROG STRIX X870-I GAMING WIFI+R5 9600X
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported96GB
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory Feature2 x DIMM slots, max. 96GB, DDR5
Supports up to
8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*"
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
Serial ATA (SATA)2 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
BluetoothBluetooth v5.4***
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB 3.0USB4
Onboard USBUSB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header support(s) 2
additional USB 5Gbps ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C® connectors to install ROG FPS card
ROG FPS card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3
additional USB 2.0 ports
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI
BIOS EZ Mode
- ASUS
MyHotkey
FlexKey
Dynamic OC Switcher
FeaturesASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum backplate
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
ROG STRIX HIVE II
1 x USB Type-C® connects to motherboard
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
1 x Headphone jack with mic in
1 x Power button
1 x
Package Contents1 x AMD Ryzen 5 9600X CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
1 x Panel cable
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
ROG FPS Card
1 x ROG FPS Card
ROG STRIX HIVE II
1 x ROG STRIX HIVE II
1 x USB Type-C® power connection cable
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 rubber package(s)
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the included Ryzen 5 9600X work with the board straight out of the box, or is a BIOS update required first?

The ROG STRIX X870-I GAMING WIFI uses the AM5 socket and the AMD X870 chipset, which are built for Ryzen 7000, 8000 and 9000 series processors. The 9600X is a 9000 series part, so it is supported natively without a prior BIOS flash.

What is the highest DDR5 speed I can run with this CPU and motherboard combination?

With a Ryzen 9000 series processor the board supports DDR5 up to 8400+ MT/s when overclocked. The kit in the combo is rated at 6000 MT/s CL38, and the motherboard can also run AEMP profiles for automatic tuning up to the rated limit.

How many M.2 drives can I install and what speeds do the slots provide with the 9600X?

The board has two M.2 slots. With a Ryzen 9000 series CPU the primary slot runs at PCIe 5.0 x4 and the second slot runs at PCIe 4.0 x4, both in 2280 form factor and each with a dedicated heatsink.
