ATX motherboard in dark grey with yellow accents beside a Ryzen 7 9850X3D CPU in its box

ASUS

ASUS TUF GAMING X870-PRO WIFI7 W NEO + Ryzen 7 9850X3D combo

SKU CH-FDD1-E1JZV

X870 motherboard and Ryzen 7 9850X3D combo with 16+2+1 80A power, four M.2 slots, PCIe 5.0, 5Gb Ethernet and WiFi 7

  • ChipsetAMD X870
  • South BridgeAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP

model TUF GAMING X870-PRO WIFI7 W NEO

+CPU + Ryzen 7 9850X3D

  • Ready for advanced AI PCs with AMD X870 chipset and AM5 socket
  • Robust 16+2+1 80A power stages and 8-layer PCB for stable overclocking
  • Ryzen 7 9850X3D with 8 cores, 16 threads and 2nd-gen 3D V-Cache up to 5.6 GHz
  • Four M.2 slots with PCIe 5.0 and 4.0 support plus 5Gb Ethernet and WIFI7
  • DDR5 memory up to 256GB with AMD EXPO, Intel XMP and AEMP profiles

Combo for high-performance gaming PCs

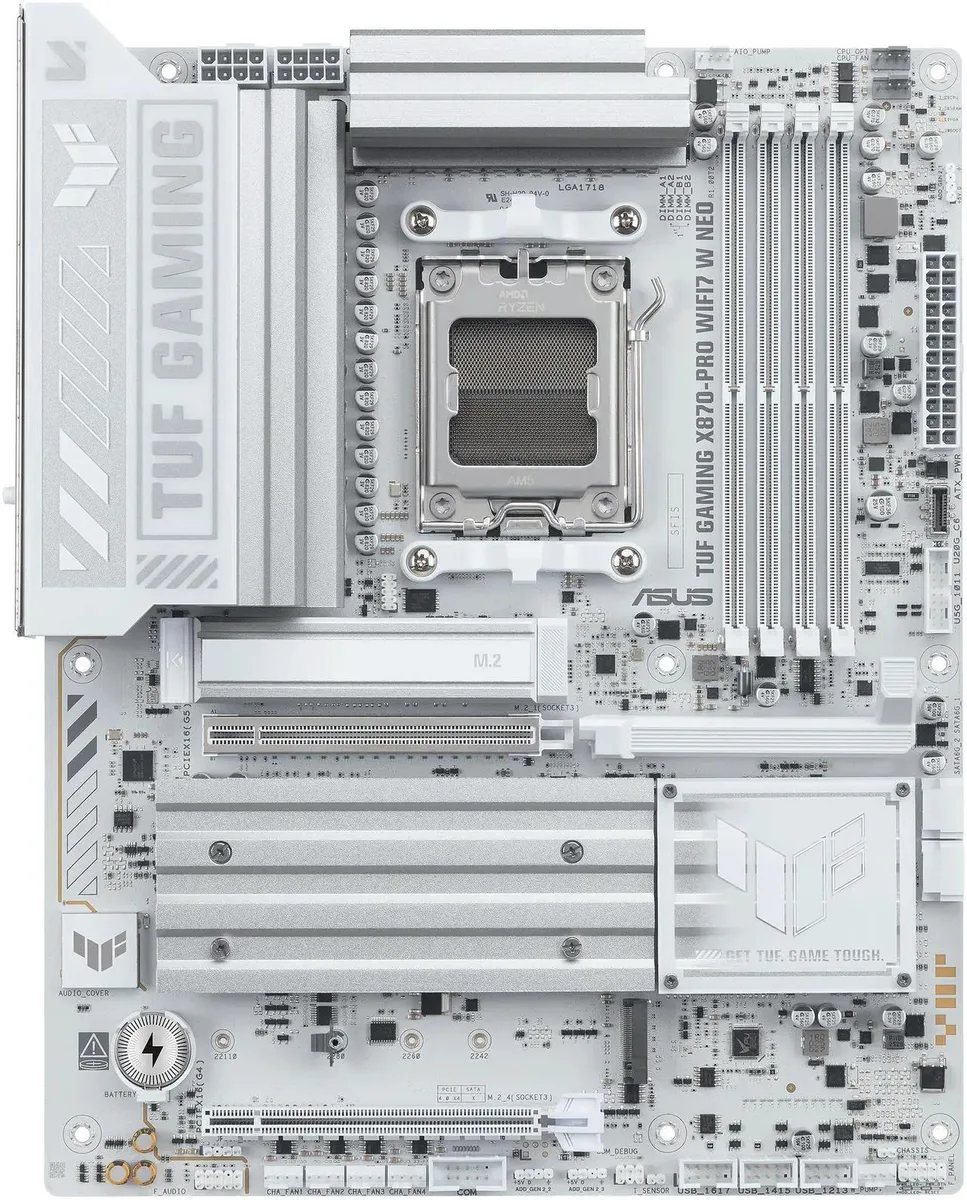

This bundle pairs an ASUS TUF GAMING X870-PRO WIFI7 W NEO motherboard with an AMD Ryzen 7 9850X3D processor. The CPU delivers 8 cores and 16 threads on the Zen 5 architecture with a max boost of 5.6 GHz. The board supports AMD Ryzen 9000, 8000 and 7000 series CPUs via the AM5 socket. It is built for demanding gaming and AI workloads.

Robust 16+2+1 power design and AI cooling

The motherboard uses 16+2+1 80A power stages on an 8-layer PCB with dual 8+8 pin ProCool connectors. AI Cooling II and AI Overclocking manage thermals and power draw automatically under load. A 64MB BIOS supports AMD EXPO, Intel XMP and ASUS AEMP profiles for memory tuning. The Realtek ALC1220P codec provides 7.1 channel audio.

Four M.2 slots and USB4 connectivity

Four M.2 slots accept PCIe 5.0 x4 and PCIe 4.0 x4 drives with Q-Release for tool-free swaps. Two SATA 6Gb/s ports and RAID 0/1/5/10 support round out storage options. Rear I/O includes USB4 at 40Gbps, a 20Gbps USB-C port with 30W power delivery, WiFi 7 and 5Gb Ethernet. Q-Antenna and BIOS FlashBack simplify setup and maintenance.

Highlights

  • Ready for advanced AI PCs with AMD X870 chipset and AM5 socket
  • Robust 16+2+1 80A power stages and 8-layer PCB for stable overclocking
  • Ryzen 7 9850X3D with 8 cores, 16 threads and 2nd-gen 3D V-Cache up to 5.6 GHz
  • Four M.2 slots with PCIe 5.0 and 4.0 support plus 5Gb Ethernet and WIFI7
  • DDR5 memory up to 256GB with AMD EXPO, Intel XMP and AEMP profiles

Specifications

BrandASUS
ModelTUF GAMING X870-PRO WIFI7 W NEO+R7 9850X3D
ChipsetAMD X870
South BridgeAMD X870
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)2 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/5/10
Onboard Video ChipsetDepends on AMD Ryzen Series Processor with Integrated Graphics
Audio ChipsetRealtek ALC1220P
Audio Channels7.1 Channels
LAN ChipsetRealtek 5Gb
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x Clear CMOS button
COM1
Video PortsHDMI + 2 x USB Type-C
HDMI1 x HDMI port
RJ451 x RJ45
USB 3.13 x USB 3.1
USB 3.06 x USB 3.0
USB 1.1/2.01 x USB 2.0
USB Type-C2 x USB Type-C port, with USB4 (40Gbps) support
S/PDIF OutYes
Audio Ports3 Ports
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 header + 3 x USB 2.0 headers
Form FactorATX
LED LightingRGB
Dimensions (W x L)12 inch x 9.6 inch
Power Pin24 Pin
Windows 11Supported

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the AMD Ryzen 7 9850X3D into the AM5 socket on this TUF GAMING X870-PRO WIFI7 W NEO motherboard?

Lift the socket lever, align the gold triangle on the CPU with the socket corner, place the chip gently without force, lower the lever until it clicks, then attach the cooler using the AM5 mounting holes — the step often missed is removing the protective plastic cover from the socket before seating the processor.

What maintenance or replacement will the four M.2 slots and their Q-Release latches need over time?

The Q-Release latches on the four M.2 slots are rated for repeated use; if a latch feels loose or an SSD is not held firmly, replace the individual latch assembly — no other M.2 maintenance is required.

What thermal limit appears first on the 16+2+1 80A power stages during sustained all-core loads on the Ryzen 7 9850X3D?

The 80A power stages are cooled by the TUF heatsink array; under continuous heavy loads the VRM temperature typically hits its throttle point before the CPU reaches its 5.6 GHz boost ceiling, so case airflow directly over the heatsink becomes the limiting factor.
