ATX motherboard with CPU installed, silver heatsinks, black PCB, four DDR5 slots, four M.2 slots

ASUS

ASUS TUF GAMING X870-PRO WIFI7 W NEO AMD motherboard & Ryzen 9 9900X CPU combo

SKU CH-VPX6-80ATH

Pairs a 12-core Ryzen 9 9900X with an X870 board offering 16+2+1 80A power stages, four M.2 slots, WiFi7, 5Gb Ethernet and DDR5 support up to 256 GB

  • ChipsetAMD X870
  • South BridgeAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP

model TUF GAMING X870-PRO WIFI7 W NEO

+CPU + Ryzen 9 9900X

  • 12-core Ryzen 9 9900X reaches 5.6 GHz boost for heavy workloads
  • 16+2+1 80 A power stages feed the CPU cleanly under load
  • Four M.2 slots with PCIe 5.0 and 4.0 support fast storage expansion
  • WiFi 7 plus 5 Gb Ethernet give low-latency wired and wireless links
  • 256 GB DDR5 capacity across four slots with AEMP for easy tuning

Combo platform for advanced AI workloads

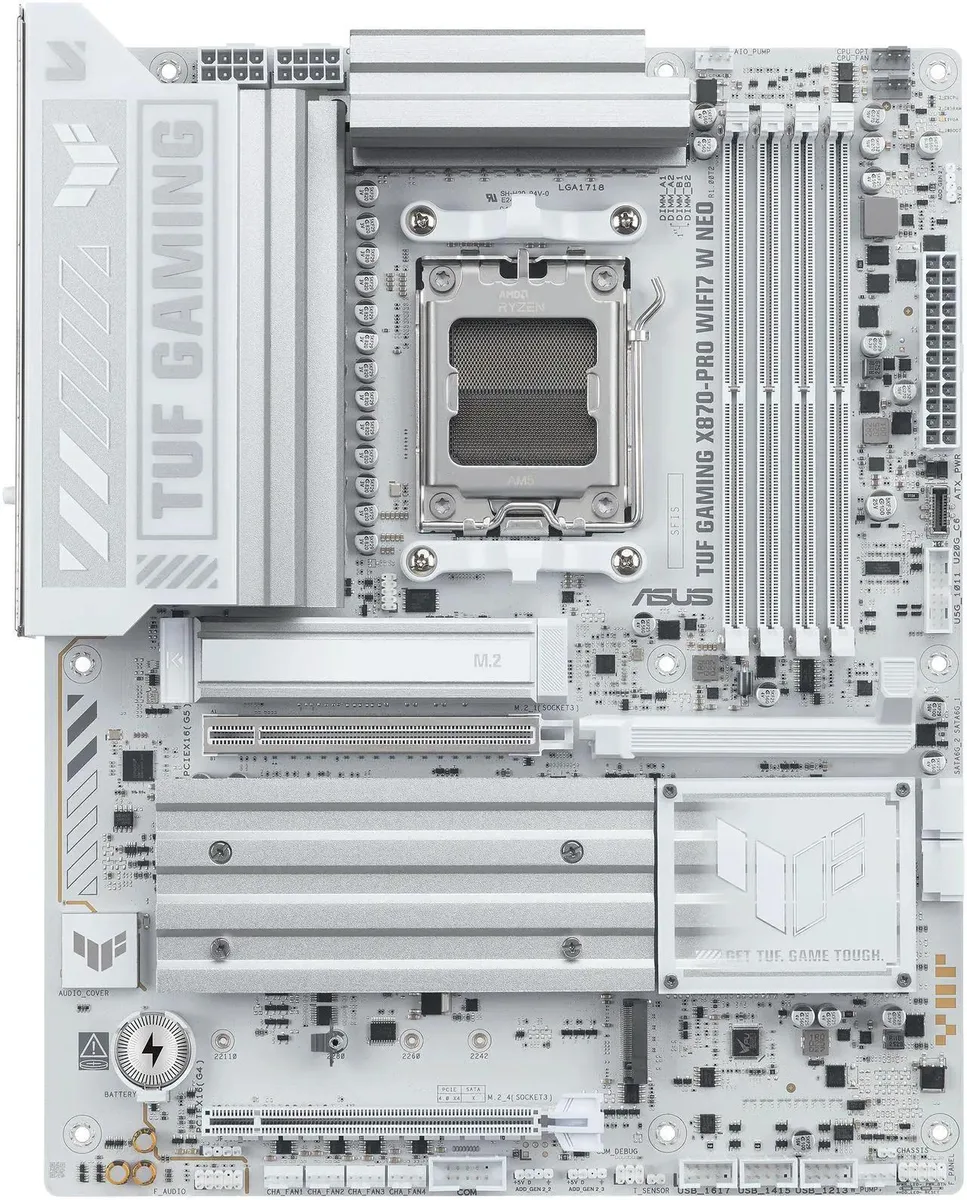

This bundle pairs the ASUS TUF GAMING X870-PRO WIFI7 W NEO motherboard with the AMD Ryzen 9 9900X processor. The board uses the AMD X870 chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. It delivers a 16+2+1 80A power stage design with 8+8 pin ProCool connectors and an 8-layer PCB for stable operation under heavy compute loads.

Upgrade path from older AM4 or early AM5 builds

The combination moves you to DDR5 memory with four 288-pin slots supporting up to 256GB in dual channel, plus AMD EXPO, Intel XMP and ASUS AEMP profiles. PCIe 5.0 arrives on the primary x16 slot and two of the four M.2 sockets, while two additional M.2 slots run at PCIe 4.0. Connectivity adds USB4 at 40Gbps, a 20Gbps USB-C port with 30W power delivery, WiFi7 and 5Gb Ethernet.

Capacity and headroom for memory and storage

The CPU provides 12 cores and 24 threads based on Zen 5 architecture, with a 5.6 GHz max boost, 64MB L3 cache and 12MB L2 cache, and native DDR5-5600 support. Four M.2 slots give ample room for high-speed drives, while two SATA 6Gb/s ports handle legacy storage. The 64MB BIOS and AI-enhanced UEFI tools simplify tuning, but the processor ships without a cooler, so thermal planning is essential.

Highlights

  • 12-core Ryzen 9 9900X reaches 5.6 GHz boost for heavy workloads
  • 16+2+1 80 A power stages feed the CPU cleanly under load
  • Four M.2 slots with PCIe 5.0 and 4.0 support fast storage expansion
  • WiFi 7 plus 5 Gb Ethernet give low-latency wired and wireless links
  • 256 GB DDR5 capacity across four slots with AEMP for easy tuning

Specifications

BrandASUS
ModelTUF GAMING X870-PRO WIFI7 W NEO+R9 9900X
ChipsetAMD X870
South BridgeAMD X870
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)2 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/5/10
Onboard Video ChipsetDepends on AMD Ryzen Series Processor with Integrated Graphics
Audio ChipsetRealtek ALC1220P
Audio Channels7.1 Channels
LAN ChipsetRealtek 5Gb
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x Clear CMOS button
COM1
Video PortsHDMI + 2 x USB Type-C
HDMI1 x HDMI port
RJ451 x RJ45
USB 3.13 x USB 3.1
USB 3.06 x USB 3.0
USB 1.1/2.01 x USB 2.0
USB Type-C2 x USB Type-C port, with USB4 (40Gbps) support
S/PDIF OutYes
Audio Ports3 Ports
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 header + 3 x USB 2.0 headers
Form FactorATX
LED LightingRGB
Dimensions (W x L)12 inch x 9.6 inch
Power Pin24 Pin
Windows 11Supported

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case clearance does the TUF GAMING X870-PRO WIFI7 W NEO need for its 8+8 pin ProCool power connectors?

The board uses dual 8-pin ProCool connectors on an 8-layer PCB, so allow space behind the motherboard tray for the EPS cables to route without sharp bends.

Which step is often missed when seating the Ryzen 9 9900X into the AM5 socket?

After placing the CPU, the retention lever must be fully lowered until it clicks; a partial latch leaves the 12-core chip loose and prevents POST.

When should the CMOS battery on this motherboard be replaced?

The 64 MB BIOS chip retains settings via the coin cell; swap it when the system loses time or reverts UEFI defaults after power-off.
