ATX motherboard dark grey PCB silver heatsinks LGA 1851 socket four DDR5 slots PCIe 5.0 x16 four M.2 slots Wi-Fi 7 antenna

ASUS

ASUS PRIME Z890-P WIFI Intel motherboard

SKU CH-D2QE-QGK5H MPN PRIME Z890-P WIFI

LGA 1851 ATX board for Intel Core Ultra Series 2 with 14+1+1+2 80A DrMOS, DDR5 to 8666 MT/s, PCIe 5.0 x16 plus four M.2, Wi-Fi 7 and 2.5 Gb Ethernet

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 /
  • Maximum Memory Supported256GB

Option PRIME Z890-P WIFI

Struck-through versions exist but are not stocked here.

  • Ready for Intel Core Ultra Series 2 processors with LGA 1851 socket
  • 14+1+1+2 80A DrMOS power stages deliver stable power for demanding workloads
  • One PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots provide fast storage expansion
  • Wi-Fi 7 and 2.5Gb Ethernet give high-speed wired and wireless connectivity
  • Thunderbolt 4 USB Type-C port plus front-panel USB 10Gbps Type-C enable versatile I/O

Ready for Intel Core Ultra Series 2

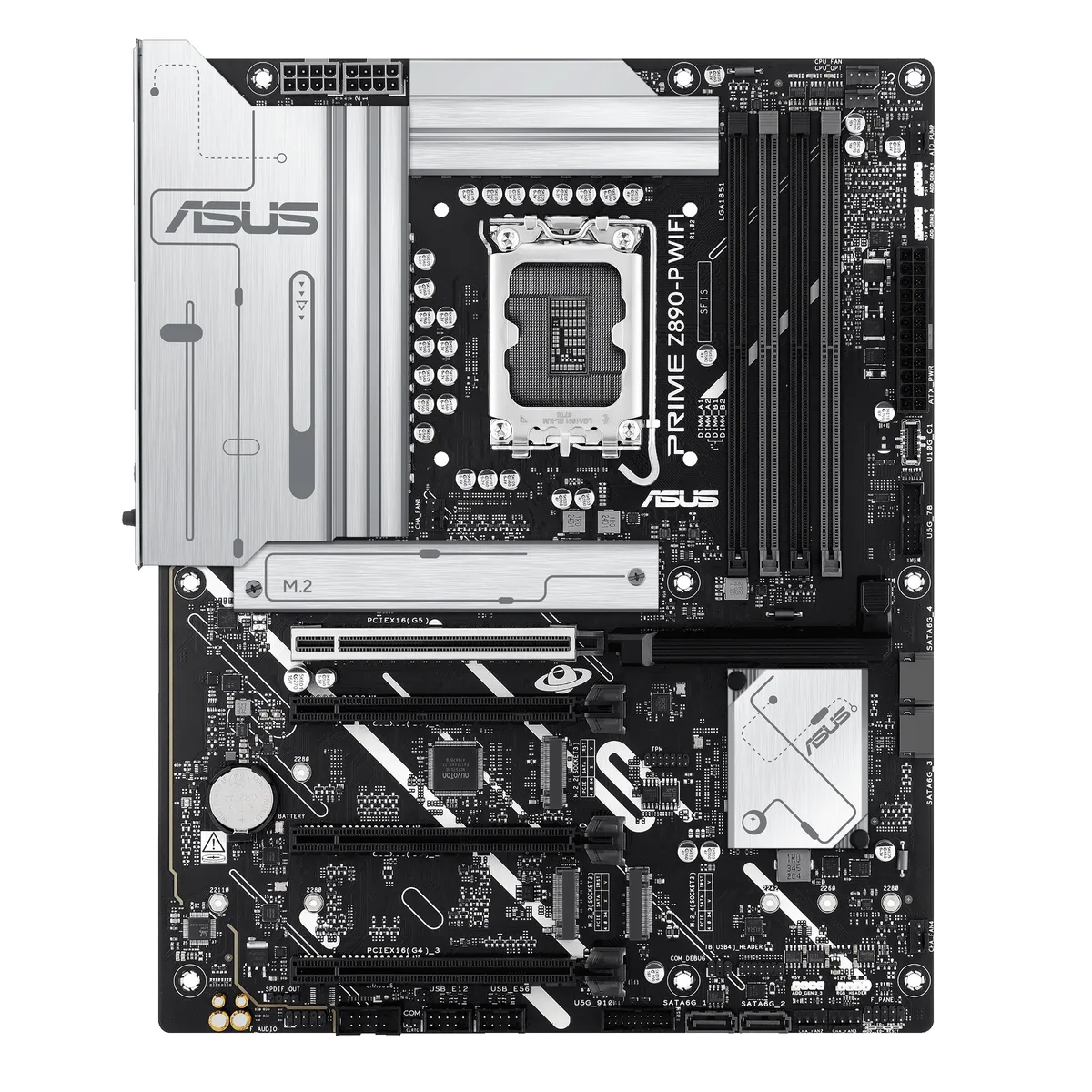

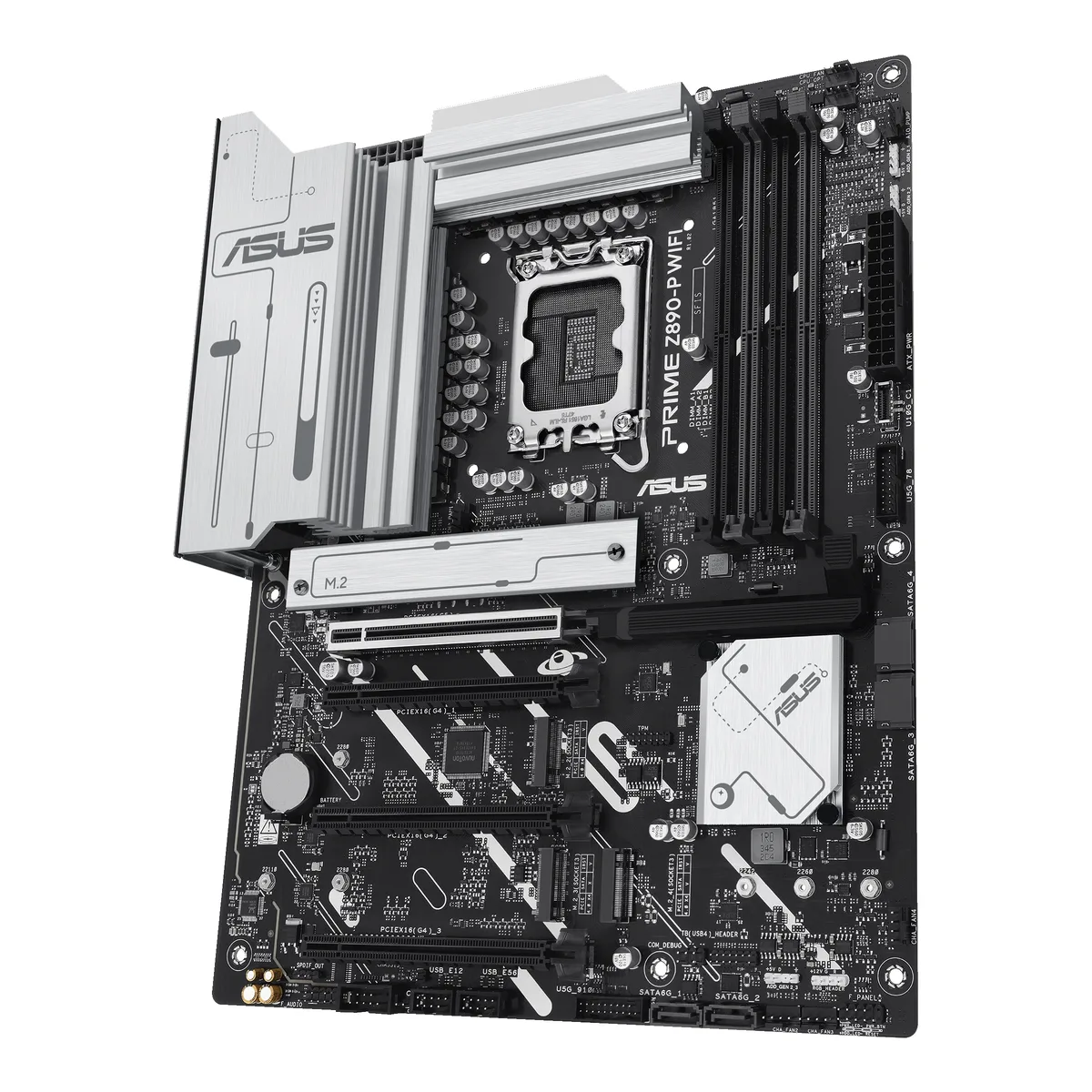

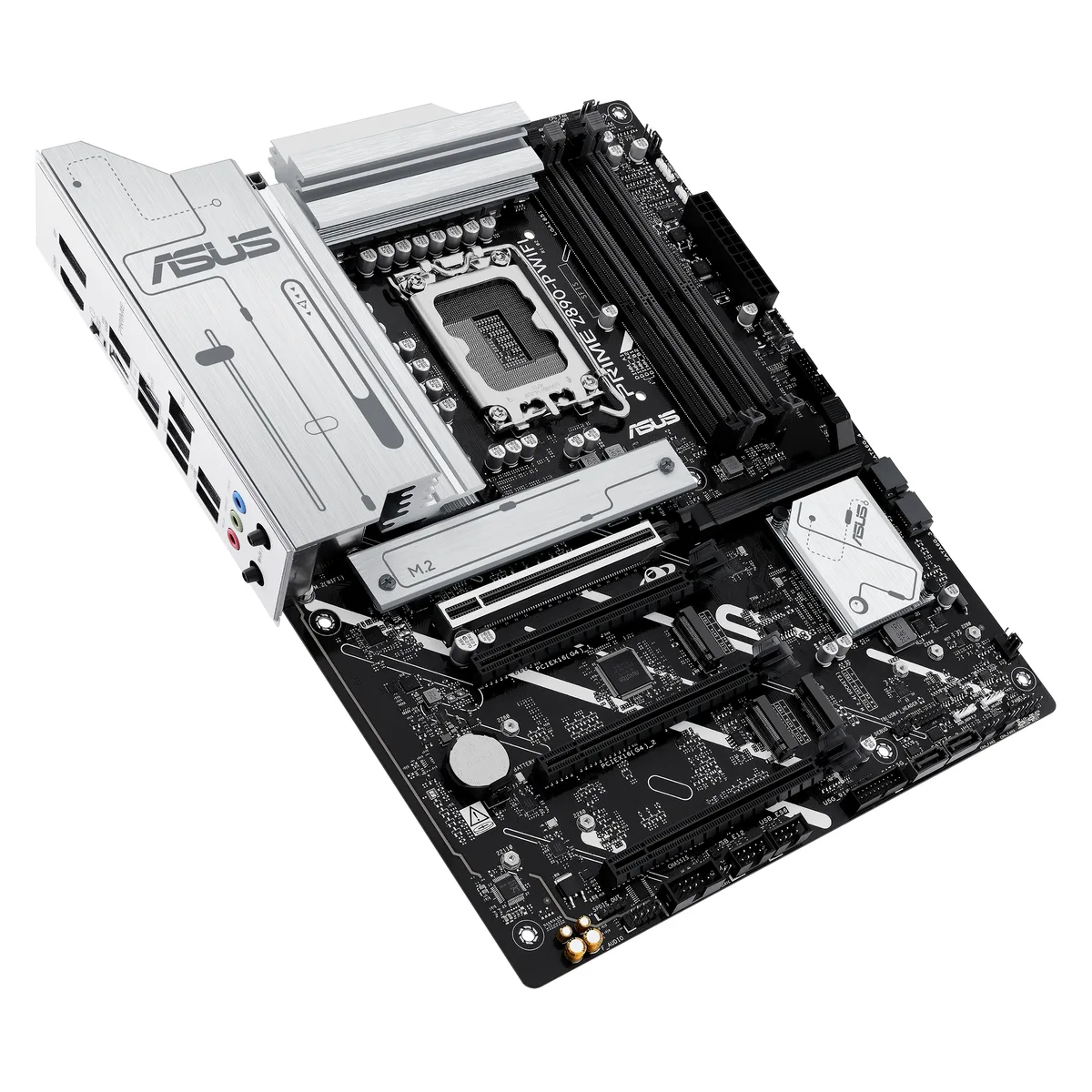

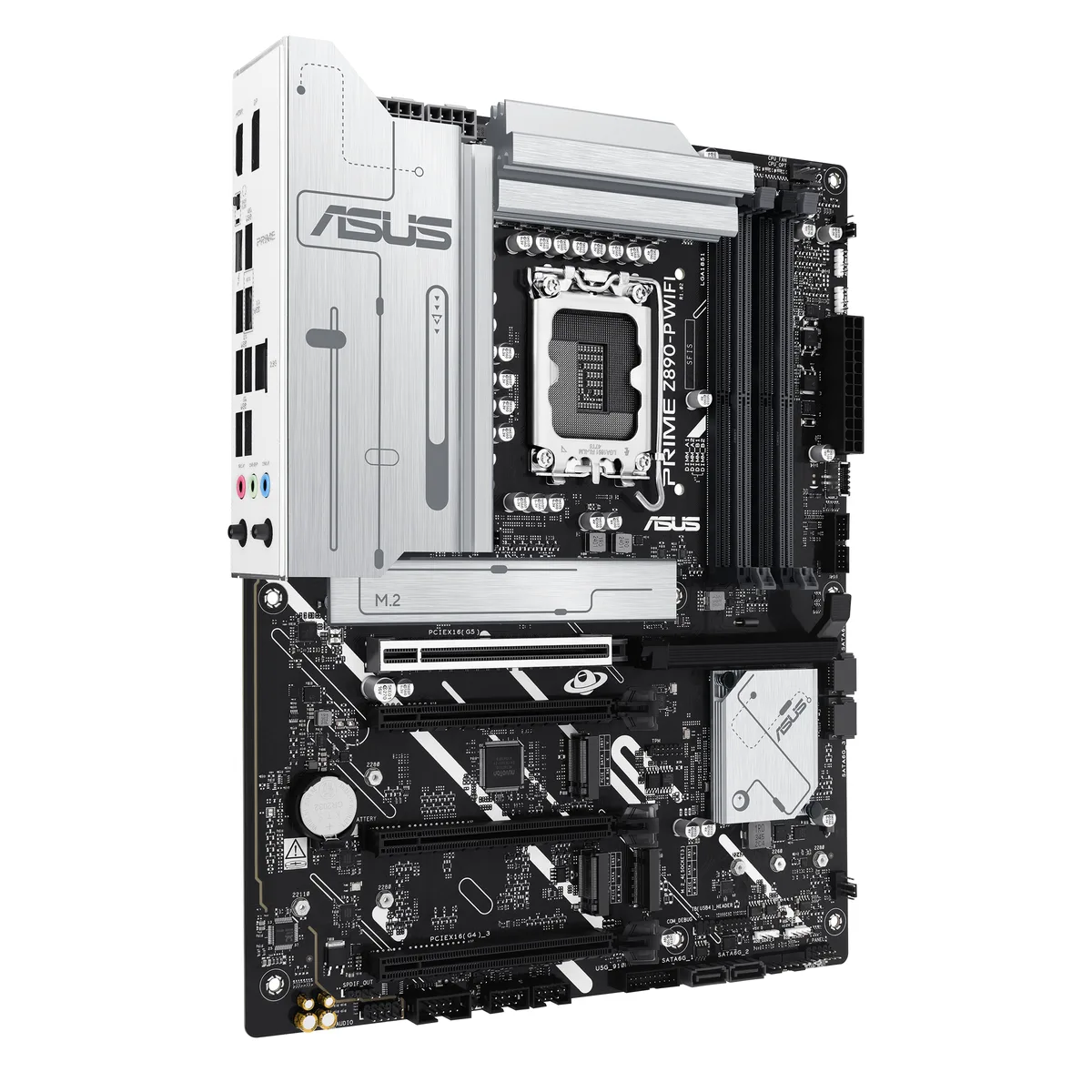

The ASUS PRIME Z890-P WIFI is an ATX motherboard built for the LGA 1851 socket and Intel Z890 chipset. It targets builders assembling advanced AI-ready PCs with Intel Core Ultra Processors Series 2. The board delivers a 14+1+1+2 80A DrMOS power solution, Wi-Fi 7 and 2.5Gb Ethernet for modern workloads.

DDR5 capacity up to 256 GB with wide frequency

Four 288-pin slots support dual-channel DDR5 up to 256 GB. The board validates speeds from 4400 through 8666 MT/s and enables Intel XMP 3.0 plus ASUS Enhanced Memory Profile III. Headroom extends to 8666+ MT/s when overclocking, while standard JEDEC operation covers the listed range without extra tuning.

One PCIe 5.0 M.2 slot plus three PCIe 4.0 M.2 slots

The CPU-linked M.2_1 slot runs at PCIe 5.0 x4 for 2280 or 22110 drives. Three chipset-linked slots operate at PCIe 4.0 x4 for 2280 or 22110 devices. This layout decides whether the board matches a build that needs a single top-speed system drive alongside multiple high-throughput secondary drives.

Highlights

  • Ready for Intel Core Ultra Series 2 processors with LGA 1851 socket
  • 14+1+1+2 80A DrMOS power stages deliver stable power for demanding workloads
  • One PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots provide fast storage expansion
  • Wi-Fi 7 and 2.5Gb Ethernet give high-speed wired and wireless connectivity
  • Thunderbolt 4 USB Type-C port plus front-panel USB 10Gbps Type-C enable versatile I/O

Specifications

BrandASUS
ModelPRIME Z890-P WIFI
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel Z890 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(series 2)*
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x Thunderbolt 4 USB Type-C port
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
BIOS Feature256 (128+128) Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
TurboV Core
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Windows 11 (22H2 & later)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

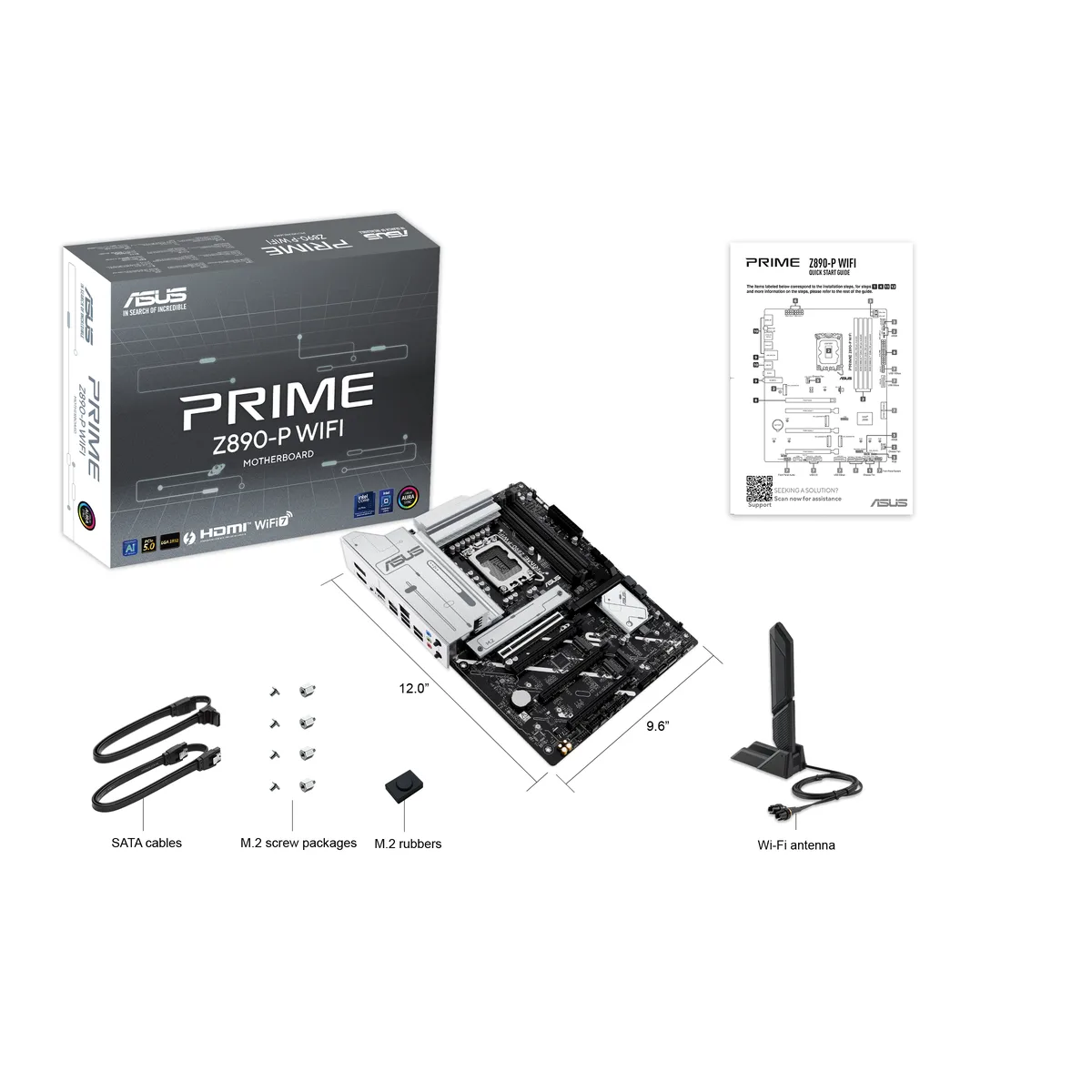

Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide
Shipping weight1.81 kg
Package size356 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my DDR5-6000 kit run at its rated speed with the four 288-pin slots on this board?

The board supports DDR5 speeds from 4400 up to 8666 MT/s with XMP 3.0, so a 6000 MT/s kit will run at its rated speed when the profile is enabled in BIOS.

How can I confirm the Wi-Fi 7 and 2.5 Gb Ethernet are active after first boot?

Device Manager will show a Realtek 2.5 GbE adapter and a Wi-Fi 7 (802.11be) controller with Bluetooth 5.4; the ASUS WiFi Q-Antenna LED also lights when the wireless link is up.

What cooling parts are included for the M.2 slots and do I need extra heatsinks?

A heatsink covers the PCIe 5.0 M.2_1 slot (2280/22110); the three PCIe 4.0 M.2 slots have no dedicated heatsinks, so add-on drives may need aftermarket cooling.
