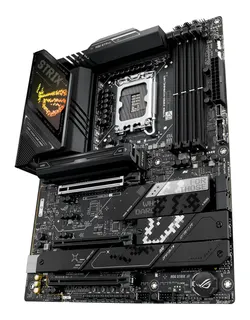

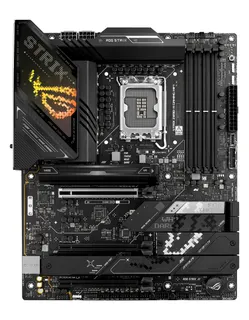

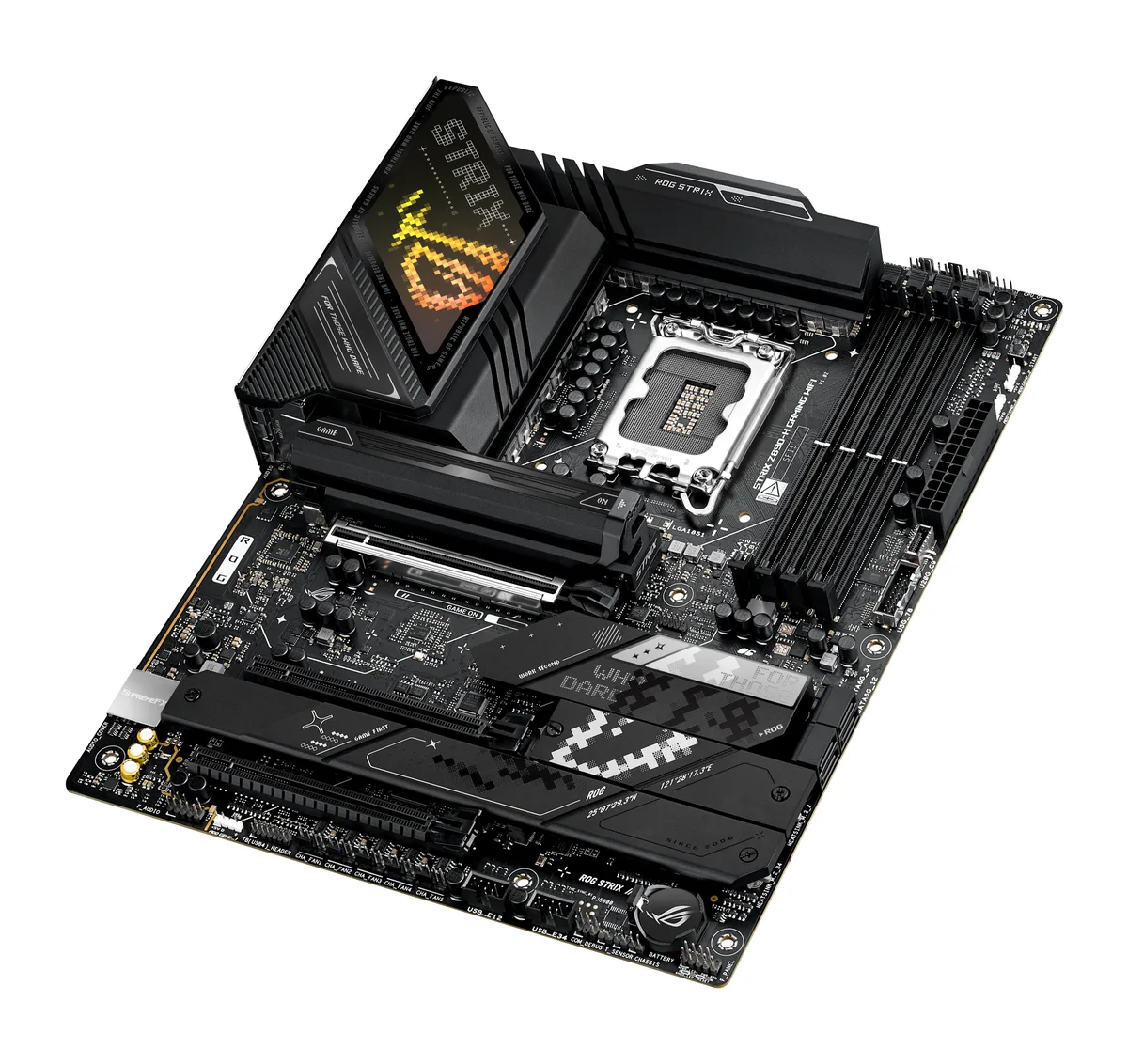

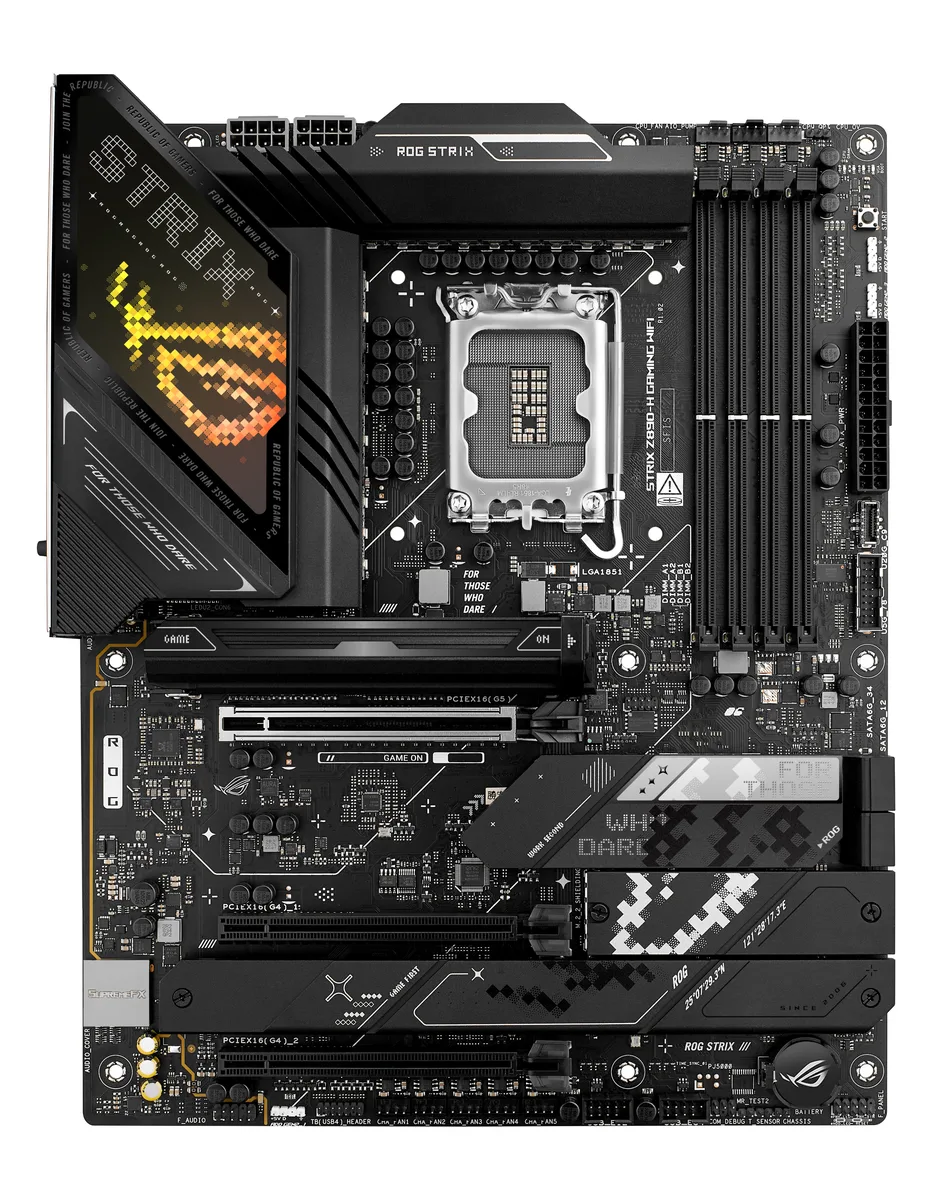

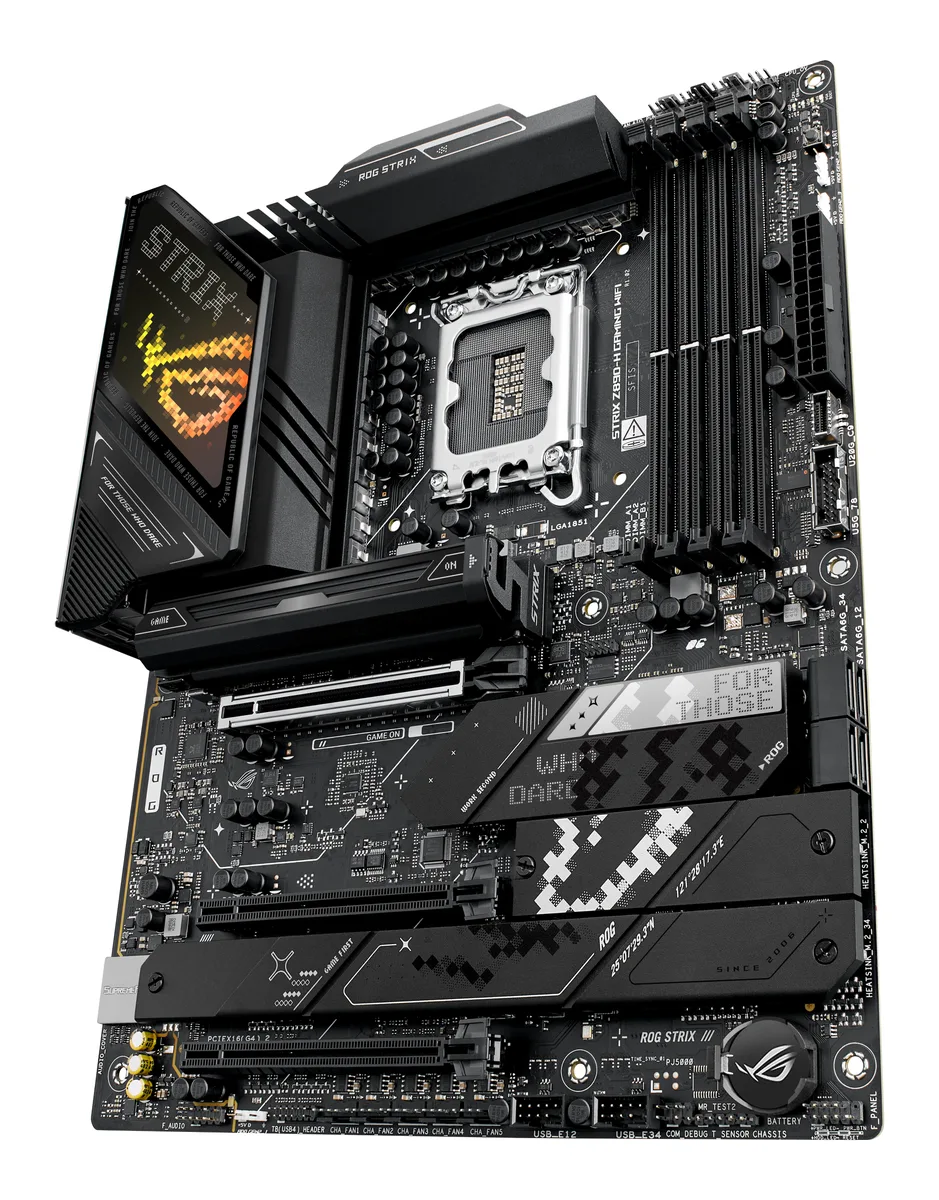

ATX motherboard in dark finish with large heatsinks and rear I/O shield

ASUS

ASUS ROG STRIX Z890-H GAMING WIFI Intel motherboard

SKU CH-2591-S50FS MPN ROG STRIX Z890-H GAMING WIFI

LGA 1851 ATX motherboard with 16+1+2+2 80A power stages, DDR5 up to 9066 MT/s, PCIe 5.0 M.2, Wi-Fi 7 and 20 Gbps USB-C with 30 W PD

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport up to 9066+MT/s (OC)
  • Maximum Memory Supported256GB

Option ROG STRIX Z890-H GAMING WIFI

Struck-through versions exist but are not stocked here.

  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 16+1+2+2 power stages rated at 80A each with ProCool II connectors
  • DDR5 memory up to 9066 MT/s with AEMP III and DIMM Flex support
  • One PCIe 5.0 M.2 slot plus three PCIe 4.0 M.2 slots for fast storage
  • WiFi 7 and USB 20Gbps Type-C with 30W Power Delivery

Ready for Intel Core Ultra Series 2

The ASUS ROG STRIX Z890-H GAMING WIFI motherboard uses the LGA 1851 socket and Intel Z890 chipset to support Intel Core Ultra Processors (Series 2). Four DDR5 slots accept up to 256GB of memory running at 9066+ MT/s with XMP 3.0, AEMP III, DIMM Flex and DIMM Fit. The board targets builders who want an advanced AI PC platform with extensive connectivity.

Sustained load power delivery

A 16+1+2+2 phase design rated at 80A per stage feeds the CPU through ProCool II connectors, MicroFine alloy chokes and metallic capacitors. Massive heatsinks integrated with the I/O cover join a U-shaped heatpipe and high-conductivity thermal pads to move heat away from the power stages during long workloads. AI Cooling II tunes fan curves with one click while AI Overclocking adjusts frequencies based on real-time thermal headroom.

Upgrade path from older platforms

The board adds one PCIe 5.0 M.2 slot, three PCIe 4.0 M.2 slots, WiFi 7, 5Gb LAN and a USB 20Gbps Type-C port with 30W Power Delivery. Four SATA 6Gb/s ports and two chipset PCIe 4.0 x16 slots (x4 mode) keep existing drives and add-in cards working. The jump is worthwhile when moving to Intel Core Ultra Series 2 processors and faster DDR5 memory for AI-accelerated tasks.

Highlights

  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 16+1+2+2 power stages rated at 80A each with ProCool II connectors
  • DDR5 memory up to 9066 MT/s with AEMP III and DIMM Flex support
  • One PCIe 5.0 M.2 slot plus three PCIe 4.0 M.2 slots for fast storage
  • WiFi 7 and USB 20Gbps Type-C with 30W Power Delivery

Specifications

BrandASUS
SeriesROG
ModelROG STRIX Z890-H GAMING WIFI
Part Number90MB1K20-M0AAY0
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport up to 9066+MT/s (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
PCI Express 5.0 x16Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
PCI Express 4.0 x16Intel Z890 Chipset
2 x PCIe 4.0 x16 slots (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAIDIntel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A ch
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4

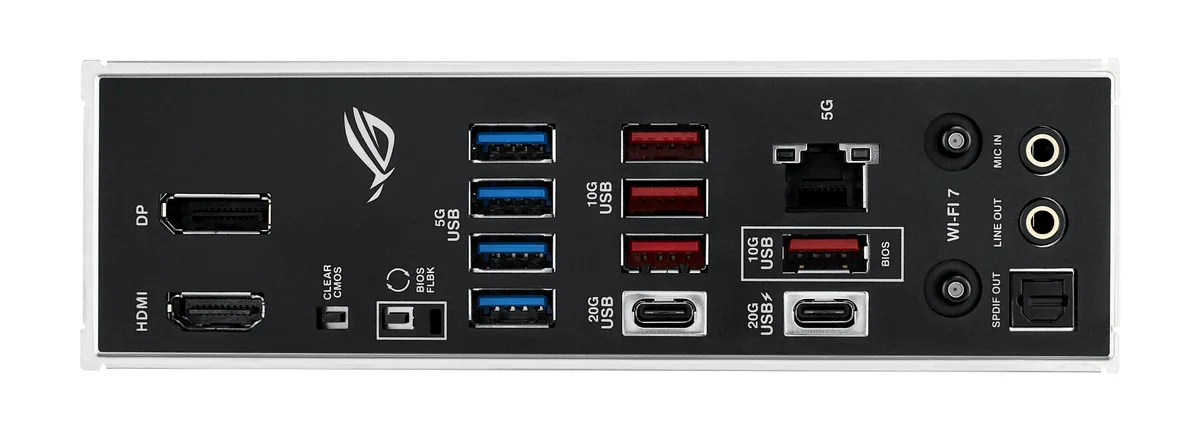

Back I/O Ports2 x USB 20Gbps ports (1 x USB Type-C* + 1 x USB Type-C with up to 30W PD Fast-charge**)
4 x USB 10Gbps ports (4 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header support 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan header
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
- ASUS AI Advisor
- ASUS Driver Hub
- ASUS GlideX
- USB Wattage Watcher
- TurboV Core
- Adobe Creative Cloud (Free Trial)
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Rear USB 20Gbps with PD Fast Char
Shipping weight2.31 kg
Package size356 × 273 × 70 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and power do the 16+1+2+2 80A stages produce when the system runs all day?

The 16+1+2+2 power stages are each rated for 80A and are cooled by massive heatsinks, a U-shaped heatpipe and high-conductivity thermal pads to manage sustained loads.

What memory must I already own to use the four 288-pin slots?

You need DDR5 modules; the board supports up to 256GB across four slots with XMP 3.0, AEMP III, DIMM Flex and DIMM Fit.

Will my PCIe 4.0 graphics card work in the x16 slot that is wired for PCIe 5.0?

Yes, the PCIe 5.0 x16 slot from the CPU runs at x16 or x8/x4/x4 and is backward compatible with PCIe 4.0 cards.
