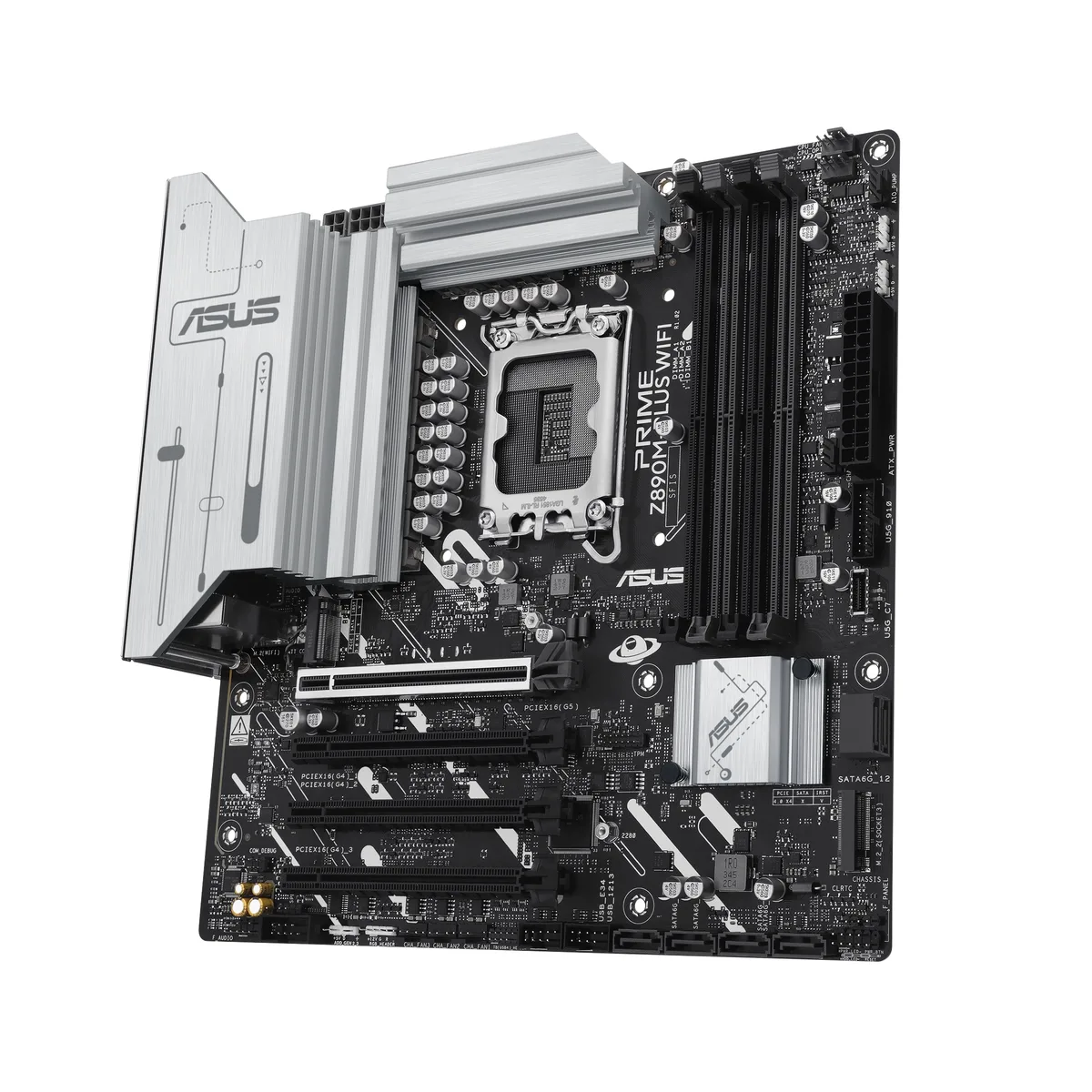

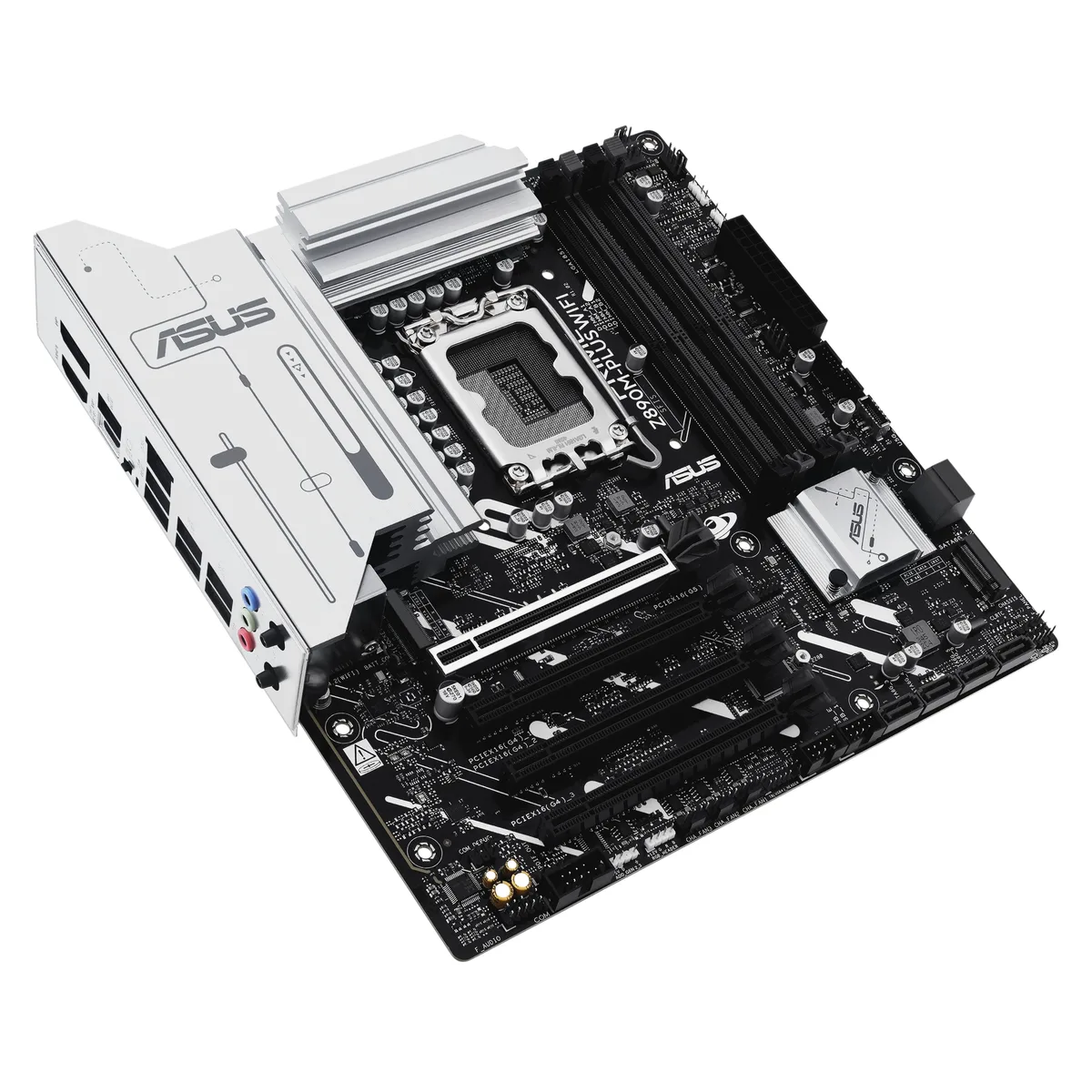

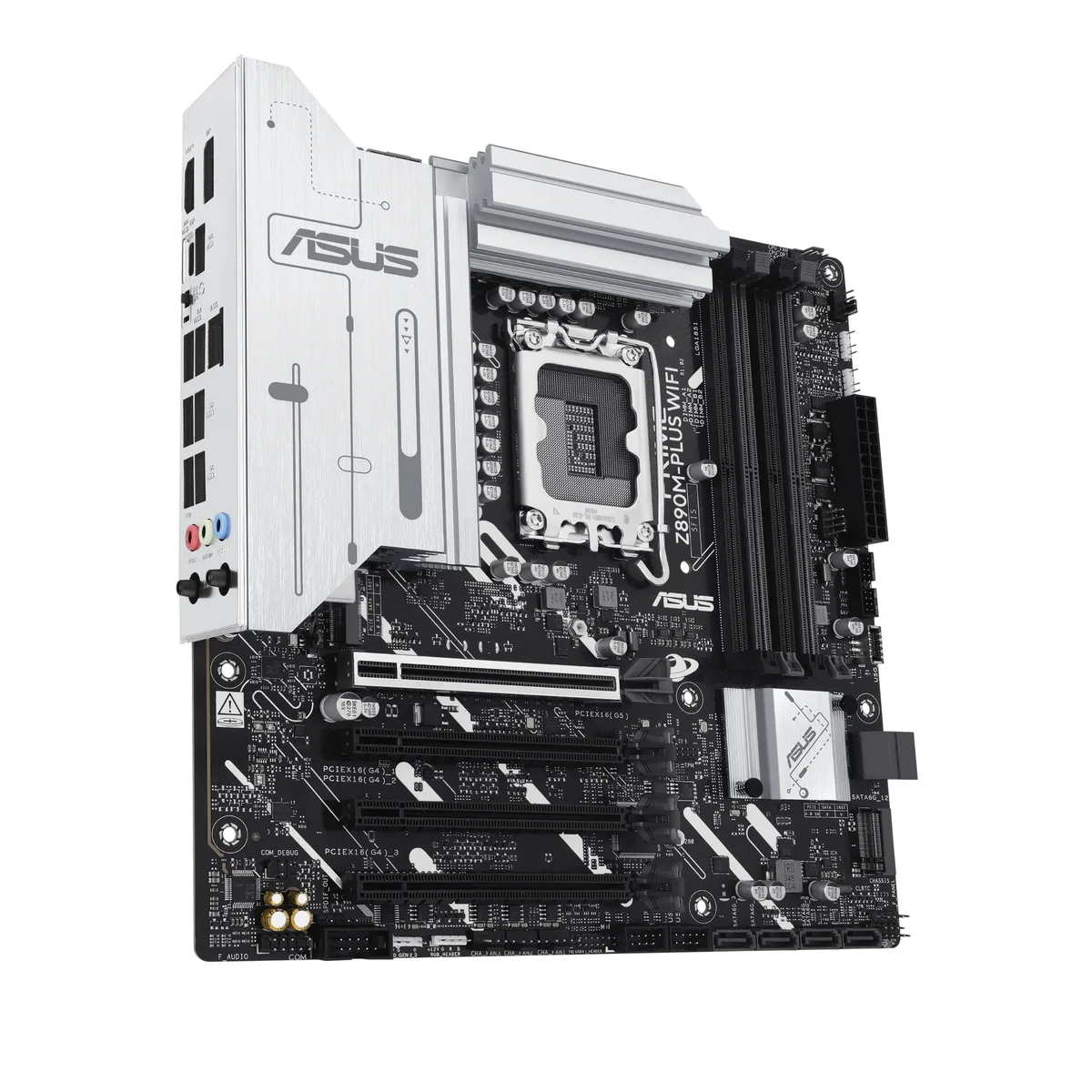

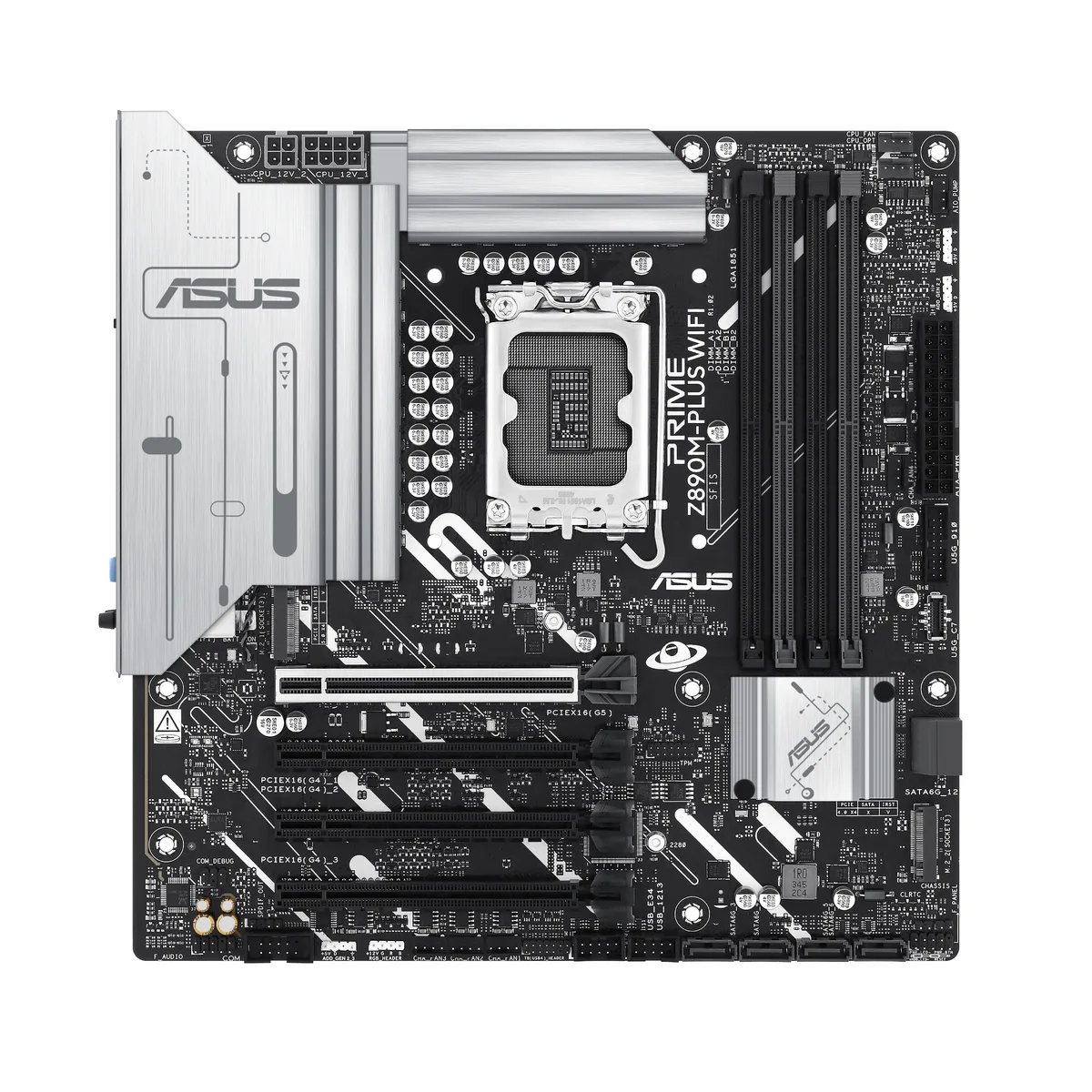

mATX motherboard in dark finish with silver heatsinks and LGA 1851 socket

ASUS

ASUS PRIME Z890M-PLUS WIFI Intel motherboard

SKU CH-89AM-54T2B MPN PRIME Z890M-PLUS WIFI

LGA 1851 mATX board with 10+1+2+1 80A power stages, DDR5 to 8666 MT/s, PCIe 5.0 x16, three M.2 slots, Wi-Fi 7 and 2.5Gb LAN

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 /
  • Maximum Memory Supported256GB

Option PRIME Z890M-PLUS WIFI

Struck-through versions exist but are not stocked here.

  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 10+1+2+1 80A DrMOS power stages deliver stable CPU power
  • PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 7 (802.11 be) and 2.5Gbps LAN for high-speed networking
  • USB 20Gbps Type-C with DP Alt Mode plus front-panel USB 5Gbps Type-C

AI-Ready Platform

The ASUS PRIME Z890M-PLUS WIFI is an Intel Z890 micro-ATX motherboard built for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket. It targets builders who want a compact foundation for advanced AI workloads and high-performance computing. Four DDR5 slots support up to 256 GB of memory in dual-channel mode.

Sustained Power Delivery

A 10+1+2+1 phase design uses 80 A DrMOS power stages with ProCool connectors on a six-layer PCB. Large VRM and PCH heatsinks work with hybrid fan headers and AI Cooling II to maintain thermal headroom during extended heavy loads. Fan Xpert 4 provides automated curve tuning for consistent stability.

PCIe 5.0 M.2 Slot

The primary M.2_1 slot (Key M, type 2280) connects directly to the CPU and runs at PCIe 5.0 x4 speeds for the fastest available storage throughput. Two additional chipset-linked M.2 slots operate at PCIe 4.0 x4. This configuration decides whether the board matches a build centred on next-generation SSD performance.

Highlights

  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 10+1+2+1 80A DrMOS power stages deliver stable CPU power
  • PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 7 (802.11 be) and 2.5Gbps LAN for high-speed networking
  • USB 20Gbps Type-C with DP Alt Mode plus front-panel USB 5Gbps Type-C

Specifications

BrandASUS
ModelPRIME Z890M-PLUS WIFI
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x163 x PCI Express 4.0 x16
Serial ATA (SATA)6 x SATA 6Gb/s
M.2Intel Core Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel Z890 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
Back I/O Ports1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x USB 3.1 Gen 2 Type-C / 3 x Audio Jacks / 7 x USB 3.1 Gen 1 Type-A
Windows 11Supported
Form FactorMicro ATX
Shipping weight1.81 kg
Package size279 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this motherboard fit in a standard micro-ATX case and align with the I/O shield?

The board uses the micro-ATX form factor, so it mounts in any case that supports micro-ATX and uses the standard I/O cut-out.

Which CPUs are compatible with the LGA 1851 socket and Z890 chipset?

It supports Intel Core Ultra Processors (Series 2) only; earlier generations are not electrically compatible.

How many M.2 SSDs can I install and what speeds do the slots provide?

Three M.2 2280 slots are available: one runs at PCIe 5.0 x4 and two run at PCIe 4.0 x4.
