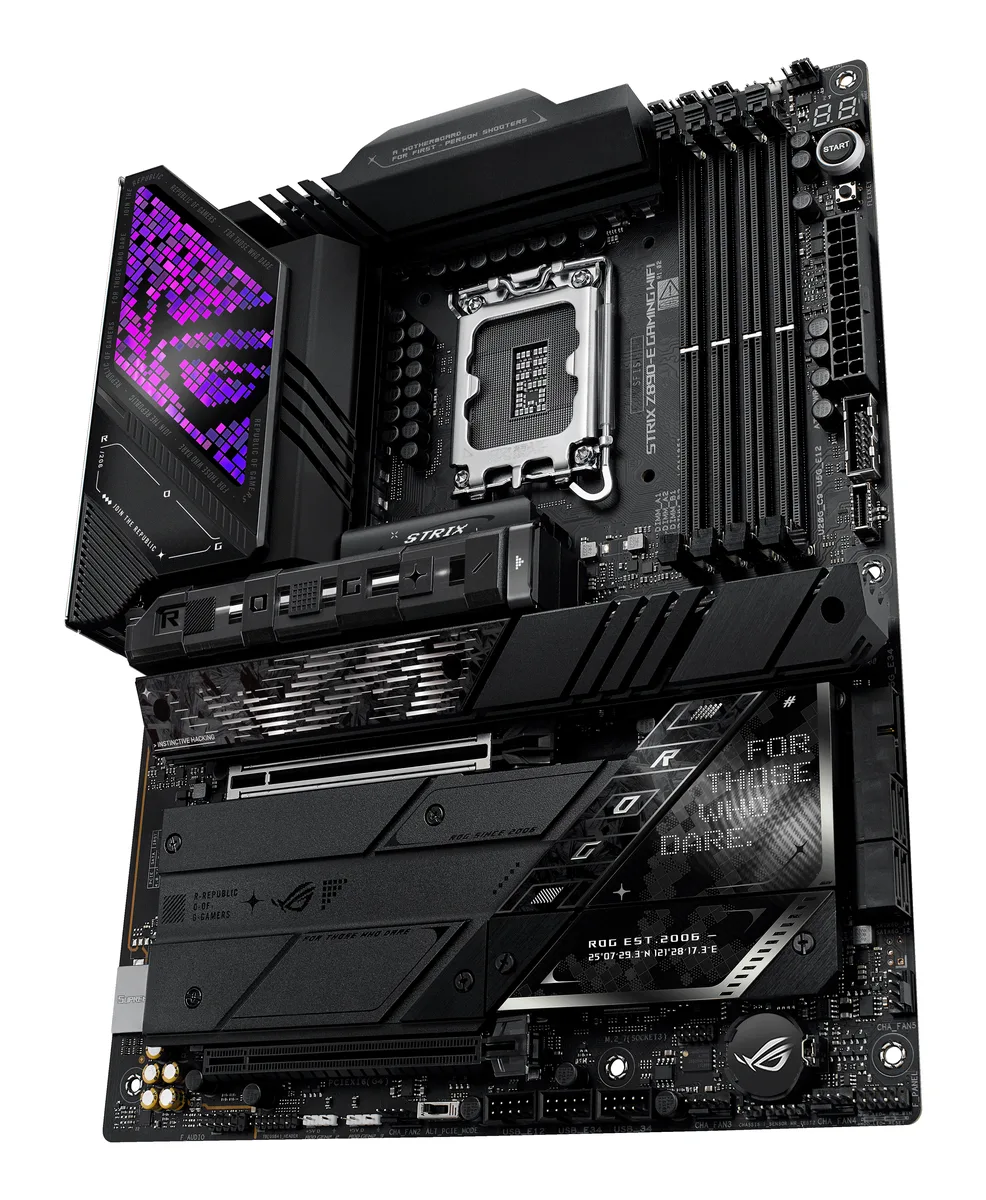

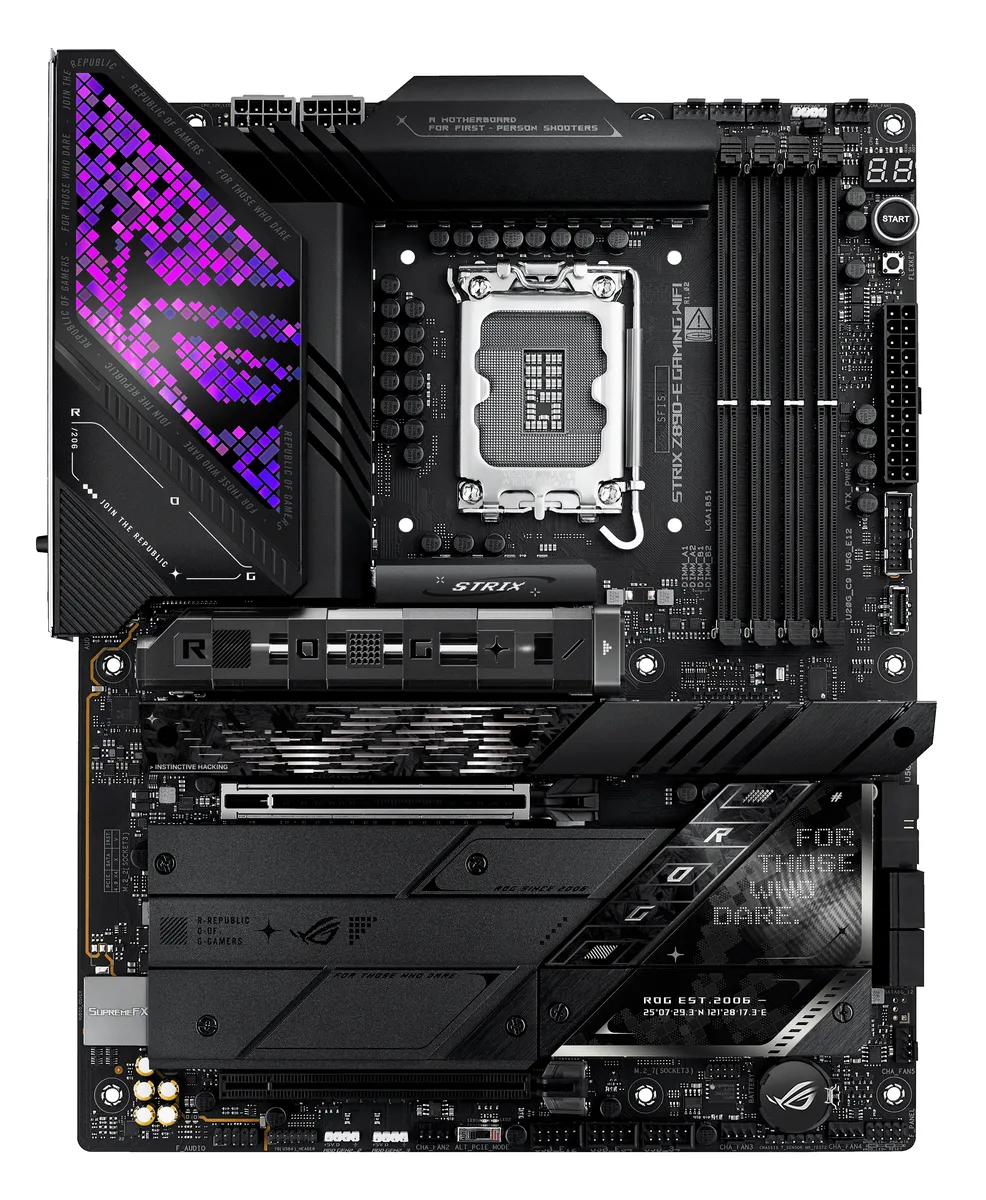

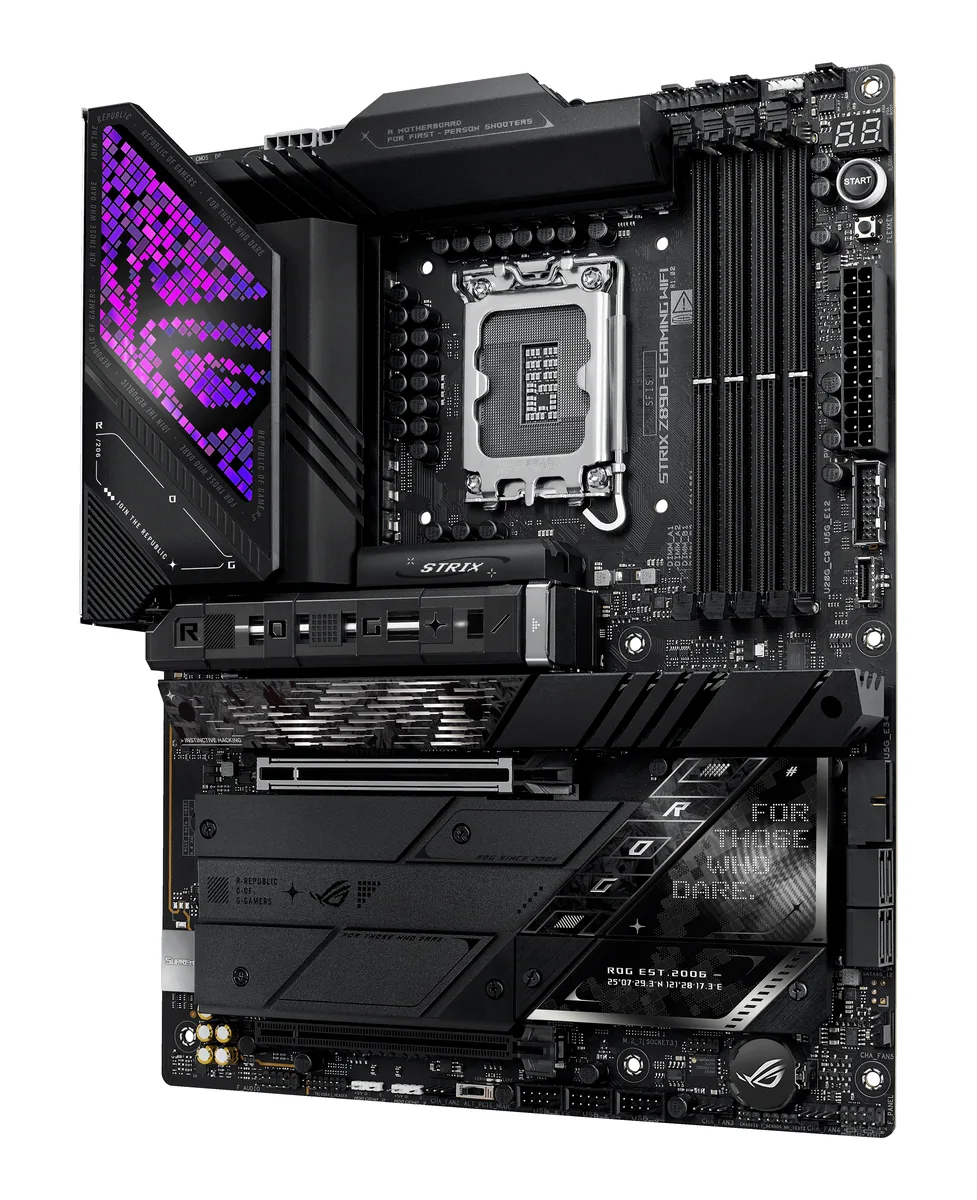

Black ATX motherboard with silver heatsinks and integrated I/O cover

ASUS

ASUS ROG STRIX Z890-E GAMING WIFI Intel motherboard

SKU CH-FXSB-PESSK MPN ROG STRIX Z890-E GAMING WIFI

LGA 1851 ATX motherboard with 18+2+1+2 power stages, DDR5 to 8800 MT/s, three PCIe 5.0 M.2 slots, Wi-Fi 7 and dual Thunderbolt 4

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 /
  • Maximum Memory Supported256GB

Option ROG STRIX Z890-E GAMING WIFI

Struck-through versions exist but are not stocked here.

  • AI-ready platform for Intel Core Ultra Series 2 processors
  • 18+2+1+2 power stages rated up to 110A for stable overclocking
  • DDR5 support up to 8800 MT/s with NitroPath and DIMM Flex
  • Seven M.2 slots including three PCIe 5.0 with heatsinks
  • Wi-Fi 7 and dual Thunderbolt 4 ports for high-speed connectivity

Intel LGA 1851 ATX motherboard

The ASUS ROG STRIX Z890-E GAMING WIFI is an ATX motherboard built for Intel Core Ultra processors (Series 2) on the LGA 1851 socket. It uses the Intel Z890 chipset and targets enthusiasts who want advanced AI-ready features, extensive connectivity and robust power delivery in a full-size board. It supports DDR5 memory and includes integrated Wi-Fi 7 and Bluetooth 5.4.

18+2+1+2 power stages and DDR5 up to 8800 MT/s

The board delivers power through 18+2+1+2 stages rated at 110 A, 90 A, 90 A and 80 A with ProCool II connectors, alloy chokes and metallic capacitors. Four DDR5 slots support up to 256 GB and speeds up to 8800+ MT/s when overclocked, plus XMP 3.0, DIMM Flex and NitroPath DRAM technology for simplified tuning.

Suits AI-focused builders needing seven M.2 slots

This board fits builders who need three PCIe 5.0 and four PCIe 4.0 M.2 slots, dual Thunderbolt 4 ports, 5 Gbps LAN and SupremeFX 7.1 audio. Users with smaller cases or who only require a single M.2 drive and basic rear I/O should consider a more compact or entry-level Z890 model.

Highlights

  • AI-ready platform for Intel Core Ultra Series 2 processors
  • 18+2+1+2 power stages rated up to 110A for stable overclocking
  • DDR5 support up to 8800 MT/s with NitroPath and DIMM Flex
  • Seven M.2 slots including three PCIe 5.0 with heatsinks
  • Wi-Fi 7 and dual Thunderbolt 4 ports for high-speed connectivity

Specifications

BrandASUS
ModelROG STRIX Z890-E GAMING WIFI
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800
Maximum Memory Supported256GB
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
PCI Express 5.0 x16Intel Core Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slots (supports x16 mode)
PCI Express 4.0 x16Intel Z890 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
Intel Z890 Chipset
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2
SATA RAID* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x Thunderbolt 4 USB Type-C ports (2 x USB Type-C)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
TurboV Core
USB Wattage Watcher
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
FlexKey
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
FeaturesExtreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers

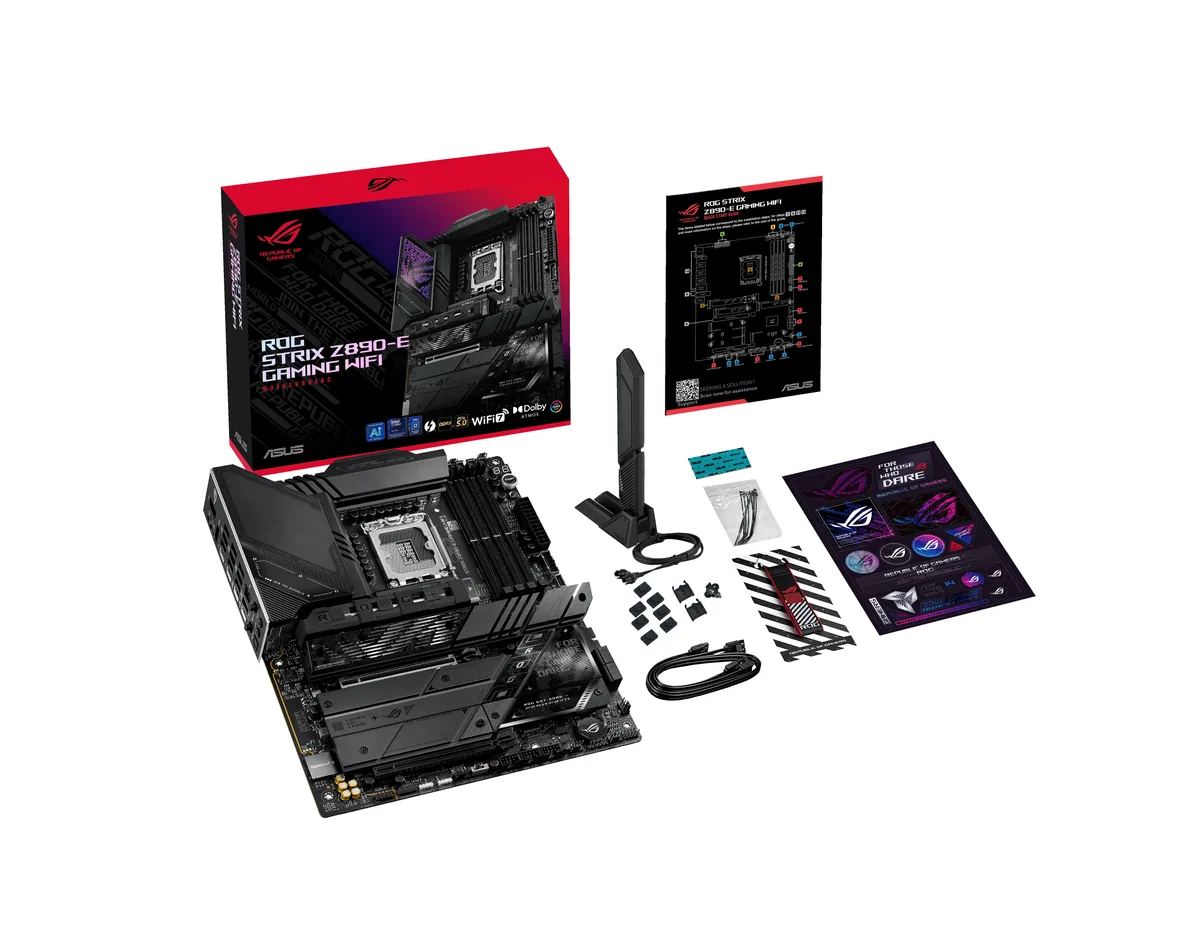

Package ContentsCables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
7 x M.2 Rubbers
Documentation
1 x Quick start guide
Shipping weight2.95 kg
Package size356 × 279 × 89 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 18+2+1+2 power-stage design actually deliver for an Intel Core Ultra processor?

The board uses 18 stages rated at 110 A, two at 90 A, one at 90 A and two at 80 A, all fed through ProCool II connectors, MicroFine alloy chokes and premium metallic capacitors to keep voltage stable under heavy AI or gaming loads.

How fast can the Thunderbolt 4 ports move data and what charging do they support?

Each Thunderbolt 4 USB Type-C port runs at up to 40 Gbps and one of them provides up to 30 W Power Delivery for fast-charging phones or accessories.

Will a standard ATX case and CPU cooler clear the board's heatsink layout?

The motherboard follows the ATX form factor and uses a connected C-shaped heatpipe with massive heatsinks and an integrated I/O cover, so any ATX-compatible case and LGA 1851 cooler will fit.
