Hatsune Miku themed ATX motherboard CPU case combo

ASUS

ASUS ROG STRIX X870E-H S MIKU AMD motherboard combo with Ryzen 7 9700X Hatsune Miku Case

SKU CH-6DYF-ZCD6C

Complete AM5 build kit with X870E motherboard, Ryzen 7 9700X processor and themed mid-tower case

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Deskt
  • ChipsetAMD X870E
  • Serial ATA (SATA)4 x SATA 6Gb/s
  • M.2Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 90
  • SATA RAIDAMD RAIDXpert2 Technology* Ryzen 9000 Series Processors: RAI

+CPU R7 9700X

  • Ready for AMD Ryzen 9000, 8000 and 7000 series processors via AM5 socket
  • 16+2+1 power stages rated for 80A with dual ProCool II connectors
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots with substantial cooling
  • Dual USB4 Type-C ports, USB 20Gbps front-panel connector and USB 10Gbps rear port with PD 3.0 up to 30W
  • Includes ROG GX601S Helios Mid-Tower Hatsune Miku case and Shin-Etsu X-23-7868-2D thermal paste

Combo contents

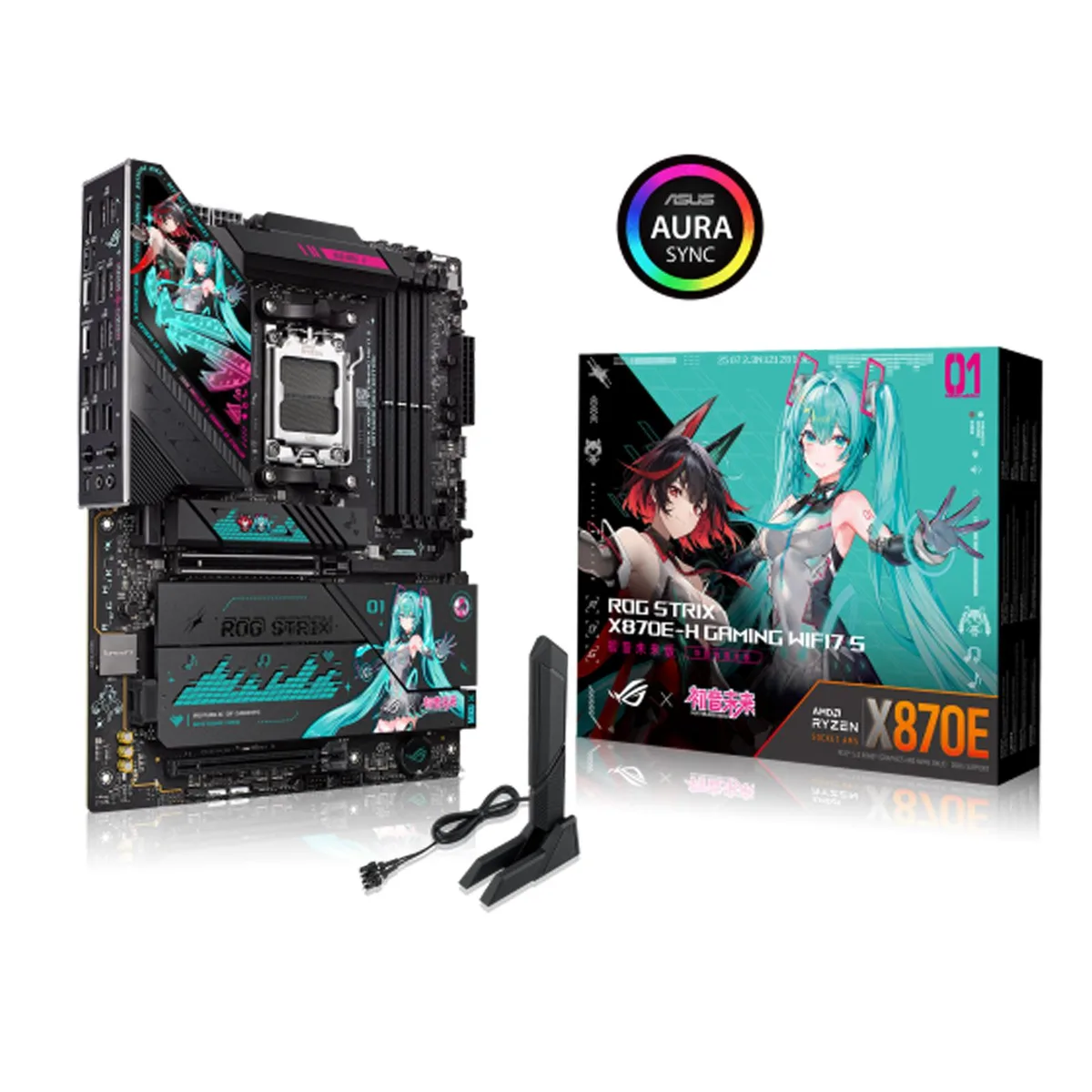

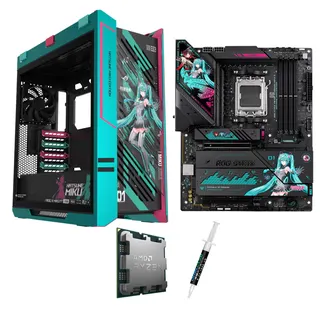

This bundle pairs the ROG STRIX X870E-H S MIKU motherboard with an AMD Ryzen 7 9700X processor and the ROG GX601S Helios Mid-Tower Hatsune Miku case. It targets builders who want a coordinated AM5 platform with matching aesthetics. The package also includes a tube of Shin-Etsu X-23-7868-2D thermal paste for the CPU installation.

Bundled extras

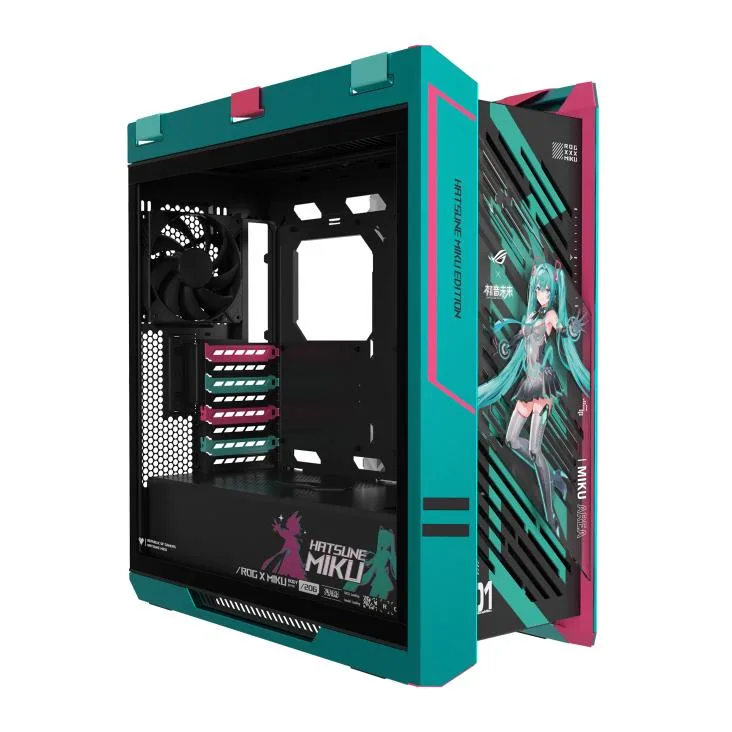

The Hatsune Miku case delivers a themed chassis with pre-installed fans and a tempered-glass side panel, removing the need to buy a separate enclosure. Shin-Etsu X-23-7868-2D paste is a recognised compound that simplifies the first thermal interface. The motherboard adds dual USB4 Type-C ports, a USB 20Gbps Type-C front-panel connector, one USB 10Gbps Type-C rear port with PD 3.0 up to 30W and USB Wattage Watcher, plus three additional USB 10Gbps ports.

Installation notes

The ATX board measures 12.0" x 9.6" and fits the included mid-tower using standard mounting points. Four 288-pin DDR5 slots support up to 256GB in dual-channel mode, and the 24-pin plus dual 8-pin CPU power connectors are clearly keyed. Two PCIe 5.0 M.2 slots (2242/2260/2280 and 2280/22110) and two PCIe 4.0 M.2 slots share substantial heatsinks that require the supplied screws. Wi-Fi 802.11 be and 5Gbps LAN are onboard, while the 16+2+1 80A power stage and ProCool II connectors demand firm seating.

Highlights

  • Ready for AMD Ryzen 9000, 8000 and 7000 series processors via AM5 socket
  • 16+2+1 power stages rated for 80A with dual ProCool II connectors
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots with substantial cooling
  • Dual USB4 Type-C ports, USB 20Gbps front-panel connector and USB 10Gbps rear port with PD 3.0 up to 30W
  • Includes ROG GX601S Helios Mid-Tower Hatsune Miku case and Shin-Etsu X-23-7868-2D thermal paste

Specifications

BrandASUS
ModelROG STRIX X870E-H S MIKU+(R7 9700X)
Part NumberROG STRIX X870E-H S MIKU+(R7 9700X)
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD X870E
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occu
SATA RAIDAMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the Shin-Etsu X-23-7868-2D thermal paste need reapplication after extended use?

The included Shin-Etsu X-23-7868-2D paste is applied during build; typical replacement interval is several years unless temperatures rise noticeably.

What limits sustained all-core performance on the Ryzen 7 9700X in this combo?

The processor's thermal and power thresholds inside the ROG GX601S Helios case define the ceiling during prolonged heavy loads.

How loud does the ROG GX601S Helios case get when the system runs all day?

Noise depends on installed fan curves and workload; the case supports multiple fan mounts for balanced airflow and acoustics.
