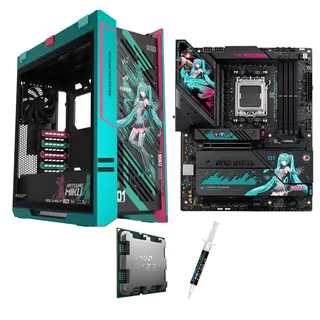

White mid-tower case with turquoise accents beside matching motherboard and CPU box

ASUS

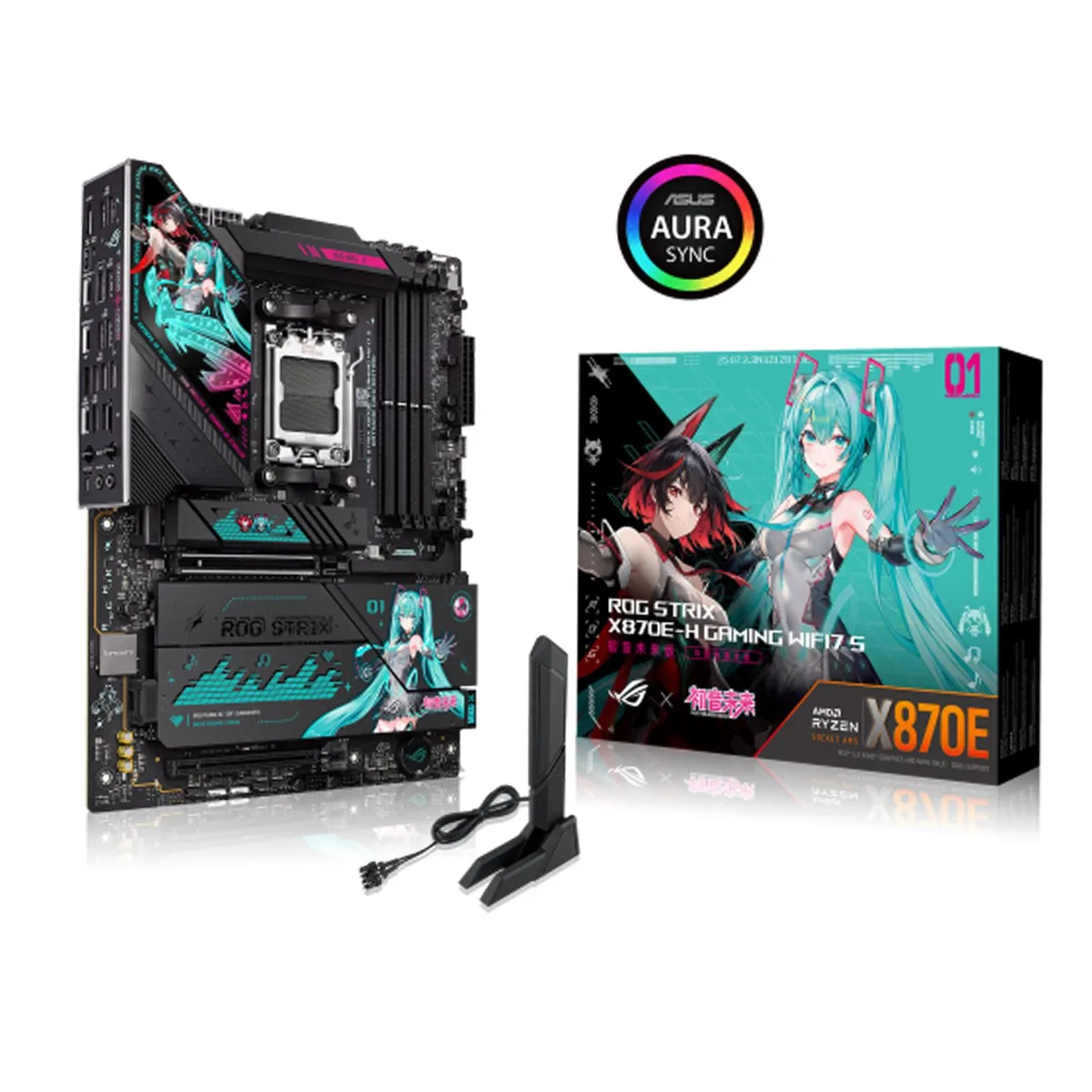

ASUS ROG STRIX X870E-H S MIKU Combo AMD motherboard with Ryzen 7 9800X3D and Helios case

SKU CH-1J3E-E0KA9

Hatsune Miku themed AM5 bundle pairs an X870E motherboard with a Ryzen 7 9800X3D CPU and Helios mid-tower case

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Deskt
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC)
  • Maximum Memory Supported256GB

+CPU R7 9800X3D

  • Hatsune Miku themed trio includes motherboard, Ryzen 7 9800X3D CPU and Helios case
  • AMD X870E chipset supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • Four DDR5 slots accept up to 256 GB at 8000+ MT/s overclocked speeds
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with substantial cooling solutions
  • Wi-Fi 7, Bluetooth 5.4 and 5 Gbps LAN deliver high-speed wired and wireless connectivity

Hatsune Miku Combo Bundle

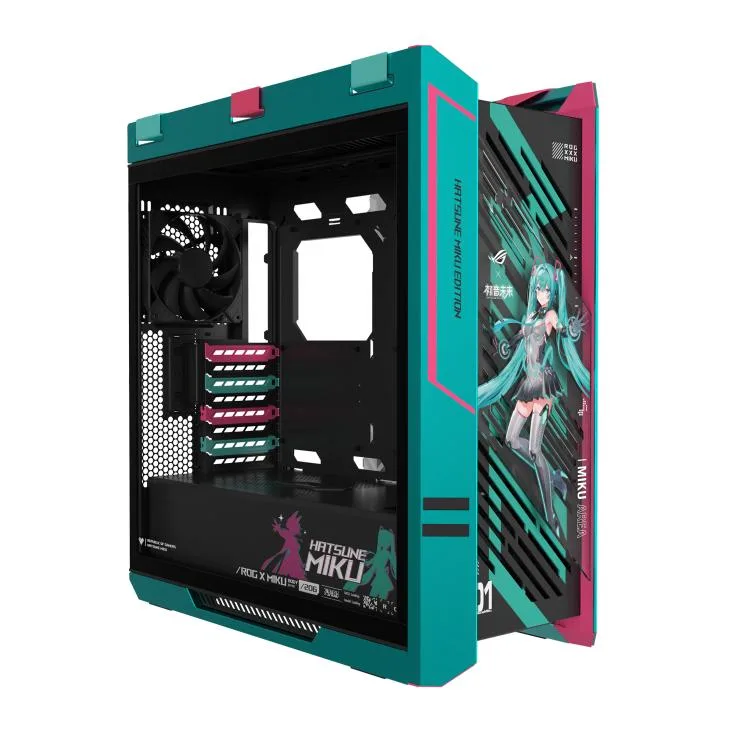

This bundle pairs a ROG STRIX X870E-H S MIKU motherboard with a Ryzen 7 9800X3D processor and a GX601S Helios Mid-Tower case. It is built for enthusiasts who want a themed, high-performance AMD platform in a single purchase. The bundle includes Shin-Etsu 7868-2D thermal paste for the CPU installation.

Pre-installed CPU simplifies the build

The Ryzen 7 9800X3D arrives already seated in the AM5 socket with thermal paste applied, removing the most delicate step of a new build. You only need to mount the motherboard into the Helios case, connect the front-panel headers and install memory and storage. The integrated I/O shield on the motherboard speeds up rear-panel alignment.

Verify cooler clearance and power cables

Check that your chosen CPU cooler fits the Helios Mid-Tower dimensions and does not block the four DDR5 slots or the two PCIe 5.0 M.2 heatsinks. Ensure your power supply provides dual ProCool II 8-pin connectors for the 16+2+1 phase VRM and has enough PCIe cables for your graphics card. Confirm the case front-panel USB connector matches the board's USB 20Gbps Type-C header.

Highlights

  • Hatsune Miku themed trio includes motherboard, Ryzen 7 9800X3D CPU and Helios case
  • AMD X870E chipset supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • Four DDR5 slots accept up to 256 GB at 8000+ MT/s overclocked speeds
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with substantial cooling solutions
  • Wi-Fi 7, Bluetooth 5.4 and 5 Gbps LAN deliver high-speed wired and wireless connectivity

Specifications

BrandASUS
ModelROG STRIX X870E-H S MIKU+(R7 9800X3D)
Part NumberROG STRIX X870E-H S MIKU+(R7 9800X3D)
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occu
SATA RAIDAMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I verify the motherboard is working correctly after installing the Ryzen 7 9800X3D in the Helios case?

The motherboard features ASUS AI Advisor and AI Cooling II to simplify setup and monitor performance. The 16+2+1 power solution rated for 80A per stage with dual ProCool II connectors ensures stable power delivery for the multi-core processor.

What components are included in the box and what must I purchase separately?

The box includes the ROG STRIX X870E-H S MIKU motherboard, AMD Ryzen 7 9800X3D CPU, ROG GX601S Helios Mid-Tower Hatsune Miku case, and Shin-Etsu X-23-7868-2D thermal paste. DDR5 memory modules and storage drives are not included.

Which version of the combo should I choose for maximum PCIe 5.0 M.2 support?

The ROG STRIX X870E-H S MIKU motherboard in this combo provides two onboard PCIe 5.0 M.2 slots (M.2_1 and M.2_2) supporting 2242/2260/2280 and 2280/22110 form factors, plus two additional PCIe 4.0 M.2 slots.
