Boxed Hatsune Miku themed motherboard CPU case combo

ASUS

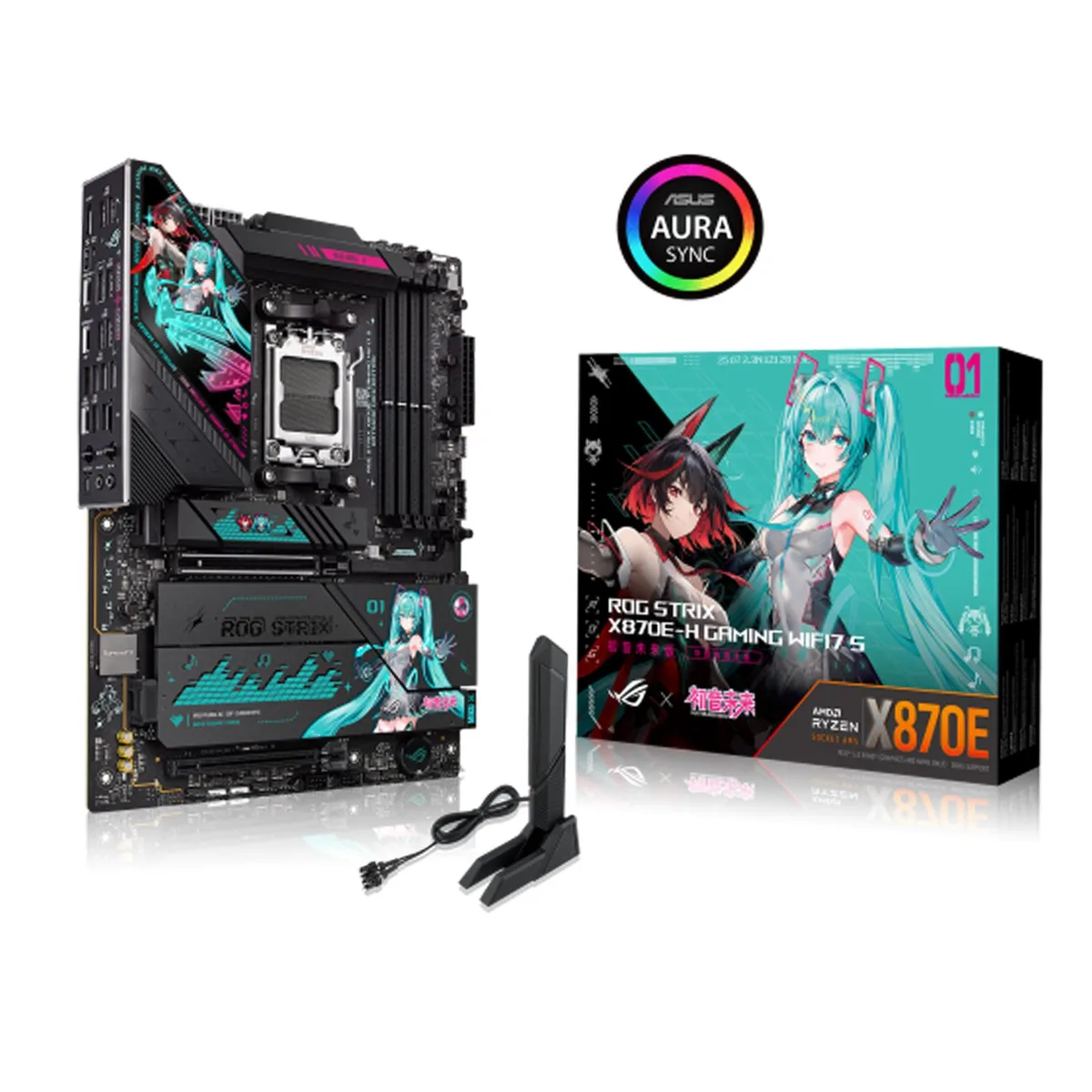

ASUS ROG STRIX X870E-H S MIKU AMD motherboard CPU case combo

SKU CH-Q1W4-HA4AP

Combo bundles an AMD X870E ATX motherboard, Ryzen 5 9600X CPU and Hatsune Miku mid-tower case with Wi‑Fi 7, Bluetooth 5.4, DDR5 up to 8000 MT/s and 256 GB capacity

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Deskt
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC)
  • Maximum Memory Supported256GB

+CPU R5 9600X

  • Hatsune Miku themed gaming trio includes motherboard CPU and case
  • AMD X870E chipset supports Ryzen 9000 8000 7000 series processors
  • 16 plus 2 plus 1 power stages rated 80A with dual ProCool II connectors
  • WiFi 7 and Bluetooth 5.4 plus 5Gbps LAN for fast connectivity
  • Four M.2 slots two PCIe 5.0 two PCIe 4.0 with substantial cooling

Ready-for-AI AMD bundle

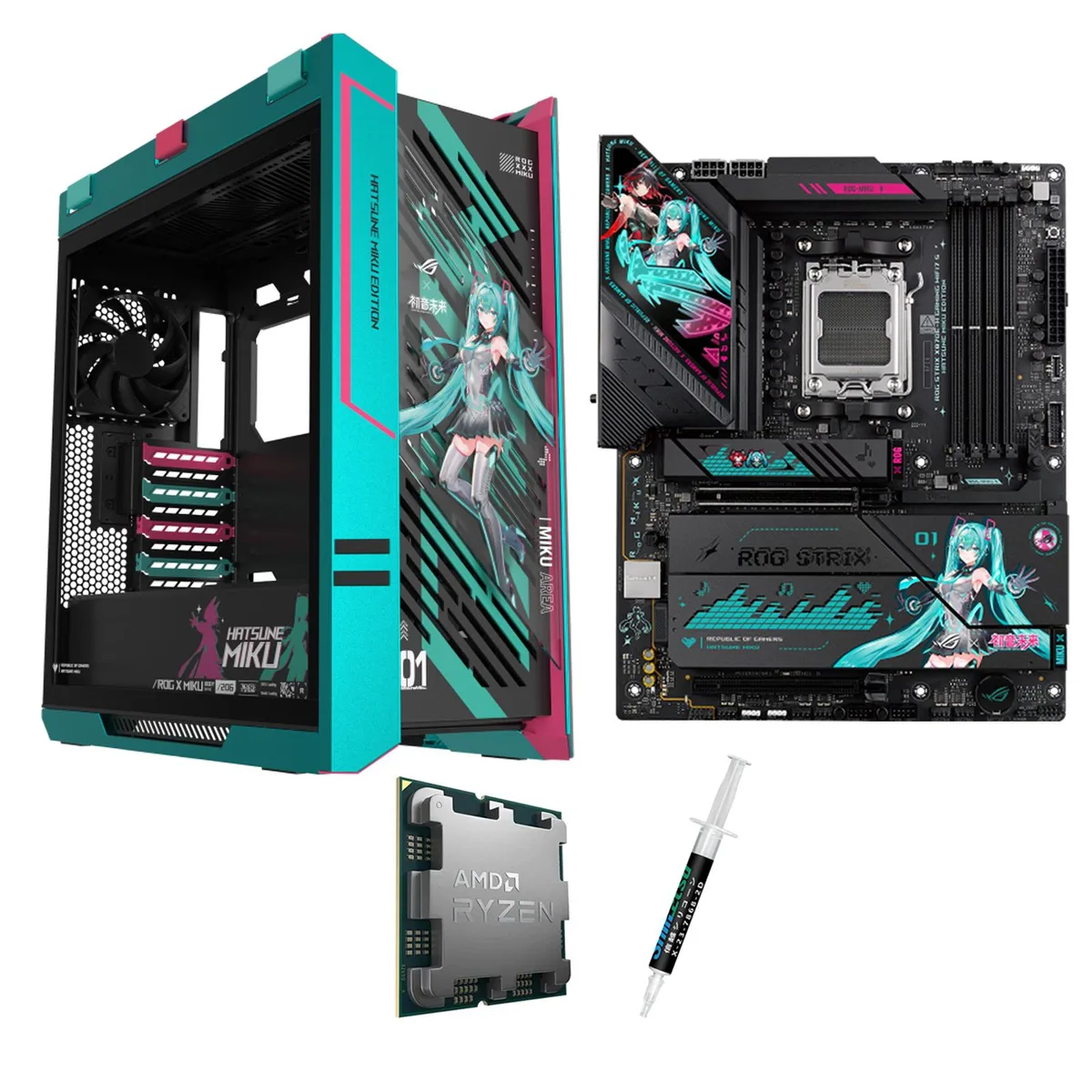

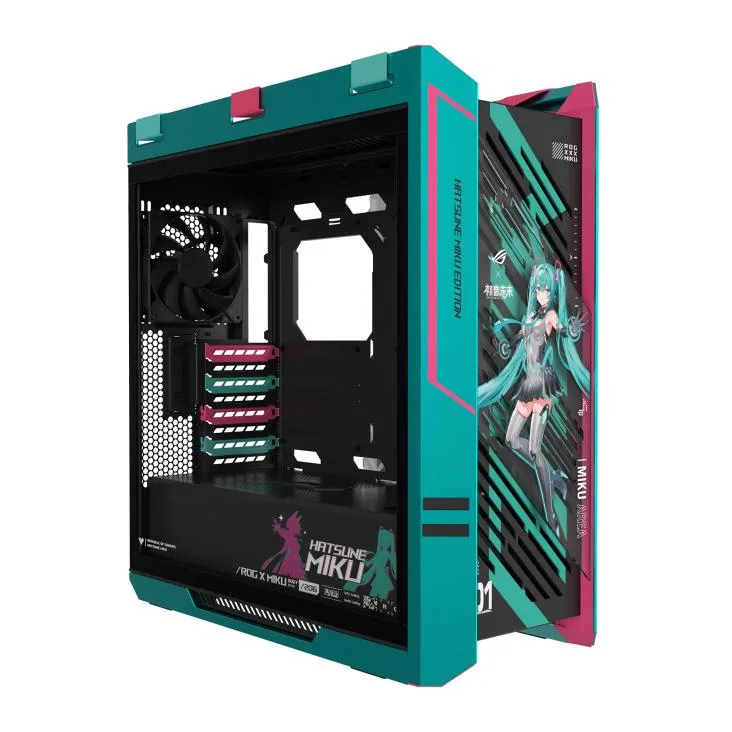

This combo packages an ASUS ROG STRIX X870E-H S MIKU motherboard, an AMD Ryzen 5 9600X processor and a ROG GX601S Helios Mid-Tower Hatsune Miku case. The board uses the AMD X870E chipset on the AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. Four DDR5 slots accept up to 256 GB of memory. The bundle targets builders who want a coordinated theme and a platform prepared for advanced AI workloads.

Interface limits on AM5

PCIe 5.0 x16 operates at full x16 speed with Ryzen 9000 and 7000 processors, but drops to x8 or x4 with Ryzen 8000 series chips. A second x16-size slot is wired for PCIe 4.0 x4. Storage includes two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, alongside four SATA 6Gb/s ports. Networking tops out at 5 Gbps wired plus WIFI7 and Bluetooth 5.4. USB provides dual USB4 Type-C, one 20 Gbps front-panel Type-C, one 10 Gbps rear Type-C with PD 3.0 up to 30 W and three additional 10 Gbps ports.

Install notes and common issues

The motherboard arrives with a pre-mounted I/O shield and Q-Release mechanisms for PCIe and M.2, easing assembly in the mid-tower chassis. Apply the included Shin-Etsu X-23-7868-2D thermal paste when seating the Ryzen 5 9600X. Remember to plug both ProCool II power connectors for the 16+2+1 phase VRM. Builders often forget the front-panel USB 20 Gbps header or leave the second PCIe 5.0 M.2 heatsink screw loose, which can throttle the drive under sustained loads.

Highlights

  • Hatsune Miku themed gaming trio includes motherboard CPU and case
  • AMD X870E chipset supports Ryzen 9000 8000 7000 series processors
  • 16 plus 2 plus 1 power stages rated 80A with dual ProCool II connectors
  • WiFi 7 and Bluetooth 5.4 plus 5Gbps LAN for fast connectivity
  • Four M.2 slots two PCIe 5.0 two PCIe 4.0 with substantial cooling

Specifications

BrandASUS
ModelROG STRIX X870E-H S MIKU+(R5 9600X)
Part NumberROG STRIX X870E-H S MIKU+(R5 9600X)
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occu
SATA RAIDAMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the combo with the Ryzen 5 9600X or build around a different AM5 processor?

The bundle ships with the Ryzen 5 9600X already installed on the X870E board, so you receive a matched CPU and motherboard plus the Helios case and Shin-Etsu thermal paste in one box.

What does the 8000+ MT/s memory rating actually deliver in a built system?

The board supports DDR5 up to 8000+ MT/s when overclocked across four slots, with a 256 GB maximum capacity in dual-channel mode.

How fast is the WIFI7 connection once the PC is assembled?

The onboard wireless uses Wi-Fi 802.11 be (WIFI7) alongside Bluetooth 5.4, while the wired LAN tops out at 5 Gbps.
