ASUS ROG STRIX X870E-H S MIKU motherboard, Ryzen 9 9900X CPU and Hatsune Miku themed mid-tower case in box

ASUS

ASUS ROG STRIX X870E-H S MIKU Hatsune Miku Edition AMD motherboard CPU case combo Ryzen 9 9900X

SKU CH-XC8V-NXBMW

A Hatsune Miku themed bundle pairing an AMD X870E motherboard with a 12-core Ryzen 9 9900X and matching mid-tower case

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Deskt
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC)
  • Maximum Memory Supported256GB

+CPU R9 9900X

  • 12 cores and 24 threads for heavy multitasking
  • AMD X870E chipset with PCIe 5.0 graphics and storage support
  • Wi-Fi 7 and Bluetooth 5.4 for fast wireless connectivity
  • 1 surround sound with headphone amplifier for immersive audio
  • Hatsune Miku themed motherboard, CPU and case bundle

Hatsune Miku Edition Combo

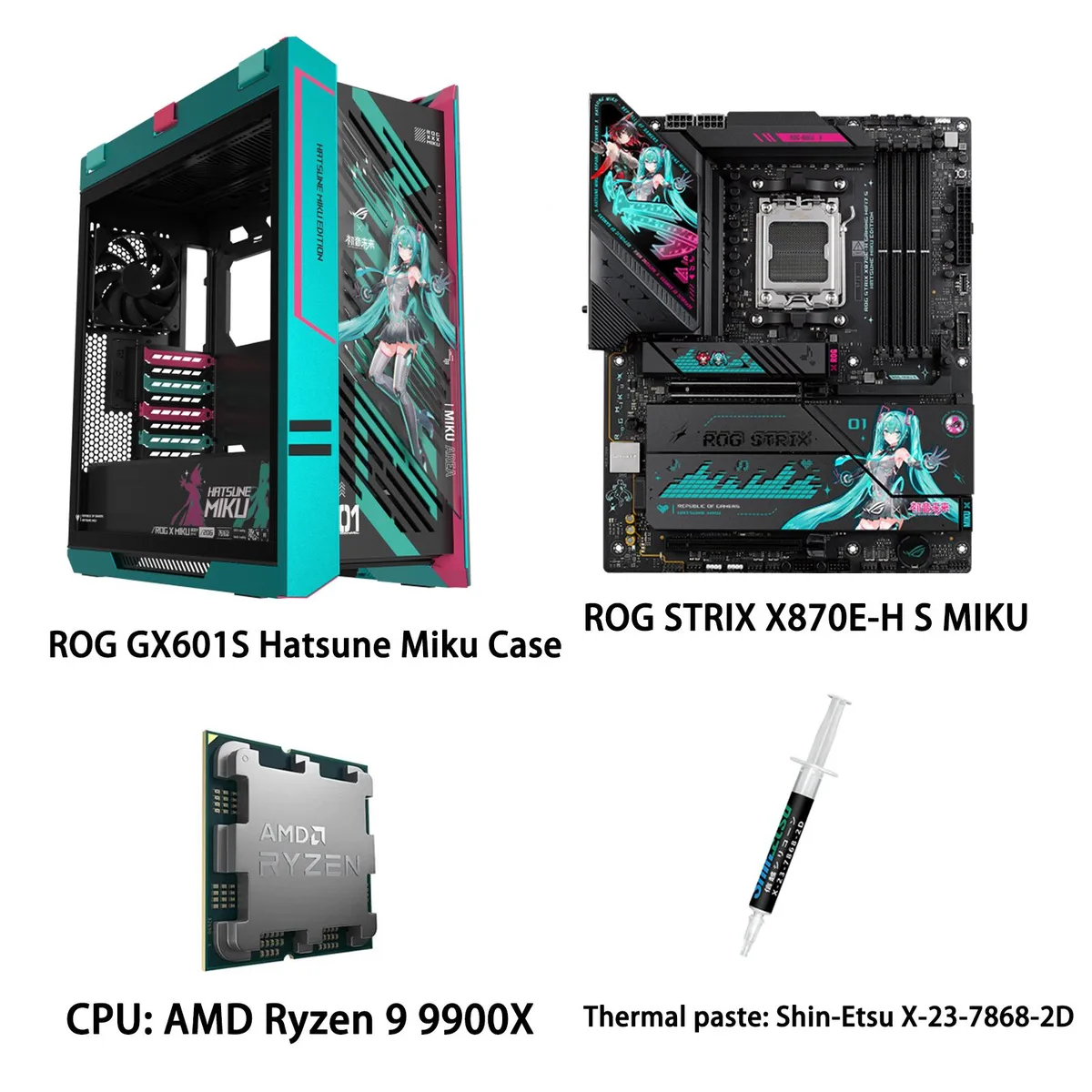

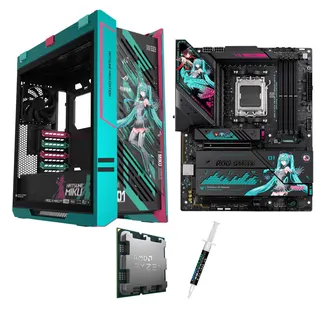

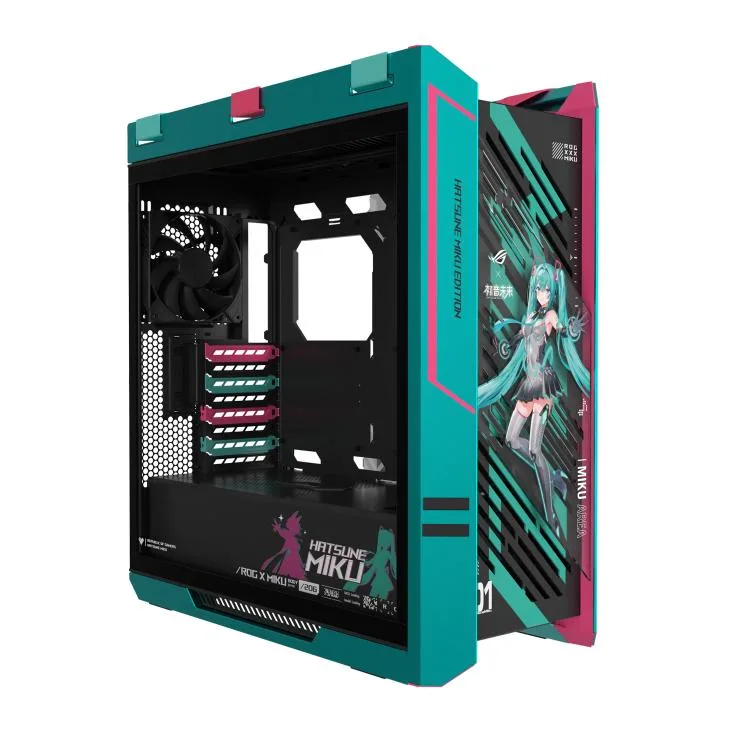

This bundle pairs an ASUS ROG STRIX X870E-H S MIKU motherboard with an AMD Ryzen 9 9900X processor and a ROG GX601S Helios Mid-Tower case finished in the Hatsune Miku theme. The board uses the AMD X870E chipset and AM5 socket supporting Ryzen 9000, 8000 and 7000 series CPUs. Four DDR5 slots accept up to 256GB of memory. The case and motherboard share the distinctive Miku graphics. Shin-Etsu thermal paste is included in the box.

Upgrade Path from Older AM4 Builds

The combo replaces a previous AM4 motherboard, CPU and case with a single coordinated package. The jump is worth it when moving to DDR5 memory and PCIe 5.0 storage for AI workloads and high-speed gaming. The Ryzen 9 9900X delivers 12 cores and 24 threads with a 5.6 GHz maximum boost clock based on the Zen 5 architecture. Dual USB4 Type-C ports and Wi-Fi 7 connectivity modernise the I/O compared to older platforms.

Straightforward Assembly with Included Paste

Installation follows standard ATX steps: mount the motherboard standoffs, secure the board, seat the CPU in the AM5 socket and apply the supplied Shin-Etsu X-23-7868-2D thermal paste before fitting the cooler. The case provides a mid-tower layout compatible with the board dimensions. Common issues include forgetting to enable EXPO for DDR5 speeds above 8000 MT/s and not seating the M.2 heatsink screws evenly which can throttle PCIe 5.0 drives.

Highlights

  • 12 cores and 24 threads for heavy multitasking
  • AMD X870E chipset with PCIe 5.0 graphics and storage support
  • Wi-Fi 7 and Bluetooth 5.4 for fast wireless connectivity
  • 1 surround sound with headphone amplifier for immersive audio
  • Hatsune Miku themed motherboard, CPU and case bundle

Specifications

BrandASUS
ModelROG STRIX X870E-H S MIKU+(R9 9900X)
Part NumberROG STRIX X870E-H S MIKU+(R9 9900X)
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occu
SATA RAIDAMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the Hatsune Miku Helios case fit the X870E-H S MIKU motherboard and the included Ryzen 9 9900X without clearance issues?

Yes, the combo is pre-validated: the ROG GX601S Helios Mid-Tower is designed for ATX boards like the X870E-H S MIKU and ships with the Shin-Etsu X-23-7868-2D thermal paste for the 9900X, so the CPU, cooler mounting and board standoffs all align out of the box.

What DDR5 memory speeds can I run on the four slots with the Ryzen 9 9900X installed?

The board supports up to 8000+ MT/s (OC) on DDR5 across its four 288-pin slots in dual-channel mode, with a maximum capacity of 256 GB; the 9900X memory controller will determine the final stable frequency, but the platform is rated for those speeds.

Does the package include Wi-Fi 7 and Bluetooth 5.4 antennas, or must I buy them separately?

The motherboard features Wi-Fi 802.11 be (WIFI7) and Bluetooth 5.4 onboard; the external antenna kit ships in the motherboard box, so no separate purchase is required for wireless connectivity.
