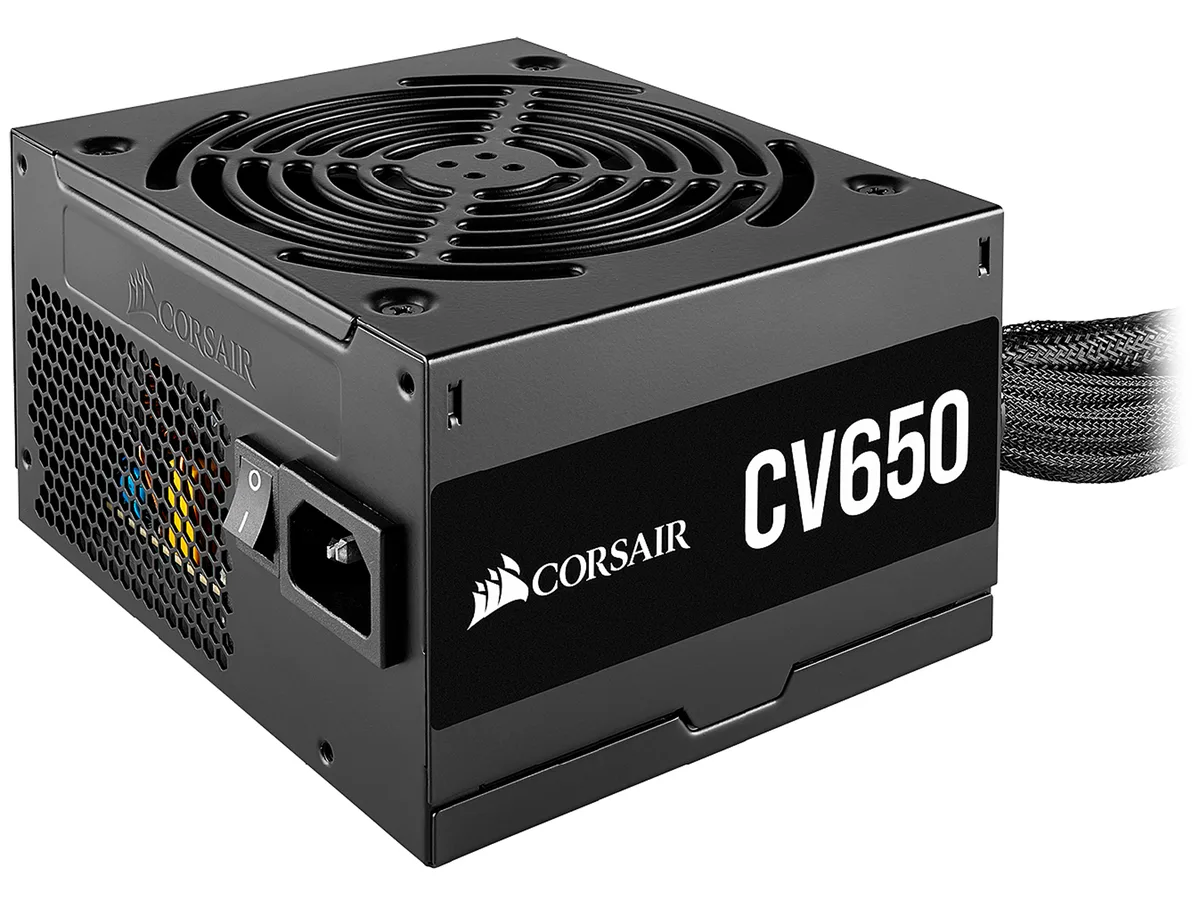

Corsair CP-9020211-NA CV650 650 W power supply
A 650 W ATX power supply with 80 PLUS Bronze efficiency, a single +12 V rail, two PCIe 6+2-pin connectors and a 120 mm thermally controlled fan in a compact 125 mm case
- TypeATX12V
- Maximum Power650 W
- Fans1 x 120mm Thermally Controlled Low-noise Cooling Fan
- Main Connector24Pin
- +12V RailsSingle
- PCI-Express Connector2 x 6+2-Pin
Options CV Series (650W)
- 80 PLUS Bronze certification delivers up to 88% efficiency reducing heat and energy costs
- 650 W continuous power output guaranteed across a single +12 V rail rated at 52 A

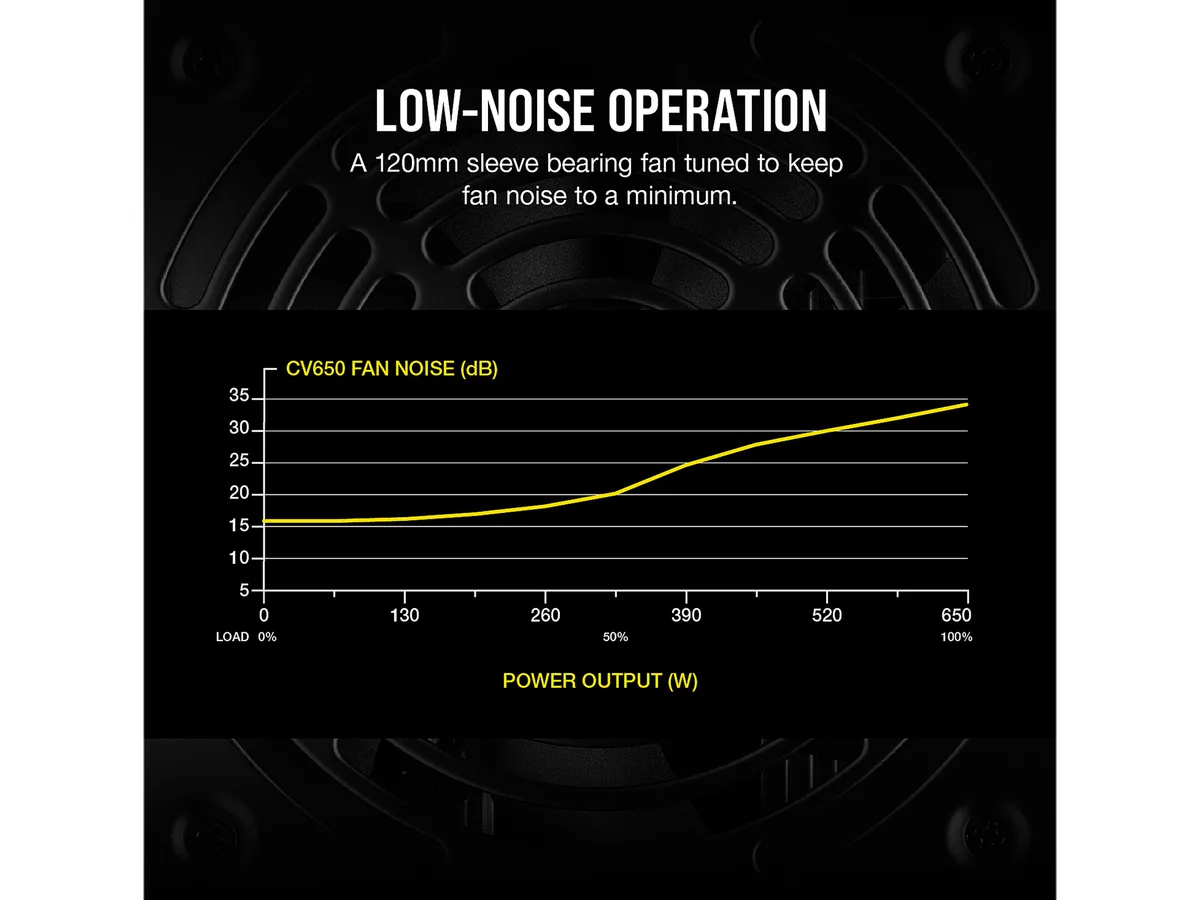

- 120 mm thermally controlled fan spins faster only under heavy load for quieter operation
- Compact 125 mm depth fits most modern PC cases without clearance issues
- Black sleeved cables and powder-coated casing provide a clean consistent look inside the build
650 W ATX12V power supply for desktop builds
The Corsair CV650 delivers 650 W of continuous power through a single +12 V rail rated at 52 A. It fits standard ATX12V layouts and includes a 120 mm thermally controlled fan that runs quietly at low load. Non-modular cabling keeps the unit simple and affordable for mainstream system integrators.
80 PLUS Bronze efficiency and connector limits

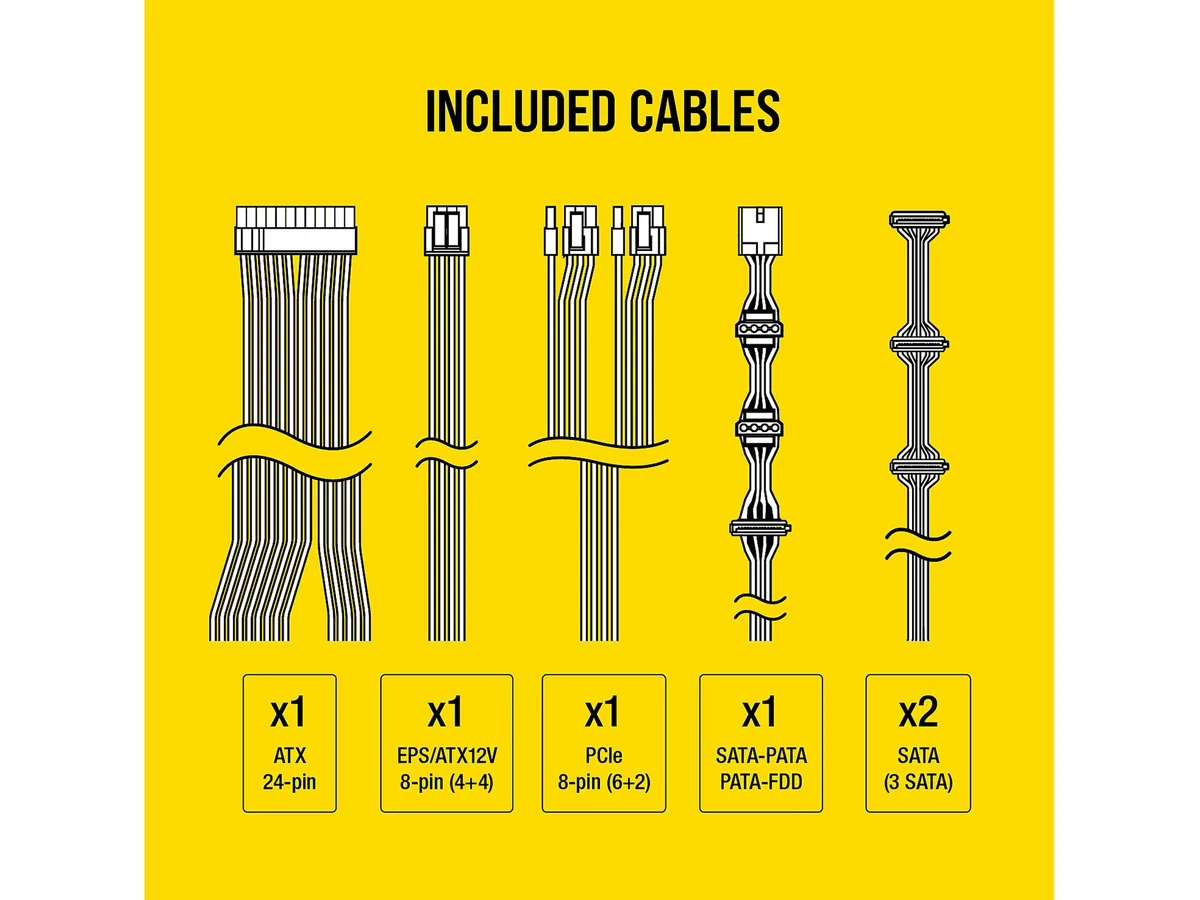

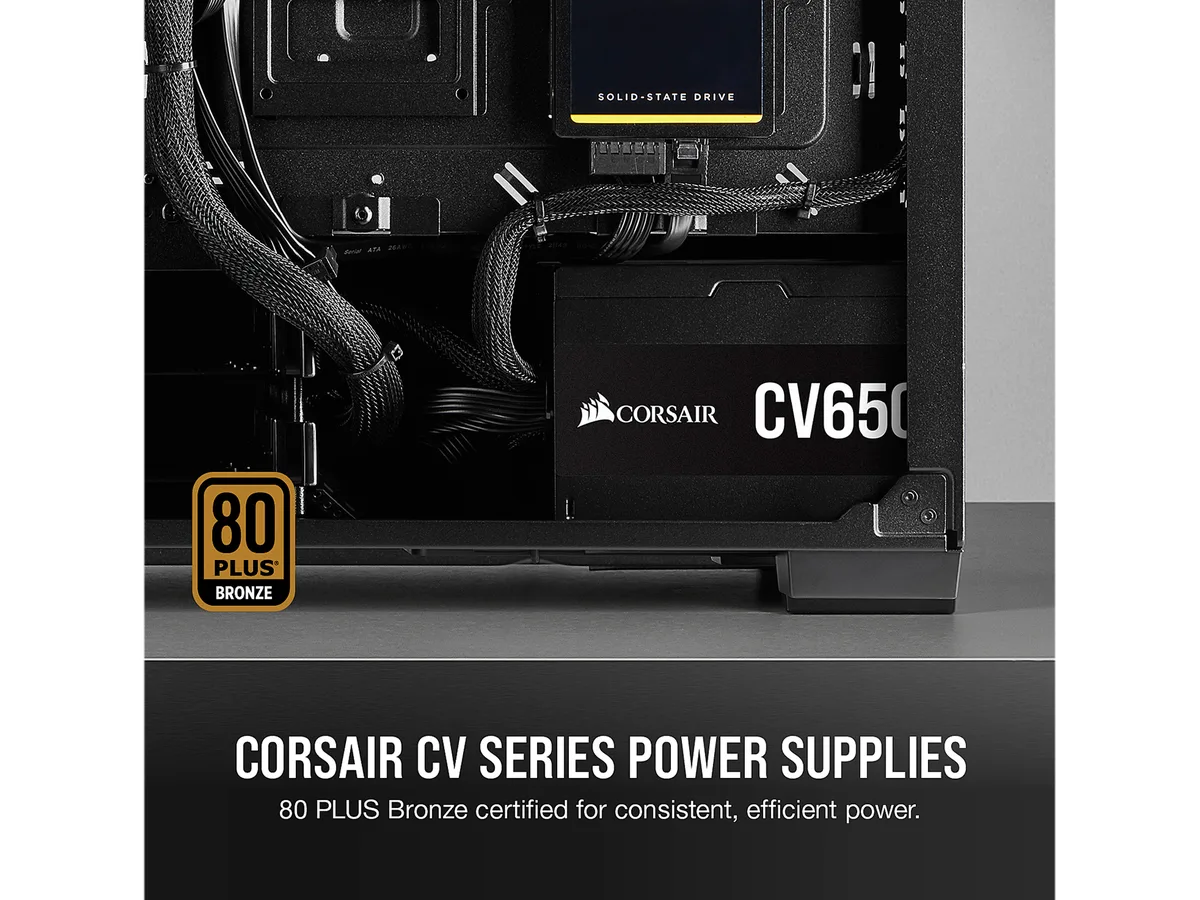

Rated at up to 88 % efficiency, the unit meets 80 PLUS Bronze requirements across typical loads. It provides two 6+2-pin PCIe connectors, seven SATA power connectors, one 24-pin ATX connector, one 8-pin EPS connector, two peripheral connectors and one floppy connector. The fixed cable set cannot be reduced, so unused leads must be routed inside the case.
Check case depth and motherboard power needs

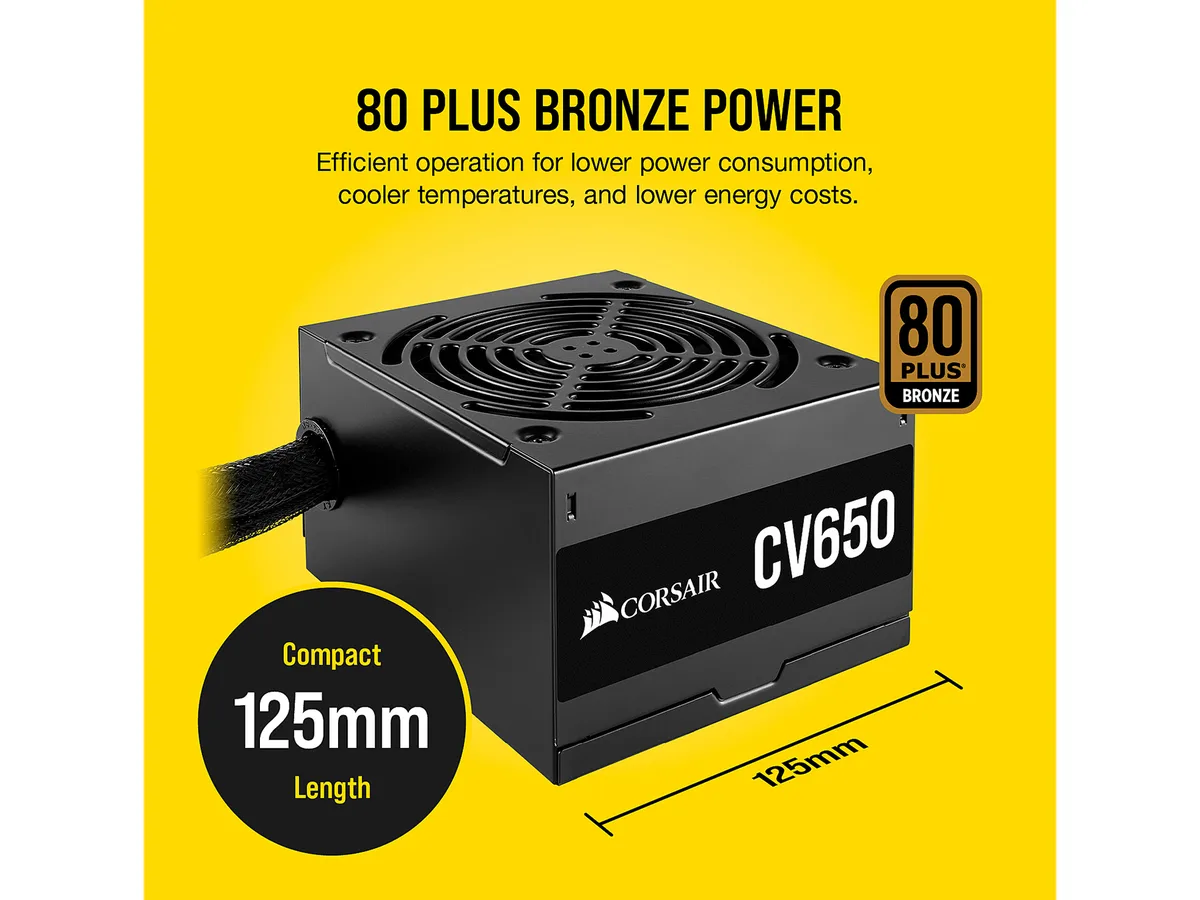

The power supply measures 125 mm in length, so verify that your chassis allows at least that much clear depth behind the mounting point. Confirm your motherboard uses a 24-pin main connector and an 8-pin EPS connector, both supplied. Ensure the two 6+2-pin PCIe leads match your graphics card requirements before ordering.
Highlights
- 80 PLUS Bronze certification delivers up to 88% efficiency reducing heat and energy costs
- 650 W continuous power output guaranteed across a single +12 V rail rated at 52 A
- 120 mm thermally controlled fan spins faster only under heavy load for quieter operation
- Compact 125 mm depth fits most modern PC cases without clearance issues
- Black sleeved cables and powder-coated casing provide a clean consistent look inside the build
Specifications
| Brand | CORSAIR |
|---|---|
| Series | CV Series CV650 |
| Model | CP-9020211-NA |
| Type | ATX12V |
| Maximum Power | 650 W |
| Fans | 1 x 120mm Thermally Controlled Low-noise Cooling Fan |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 7 |
| Max PSU Length | 125 mm |
| Modular | Non-Modular |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 10A - 5A |
| Output | +3.3V@24A, +5V@20A, +12V@52A, [email protected] , +5VSB@3A |
| MTBF | >100,000 Hours |
| Connectors | 1 x ATX (24-PIN) 1 x EPS/ATX12V (8-PIN) (4+4) 2 x PCI-E (8-PIN) (6+2) 7 x SATA 2 x Peripheral 1 x Floppy |
| Features | 80 PLUS Bronze Certified: Provides up to 88% operational efficiency, generating less heat and lowering your energy costs Full Continuous Power: CORSAIR CV Series power supplies are guaranteed to deliver their full rated wattage of continuous power Low-Noise Cooling: A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads Compact Casing: 125mm length ensures an easy fit in almost all modern PC cases Black Sleeving and Casing: Black sleeved cables and a black powder-coate |

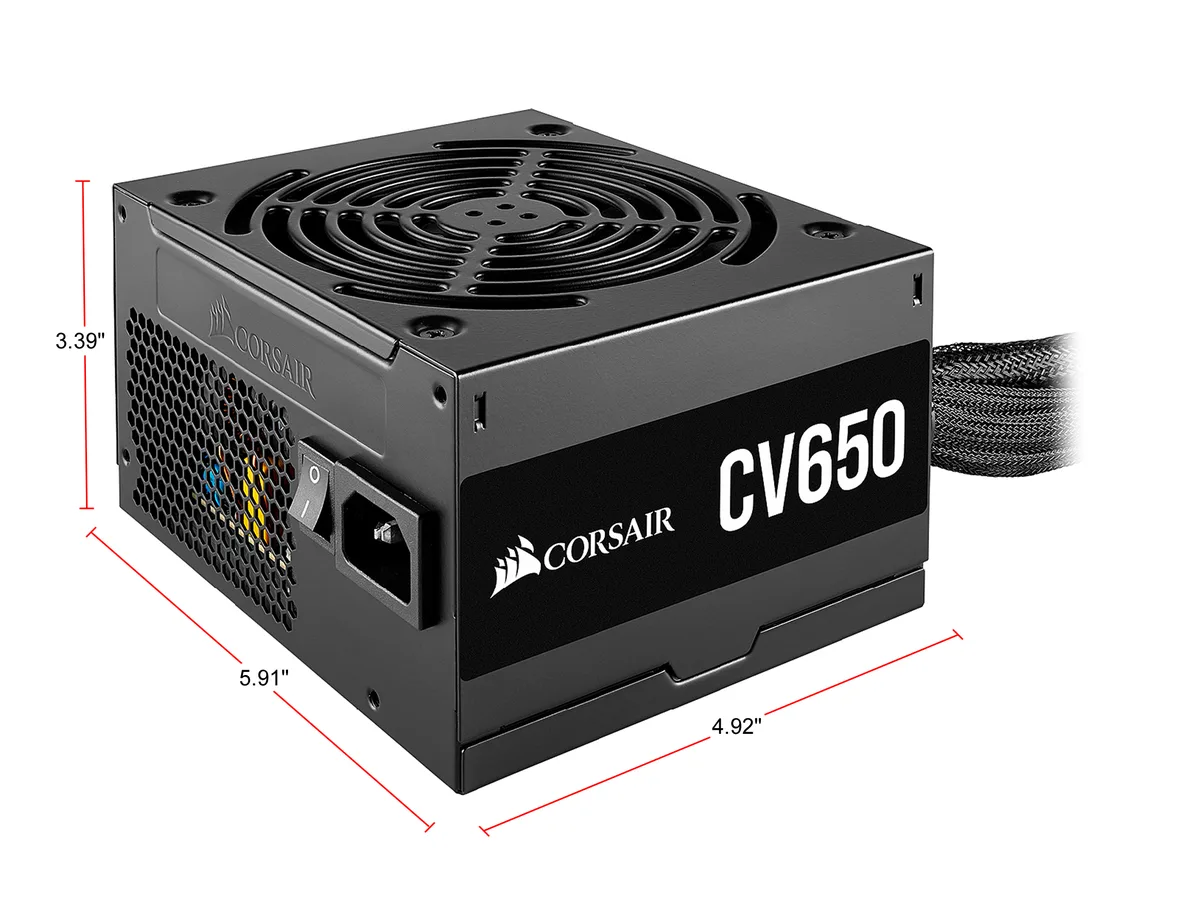

| Dimensions | 3.39" x 5.91" x 4.92" |
| Weight | 4.19 lbs. |
| Package Content | CV Series ATX Power Supply AC Power Cord Mounting Screws Warranty Documentation |
| Shipping weight | 2.30 kg |
| Package size | 257 × 191 × 99 mm |
Other versions of this model
5 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Corsair

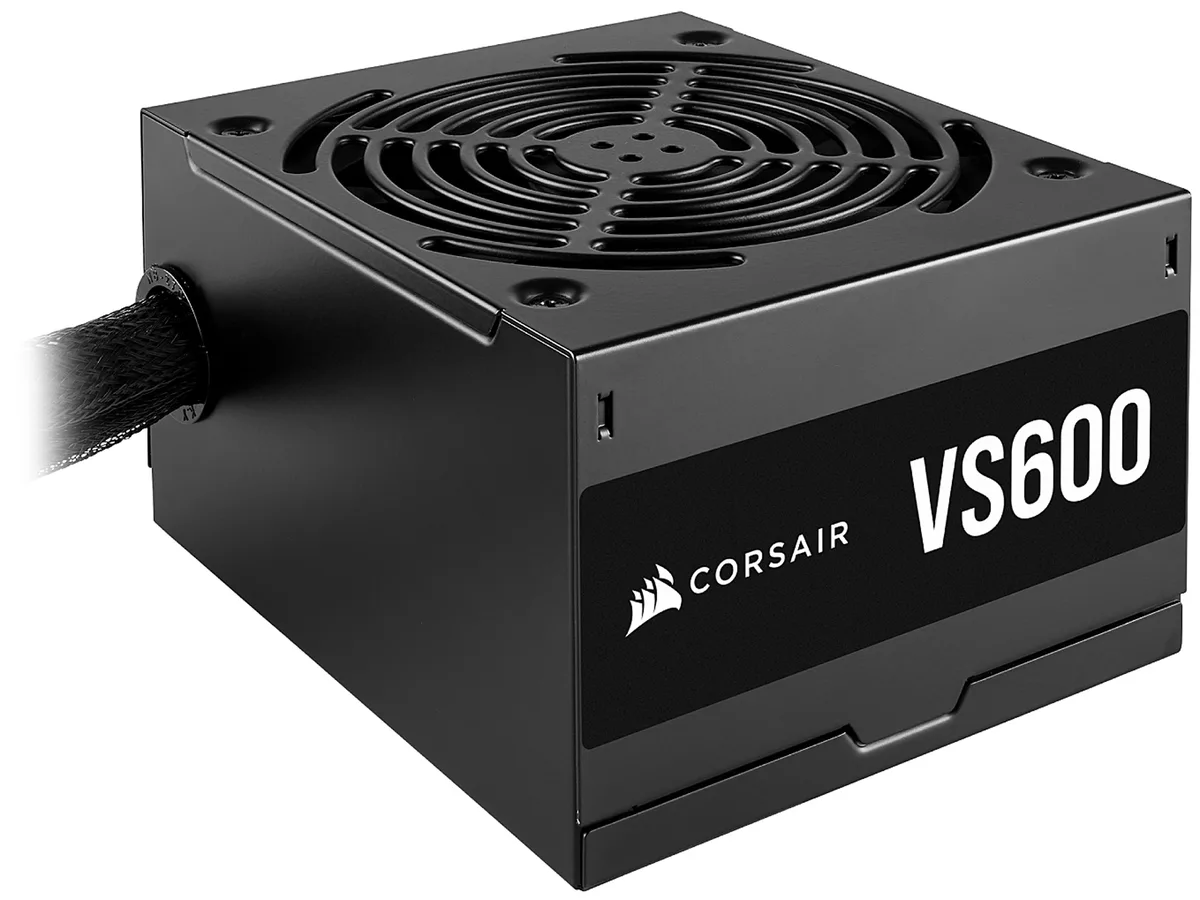

Corsair CP-9020224-NA VS600 600W 80 PLUS power supply
- Black
- ATX12V / EPS12V
$59.99$79.99−25%
0.000775BTC
In stock
Corsair

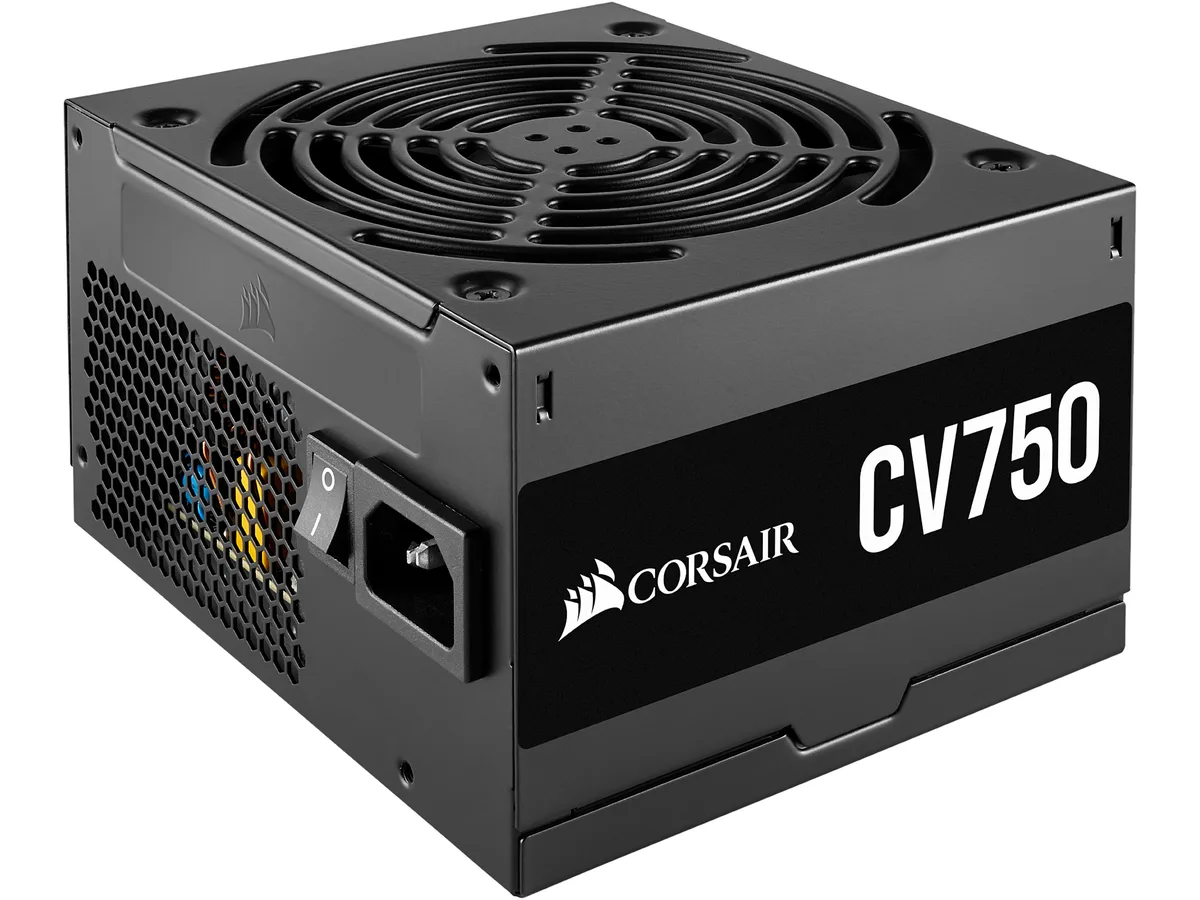

Corsair CP-9020237-NA CV750 750W 80 PLUS Bronze power supply
- ATX12V / EPS12V
- 750 W
$79.99
0.00103338BTC
In stock
Questions about this item
Will the 125 mm length fit my case?
At 125 mm long it fits almost all modern ATX cases, but check your chassis clearance before ordering
Can it run a graphics card that needs two 8-pin connectors?
Yes, two 6+2-pin PCIe cables are included, each able to serve an 8-pin socket
Is the fan always loud?
The 120 mm thermally controlled fan spins fast only under heavy load and slows for quiet operation at lower loads
