Black rectangular ATX power supply with 120mm fan and fixed cables

Corsair

Corsair VS500 500 W 80 PLUS non-modular ATX power supply CP-9020223-NA

SKU CH-WSMT-7X21R MPN CP-9020223-NA

A 500 W ATX power supply with 80 PLUS certification, a 120 mm low-noise fan, single +12 V rail, two PCIe connectors, six SATA connectors and a compact 125 mm length

  • Color80+ White
  • TypeATX12V / EPS12V
  • Maximum Power500 W
  • Fans1 x 120mm Low-Noise Cooling Fan
  • Main Connector20+4Pin
  • +12V RailsSingle

Options VS Series (500W)

  • Delivers full 500 W continuous power for stable system operation
  • Up to 85% efficiency with 80 PLUS certification reduces heat and energy costs
  • 120 mm low-noise fan adjusts speed to load for quieter performance
  • Compact 125 mm length fits almost all modern PC cases
  • Single +12 V rail ensures wide compatibility with current hardware

Corsair VS500 500 W ATX power supply

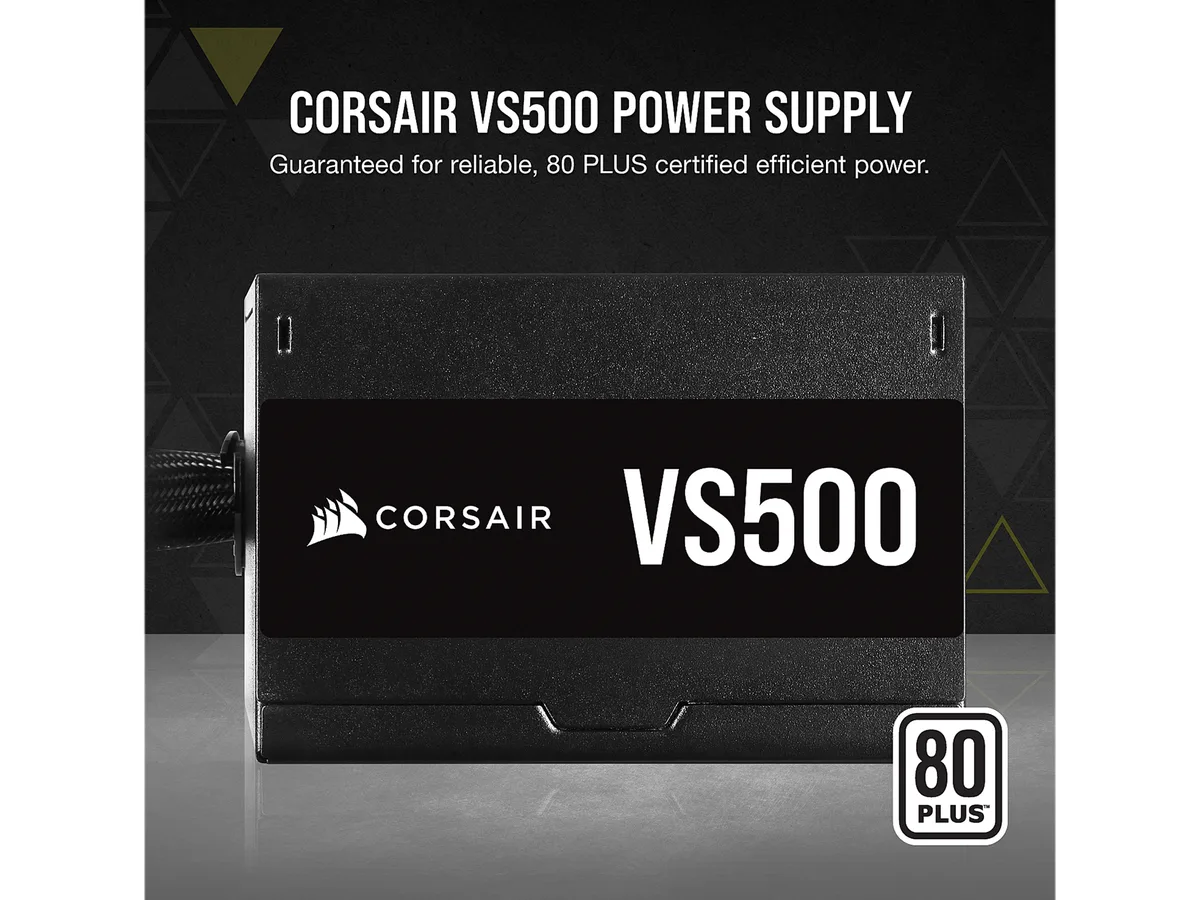

The Corsair VS500 is a 500 W ATX12V unit with 80 PLUS certification. It targets builders who need reliable continuous power for mainstream desktop systems. The non-modular design keeps all cables permanently attached for straightforward installation.

Fixed cabling and connector layout

A single 20+4 pin main connector and one 4+4 pin EPS connector feed the motherboard. Two 6+2 pin PCIe connectors support discrete graphics cards while six SATA and three PATA connectors handle drives and peripherals. The 125 mm casing length helps the unit fit in most modern chassis.

Thermals noise and power draw

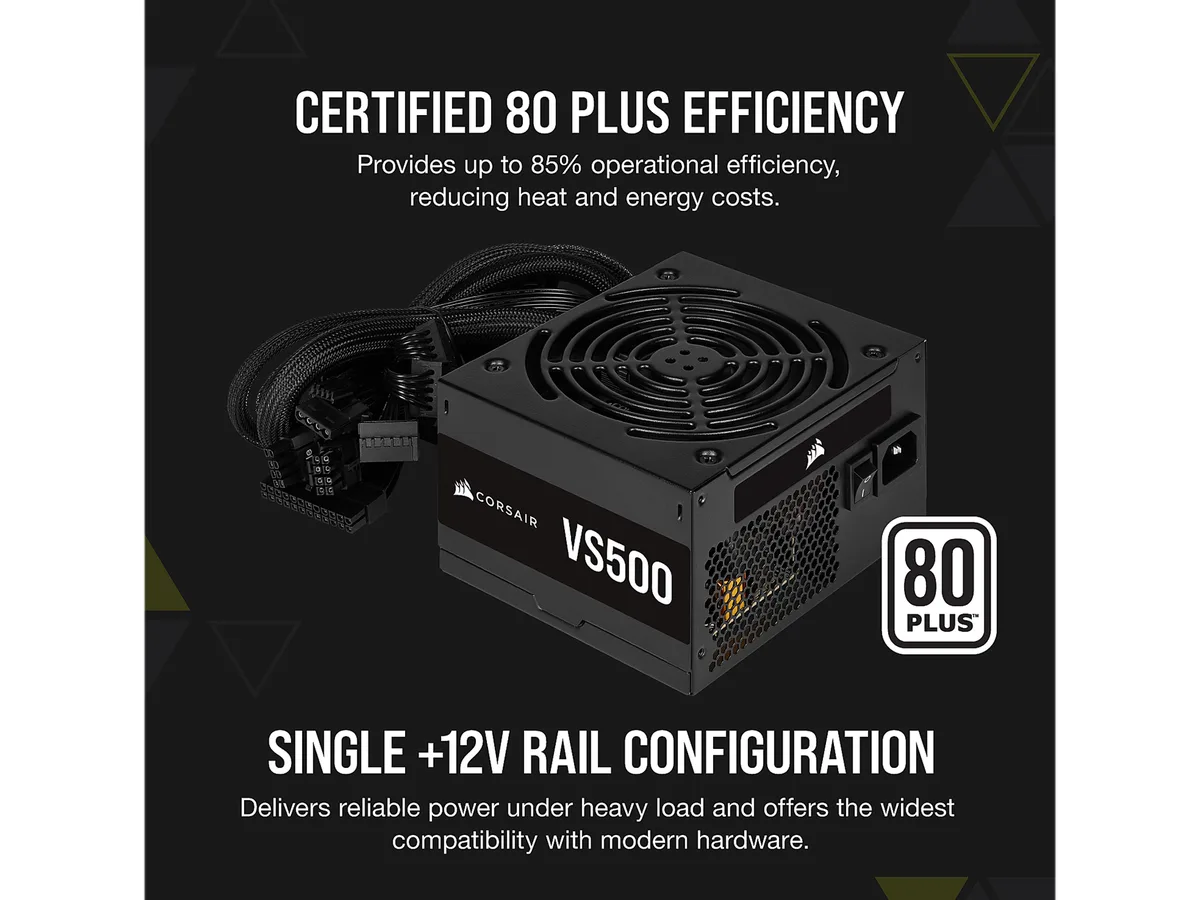

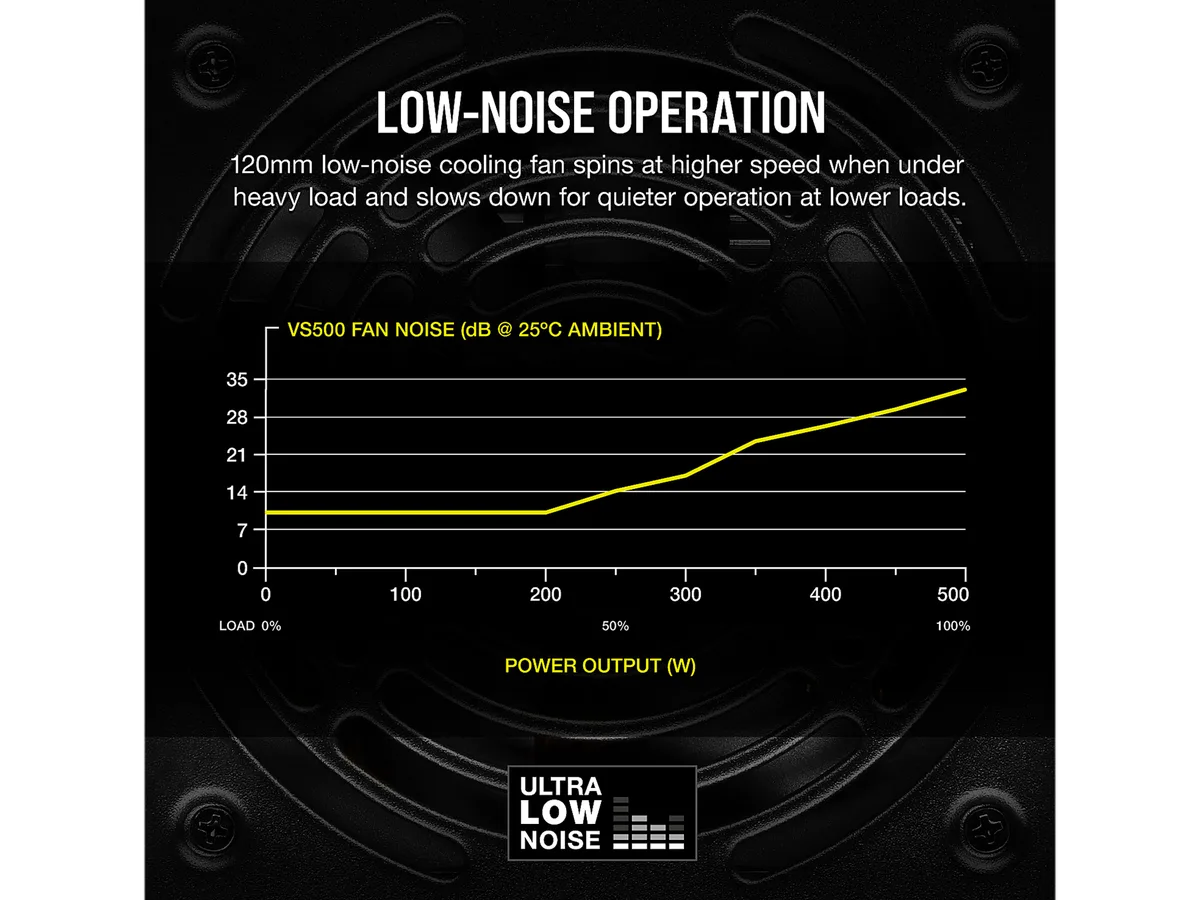

A 120 mm low-noise fan adjusts its speed based on load, running faster under heavy demand and slower during light use. The 80 PLUS rating delivers up to 85 percent efficiency, reducing waste heat and lowering energy costs. Input voltage ranges from 100 to 240 V at 47 to 63 Hz.

Highlights

  • Delivers full 500 W continuous power for stable system operation
  • Up to 85% efficiency with 80 PLUS certification reduces heat and energy costs
  • 120 mm low-noise fan adjusts speed to load for quieter performance
  • Compact 125 mm length fits almost all modern PC cases
  • Single +12 V rail ensures wide compatibility with current hardware

Specifications

BrandCORSAIR
SeriesVS Series VS500
ModelCP-9020223-NA
Color80+ White
TypeATX12V / EPS12V
Maximum Power500 W
Fans1 x 120mm Low-Noise Cooling Fan
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector6
Max PSU Length125 mm
ModularNon-Modular
Energy-Efficient80 PLUS Certified
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current10 - 5 A
Connectors1 x 24-pin ATX (24-pin) Connector
1 x ATX 12V/EPS12V (4+4-pin) Connector
2 x PCIe (6+2) Connectors
6 x SATA Connectors
3 x PATA Connectors
FeaturesReliable Power: CORSAIR VS power supplies are guaranteed to deliver their full rated wattage of continuous power.
Certified 80 PLUS Efficiency: Provides up to 85% operational efficiency, reducing heat and energy costs.
Flat, Black Cabling: A black powder-coated housing and black cables seamlessly fit your PC’s style.
120mm Low-Noise Cooling Fan: A specially designed fan curve means the fan spins at higher speed when your power supply is under heavy load and slows down for quieter operation at lower loads.

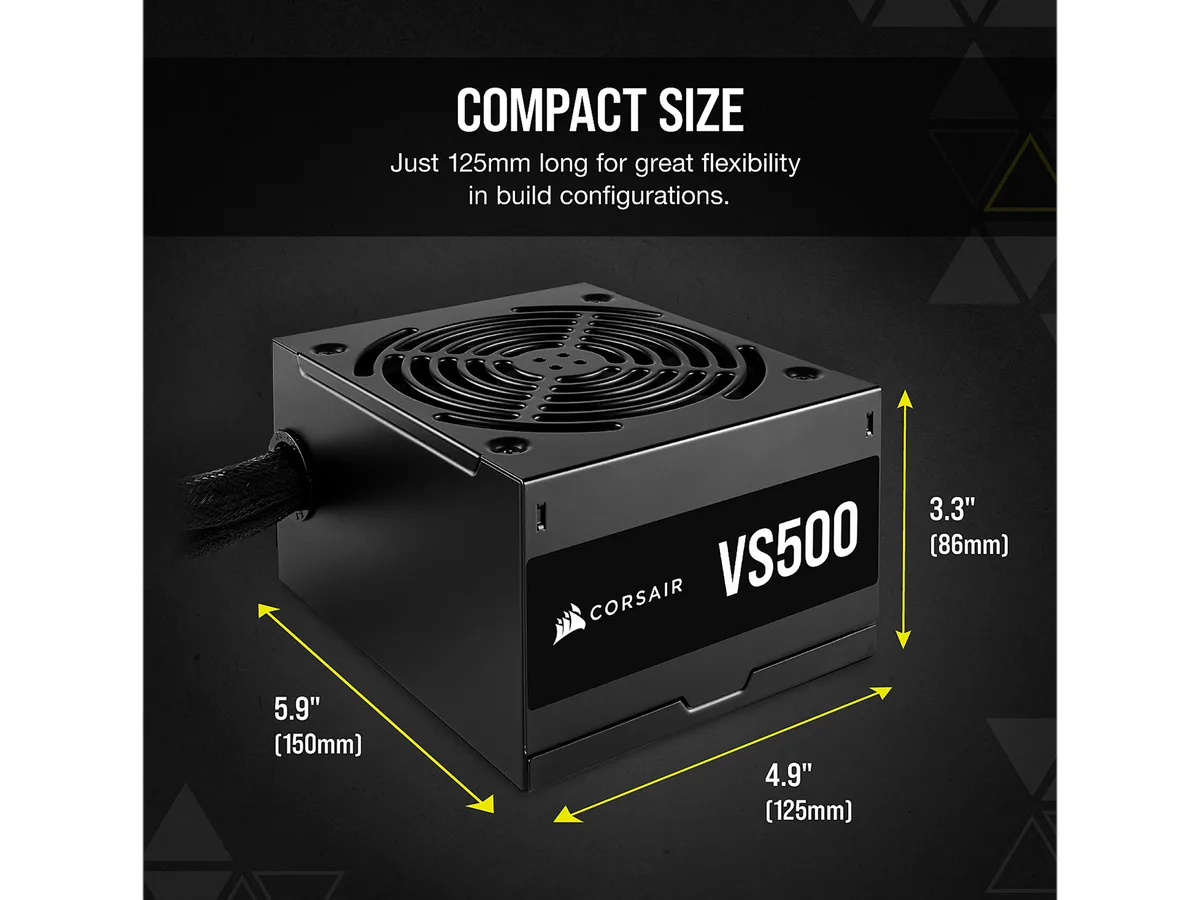

Compact Casing: A 125mm length ensures an easy fit in almost all modern PC case
Dimensions3.39" x 5.91" x 4.92"
Weight3.79 lbs.
Shipping weight1.98 kg
Package size251 × 175 × 99 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

At what load does the 500 W limit become the first constraint?

The 500 W rating is the continuous maximum, so the limit appears as soon as total system draw reaches that level.

How loud and hot does the 120 mm fan get during all-day operation?

The low-noise fan speeds up under heavy load and slows at lighter loads, while 80 PLUS efficiency up to 85 % keeps waste heat lower.

Which motherboard and drive connectors must already be present in the build?

The unit includes a 24-pin ATX, a 4+4-pin EPS, two 6+2-pin PCIe, six SATA and three PATA connectors, all fixed.
