Black rectangular ATX power supply, non-modular cables, 120mm fan grille, 140mm deep

Corsair

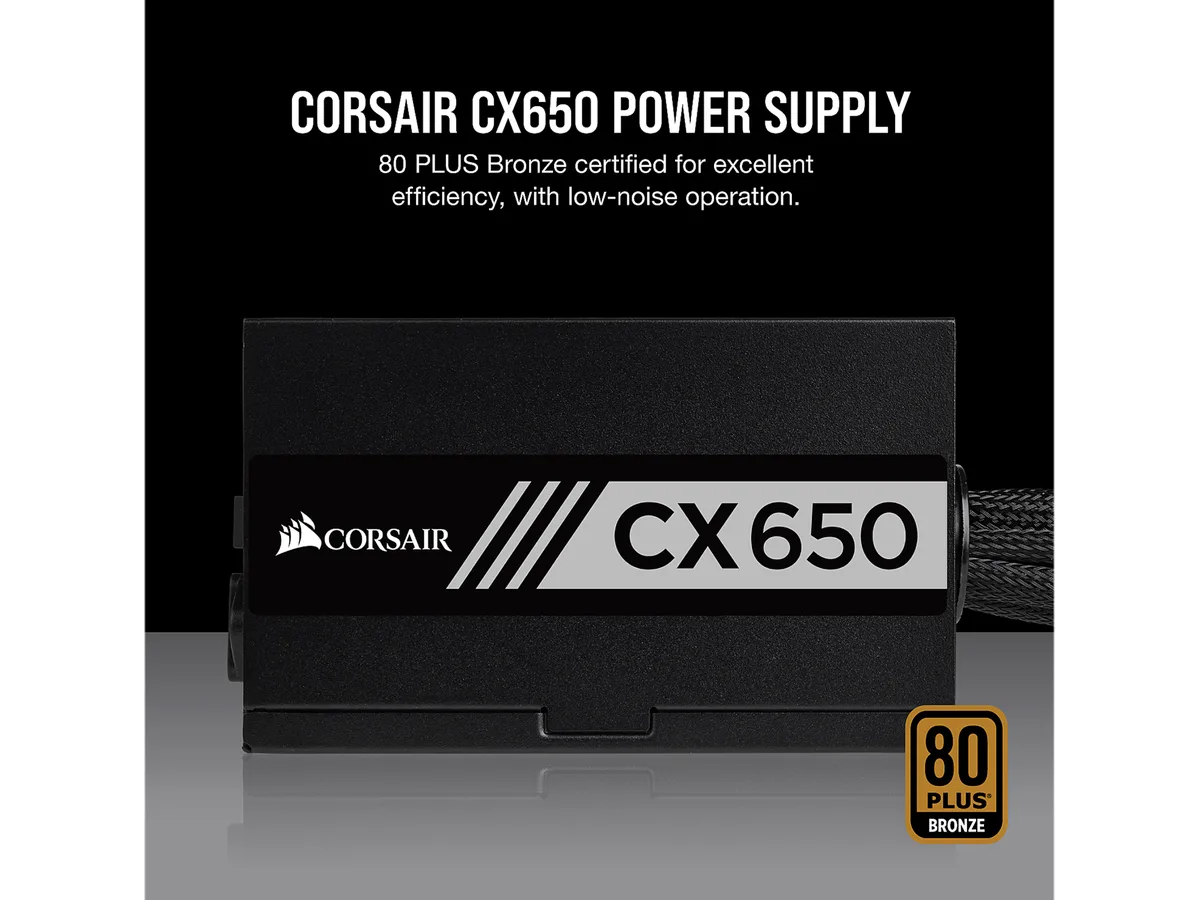

Corsair CX650 650W power supply CP-9020122-NA

SKU CH-F1HN-BANNJ MPN CP-9020122-NA

A 650W ATX power supply with 80 Plus Bronze efficiency, a single +12V rail, and a thermally controlled 120mm fan

  • TypeATX12V / EPS12V
  • Maximum Power650 W
  • Fans1 x 120mm Thermally Controlled Rifle Bearing Fan
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle

Options CX Series (650W)

  • Delivers 650 W continuous power for demanding builds
  • 80 PLUS Bronze efficiency reduces waste heat and running cost
  • Thermally controlled 120 mm rifle-bearing fan keeps noise low across loads
  • Single +12 V rail rated at 54 A simplifies GPU power delivery
  • Compact 140 mm depth fits most standard cases

CX650 650 W ATX12V power supply

The Corsair CX650 delivers 650 W of continuous power through a single +12 V rail rated at 54 A. It uses an ATX12V / EPS12V form factor with a non-modular cable set that includes a 20+4 pin main connector, two 6+2 pin PCIe connectors and six SATA connectors. The unit is 80 PLUS Bronze certified and operates on a 100 to 240 V input range.

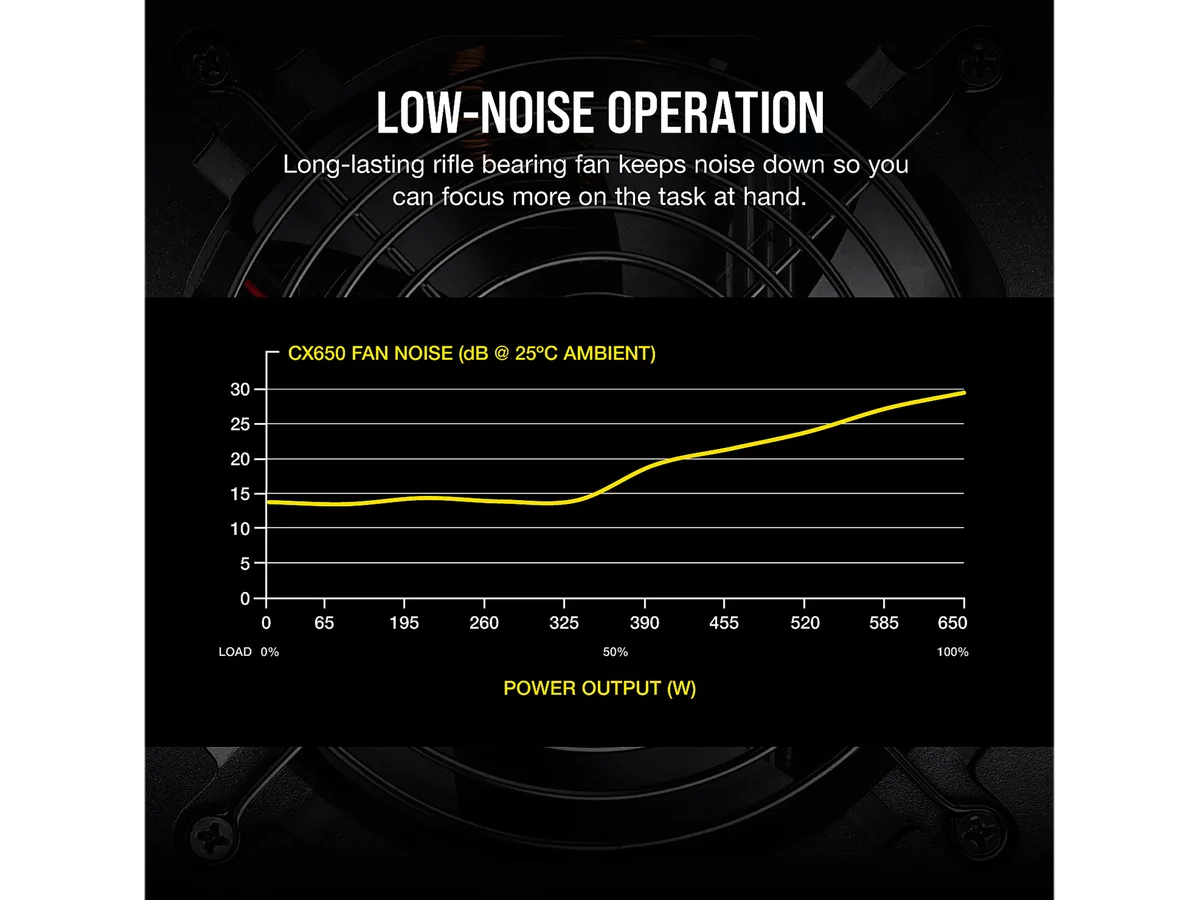

Thermally controlled 120 mm rifle bearing fan

A 120 mm thermally controlled rifle bearing fan adjusts speed according to load and temperature. The platform is engineered to meet its maximum power output at a 40 °C operating temperature. LLC resonant topology with DC-to-DC conversion maintains efficiency at lower loads while active PFC and over-voltage protection help stabilize output during sustained demand.

Non-modular Bronze upgrade for mainstream builds

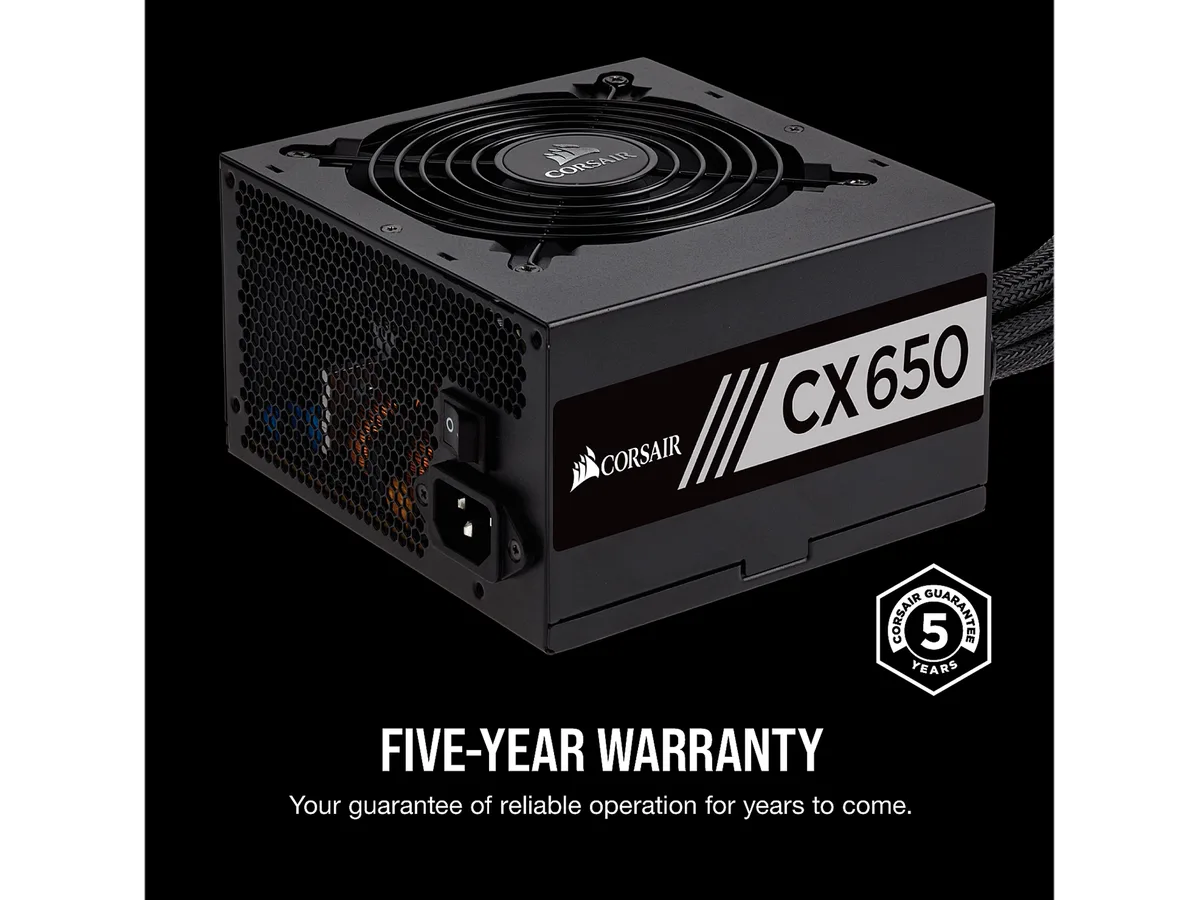

The CX650 replaces older or lower-efficiency units in standard ATX cases with up to 140 mm of PSU clearance. Its black housing, sleeved cables and 100,000 hour MTBF suit system integrators and DIY builders who want Bronze-grade efficiency without modular cable management. The jump is worth it when moving from unrated or White-rated supplies to a Bronze platform with full-range AC input and a five-year warranty period.

Highlights

  • Delivers 650 W continuous power for demanding builds
  • 80 PLUS Bronze efficiency reduces waste heat and running cost
  • Thermally controlled 120 mm rifle-bearing fan keeps noise low across loads
  • Single +12 V rail rated at 54 A simplifies GPU power delivery
  • Compact 140 mm depth fits most standard cases

Specifications

BrandCORSAIR
SeriesCX Series CX650
ModelCP-9020122-NA
TypeATX12V / EPS12V
Maximum Power650 W
Fans1 x 120mm Thermally Controlled Rifle Bearing Fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector6

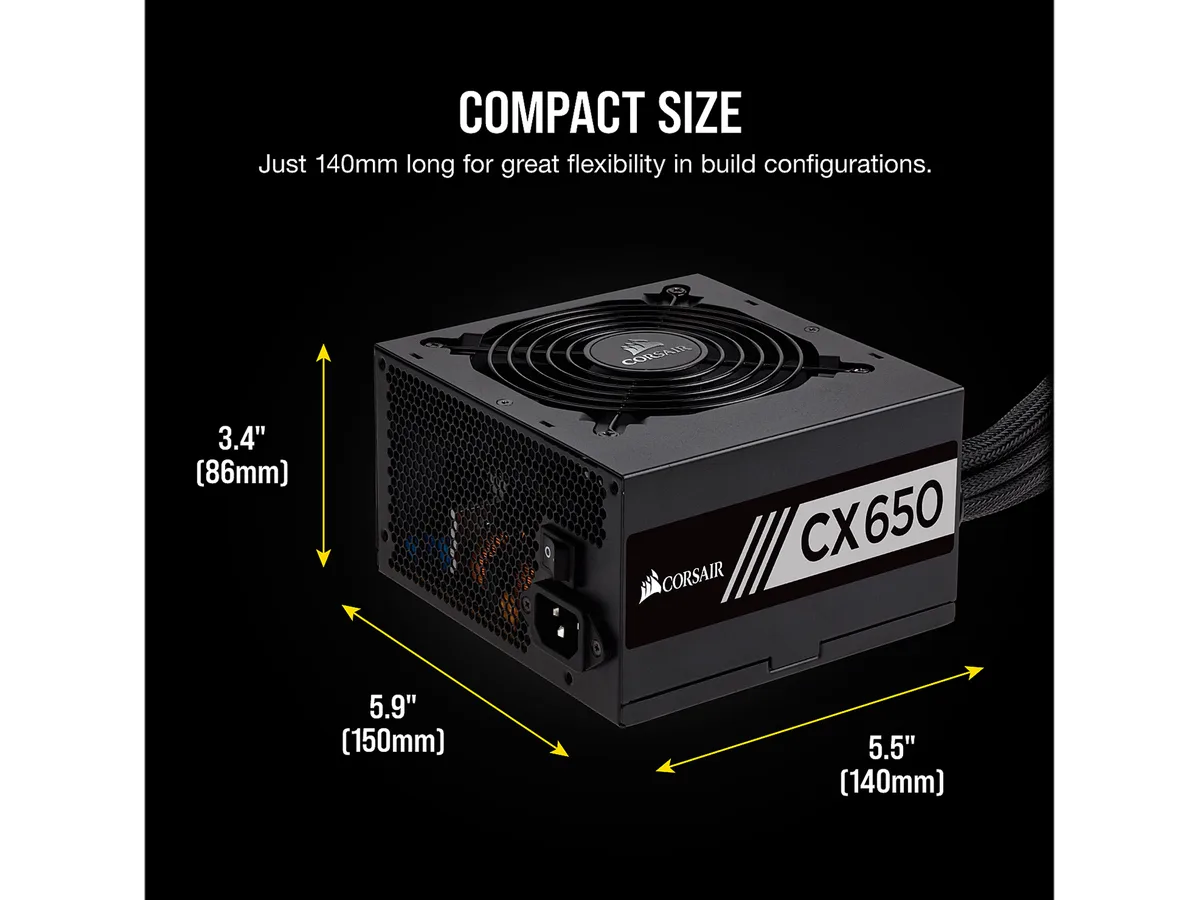

Max PSU Length140 mm
ModularNon-Modular

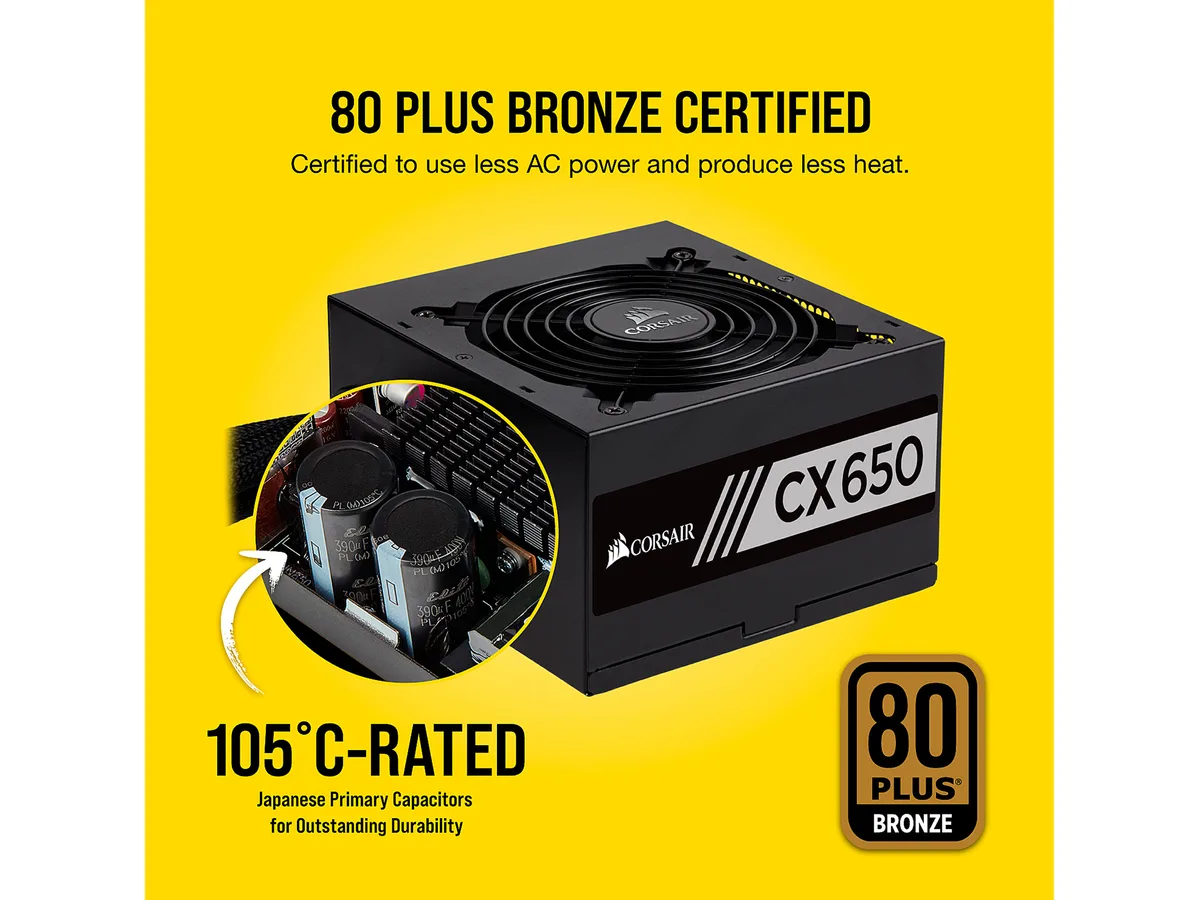

Energy-Efficient80 PLUS BRONZE Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current6.3 - 3.15A
Output+3.3V@25A, +5V@25A, +12V@54A, [email protected] , +5VSB@3A
MTBF100,000 hours
ApprovalsFCC, ICES, CE, UL, cUL, RCM, TUV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC
Connectors1 x ATX Connector
1 x EPS Connector
2 x PCIe Connector
6 x SATA Connector
4 x Four-Pin Peripheral Connector
FeaturesActive PFC with full range AC input (100 - 240 VAC).
120mm thermally controlled rifle bearing fan.
Engineered to meet maximum power output at a 40 Degree C temperature rating.
Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
Dimensions3.39" x 5.51" x 5.91"
Weight3.86 lbs.
Package ContentCX Series ATX Power Supply
Power Cord
4x Mounting Screws
Pack of Zip-ties
Warranty Document
Shipping weight2.30 kg
Package size272 × 185 × 97 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud is the 120mm thermally controlled rifle bearing fan when the CX650 runs all day under load?

The 120mm thermally controlled rifle bearing fan adjusts speed based on temperature, keeping noise low at typical loads and ramping up only when the unit approaches its 40°C operating limit.

Which cables are permanently attached to this non-modular CX650 that I must route in my case?

The fixed cables include a 20+4-pin ATX connector, a 4+4-pin EPS connector, two 6+2-pin PCIe connectors, six SATA connectors and four four-pin peripheral connectors.

Will the single +12V rail delivering 54A work with an older motherboard that uses a 20-pin main power socket?

Yes, the 20+4-pin main connector splits to fit a 20-pin socket, and the single +12V rail at 54A is compatible with both legacy and current platforms.
