Black rectangular ATX power supply with fixed cables and a 120mm fan grille

Corsair

Corsair CP-9020237-NA CV750 750W 80 PLUS Bronze power supply

SKU CH-86GH-CW059 MPN CP-9020237-NA

A 750 W ATX power supply with 80 PLUS Bronze certification, a single 12 V rail and non-modular cabling

  • TypeATX12V / EPS12V
  • Maximum Power750 W
  • Fans1
  • Main Connector24Pin
  • +12V RailsSingle
  • PCI-Express Connector2 x 6+2-Pin

Options CV Series (750W)

  • Delivers 750 W continuous power for demanding builds
  • 80 PLUS Bronze certification reaches 88 % efficiency reducing heat
  • 120 mm thermally controlled fan stays quiet at low loads
  • Compact 125 mm length fits most ATX cases easily
  • Single 12 V rail supplies 62 A for stable GPU power

Corsair CV750 750W Bronze PSU

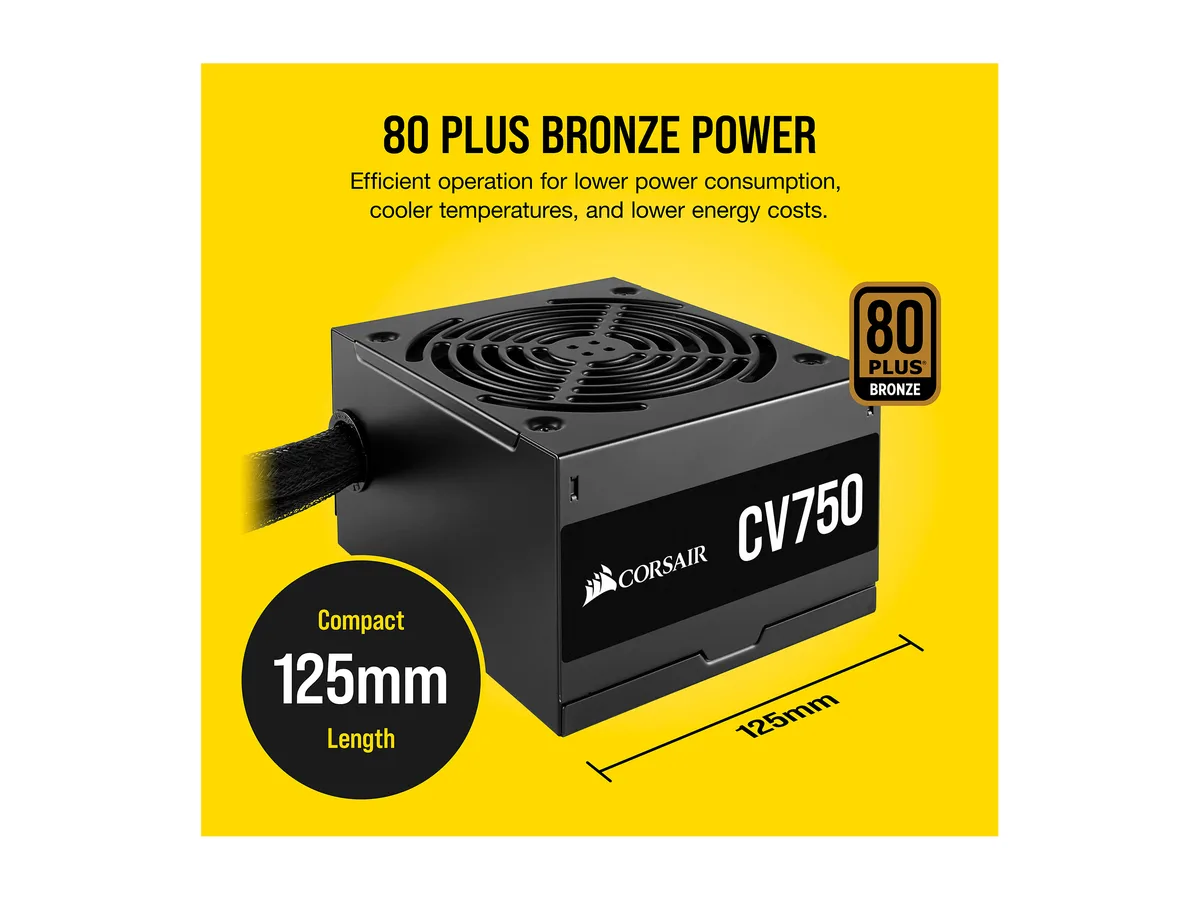

The Corsair CV750 is a 750W ATX12V/EPS12V power supply built for standard desktop builds. It carries 80 PLUS Bronze certification and delivers up to 88% efficiency at typical loads. A single +12V rail rated at 62A supplies the bulk of system power. The unit measures 125mm in length and uses a non-modular cable layout.

Check connectors and case clearance

Verify that your motherboard accepts a 24-pin ATX connector and two 8-pin (4+4) EPS cables for the CPU. Two 8-pin (6+2) PCIe connectors are provided for graphics cards and seven SATA connectors for drives. Ensure the chassis can accommodate a 125mm deep power supply. The unit operates on 100-240V input at 47-63Hz without a manual voltage switch.

Thermals noise and power draw

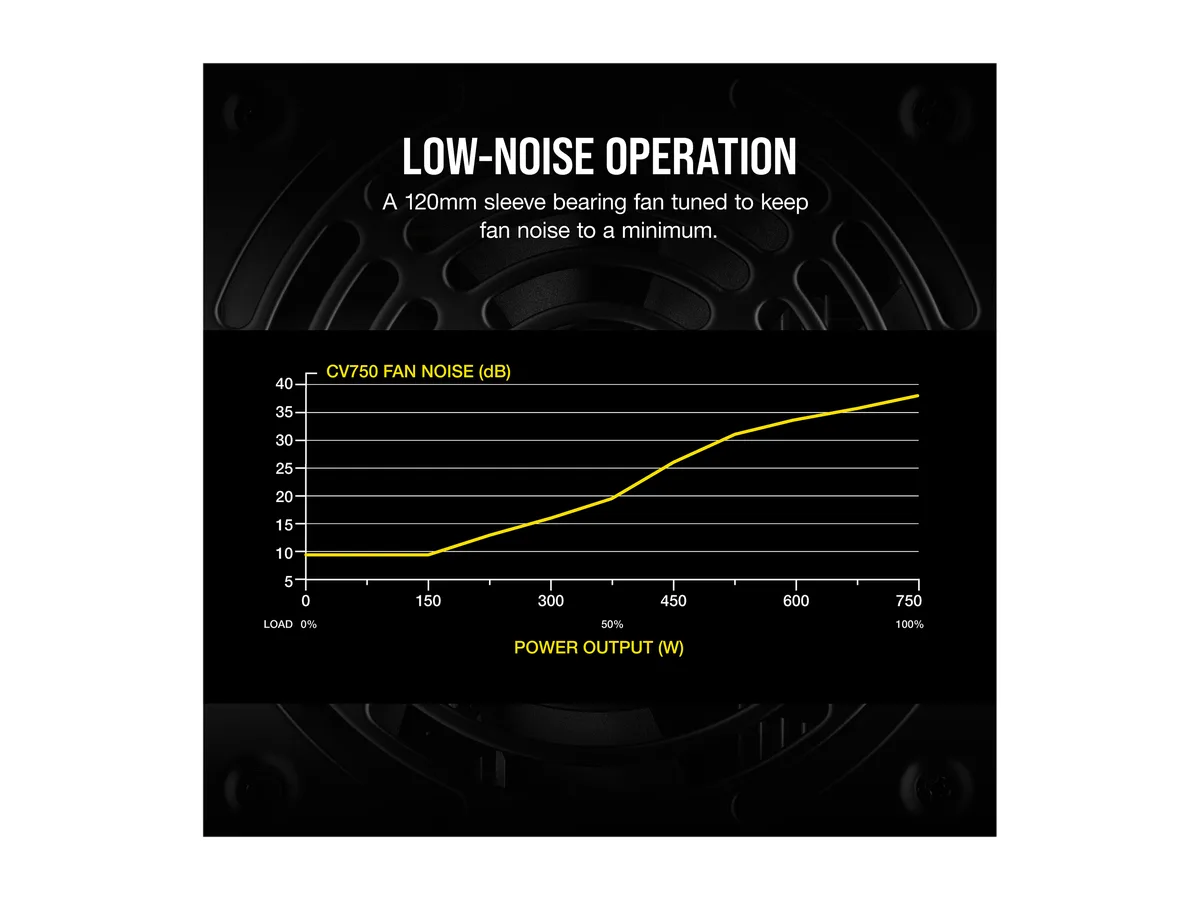

A 120mm thermally controlled fan spins up only under heavy stress and slows down at lower loads for quieter operation. Bronze-rated efficiency above 85% reduces waste heat and lowers energy costs. The supply is guaranteed to deliver its full 750W rating continuously. Input current ranges from 10A at 100V to 5A at 240V.

Highlights

  • Delivers 750 W continuous power for demanding builds
  • 80 PLUS Bronze certification reaches 88 % efficiency reducing heat
  • 120 mm thermally controlled fan stays quiet at low loads
  • Compact 125 mm length fits most ATX cases easily
  • Single 12 V rail supplies 62 A for stable GPU power

Specifications

BrandCORSAIR
SeriesCV series
ModelCP-9020237-NA
TypeATX12V / EPS12V
Maximum Power750 W
Fans1
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector7
Max PSU Length125 mm
ModularNon-Modular
Efficiency> 85%
Energy-Efficient80 PLUS BRONZE Certified
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current10A - 5A
Output+3.3V@24A, +5V@20A, 12V@62A, [email protected] , +5VSB@3A
Connectors1 x 24 pin ATX
2 x 8 pin (4+4) EPS (CPU)
2 x 8 pin (6+2) PCIe
7 x SATA
PFCNo
SLINo
CrossFireNo
Features80 PLUS Bronze Certified: Provides up to 88% operational efficiency, generating less heat and lowering your energy costs.
Full Continuous Power: CORSAIR CV Series power supplies are guaranteed to deliver their full rated wattage of continuous power.
Low-Noise Cooling: A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.
Compact Casing: 125mm length ensures an easy fit in almost all modern PC cases.
Black Sleeving and Casing: Black sleeved cables and a black powder-c
Dimensions4.92" x 5.91" x 3.39"
Weight4.19 lbs.
Package ContentCV Series ATX Power Supply
AC Power Cord
Mounting Screws
Warranty Documentation
Shipping weight2.38 kg
Package size251 × 188 × 102 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the CV750 include a power cord and are any cables sold separately?

The unit ships with the fixed ATX 24-pin, two 8-pin EPS, two 6+2-pin PCIe and seven SATA cables attached; a standard IEC power cord is included and no extra cables are required.

How do I decide between the 750 W Bronze model and a higher-wattage unit?

Choose the 750 W model when your build draws up to 62 A on the +12 V rail and you need two 6+2-pin PCIe connectors; step up only if your GPU or CPU demands more 12 V current or additional PCIe plugs.

What does the 750 W rating mean once the PSU is installed in a PC?

It guarantees 750 W of continuous output with up to 88 % efficiency at typical load, a single +12 V rail delivering 62 A, and a 120 mm fan that ramps up only under heavy stress.
