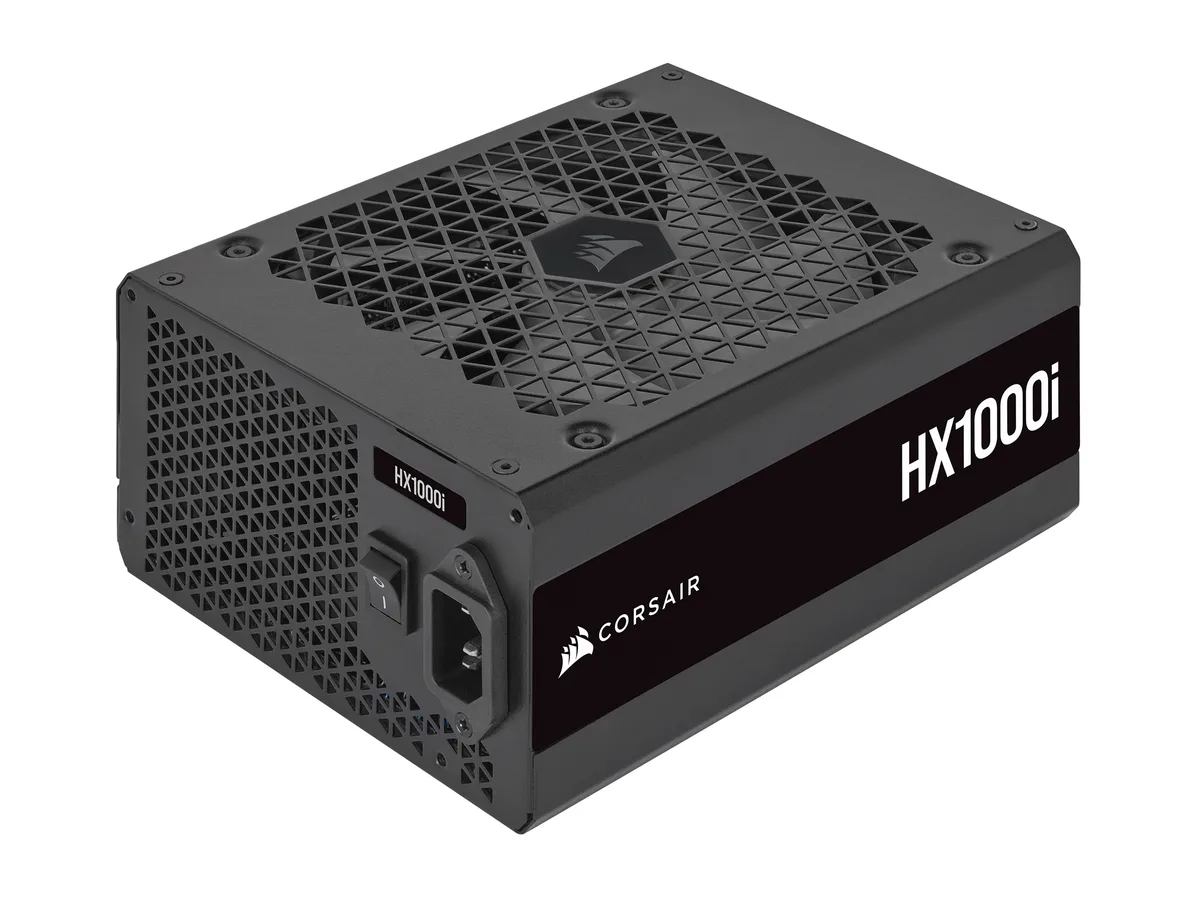

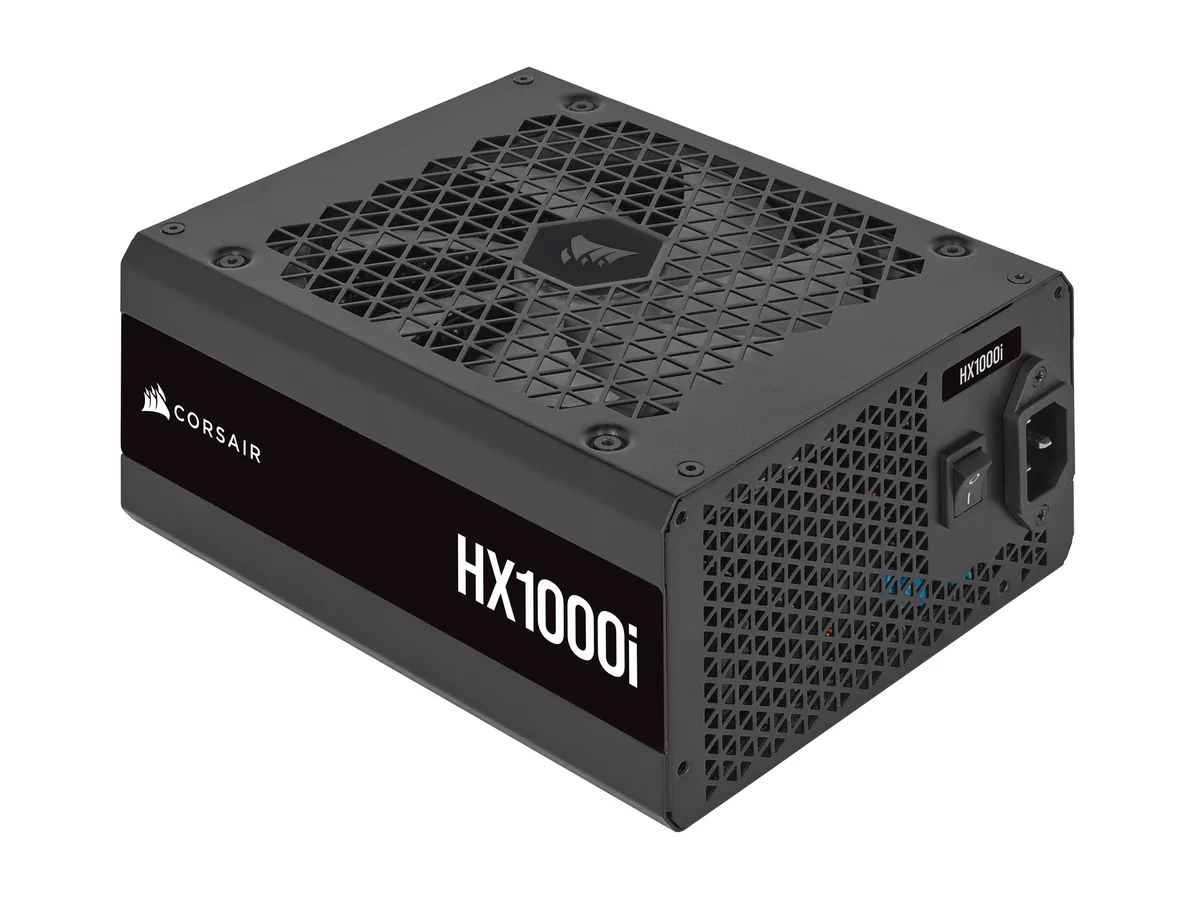

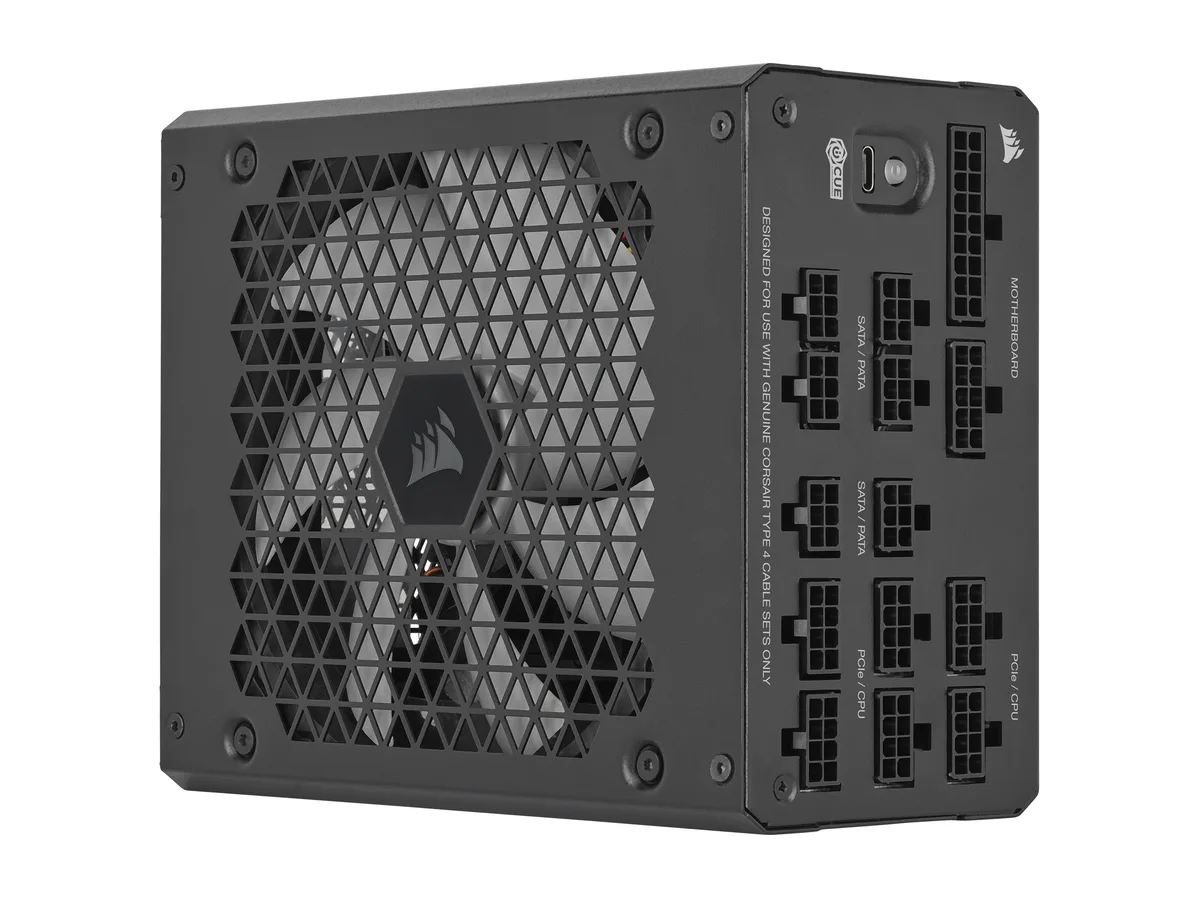

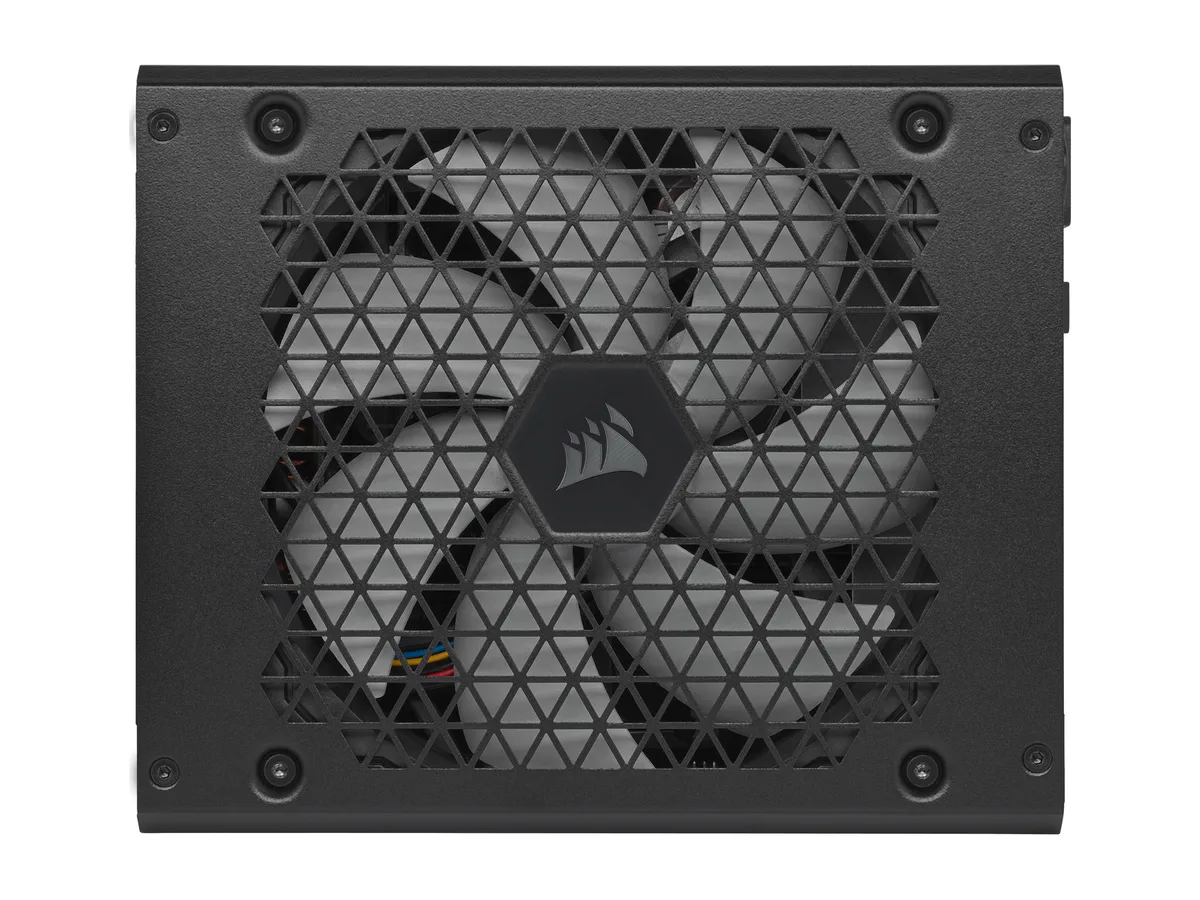

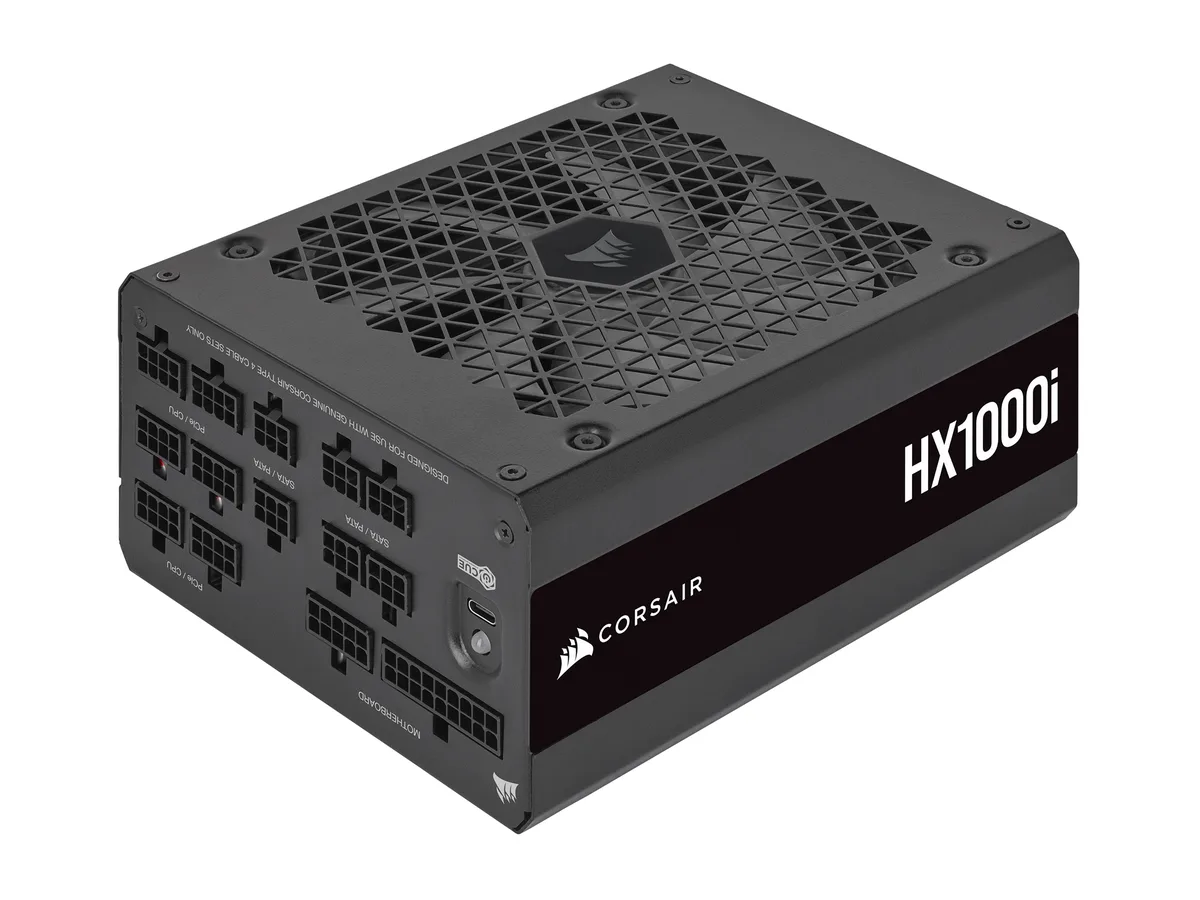

Rectangular black ATX power supply with 140 mm fan and modular cable sockets

Corsair

Corsair CP-9020214-NA HX1000i 1000 W power supply

SKU CH-MQ6N-FPRHT MPN CP-9020214-NA

A 1000 W ATX power supply with full modular cabling, 80 PLUS PLATINUM efficiency and a 140 mm fluid-dynamic-bearing fan rated for Cybenetics A noise levels

  • TypeATX12V 2.4 / EPS12V 2.92
  • Maximum Power1000 W
  • Fans1 x 140 mm FDB
  • Main Connector24Pin
  • +12V RailsSingle
  • PCI-Express Connector6 x 6+2-Pin

Options ATX 80+ Platinum (1000W)

  • Platinum certification reduces waste heat
  • Single +12V rail simplifies GPU power delivery
  • Fully modular cables keep builds tidy
  • 140 mm FDB fan runs quietly at Cybenetics A
  • 180 mm depth fits most standard cases

HX1000i 1000 W ATX power supply

The Corsair HX1000i is a fully modular ATX12V 2.4 unit rated for 1000 W continuous output. It targets enthusiast builders who want platinum-grade efficiency and a single +12 V rail for high-end graphics cards and multi-CPU workstations.

Full modular installation and cable routing

Fully modular cabling lets you connect only the leads your build requires, reducing clutter inside the case. Three dedicated 4+4-pin CPU cables and three PCIe 6+2-pin cables are included, so most modern motherboards and dual-GPU setups are covered without adapters. The 140 mm fluid-dynamic-bearing fan runs quietly and meets Cybenetics A noise certification.

Capacity headroom for demanding systems

The single +12 V rail delivers the full 1000 W to graphics cards and processors, while minor rails provide 25 A each on +3.3 V and +5 V. Eight SATA and eight PATA connectors give plenty of drive power. At loads approaching the 1000 W limit the fan ramps up to maintain thermal margins.

Highlights

  • Platinum certification reduces waste heat
  • Single +12V rail simplifies GPU power delivery
  • Fully modular cables keep builds tidy
  • 140 mm FDB fan runs quietly at Cybenetics A
  • 180 mm depth fits most standard cases

Specifications

BrandCORSAIR
SeriesHX1000i
ModelCP-9020214-NA
TypeATX12V 2.4 / EPS12V 2.92
Maximum Power1000 W
Fans1 x 140 mm FDB
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector8
Max PSU Length180 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
PSU Noise LevelCybenetics A
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current13-6.5A
Output+3.3V@25A, +5V@25A, [email protected] , [email protected] , +5VSB@3A
Connectors1 x 24 pin ATX
3 x 8 pin (4+4) (CPU)
6 x 8 pin (6+2) PCIe
8 x SATA
8 x PATA
Cable Spec24Pin MB: One cable (610mm)
4+4Pin CPU: Three cables (650mm)
2 x PCI-E 6+2Pin: Three cables (675+100mm)
4 x SATA: Two cables (455+115+115+115mm)
4 x PATA: Two cables (450+100+100+100mm)
USB (TYPE C) to 10-1PIN: One cable (525mm)
FeaturesFully Modular Cabling: Connect only the cables your system needs, making clean and tidy builds easy.
Triple EPS12V Connectors: For full compatibility with modern motherboards.
140mm Fluid Dynamic Bearing (FDB) Fan: Delivers extremely quiet and long-lasting fan performance.
Powerful CORSAIR iCUE Software: Create custom fan curves, monitor power settings, and toggle between single to multi-rail overcurrent protection (OCP) on-thefly.
Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operation.
80 PLUS Platinum Certified: Up to 92% efficien
Dimensions3.39" x 5.91" x 7.09"
Weight4.40 lbs.
Package ContentHXi Series ATX Power Supply
Power cord
DC Cables
Mounting screws
Cable ties
Shipping weight3.73 kg
Package size311 × 216 × 132 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I verify the Corsair HX1000i is operating correctly after installation?

Connect the included USB Type-C to 10-pin cable to the motherboard, then run the Corsair Link software to monitor the 1000 W output, fan speed, and efficiency in real time.

What cables come in the box and what must I purchase separately for a typical build?

The box supplies one 24-pin ATX cable, three 4+4-pin CPU cables, three dual 6+2-pin PCIe cables, two SATA chains, two PATA chains, and the USB link cable; no extra cables are required for standard ATX builds.

Which capacity should I choose if my system draws up to 1000 W from a single +12 V rail?

This model provides a single +12 V rail rated for the full 1000 W, so it covers the entire load without needing a higher-capacity unit.
