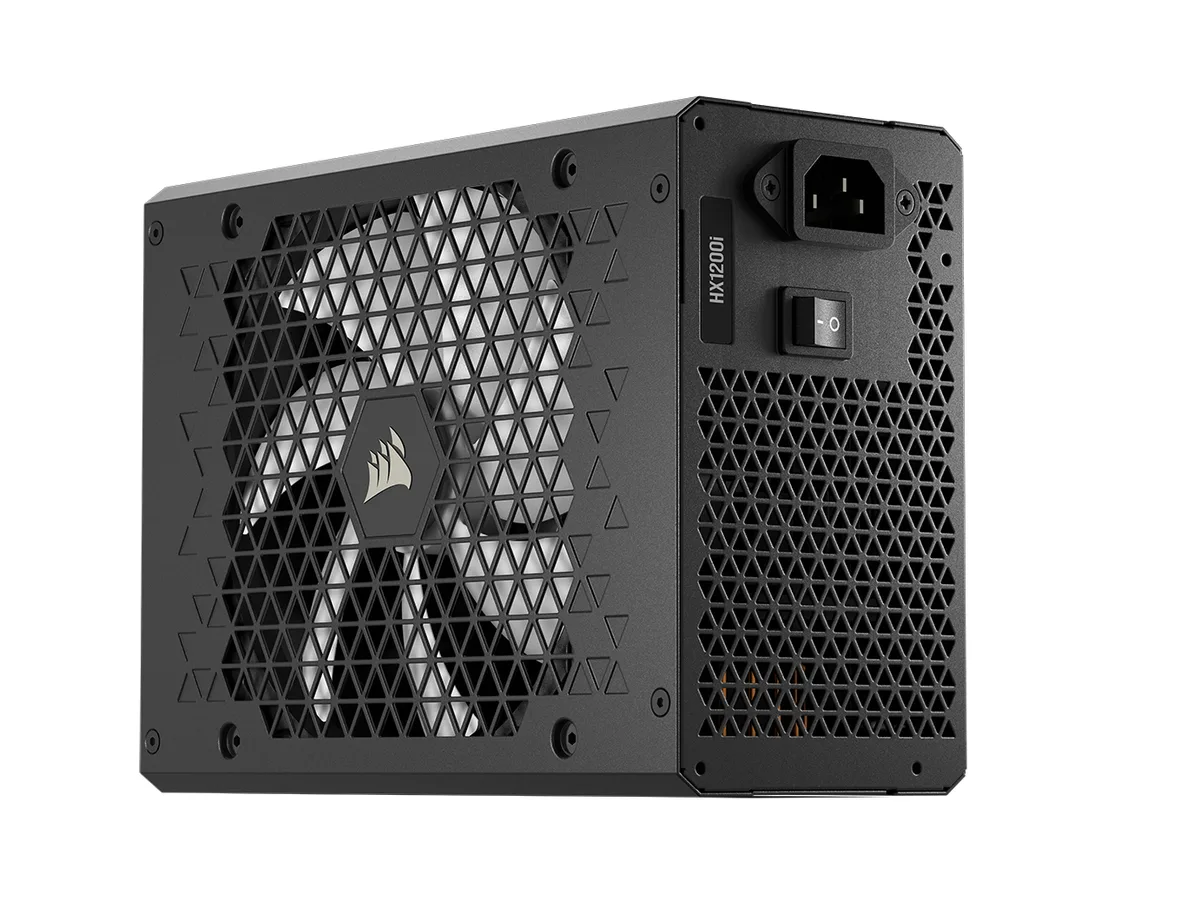

Black rectangular ATX power supply with 140 mm fan and modular cable sockets

Corsair

Corsair CP-9020307-NA HX1200i 1200 W ATX 3.1 power supply

SKU CH-P0KJ-3YQHJ MPN CP-9020307-NA

Fully modular 1200 W ATX 3.1 unit with 80 PLUS Platinum efficiency, a 140 mm fluid dynamic bearing fan, Zero RPM mode and iCUE software control

  • ColorBlack
  • TypeATX 3.1
  • Maximum Power1200 W
  • Fans1 x 140 mm
  • Main Connector24Pin
  • PCI-Express Connector5 x 8-pin

Options ATX 3.1 80+ Platinum (1200W)

  • 1200 W continuous power for demanding builds
  • ATX 3.1 and PCIe 5.1 compliant for modern platforms
  • 92 % efficiency reduces waste heat and noise
  • 140 mm fluid dynamic bearing fan with Zero RPM mode

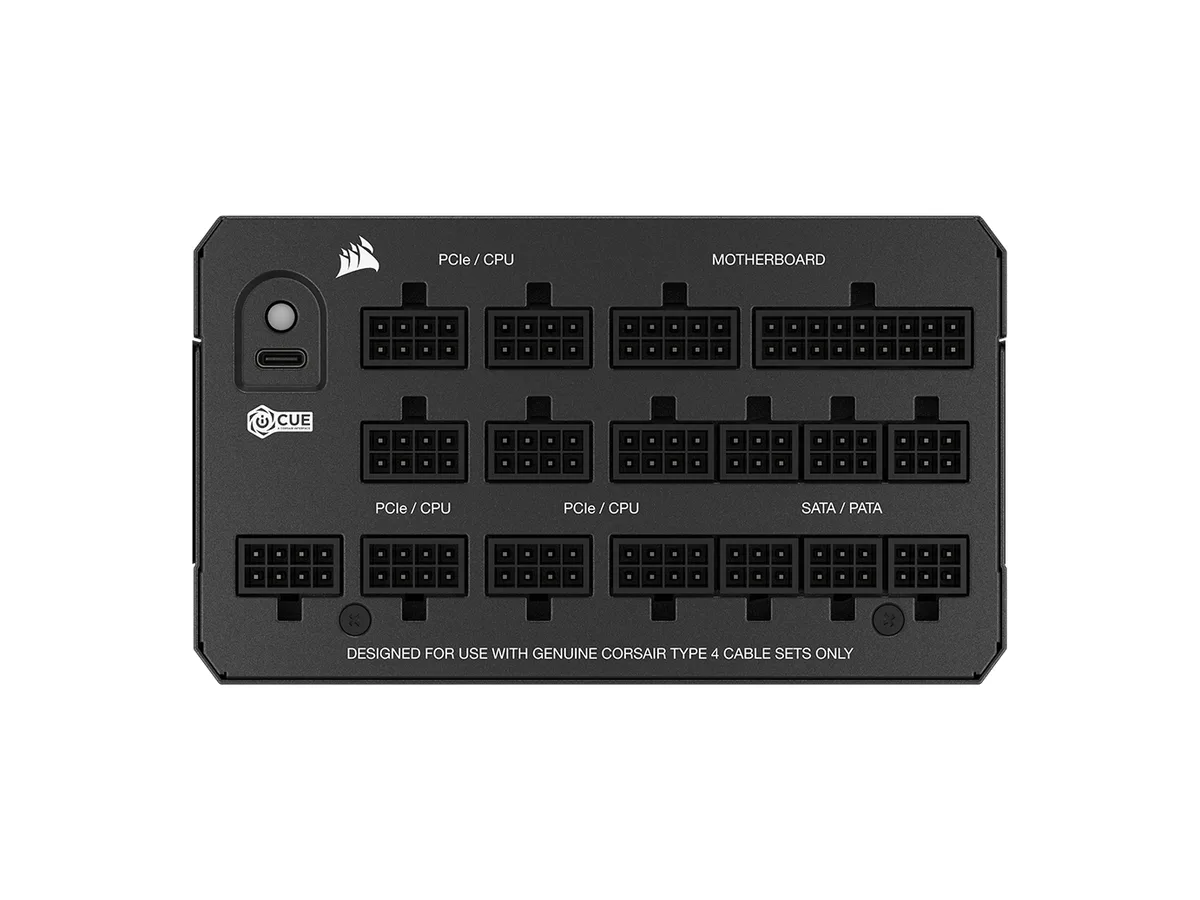

  • Fully modular cables keep the interior clean

1200 W ATX 3.1 Power Supply

The Corsair HX1200i delivers 1200 W of continuous power through a fully modular design. It targets builders of high-end workstations and multi-GPU systems who need reliable output and clean cable management. ATX 3.1 compliance ensures compatibility with modern PCIe 5.1 graphics cards and Intel platforms. The unit includes a native 12V-2x6 cable for direct GPU connection.

Sustained Load Behaviour

Industrial-grade 105°C Japanese electrolytic capacitors maintain stable voltage during extended heavy workloads. The power supply holds 80 PLUS Platinum certification with up to 92% efficiency across typical operating ranges. iCUE software allows on-the-fly switching between single-rail and multi-rail overcurrent protection modes. MTBF is rated at 100,000 hours for long-term dependability.

Thermals, Noise and Power Draw

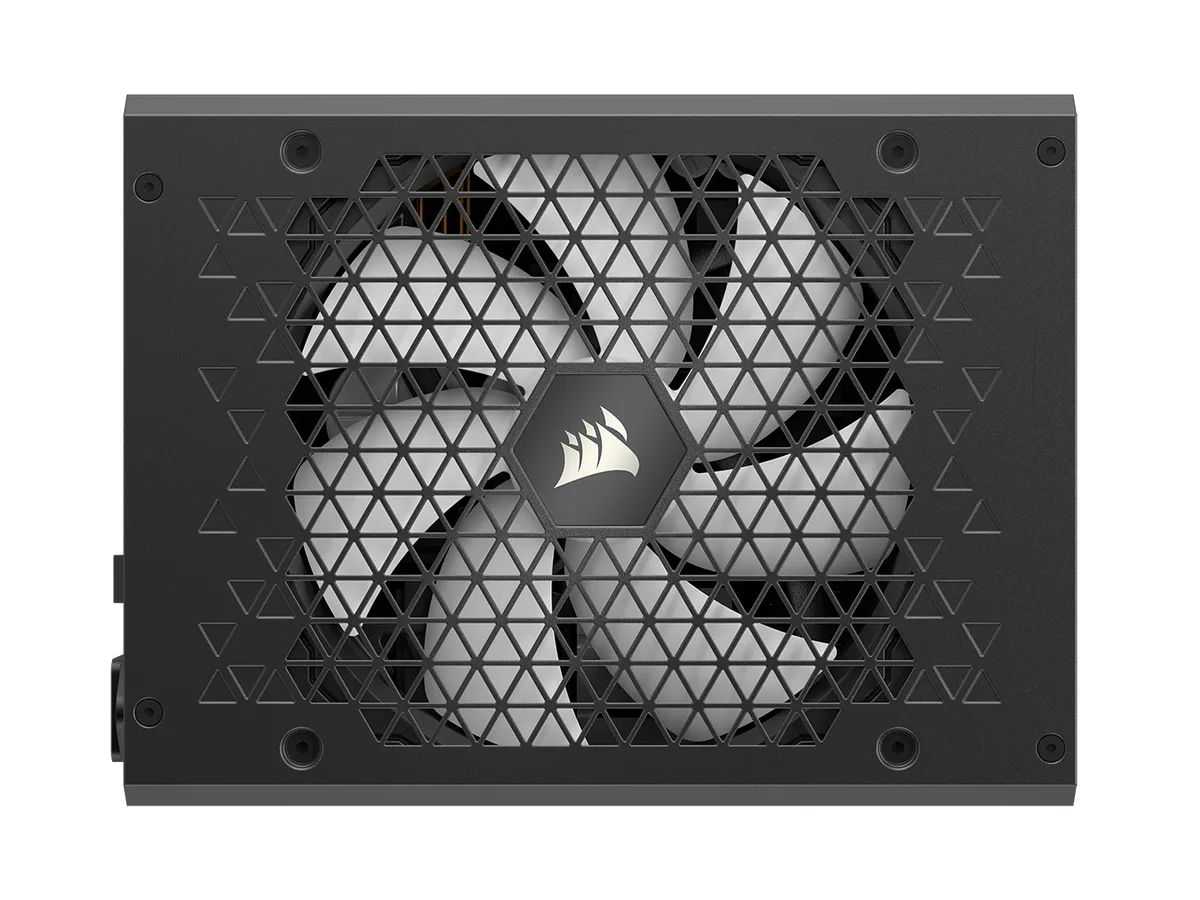

A 140 mm fluid dynamic bearing fan runs in Zero RPM mode at low to medium loads for near-silent operation. Cybenetics A noise certification confirms quiet acoustic output under normal use. High efficiency reduces waste heat, keeping internal temperatures lower during typical gaming or productivity sessions. The fan curve is fully customisable through iCUE for precise thermal control.

Highlights

  • 1200 W continuous power for demanding builds
  • ATX 3.1 and PCIe 5.1 compliant for modern platforms
  • 92 % efficiency reduces waste heat and noise
  • 140 mm fluid dynamic bearing fan with Zero RPM mode
  • Fully modular cables keep the interior clean

Specifications

BrandCORSAIR
SeriesHX series
ModelCP-9020307-NA
Part NumberCP-9020307-NA
ColorBlack
TypeATX 3.1
Maximum Power1200 W
Fans1 x 140 mm
Main Connector24Pin
PCI-Express Connector5 x 8-pin
SATA Power Connector8 connectors
SLIYes
ModularFull Modular
Energy-EfficientUp to 92% efficiency
PSU Noise LevelCybenetics A
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current15A-7.5A
MTBF100,000 hours
Connectors["6 x PATA", "8 x SATA", "2 x EPS", "5 x PCIe", "1 x ATX"]
Power Rating1200W
Efficiency> 90%
FeaturesFully modular cabling, 80 PLUS Platinum certified, fluid dynamic bearing fan with Zero RPM mode, 1200 Watts continuous power, Multi GPU Ready, 10-year warranty, compatible with NVIDIA 4000 series and AMD Ryzen 7000 series GPUs, ATX 3.1 & PCIe 5.1 certified, iCUE software support
+5V Max. Current25A
+5VSB Max. Current3A
12V Power Connector2 x 8 pin eps 12v, 5 x 6/8 pin pcie 12v
Floppy Connector0 connectors
Peripheral Connector14 connectors
Fans Total Quantity1
Top Fans Size140 mm
Top Fans Bearing TypeFluid Dynamic Bearing
Rear Fans Size140mm
Rear Fans Bearing Typefluid
Shipping weight4.99 kg
Package size343 × 236 × 127 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud is the 140 mm fluid dynamic bearing fan when the HX1200i runs continuously at high load?

The unit carries a Cybenetics A noise rating and a Zero RPM mode that keeps the fan off at low to medium loads, so sustained high-load operation stays very quiet.

Which cables must I already have to use the fully modular CP-9020307-NA in my build?

No cables are required beforehand; the PSU ships with every modular cable needed — 24-pin ATX, two EPS, five PCIe, eight SATA and six PATA — so you connect only what your system uses.

Will the 12V-2x6 connector on this ATX 3.1 unit work with my older graphics card that uses standard 8-pin PCIe plugs?

Yes. The supply includes five 6/8-pin PCIe cables that fit both older 8-pin cards and the newer 12V-2x6 interface, so existing GPUs work without adapters.
