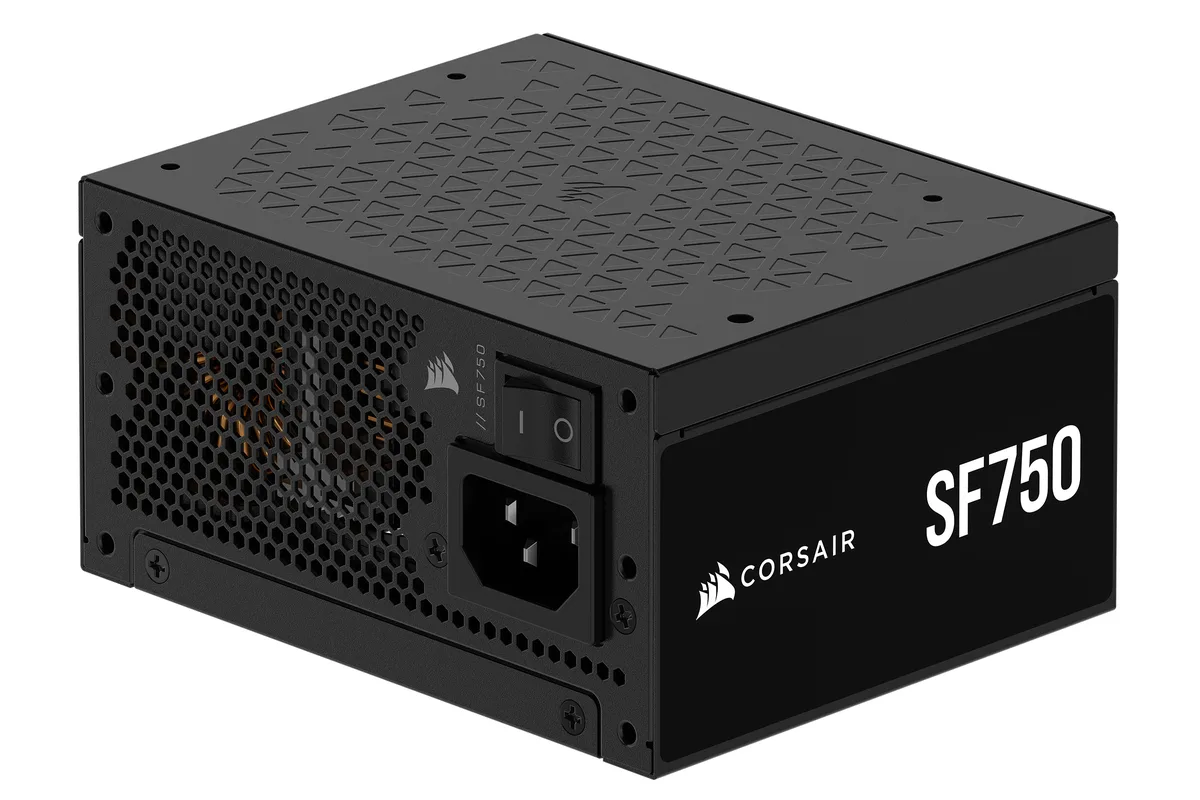

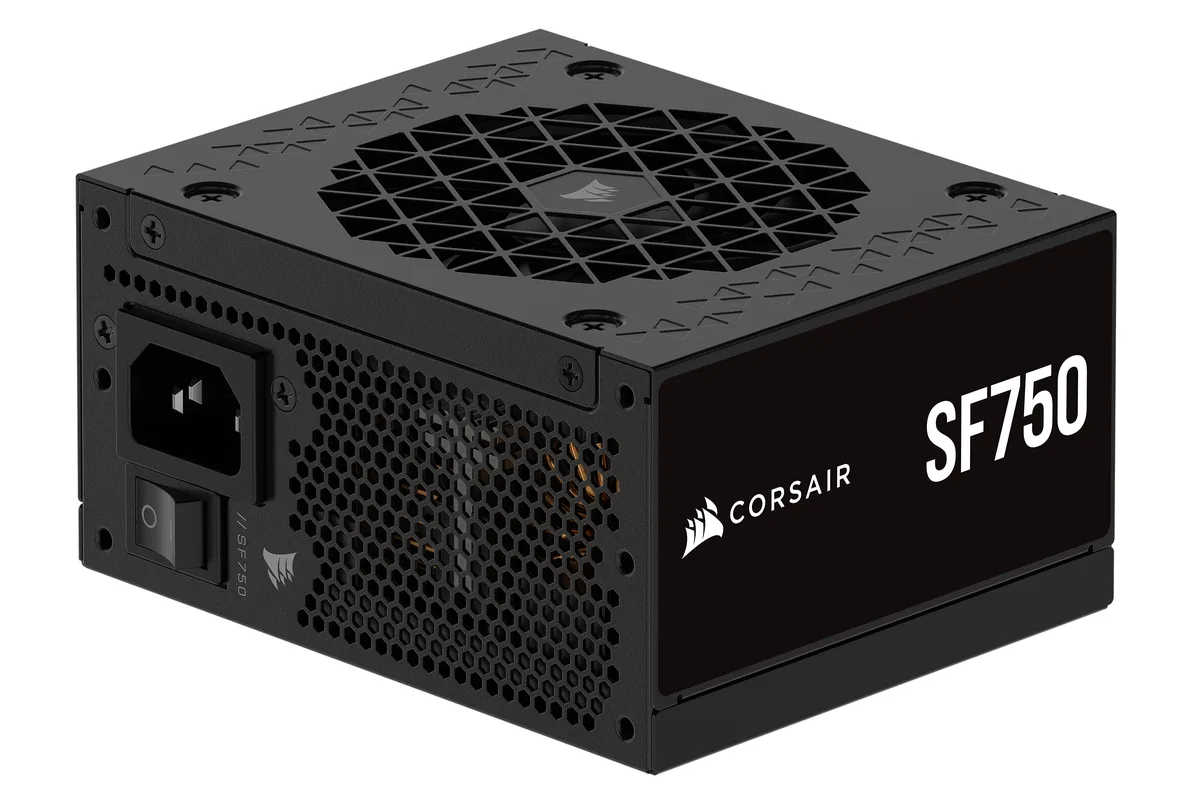

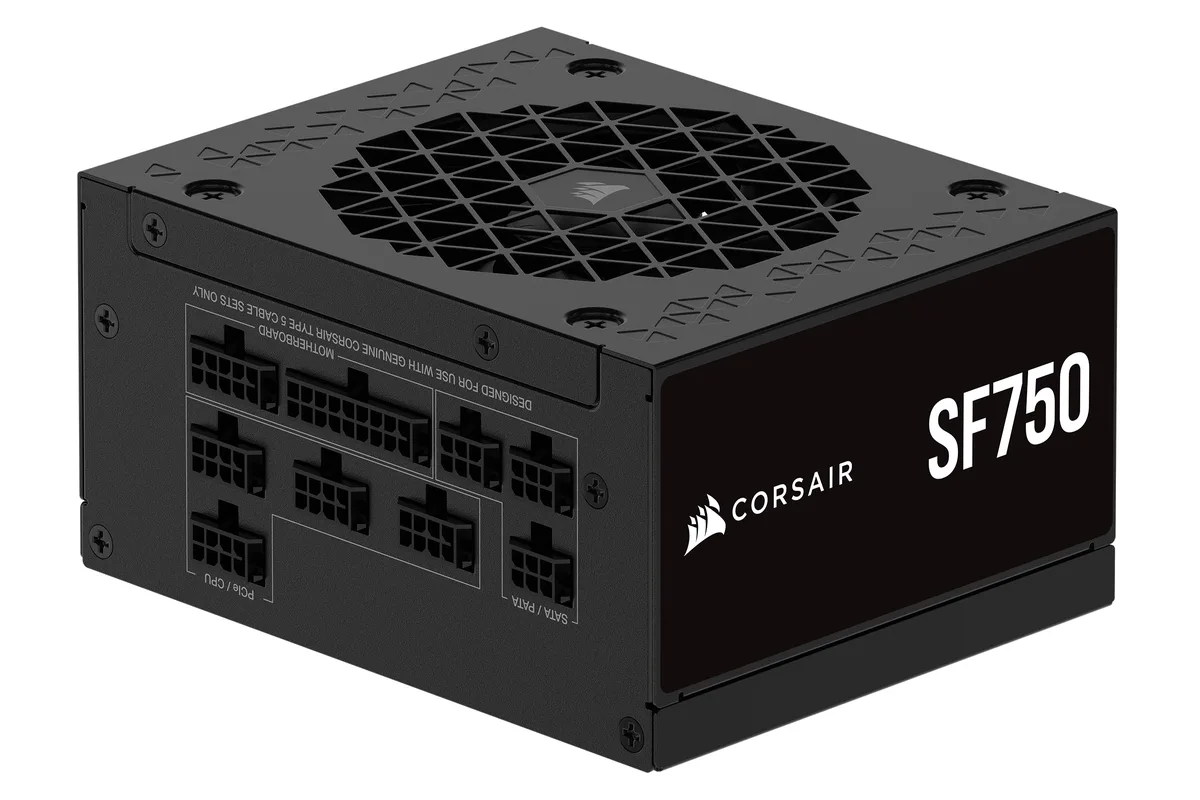

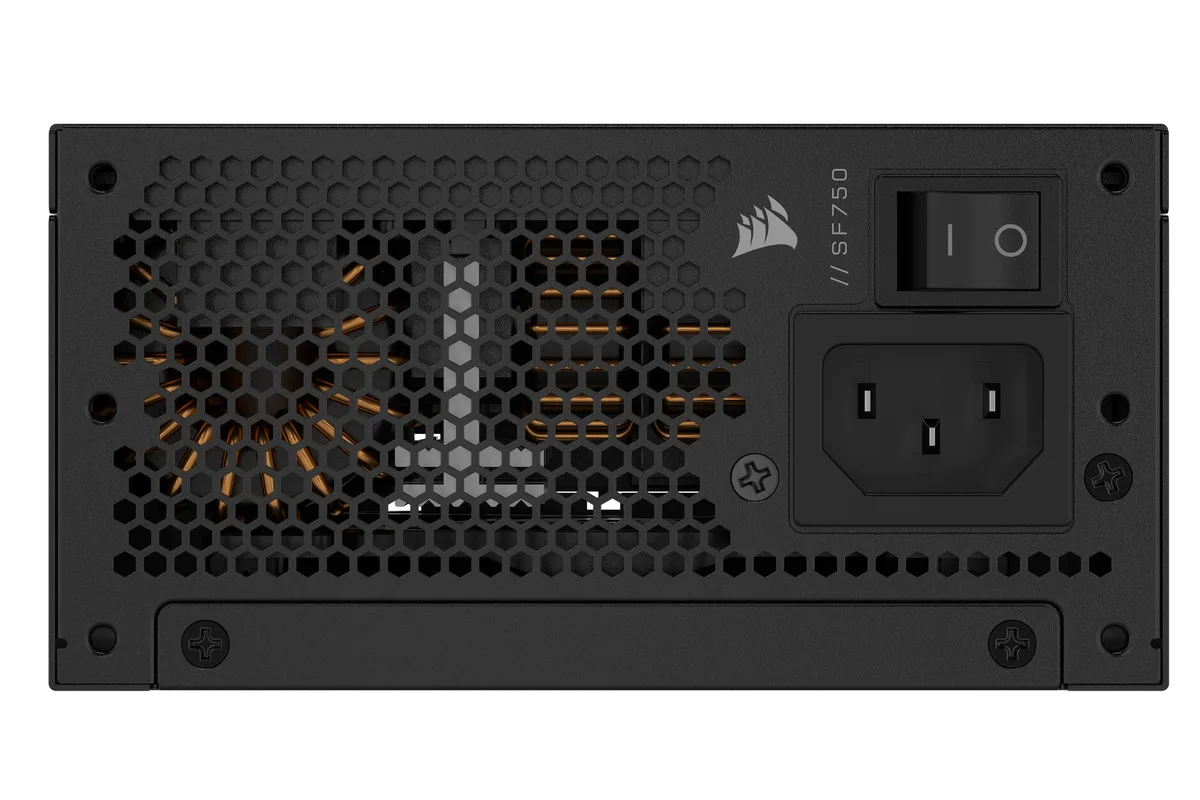

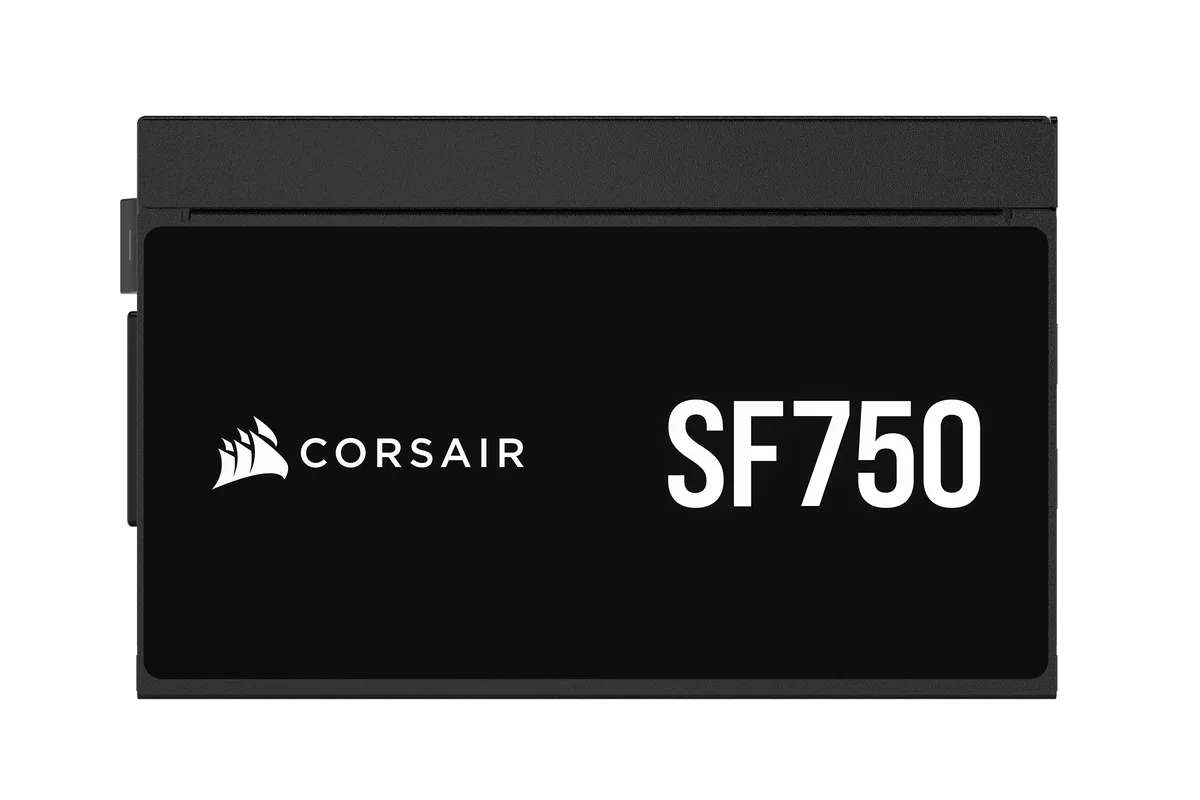

Compact SFX power supply unit with matte black finish and modular cable ports

Corsair

Corsair SF750 CP-9020284-NA SFX power supply

SKU CH-N7RQ-72T83 MPN CP-9020284-NA

Fully modular SFX power supply delivering 750 W with 80 PLUS Platinum efficiency and ATX 3.0 compliance for compact builds

  • TypeSFX
  • Maximum Power750 W
  • Fans92mm PWM cooling fan
  • Max PSU Length125 mm
  • ModularFull Modular
  • Energy-Efficient80 PLUS PLATINUM Certified

Options 750W

  • 750 W output powers demanding small-form-factor builds
  • 80 PLUS Platinum certification reduces wasted energy and heat
  • Fully modular Type-5 cables simplify routing in tight cases
  • 92 mm PWM fan with Zero RPM mode stays silent at low load
  • 105 °C Japanese capacitors rated for 50 °C continuous operation

SFX 750 W Platinum PSU

The Corsair SF750 CP-9020284-NA is an SFX form-factor power supply rated for 750 W continuous output. It carries 80 PLUS Platinum certification and meets ATX 3.0 and PCIe 5.0 specifications. A 92 mm PWM fan with Zero RPM mode keeps acoustics low until thermal load demands active cooling.

Fully modular upgrade for small builds

This unit replaces older SFX or SFX-L supplies that lack ATX 3.0 compliance or the 12+4 pin PCIe connector. The jump is worthwhile when a compact system needs 750 W with Platinum efficiency and native support for current-generation graphics cards. Fully modular Type-5 Micro-Fit cables reduce clutter in tight chassis.

Check SFX clearance and bracket need

Verify the case accepts an SFX supply measuring 125 mm in length and confirm whether the included SFX-to-ATX adapter bracket is required for mounting. Ensure the 100-240 V input range matches local mains voltage and that the provided cable lengths suit component placement.

Highlights

  • 750 W output powers demanding small-form-factor builds
  • 80 PLUS Platinum certification reduces wasted energy and heat
  • Fully modular Type-5 cables simplify routing in tight cases
  • 92 mm PWM fan with Zero RPM mode stays silent at low load
  • 105 °C Japanese capacitors rated for 50 °C continuous operation

Specifications

BrandCORSAIR
SeriesSF Series
ModelCP-9020284-NA
TypeSFX
Maximum Power750 W
Fans92mm PWM cooling fan
Max PSU Length125 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current10A-5A
Output+3.3V@20A, +5V@20A, [email protected] , +5VSB@3A
Connectors1 x ATX Cable (24-PIN) (24): 300mm
2 x EPS/ATX12V Cable (8-PIN) (4+4): 400mm
2 x PCI-E Cable (8-PIN) (6+2): 400mm
1 x PCI-E Cable (12+4)PIN: 400mm
1 x SATA CABLE (4 Straight SATA): 100mm, 115mm, 115mm, 115mm
1 x SATA CABLE (4 Right SATA): 100mm, 115mm, 115mm, 115mm
1 x PATA-PATA-PATA: 100mm, 115mm, 115mm
Dimensions4.92*3.94*2.50 inch
Weight2.09 lbs
Package ContentSF750 Power Supply / DC Cable Kit / SFX-ATX Adapter Bracket / Power Cord / Mounting Screws / Cable Ties
Shipping weight2.10 kg
Package size320 × 213 × 141 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the SFX-to-ATX bracket let me mount the 125 mm long SF750 in a standard ATX case?

The included SFX-to-ATX adapter bracket converts the 125 mm SFX chassis to ATX mounting holes, so the unit fits a standard ATX case opening.

Which cables must be plugged into the Type-5 Micro-Fit sockets on the PSU side before routing them to the motherboard and GPU?

Connect the 300 mm 24-pin ATX cable, the two 400 mm 4+4-pin EPS cables, the two 400 mm 6+2-pin PCIe cables, and the 400 mm 12+4-pin PCIe cable into the fully modular Type-5 ports.

When should I expect to clean the 92 mm PWM fan to keep Zero RPM mode working reliably?

Vacuum the 92 mm PWM fan intake every 6 to 12 months; dust buildup raises internal temperature and can prevent the fan from staying off at low loads.
