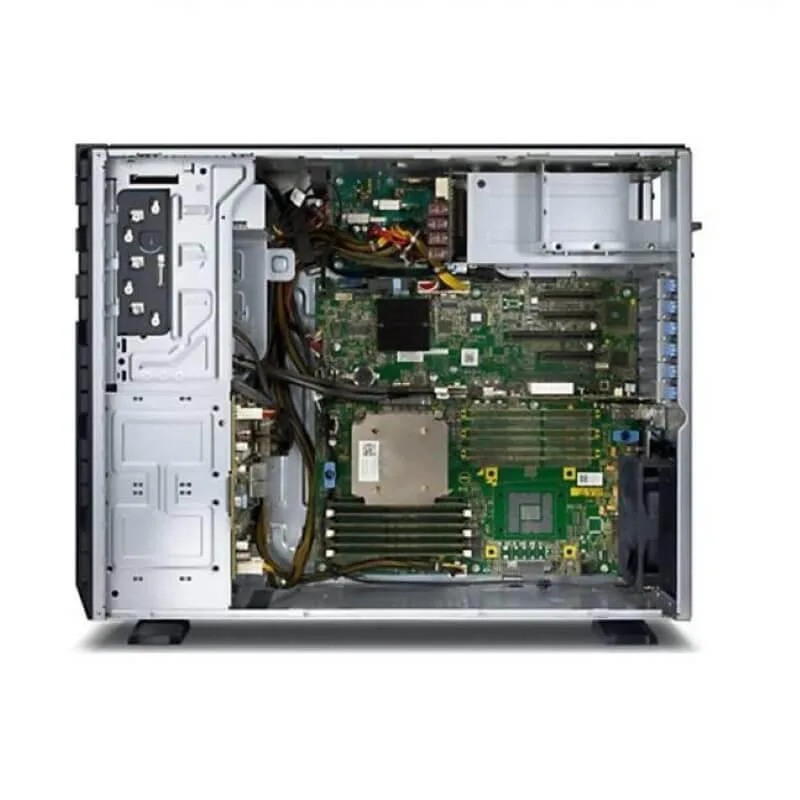

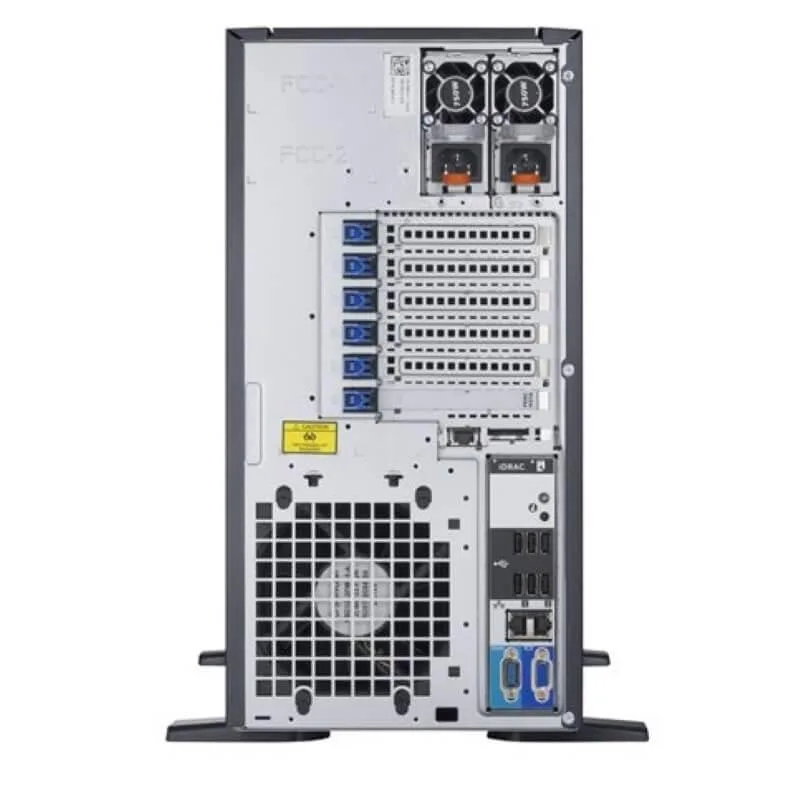

Tower server chassis with eight front drive bays and dual power supplies

DELL

DELL E5-2420 PowerEdge T320 tower server 96GB DDR3 2x 495W

SKU CH-4YMG-ZPNME MPN E5-2420

Tower server with a six-core 1.9 GHz Xeon, 96 GB DDR3, eight 3.5″ hot-plug bays and an H310 RAID controller

  • TypeTower
  • Redundant Hot-swap PowerNo
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C600
  • Installed Memory Size96GB

Installed Memory Size 96GB

CPU Model E5-2420

  • Six-core Xeon at 1.9 GHz handles parallel workloads
  • 96 GB DDR3 memory fills all six DIMM slots
  • H310 controller supports RAID 0/1/5/10/50/60
  • Two 495 W power supplies provide redundancy
  • Eight 3.5-inch hot-plug bays accept SATA or SAS drives

Tower Server for Small Business

The Dell PowerEdge T320 is a tower server system built around a single Intel Xeon E5-2420 six-core processor running at 1.9 GHz. It arrives with 96 GB of DDR3 memory installed across six DIMM slots, reaching the maximum supported capacity. The chassis provides eight 3.5-inch hot-plug drive bays managed by a PERC H310 controller supporting RAID 0, 1, 5, 10, 50 and 60. Dual 495 W redundant power supplies are fitted as standard.

Suits File and Application Hosting

This configuration suits small businesses or branch offices needing a quiet tower platform for file serving, print services or lightweight virtualisation with ample memory headroom. The single-socket design limits CPU scalability, so organisations planning heavy compute clusters or multi-processor workloads should look elsewhere. The Matrox G200 graphics with 8 MB video memory provides only basic console output, making this unsuitable for GPU-accelerated applications or graphical workstations.

DDR3 Memory at Maximum Capacity

The system ships with 96 GB of DDR3, which matches the maximum memory capacity supported by this specific processor and motherboard combination. All six DIMM slots are populated, so any future memory change requires replacing existing modules rather than adding to empty slots. Buyers needing more than 96 GB of RAM must select a different server platform.

Highlights

  • Six-core Xeon at 1.9 GHz handles parallel workloads
  • 96 GB DDR3 memory fills all six DIMM slots
  • H310 controller supports RAID 0/1/5/10/50/60
  • Two 495 W power supplies provide redundancy
  • Eight 3.5-inch hot-plug bays accept SATA or SAS drives

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge T320
TypeTower
Redundant Hot-swap PowerNo
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C600
Installed Memory Size96GB
Memory TypeDDR3
Max Memory Capacity96GB
Memory Features6 DIMM slots. (2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots6
Storage ControllerDell Perc H310 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementBasic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade option) or iDRAC7 Enterprise
(upgrade option), 8GB or 16GB vFlash media (upgrade options)
LAN Ports2 x Ports
Expansion Slots5 PCIe slots: 1 x16 with x16 bandwidth, 3.0, full-length, fullheight; 1 x8 with x4 bandwidth, 3.0, half-length, fullheight1 x8 with x4 bandwidth, 2.0, half-length, full-height; 1 x8 with x4 bandwidth, 3.0, full-length, full-height; 1 x8 with x1 bandwidth, 2.0, full-length, full-height
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many 3.5-inch hot-plug drive bays does the T320 chassis provide?

The tower offers up to eight 3.5-inch hot-plug bays for SATA or SAS drives, allowing a maximum raw capacity of 64TB when fully populated.

Which PCIe slot should I use first when adding a full-length, full-height expansion card?

Install the card in the single x16 slot that delivers x16 bandwidth at PCIe 3.0; it is the only full-length, full-height slot with that bandwidth.

What DDR3 memory speeds are supported and how many DIMM slots are available for future upgrades?

Six DIMM slots accept 2GB, 4GB, 8GB, 16GB or 32GB DDR3 modules running up to 1600MT/s, with actual speed limited by the installed Xeon E5-2420 processor.
