Tower server chassis with eight 3.5-inch hot-plug drive bays and dual power supplies

DELL

DELL PowerEdge T320 E5-2420 1.9GHz 16GB DDR3 8x 3.5" H310 2x 495W

SKU CH-Y6YT-X532P MPN E5-2420

Tower server with a six-core 1.9 GHz Xeon, 16 GB DDR3, eight 3.5" hot-plug bays, H310 RAID controller and dual 495 W power supplies

  • TypeTower
  • Redundant Hot-swap PowerNo
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C600
  • Installed Memory Size16GB

Installed Memory Size 16GB

CPU Model E5-2420

  • Six-core Xeon E5-2420 at 1.9 GHz for multi-thread workloads
  • 16 GB DDR3 memory installed across six DIMM slots
  • Eight 3.5-inch hot-plug bays support up to 64 TB storage
  • PERC H310 controller enables RAID 0, 1, 5, 10, 50, 60
  • Dual 495 W redundant power supplies maintain uptime

Tower Server for Small Business

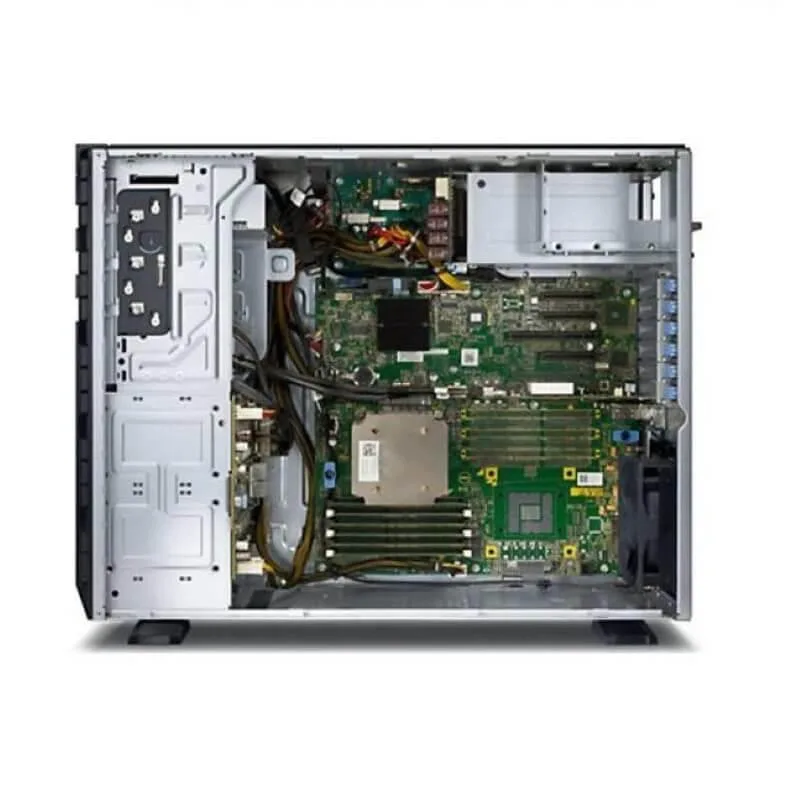

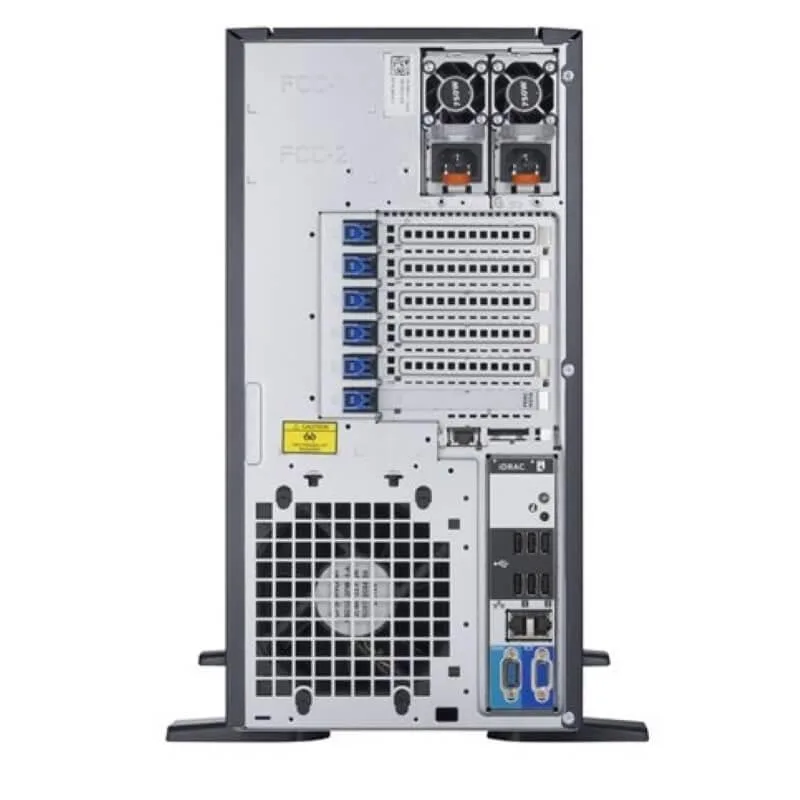

The Dell PowerEdge T320 is a tower server built around a single Intel Xeon E5-2420 six-core processor running at 1.9 GHz with 16 GB of DDR3 memory installed across six DIMM slots. It includes a PERC H310 RAID controller supporting RAID 0, 1, 5, 10, 50 and 60, eight hot-plug 3.5-inch drive bays, dual 495 W redundant power supplies and a DVD-ROM drive. The Matrox G200 GPU provides basic 8 MB video output for console management.

Suits File and Application Hosting

This system fits organisations that need a quiet tower chassis for on-premise file serving, database workloads or virtualisation hosts where the installed 16 GB of DDR3 and single-socket design meet current requirements. The five PCIe 3.0 and 2.0 expansion slots allow additional network or storage controllers. Buyers who need more than 16 GB of installed memory, more than one physical processor or a rackmount form factor should look elsewhere.

16 GB DDR3 Installed Memory Limit

The server ships with 16 GB of DDR3 memory installed and the specification lists a maximum memory capacity of 16 GB for this configuration. This fixed ceiling determines whether the platform can support the intended workload or whether a system with higher memory headroom is required.

Highlights

  • Six-core Xeon E5-2420 at 1.9 GHz for multi-thread workloads
  • 16 GB DDR3 memory installed across six DIMM slots
  • Eight 3.5-inch hot-plug bays support up to 64 TB storage
  • PERC H310 controller enables RAID 0, 1, 5, 10, 50, 60
  • Dual 495 W redundant power supplies maintain uptime

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge T320
TypeTower
Redundant Hot-swap PowerNo
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C600
Installed Memory Size16GB
Memory TypeDDR3
Max Memory Capacity16GB
Memory Features6 DIMM slots. (2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots6
Storage ControllerDell Perc H310 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementBasic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade option) or iDRAC7 Enterprise
(upgrade option), 8GB or 16GB vFlash media (upgrade options)
LAN Ports2 x Ports
Expansion Slots5 PCIe slots: 1 x16 with x16 bandwidth, 3.0, full-length, fullheight; 1 x8 with x4 bandwidth, 3.0, half-length, fullheight1 x8 with x4 bandwidth, 2.0, half-length, full-height; 1 x8 with x4 bandwidth, 3.0, full-length, full-height; 1 x8 with x1 bandwidth, 2.0, full-length, full-height
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What RAID levels does the H310 6Gbps controller support on this T320?

The H310 controller supports RAID 0, 1, 5, 10, 50 and 60 across the eight 3.5-inch hot-plug bays.

How many 3.5-inch drive bays fit in the tower chassis and are trays included?

The chassis holds up to eight 3.5-inch hot-plug SATA or SAS bays; no drives or trays are included.

How do I install the second CPU kit and which memory slots become active?

Install the second processor kit in the empty socket, then populate the three DIMM slots associated with that CPU; the system will not recognise memory in those slots until the second processor is fitted.
