Tower server chassis with eight front 3.5 inch drive bays and DVD drive

DELL

DELL PowerEdge T320 E5-2420 1.9GHz 6C 48GB DDR3 H310 8×3.5" 2×495W

SKU CH-VDDR-E0M5Z MPN E5-2420

Tower server with an Intel Xeon E5-2420 six-core 1.9 GHz processor, 48 GB DDR3 memory, H310 RAID controller supporting RAID 0/1/5/10/50/60, eight 3.5-inch hot-plug bays.

  • TypeTower
  • Redundant Hot-swap PowerNo
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C600
  • Installed Memory Size48GB

Installed Memory Size 48GB

CPU Model E5-2420

  • Six-core Xeon handles multi-thread workloads at 1.9 GHz
  • 48 GB DDR3 memory fills every slot for immediate capacity
  • H310 controller supports RAID 0/1/5/10/50/60 for data protection
  • Dual 495 W supplies keep the server running if one fails
  • Eight 3.5" hot-plug bays allow drive changes without downtime

Tower server for small-business workloads

The Dell PowerEdge T320 is a single-socket tower server built around an Intel Xeon E5-2420 six-core processor running at 1.9 GHz with twelve threads. It ships with 48 GB of DDR3 memory across six DIMM slots and a PERC H310 controller supporting RAID 0, 1, 5, 10, 50 and 60. Eight hot-plug 3.5-inch bays accept SATA or SAS drives for up to 64 TB of raw capacity.

Sustained load behaviour

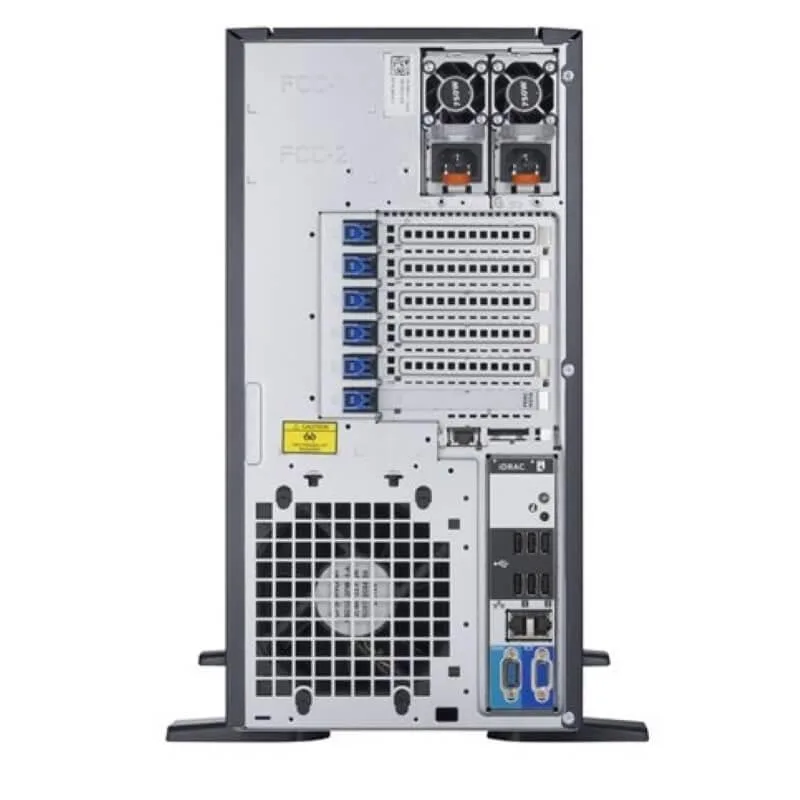

Dual 495 W redundant power supplies keep the system running if one unit fails, which helps maintain uptime during continuous operation. The Xeon E5-2420 has a modest thermal envelope so the tower chassis can dissipate heat without aggressive fan speeds under typical multi-threaded workloads. Memory bandwidth scales with the processor's integrated controller and the installed DDR3 modules.

Installation and common issues

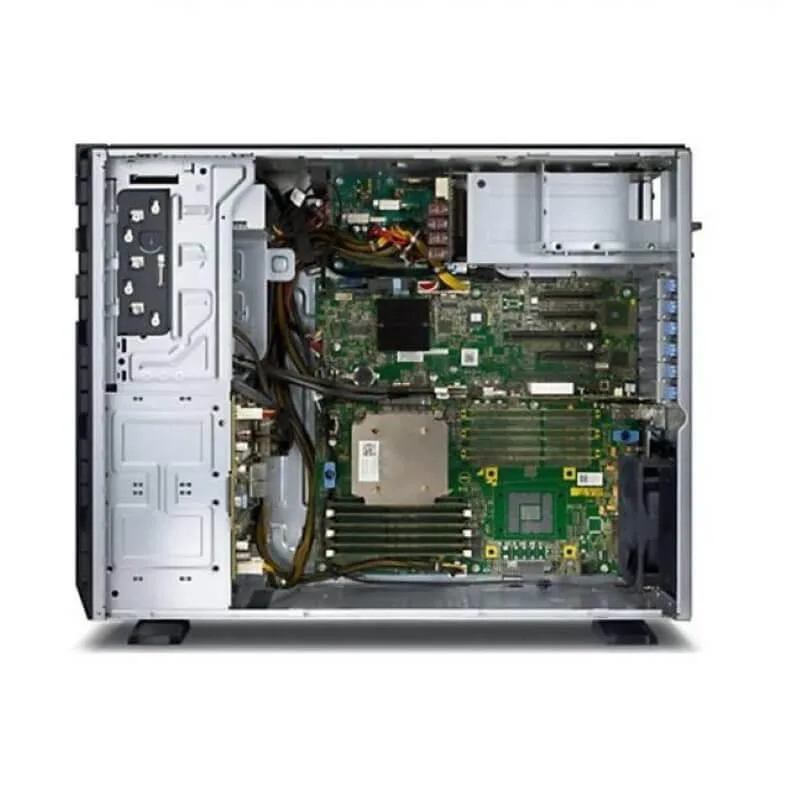

The tower form factor fits on a desk or shelf and provides tool-less access to drive bays, memory slots and five PCIe expansion slots. No drive trays or hard drives are included, so buyers must source compatible 3.5-inch SATA or SAS drives and caddies. The H310 controller does not support JBOD mode, which can complicate software-defined storage configurations. Maximum memory is limited to 48 GB with this processor.

Highlights

  • Six-core Xeon handles multi-thread workloads at 1.9 GHz
  • 48 GB DDR3 memory fills every slot for immediate capacity
  • H310 controller supports RAID 0/1/5/10/50/60 for data protection
  • Dual 495 W supplies keep the server running if one fails
  • Eight 3.5" hot-plug bays allow drive changes without downtime

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge T320
TypeTower
Redundant Hot-swap PowerNo
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C600
Installed Memory Size48GB
Memory TypeDDR3
Max Memory Capacity48GB
Memory Features6 DIMM slots. (2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots6
Storage ControllerDell Perc H310 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementBasic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade option) or iDRAC7 Enterprise
(upgrade option), 8GB or 16GB vFlash media (upgrade options)
LAN Ports2 x Ports
Expansion Slots5 PCIe slots: 1 x16 with x16 bandwidth, 3.0, full-length, fullheight; 1 x8 with x4 bandwidth, 3.0, half-length, fullheight1 x8 with x4 bandwidth, 2.0, half-length, full-height; 1 x8 with x4 bandwidth, 3.0, full-length, full-height; 1 x8 with x1 bandwidth, 2.0, full-length, full-height
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the T320 get when both 495W power supplies run continuously?

The tower chassis uses two redundant 495W supplies and a single E5-2420 processor; fan speed scales with load, so sustained operation stays within Dell's thermal limits for the C600 chipset.

What drives and cables must I already have to populate the 8 x 3.5" hot-plug bays?

The bays accept 3.5" SATA or SAS drives; no trays or drives are included, so you need compatible drives and the carrier trays that latch into the hot-plug backplane.

Will the H310 controller and PCIe 3.0 x16 slot work with an older PCIe 2.0 RAID card I want to keep?

The H310 provides 6Gbps SAS/SATA RAID 0/1/5/10/50/60, and the x16 slot is PCIe 3.0; a PCIe 2.0 card will negotiate down to 2.0 speeds and function normally.
