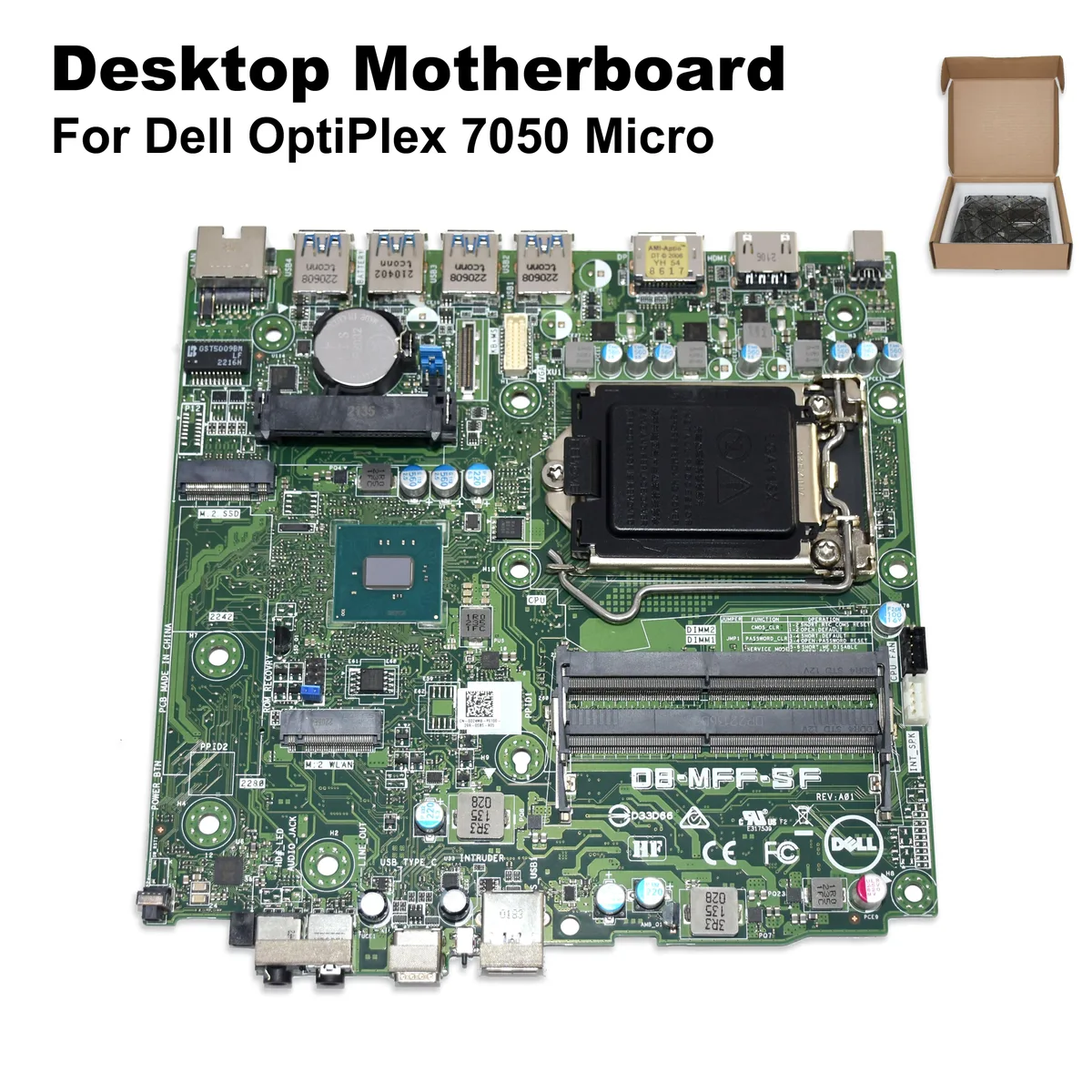

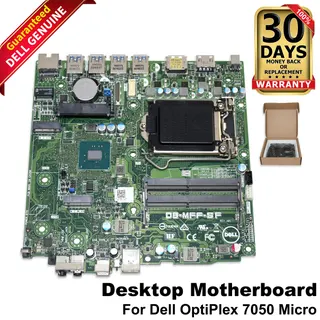

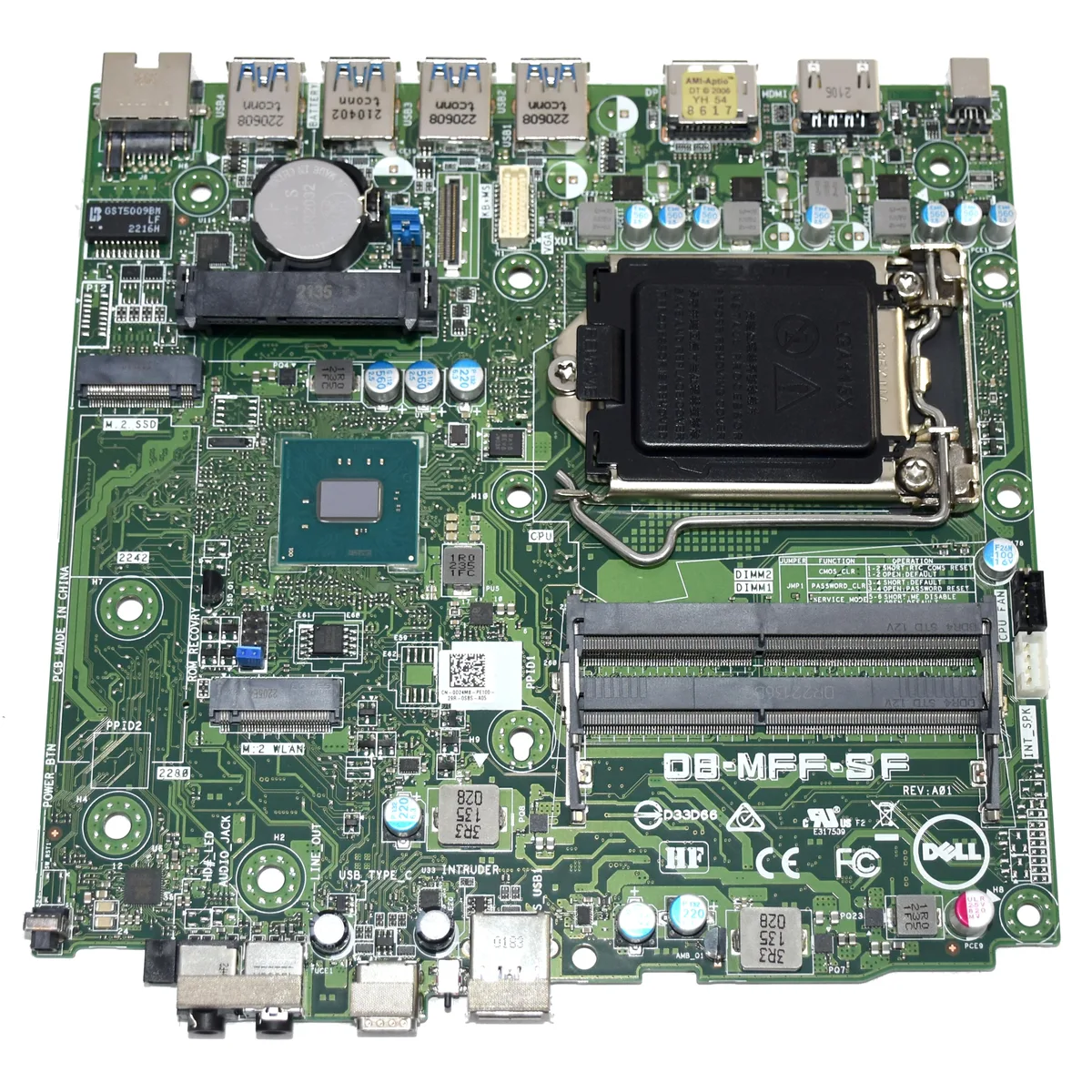

Green Dell OptiPlex 7050 Micro motherboard, LGA1151 socket, Q270 chipset

DELL

DELL OptiPlex 7050 Micro Motherboard DB-MFF-SF D24M8 LGA1151 Q270 laptop replacement part

SKU CH-XM63-TJECF

Replacement motherboard for OptiPlex 7050 Micro with LGA1151 socket and Q270 chipset

  • Compatible ManufacturerFor Dell
  • Compatible ModelsFor Dell OptiPlex 7050 Micro
  • ColorGreen
  • Supports up to 32 GB DDR4 for responsive multitasking
  • LGA1151 socket fits 6th and 7th generation Intel Core i3, i5, i7 processors
  • Intel Q270 chipset enables stable platform performance
  • Dual M.2 slots accept 2230 WLAN and 2280 storage devices
  • SATA plus M.2 interfaces allow 2.5 inch drive and NVMe or SATA SSD

Dell OptiPlex 7050 Micro Motherboard LGA1151 Q270

This replacement motherboard fits the Dell OptiPlex 7050 Micro chassis and uses the Intel Q270 chipset with an LGA1151 socket. It supports 6th and 7th generation Intel Core i3, i5 and i7 processors including the i7-7700 and i7-7700T. The board provides two DDR4 SODIMM slots for up to 32 GB of memory running at 2400MHz. It is intended for technicians repairing or refreshing these specific micro form factor units.

Upgrading from a failed or damaged original board

A direct swap restores the system to factory specification without changing the chassis, power supply or cooler. The jump is worth it when the existing board has faulty I/O, memory slots or CPU socket damage. Builders who need a different socket, a newer chipset or more than two memory slots cannot use this part. It does not support processors outside the listed 6th and 7th generation Core families.

Sustained operation within the micro chassis

The board runs the supported CPUs at their rated frequencies within the original thermal design of the 7050 Micro. Memory operates at 2400MHz across both slots under continuous load. Storage throughput depends on the installed drive using the M.2 2280 slot for NVMe or SATA and the 2.5 inch SATA port. The VRM and chipset cooling rely on the system's integrated blower; no additional cooling provisions exist on the board itself.

Highlights

  • Supports up to 32 GB DDR4 for responsive multitasking
  • LGA1151 socket fits 6th and 7th generation Intel Core i3, i5, i7 processors
  • Intel Q270 chipset enables stable platform performance
  • Dual M.2 slots accept 2230 WLAN and 2280 storage devices
  • SATA plus M.2 interfaces allow 2.5 inch drive and NVMe or SATA SSD

Specifications

BrandDell
ModelDB-MFF-SF
Part NumberD24M8
Compatible ManufacturerFor Dell
Compatible ModelsFor Dell OptiPlex 7050 Micro
ColorGreen

Questions about this item

Will the LGA1151 socket and Q270 chipset on this DB-MFF-SF board fit inside my OptiPlex 7050 Micro chassis?

Yes, the motherboard is built for the OptiPlex 7050 Micro form factor and mounts directly to the chassis standoffs using the existing screw pattern.

What is the correct order for seating the CPU, cooler and DDR4 SODIMMs during installation?

Install the LGA1151 processor first, lock the retention lever, apply thermal paste, attach the Micro-specific cooler, then press the DDR4 SODIMMs into the two slots until they click.

Which storage drives can I add later to the M.2 2280 slot and the 2.5-inch SATA bay?

The M.2 2280 slot accepts PCIe NVMe or SATA SSDs, and the 2.5-inch bay takes a SATA HDD or SSD; both can be used simultaneously.
