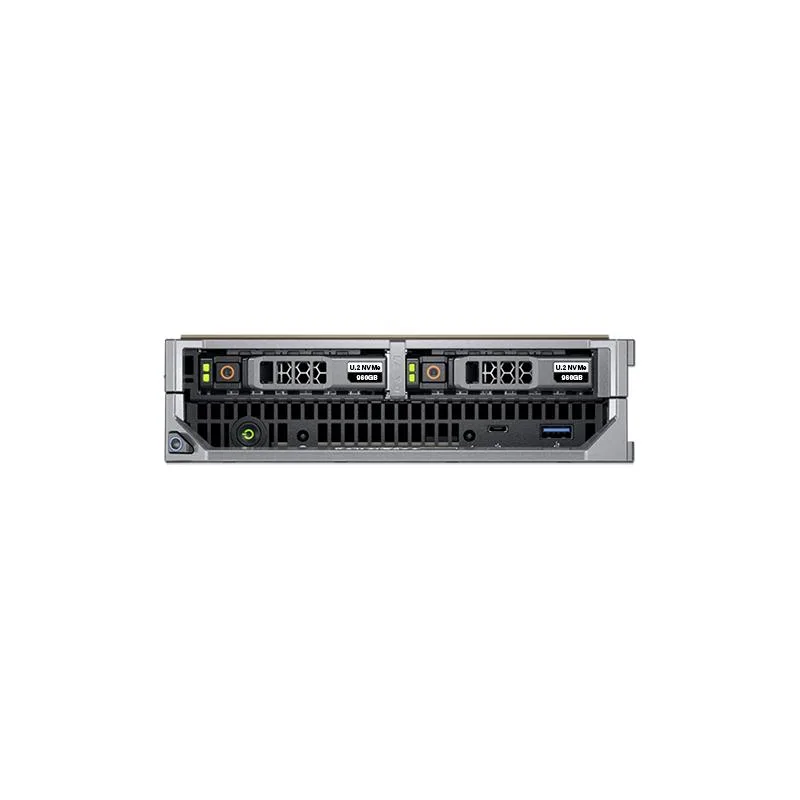

Half-height blade server, matte black metal, front drive bays and connector edge visible

DELL

DELL PowerEdge M640 Blade Server 2x Xeon 8260 2.4GHz 24-Core 32GB DDR4 2x 960GB SSD 57810S-K iDRAC9 Enterprise

SKU CH-S9K4-Y71MD

Half-height blade server with dual 24-core Xeon 8260 CPUs, 32GB DDR4, two 960GB SSDs, 10Gb dual-port networking and iDRAC9 Enterprise

  • TypeBlade
  • Rack HeightBlade
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores24-Core Processor

Installed Memory Size 32GB

SSD (Installed) 2 x 960GB SATA SSD

  • Dual Xeon Platinum 8260 CPUs at 2.4 GHz with 3.9 GHz turbo for high compute
  • 32 GB DDR4 2933 MHz ECC memory across 16 slots for large datasets
  • Two 960 GB SATA SSDs on PERC S140 with RAID 0/1/5/10 for fast storage
  • Dual-port 10 Gb blade network card for high-throughput connectivity
  • iDRAC9 Enterprise remote management for simplified server administration

Blade server for virtualisation and HPC

The Dell PowerEdge M640 is a half-height blade that fits into PowerEdge MX or M1000e chassis. Two Intel Xeon Platinum 8260 processors run at 2.4 GHz with a 3.9 GHz turbo and provide 24 cores each for virtualisation, private cloud or high-performance computing workloads.

Suits density-focused racks.

This blade targets data-centre operators who need maximum compute density in a shared chassis with integrated networking. It is not suited for buyers who need a self-contained rackmount or tower server with its own power supplies and front bezel.

Dual 10 Gb network daughter card for fabric

A Dell Broadcom 57810S-K dual-port 10 Gb blade network daughter card is installed, providing high-speed fabric connectivity without consuming a PCIe slot. The 57810S-K part number identifies the exact mezzanine card fitted.

Highlights

  • Dual Xeon Platinum 8260 CPUs at 2.4 GHz with 3.9 GHz turbo for high compute
  • 32 GB DDR4 2933 MHz ECC memory across 16 slots for large datasets
  • Two 960 GB SATA SSDs on PERC S140 with RAID 0/1/5/10 for fast storage
  • Dual-port 10 Gb blade network card for high-throughput connectivity
  • iDRAC9 Enterprise remote management for simplified server administration

Specifications

BrandDELL
SeriesPowerEdge M640
TypeBlade
Rack HeightBlade
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 3647
Number of CPU Cores24-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity2TB
Number of Memory Slots16
Storage ControllerDell Perc S140 Controller
HDD InterfaceSATA/SAS
SSD (Installed)2 x 960GB SATA SSD
Raid LevelRAID 0/1/5/10
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Broadcom 57810S-K 10Gb Dual Port Blade Network Daughter Card
Management PortRJ 45
Operating SystemNo

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the M640 blade fit in my existing PowerEdge M1000e chassis alongside older blades?

Yes. The M640 is a half-height blade designed for both PowerEdge MX and M1000e chassis, so it installs in the same enclosure as earlier M-series blades.

How can I confirm the two Xeon 8260 processors and 32 GB of DDR4 are recognised after installation?

Open the iDRAC9 Enterprise web console or check the BIOS during POST; both show 2 processors, 24 cores each, and 32 GB total memory.

Which drives, network card and management licence are included, and what must I add?

The blade ships with 2 x 960 GB SATA SSDs, a Broadcom 57810S-K dual-port 10 Gb daughter card and iDRAC9 Enterprise. You must supply a compatible chassis, power supplies and any additional memory or storage.
