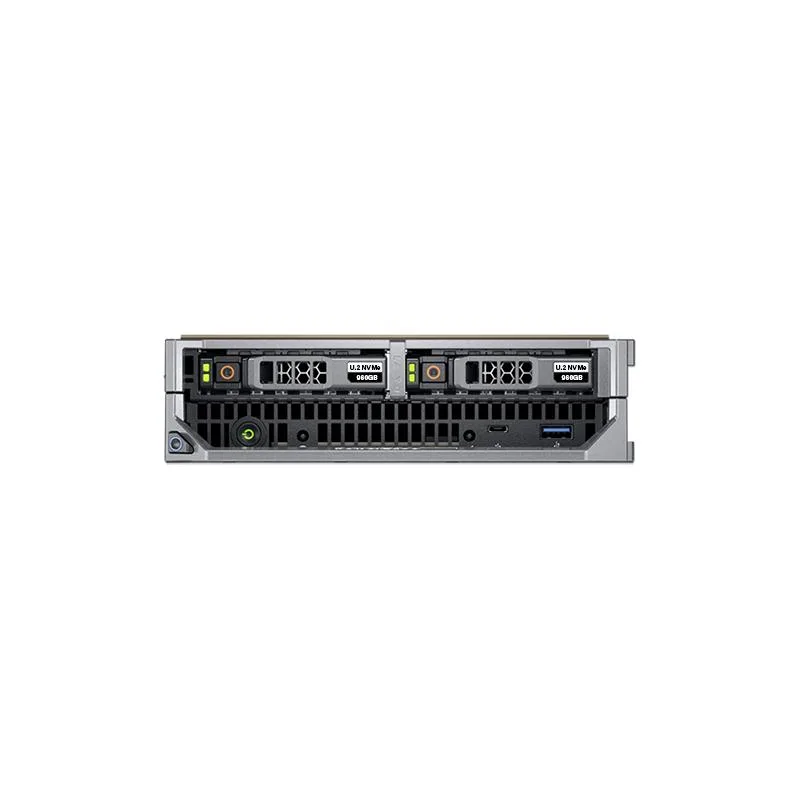

Half-height blade server, silver metal chassis, front drive bays and network ports visible

DELL

DELL PowerEdge M640 Blade Server 2x Xeon 8260 24-Core 32GB DDR4 2x 960GB SSD H330 57810S-K iDRAC9 Enterprise

SKU CH-9J7Z-F16K7

Half-height blade server with dual 24-core Xeon 8260 processors, 32GB DDR4, two 960GB SATA SSDs and H330 RAID controller

  • TypeBlade
  • Rack HeightBlade
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores24-Core Processor

Installed Memory Size 32GB

SSD (Installed) 2 x 960GB SATA SSD

  • Dual 24-core Xeon 8260 CPUs deliver 2.4 GHz base and 3.9 GHz turbo speeds
  • 32 GB DDR4 2933 MHz registered ECC memory supports up to 1.5 TB capacity
  • PERC H330 12 Gb/s controller enables RAID 0/1/5/10/50 for data protection
  • Two 960 GB SATA SSDs provide 2.5" enterprise storage with 6 Gb/s throughput
  • iDRAC 9 Enterprise plus 10 Gb dual-port 57810S-K networking simplify remote management

Blade server for virtualization and HPC

The Dell PowerEdge M640 is a half-height blade server built for virtualization, private cloud and high-performance computing workloads. Two Intel Xeon Platinum 8260 processors provide 24 cores each at 2.4 GHz with 3.9 GHz turbo. 32 GB of DDR4 2933 MHz registered ECC memory is installed across four slots.

Check chassis compatibility and memory headroom

This blade fits only Dell PowerEdge MX or M1000e enclosures, so verify you have an available half-height slot and matching fabric modules. The board offers 16 DDR4 slots and supports up to 1.5 TB, leaving room for expansion beyond the factory 32 GB. Storage uses SATA or SAS drives behind the PERC H330 controller with RAID 0, 1, 5, 10 or 50.

Network daughter card and remote management included

A Broadcom 57810S-K dual-port 10 Gb blade network daughter card is factory-fitted for high-speed connectivity. iDRAC 9 Enterprise provides full out-of-band management with automation features. No operating system, front bezel or ready rails are supplied, so plan for OS deployment and rack hardware separately.

Highlights

  • Dual 24-core Xeon 8260 CPUs deliver 2.4 GHz base and 3.9 GHz turbo speeds
  • 32 GB DDR4 2933 MHz registered ECC memory supports up to 1.5 TB capacity
  • PERC H330 12 Gb/s controller enables RAID 0/1/5/10/50 for data protection
  • Two 960 GB SATA SSDs provide 2.5" enterprise storage with 6 Gb/s throughput
  • iDRAC 9 Enterprise plus 10 Gb dual-port 57810S-K networking simplify remote management

Specifications

BrandDELL
SeriesPowerEdge M640
TypeBlade
Rack HeightBlade
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 3647
Number of CPU Cores24-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity2TB
Number of Memory Slots16
Storage ControllerDell Perc H330 Controller
HDD InterfaceSATA/SAS
SSD (Installed)2 x 960GB SATA SSD
Raid LevelRAID 0/1/5/10/50
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Broadcom 57810S-K 10Gb Dual Port Blade Network Daughter Card
Management PortRJ 45
Operating SystemNo

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box and what must I add to run the blade?

The blade includes two Xeon 8260 processors, 32 GB DDR4 memory, two 960 GB SATA SSDs, a PERC H330 controller, a 57810S-K 10 Gb dual-port network card and iDRAC9 Enterprise. It requires a compatible MX or M1000e chassis, power supplies and an operating system.

Should I choose the 32 GB configuration or expand toward the 1.5 TB maximum?

The system ships with 4 x 8 GB DDR4 2933 MHz modules across 16 slots. Start with 32 GB for light virtualization; add registered ECC DDR4 modules later to scale toward the 1.5 TB limit for larger databases or HPC workloads.

How does the 3.9 GHz turbo speed translate in a real workload?

Each Xeon 8260 runs at 2.4 GHz base and can boost to 3.9 GHz on active cores, giving 24 cores per processor responsive performance for bursty database queries or compile jobs while the H330 handles RAID 0, 1, 5, 10 and 50 on the installed SSDs.
