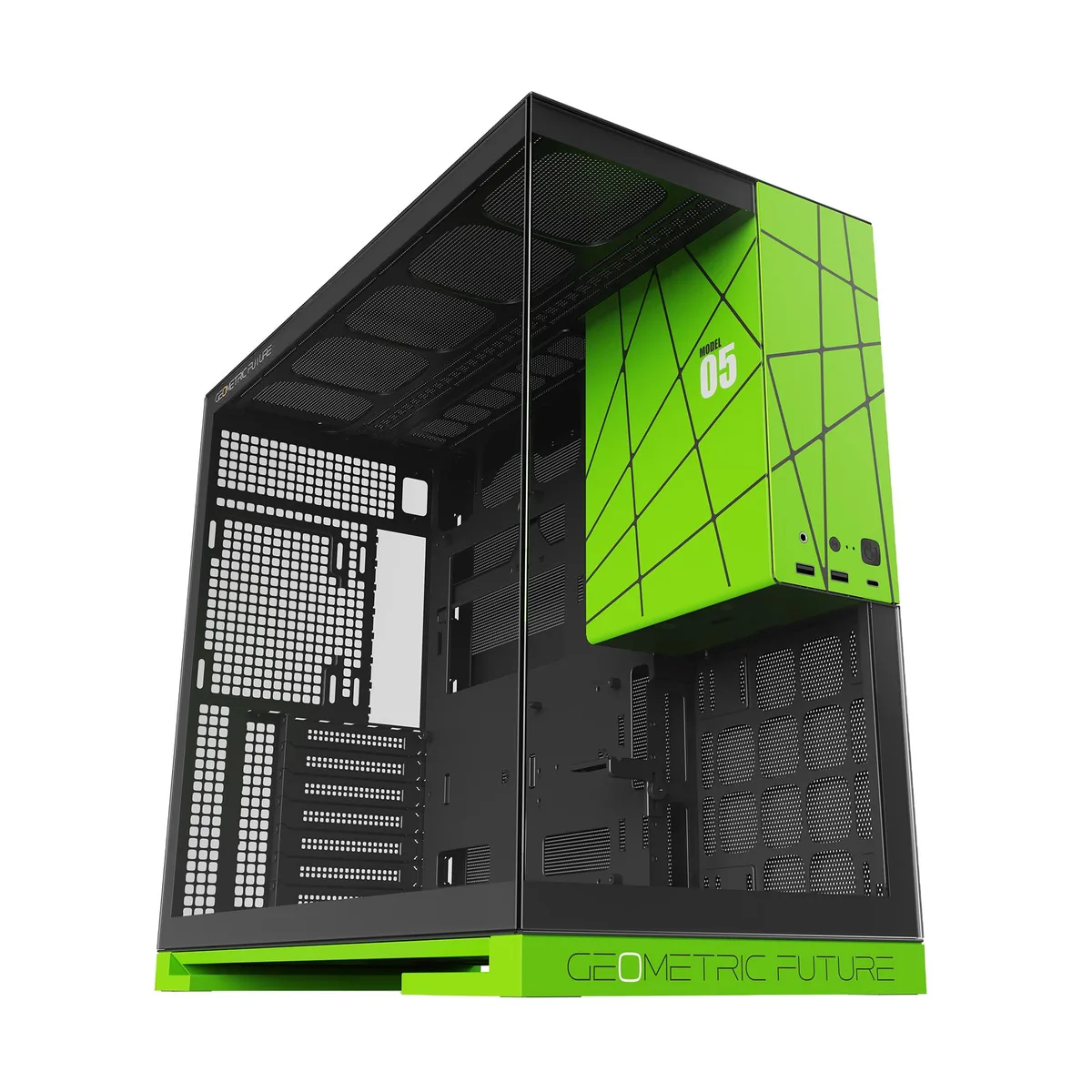

Black and green mid-tower case with tempered glass panels, dual-chamber layout, toolless entry, front Type-C port

Geometric Future

Geometric Future M5 Black/Green PC case

SKU CH-W9M2-966DR

Mid-tower chassis with dual-chamber layout fits E-ATX boards, 460 mm GPUs and 420 mm radiators

  • TypeATX Mid Tower
  • ColorBlack / Green
  • Motherboard CompatibilityExtended ATX
  • Fan OptionsTop : 120/140mm x 3 Rear : 120 /140mm(pre-installed) x1 Righ
  • Radiator OptionsTop : 360/420mm Rad Rear : 120 /140mm Rad Bottom : 360mm Rad
  • 140mm Fans5

Model M5

Color Black / Green

  • E-ATX motherboards and 460mm graphics cards fit comfortably
  • 420mm top radiator support enables high-capacity liquid cooling
  • Five 140mm fans included provide strong airflow out of the box
  • Dual-chamber layout with unique PSU placement keeps cables tidy
  • 2mm steel construction and toolless tempered glass panels ensure durability

Dual-chamber E-ATX case for high-end builds

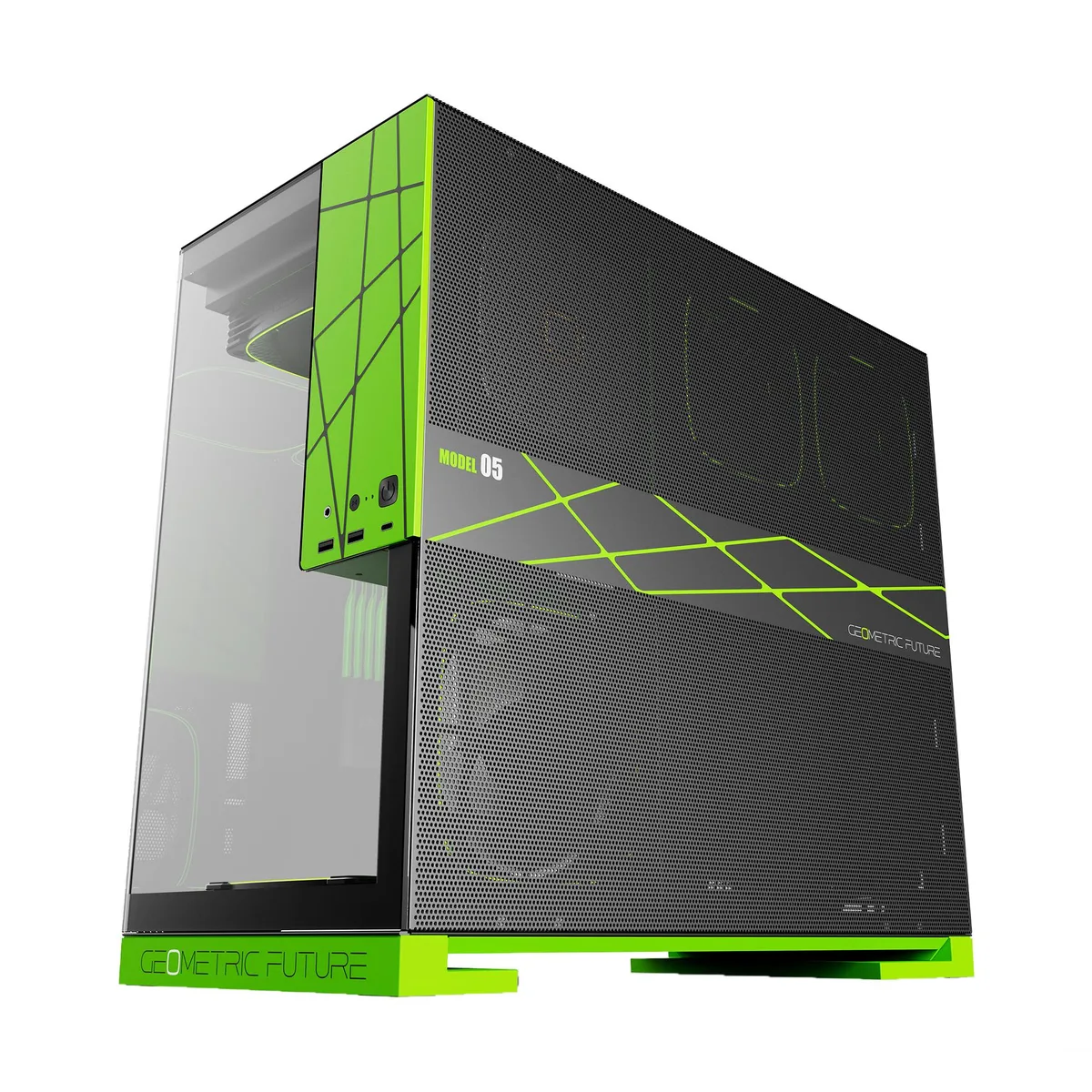

The Geometric Future M5 is a mid-tower chassis that accepts Extended ATX motherboards and graphics cards up to 460 mm long. Its dual-chamber layout separates the power supply from the main component area, giving builders a cleaner internal workspace. The structure uses 1.2 mm steel throughout for rigidity.

Toolless tempered glass and pre-installed fans

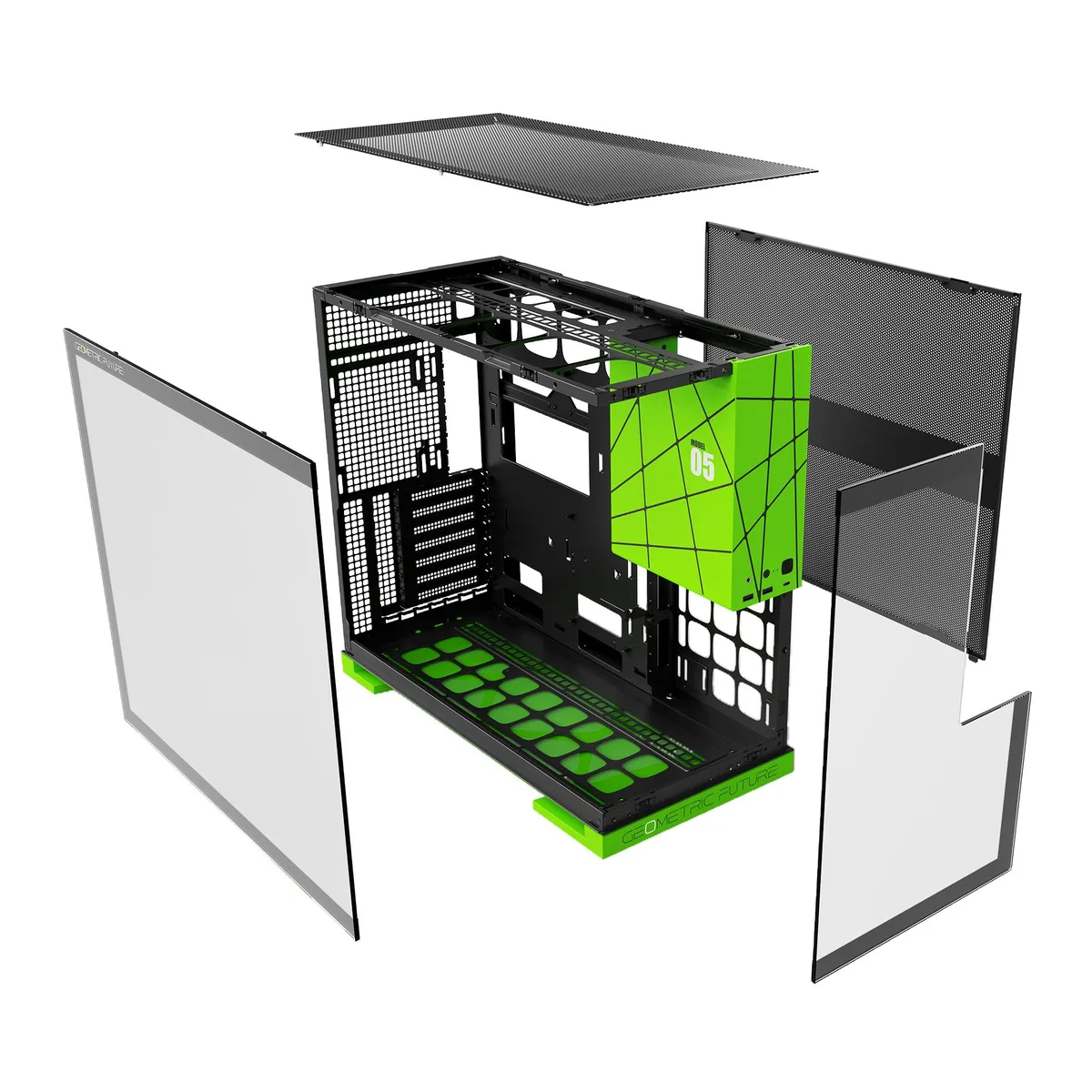

Two hinged tempered-glass panels open without tools for quick access to the interior. Five 140 mm fans come fitted from the factory at the rear, right-front, and bottom positions, delivering immediate airflow. A front-mounted USB Type-C port is included for modern peripherals.

Radiator and clearance limits

The top chamber supports radiators up to 420 mm, while the bottom mounts a 360 mm unit and the rear takes 120 mm or 140 mm. CPU coolers are capped at 180 mm height and the power supply bay fits units up to 160 mm long. Ten 120 mm fan slots exist in total, but only the five 140 mm units are supplied.

Highlights

  • E-ATX motherboards and 460mm graphics cards fit comfortably
  • 420mm top radiator support enables high-capacity liquid cooling
  • Five 140mm fans included provide strong airflow out of the box
  • Dual-chamber layout with unique PSU placement keeps cables tidy
  • 2mm steel construction and toolless tempered glass panels ensure durability

Specifications

BrandGeometric Future
SeriesM5
TypeATX Mid Tower
ColorBlack / Green
Motherboard CompatibilityExtended ATX
Fan OptionsTop : 120/140mm x 3
Rear : 120 /140mm(pre-installed) x1
Right Front : 120/140(pre-installed)/160mm x1
Motherboard back : 120mm x2
Bottom : 120/140mm(pre-installed) x 3
Radiator OptionsTop : 360/420mm Rad
Rear : 120 /140mm Rad
Bottom : 360mm Rad
140mm Fans5
Max GPU Length460mm
Max CPU Cooler Height180mm
Max PSU Length160mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What maintenance will the pre-installed 120 mm and 140 mm fans need over time?

The five pre-installed fans use standard 120 mm and 140 mm frames, so they can be cleaned with compressed air or swapped for replacements of the same size when bearings wear out.

Which thermal limit appears first when a 420 mm top radiator and a 360 mm bottom radiator run under sustained load?

The 180 mm CPU cooler height clearance and the 460 mm GPU length limit define the largest components that fit, so radiator thickness and tubing routing become the practical ceiling before airflow does.

How much waste heat and fan noise escape through the 1.2 mm steel panels when the system runs all day?

The 0.8 mm to 1.2 mm steel construction dampens mid-range fan noise, while the tempered glass side panels vent heat directly; actual dB and temperature figures depend on the specific fan curves and hardware installed.
