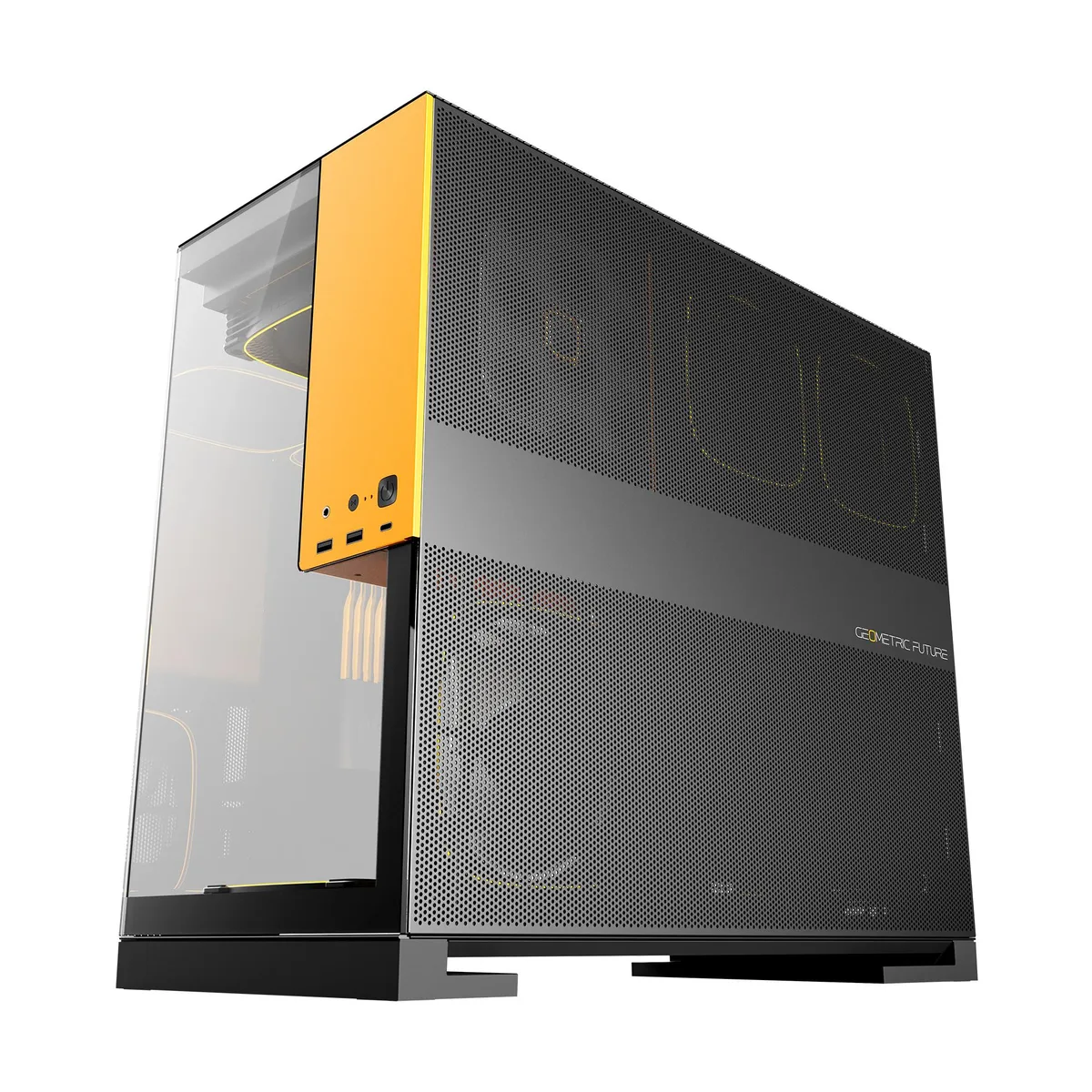

Black and yellow dual-chamber mid-tower with tempered glass side panel, steel frame, front Type-C port, toolless panels

Geometric Future

Geometric Future M5 Dual-Chamber GEO-M5-BY Black/Yellow PC Case

SKU CH-Z4TK-062S3

Dual-chamber mid-tower fits E-ATX boards, 460 mm GPUs and 420 mm radiators with toolless tempered-glass panels

  • TypeATX Mid Tower
  • ColorBlack / Yellow
  • Motherboard CompatibilityExtended ATX
  • Fan OptionsTop : 120/140mm x 3 Rear : 120 /140mm x1 Right Front : 120/1
  • Radiator OptionsTop : 360/420mm Rad Rear : 120 /140mm Rad Bottom : 360mm Rad
  • Max GPU Length460mm

Model M5

Color Black / Yellow

  • Dual-chamber layout isolates heat for cleaner airflow
  • 2 mm steel chassis adds rigidity and dampens vibration
  • E-ATX support plus 460 mm GPU clearance fits flagship builds
  • Top 420 mm radiator mount enables high-capacity liquid cooling
  • Ten 120 mm fan positions let you tune pressure and noise

Dual-Chamber Layout

The Geometric Future M5 is a mid-tower case built around a dual-chamber design that separates the motherboard tray from the power supply and drive cages. It accepts Extended ATX boards and graphics cards up to 460 mm long, while the CPU cooler clearance reaches 180 mm. The chassis uses steel between .8 mm and 1.2 mm thick throughout, finished in a black and yellow colour scheme.

Toolless Panels and Front Type-C

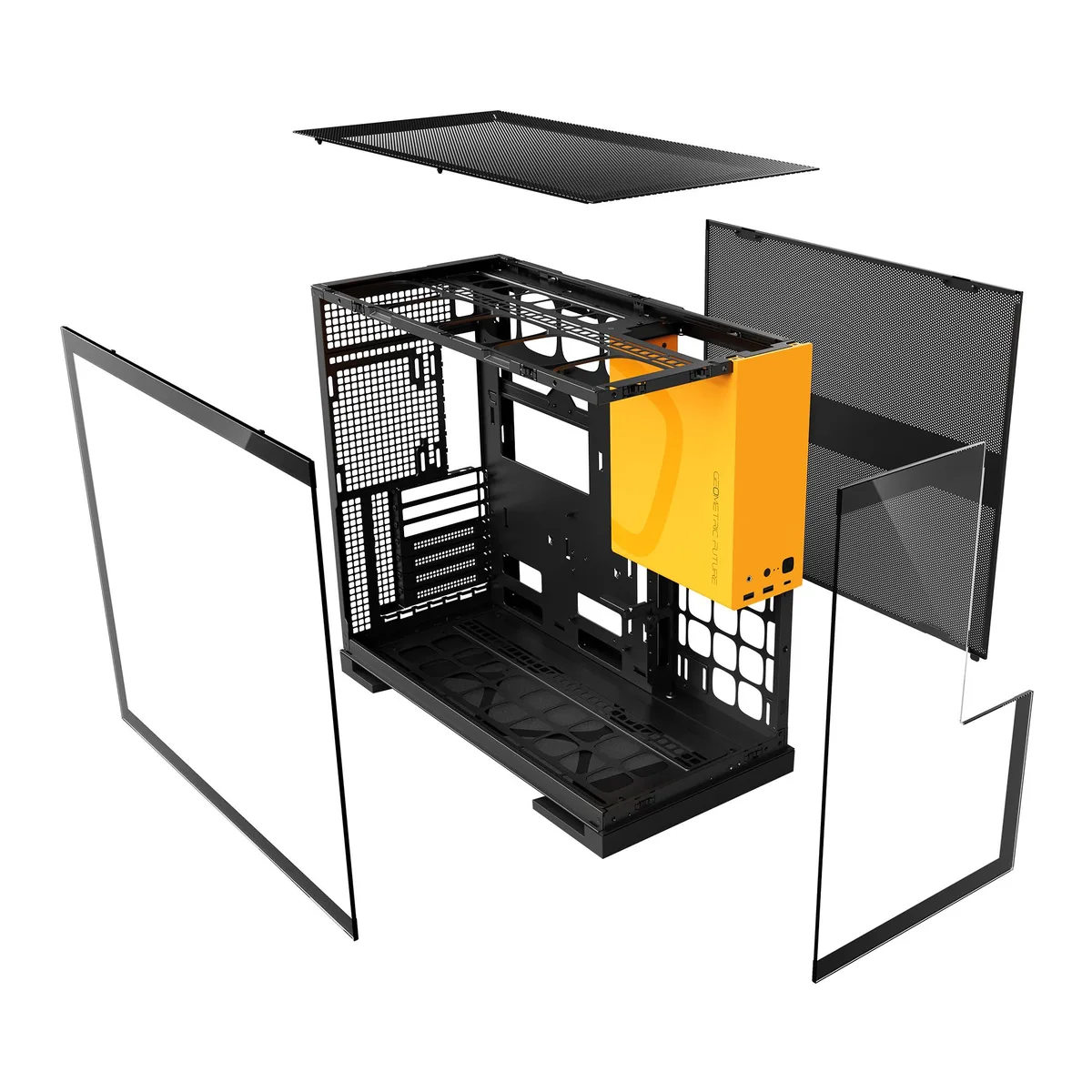

Tempered glass side panels attach without screws, and a front-panel USB Type-C port is included for modern peripherals. The internal layout provides a dedicated display platform for small items or accessories. Fan mounts are distributed across every major surface: the top takes three 120 mm or 140 mm fans, the rear one, the right-front position one 120 mm, 140 mm or 160 mm fan, the motherboard back two 120 mm fans, and the bottom three 120 mm or 140 mm fans, totalling up to ten 120 mm equivalents.

Radiator Support Limits

Liquid-cooling capacity is defined by the radiator mounts: the top supports 360 mm or 420 mm units, the rear fits 120 mm or 140 mm, and the bottom accepts 360 mm. The power supply bay is limited to units no longer than 160 mm, which excludes many higher-wattage models. Builders needing more than ten fan positions, longer power supplies, or radiators larger than 420 mm will find the M5 unsuitable.

Highlights

  • Dual-chamber layout isolates heat for cleaner airflow
  • 2 mm steel chassis adds rigidity and dampens vibration
  • E-ATX support plus 460 mm GPU clearance fits flagship builds
  • Top 420 mm radiator mount enables high-capacity liquid cooling
  • Ten 120 mm fan positions let you tune pressure and noise

Specifications

BrandGeometric Future
SeriesM5
TypeATX Mid Tower
ColorBlack / Yellow
Motherboard CompatibilityExtended ATX
Fan OptionsTop : 120/140mm x 3
Rear : 120 /140mm x1
Right Front : 120/140/160mm x1
Motherboard back : 120mm x2
Bottom : 120/140mm x 3
Radiator OptionsTop : 360/420mm Rad
Rear : 120 /140mm Rad
Bottom : 360mm Rad
Max GPU Length460mm
Max CPU Cooler Height180mm
Max PSU Length160mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What maintenance will the toolless tempered glass panels need over time?

Wipe the glass with a microfibre cloth when dust appears; the toolless latches have no serviceable parts and do not require lubrication.

What limit appears first during a sustained heavy load — GPU thermals or radiator capacity?

A 420 mm top radiator handles the highest heat load the case can mount, so GPU length (460 mm) and cooler height (180 mm) become the practical limits before cooling capacity does.

How loud and hot does the chassis get when ten 120 mm fans run all day?

Ten 120 mm fans at full speed move large volume but generate noticeable noise; the 1.2 mm steel panels contain heat, so expect warm exterior surfaces during continuous loads.
